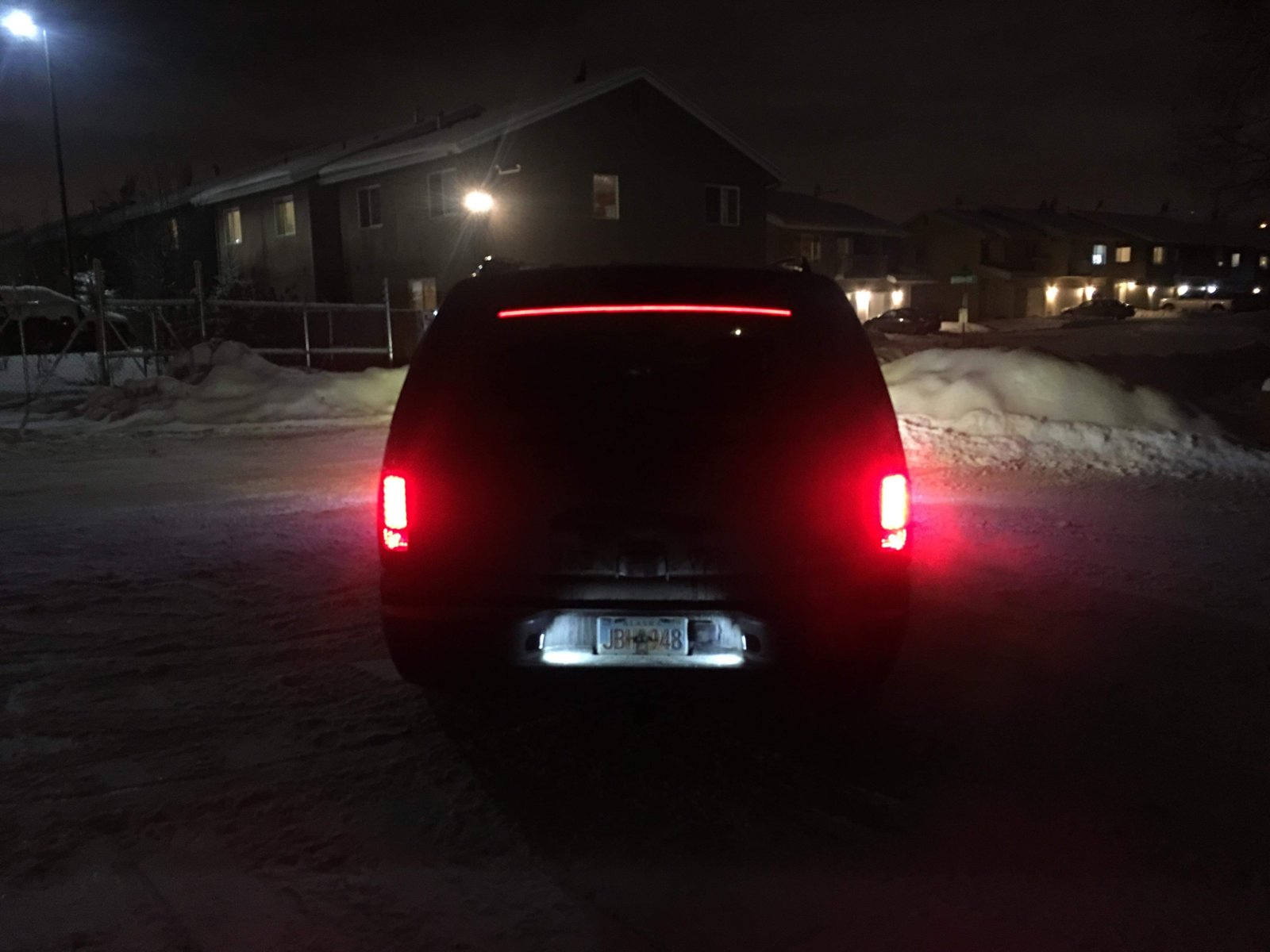

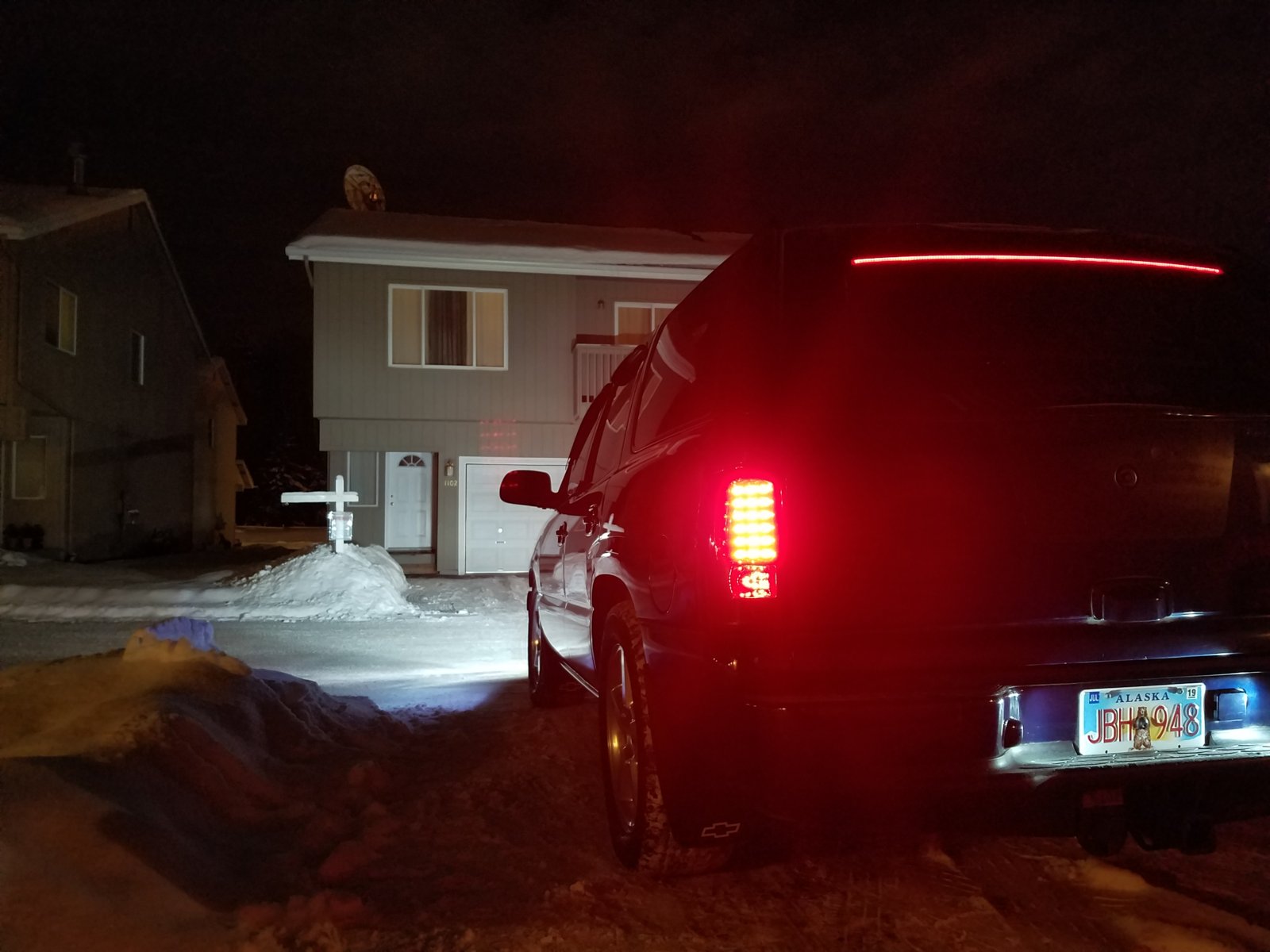

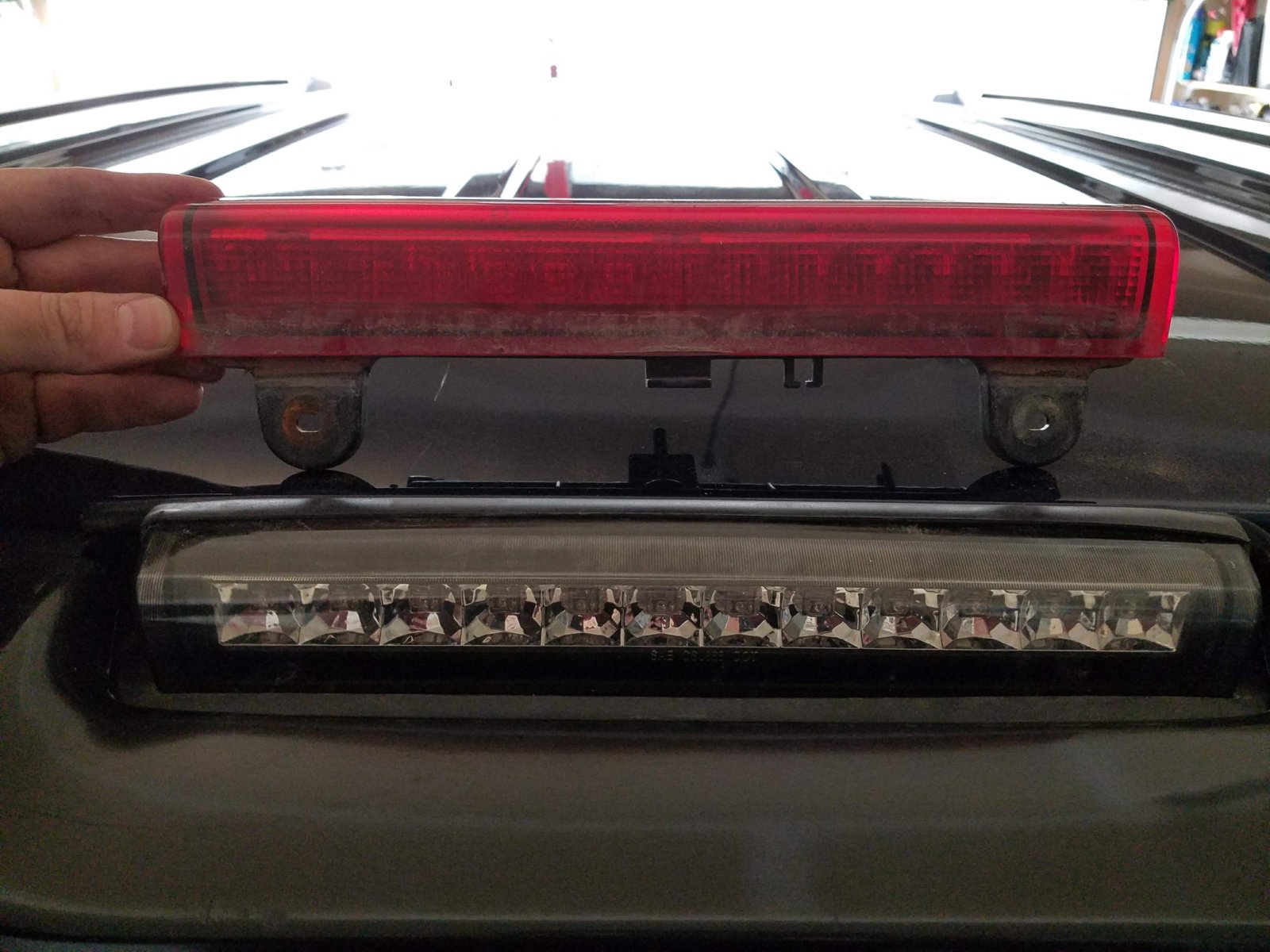

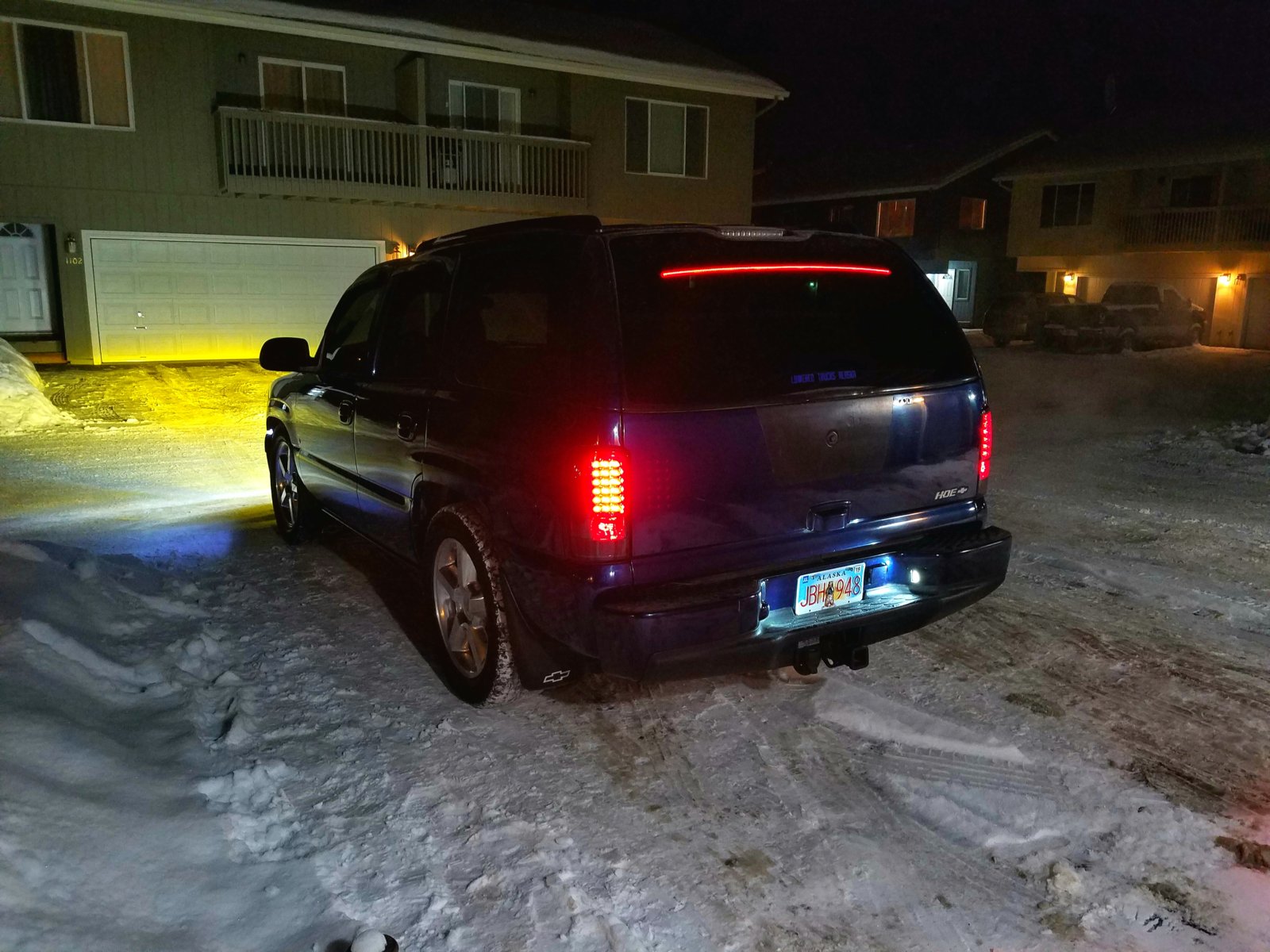

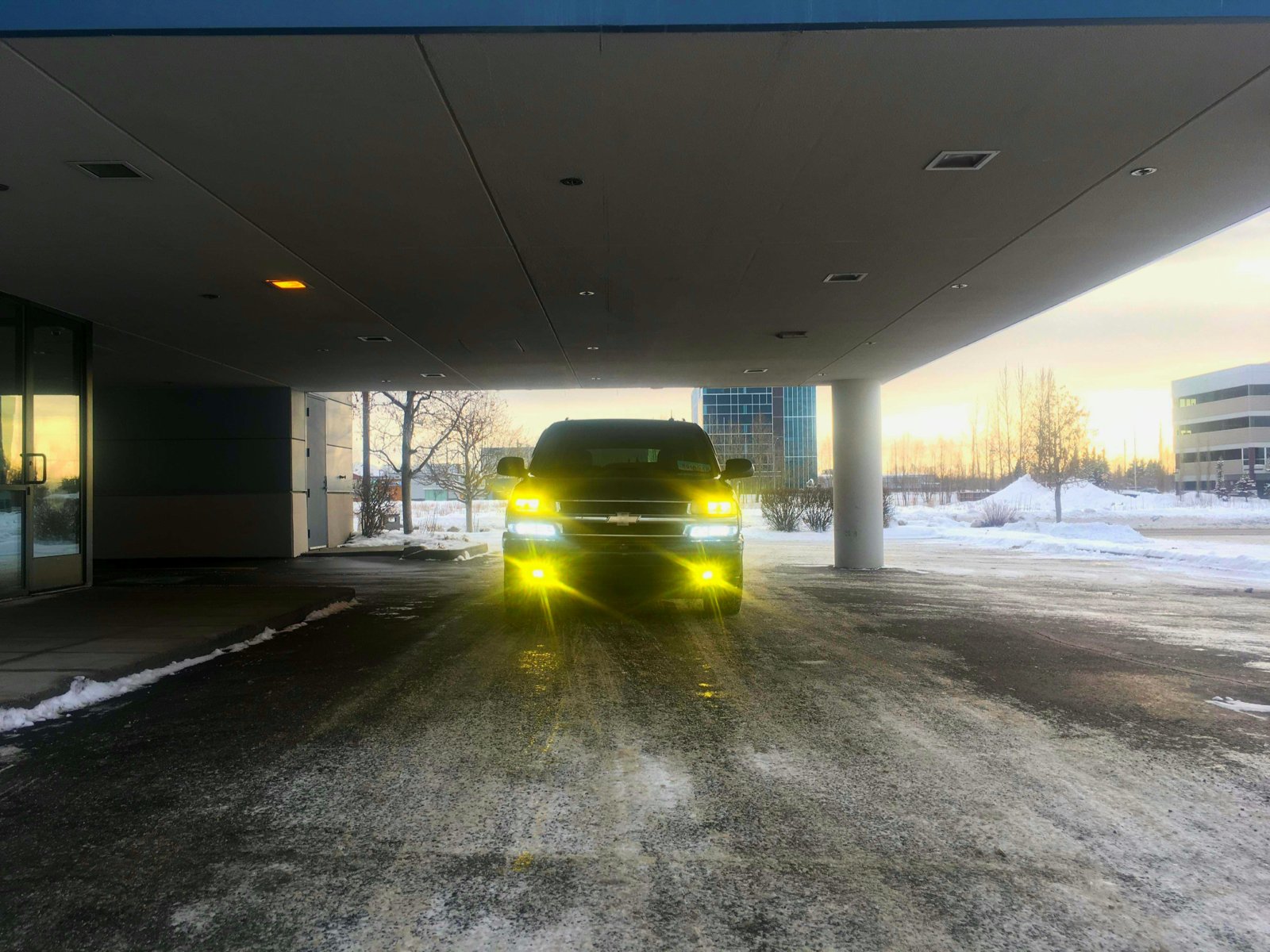

Show off your exterior lighting mods

Discussion in 'Exterior' started by 05Single, Apr 3, 2017.

  1. shreksbrother

    shreksbrother Member Supporting Member

    Posts:
    67
    Likes Received:
    41
    Joined:
    May 9, 2017
    Location:
    Spartanburg, SC
    Name:
    Adam
    Those underhood lights are awesome!

  2. seven9st surfer

    seven9st surfer Full Access Member

    Posts:
    277
    Likes Received:
    111
    Joined:
    Nov 29, 2011
    Location:
    Milton, FL
    Name:
    Josh
    Thanks! got the idea from Ezdaar on here.

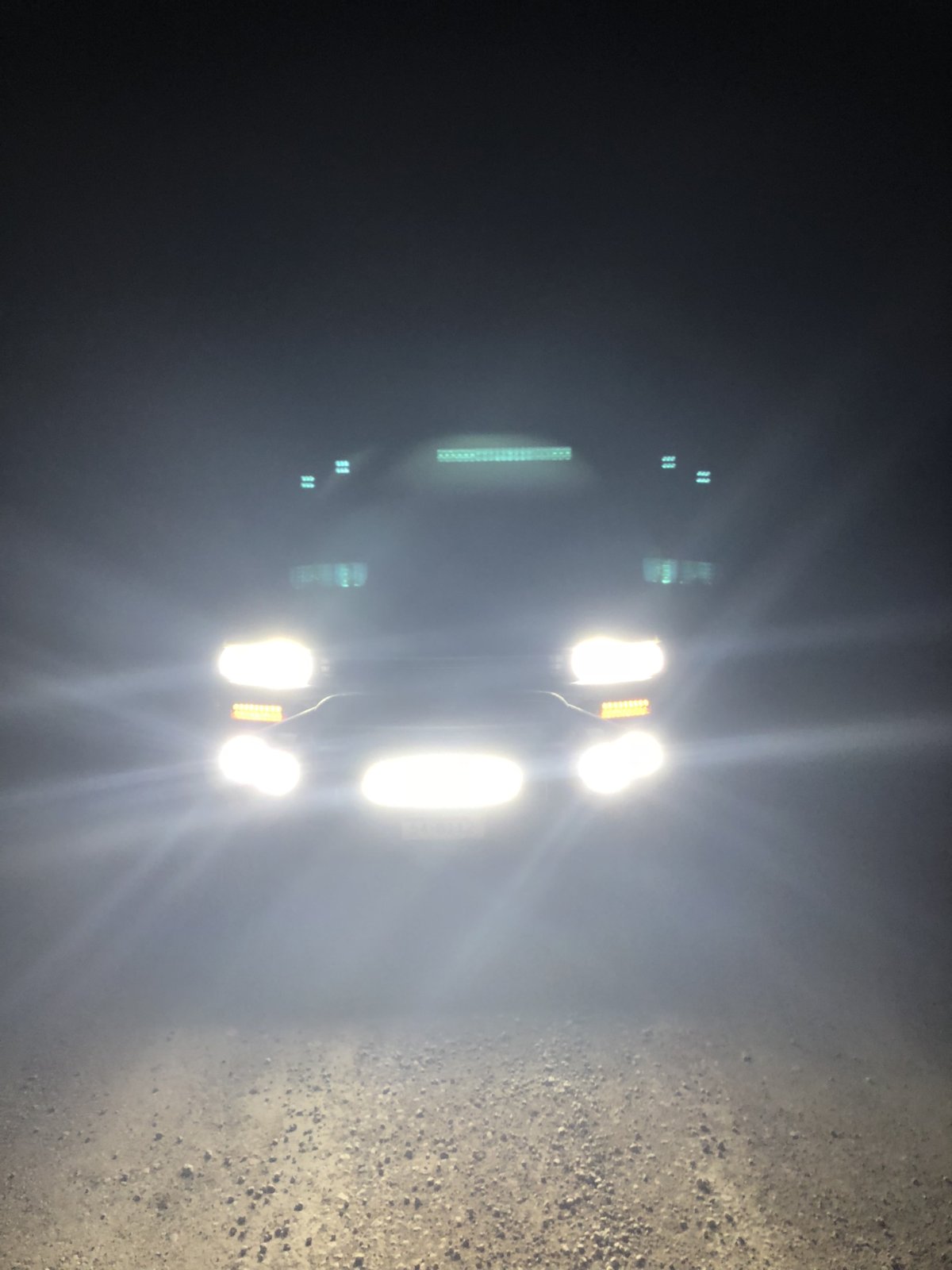

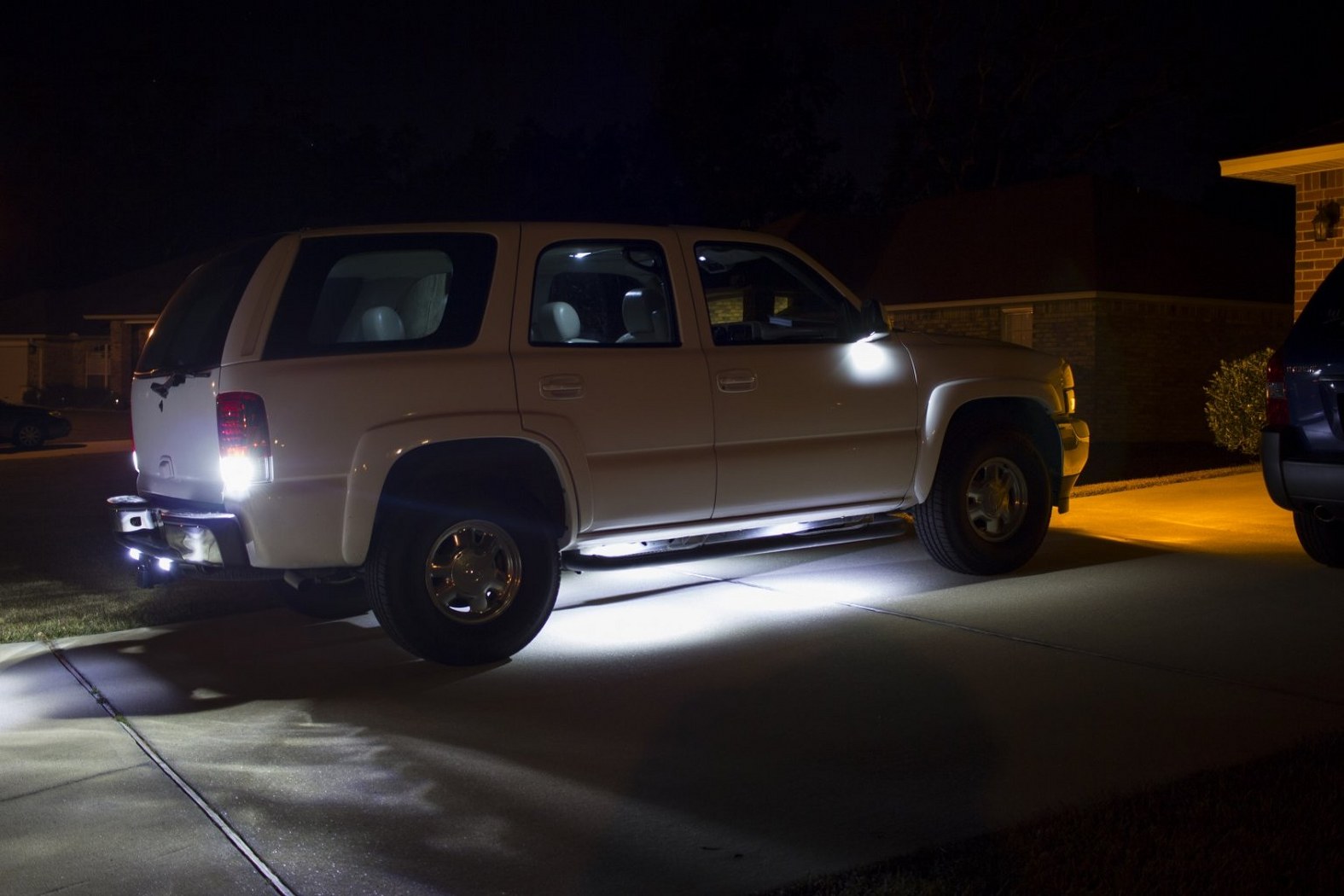

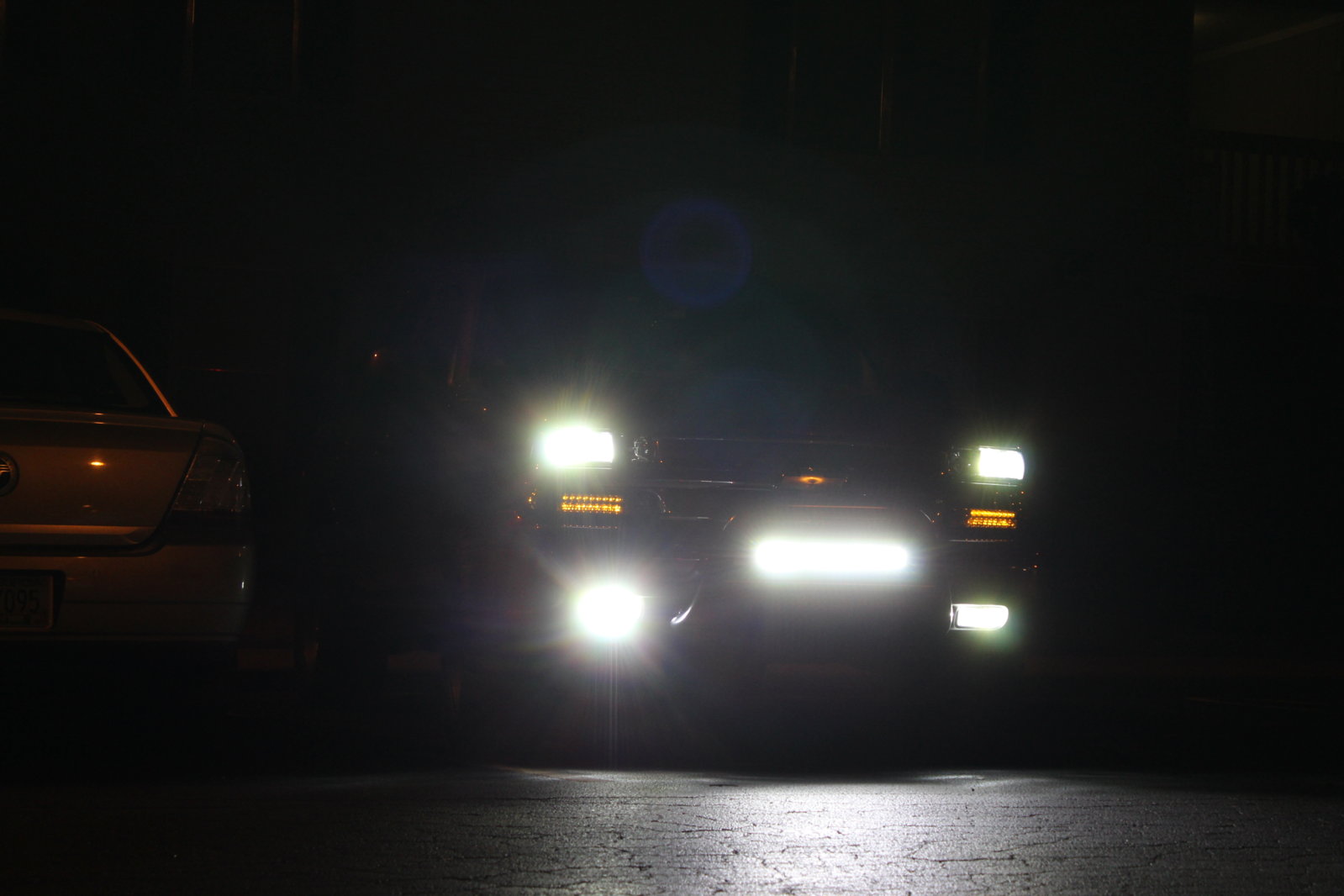

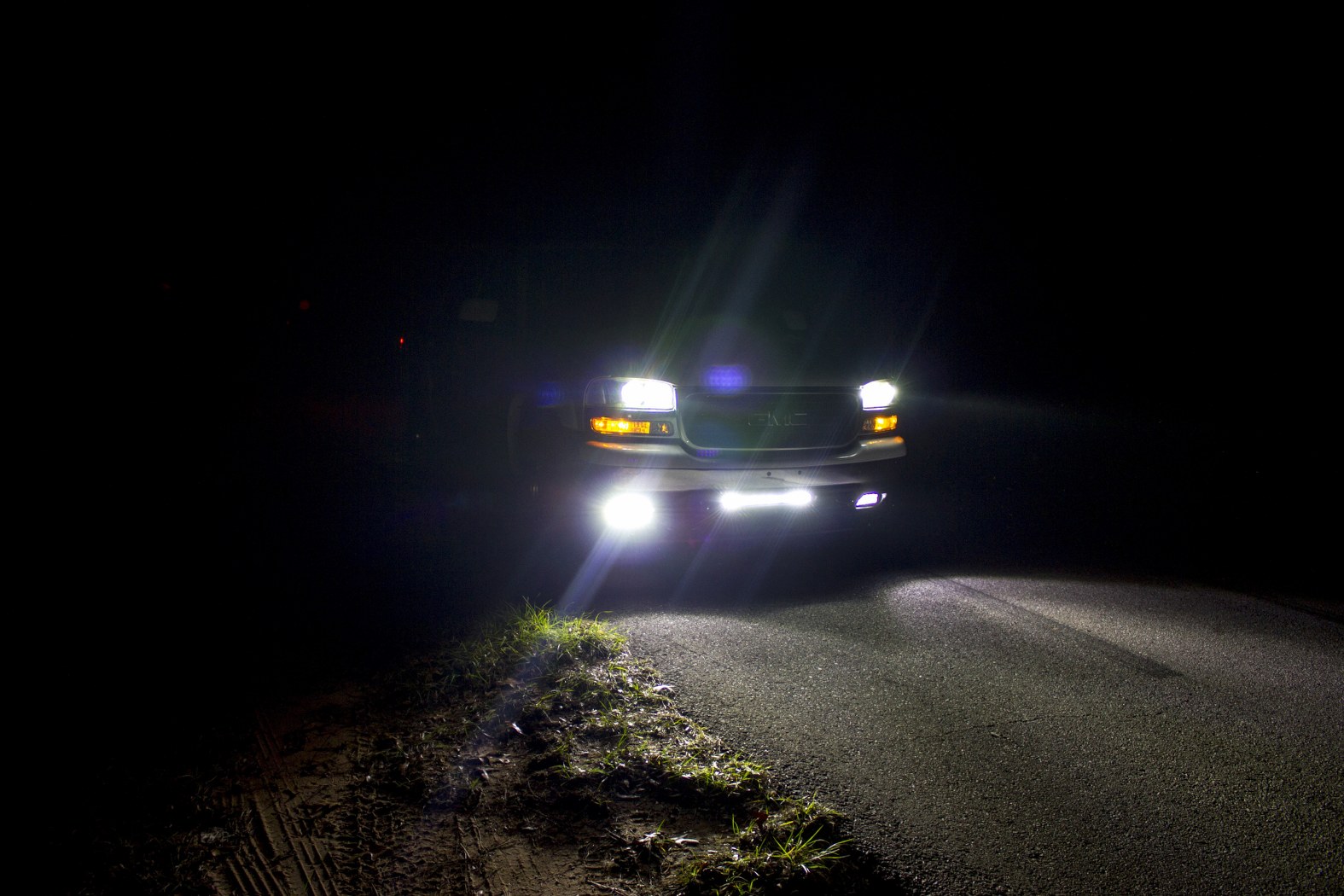

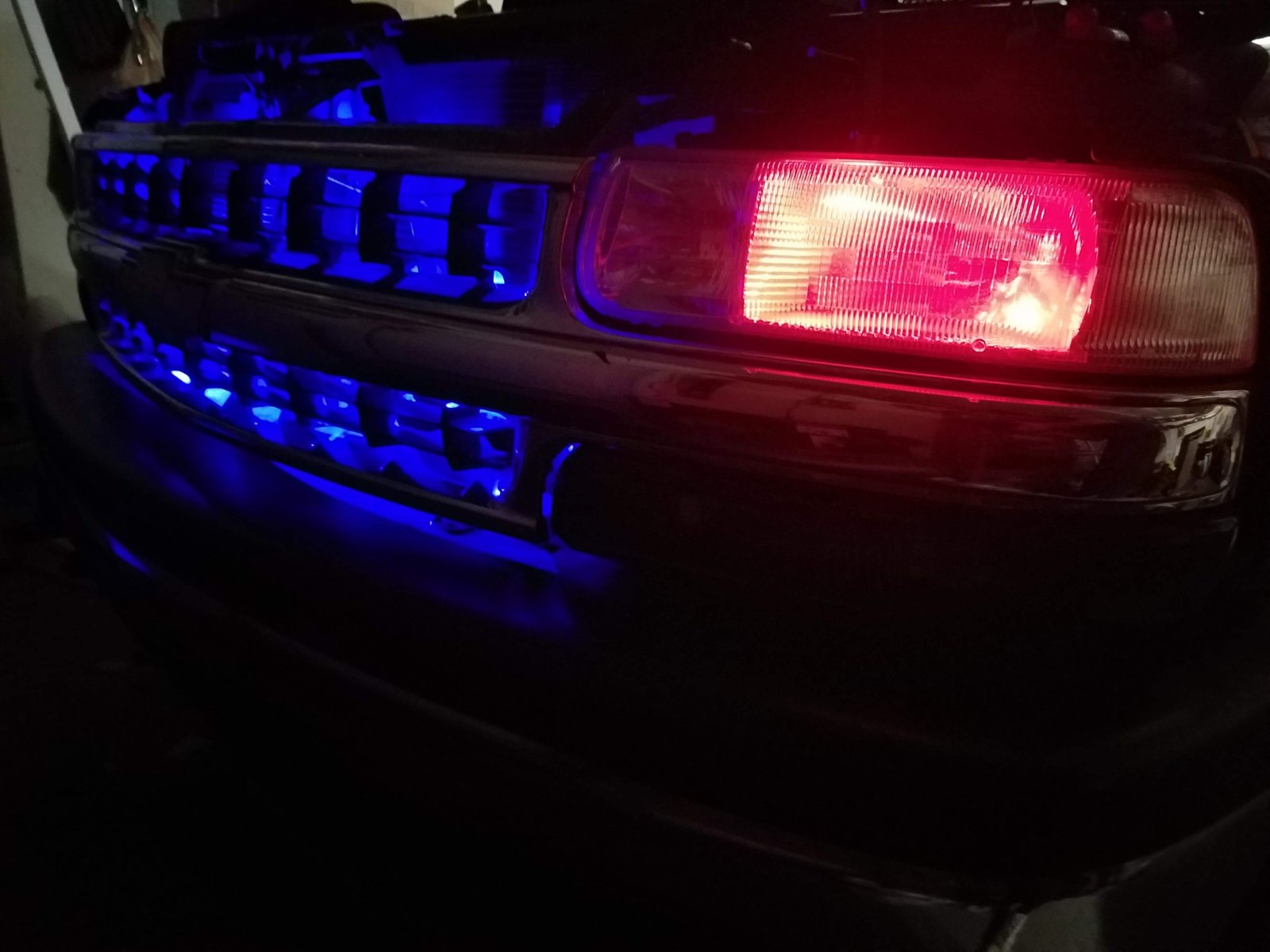

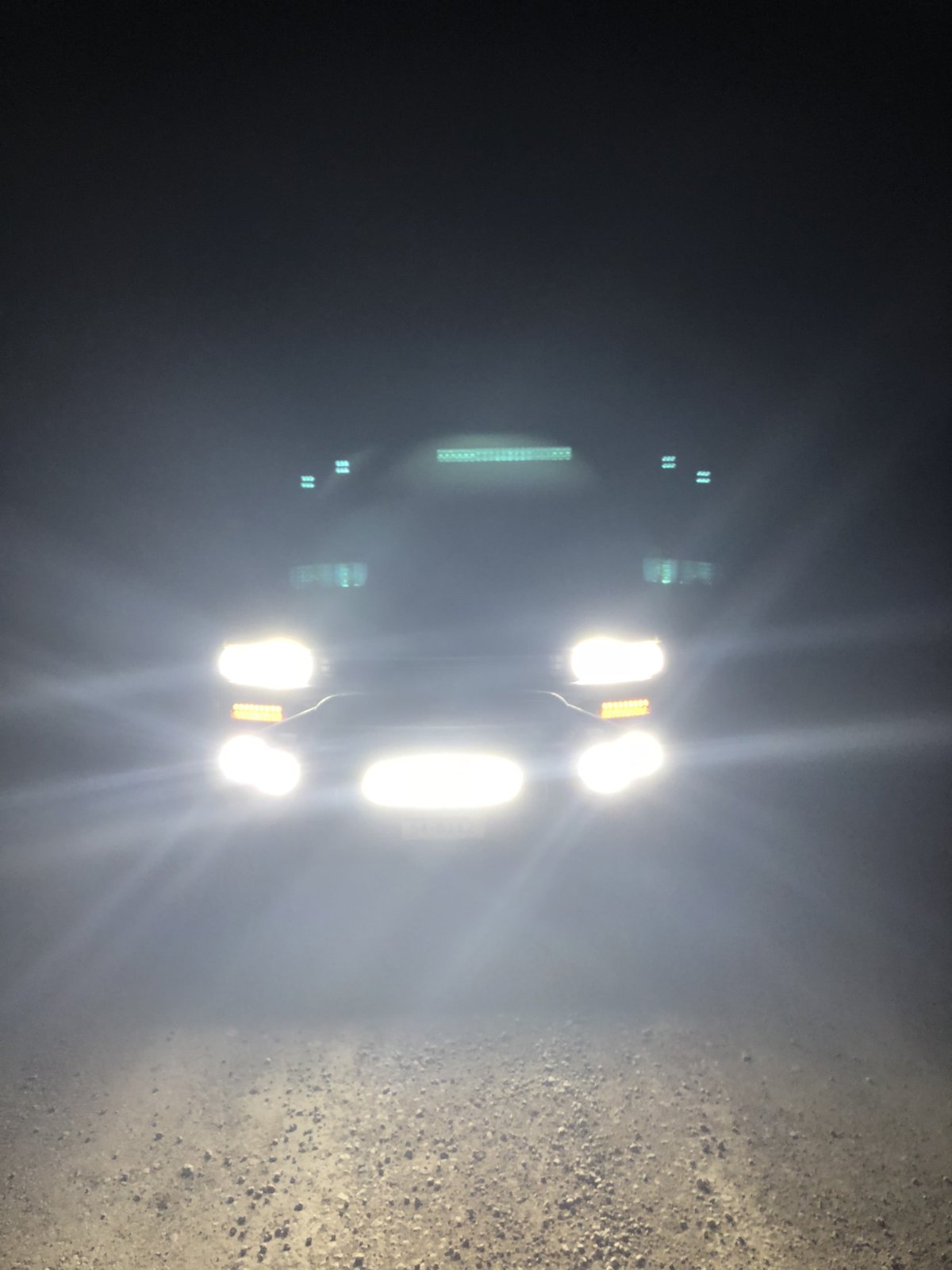

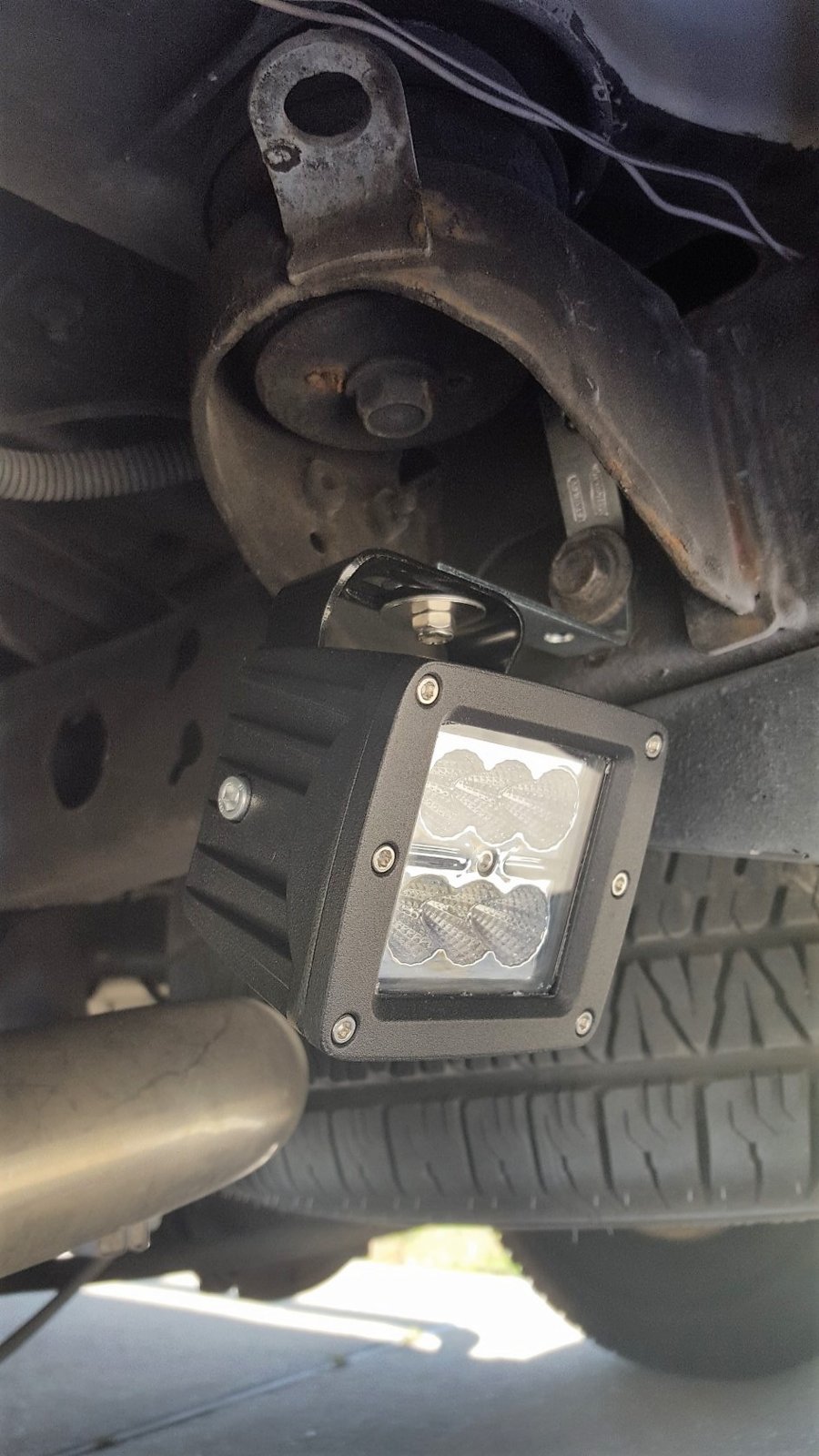

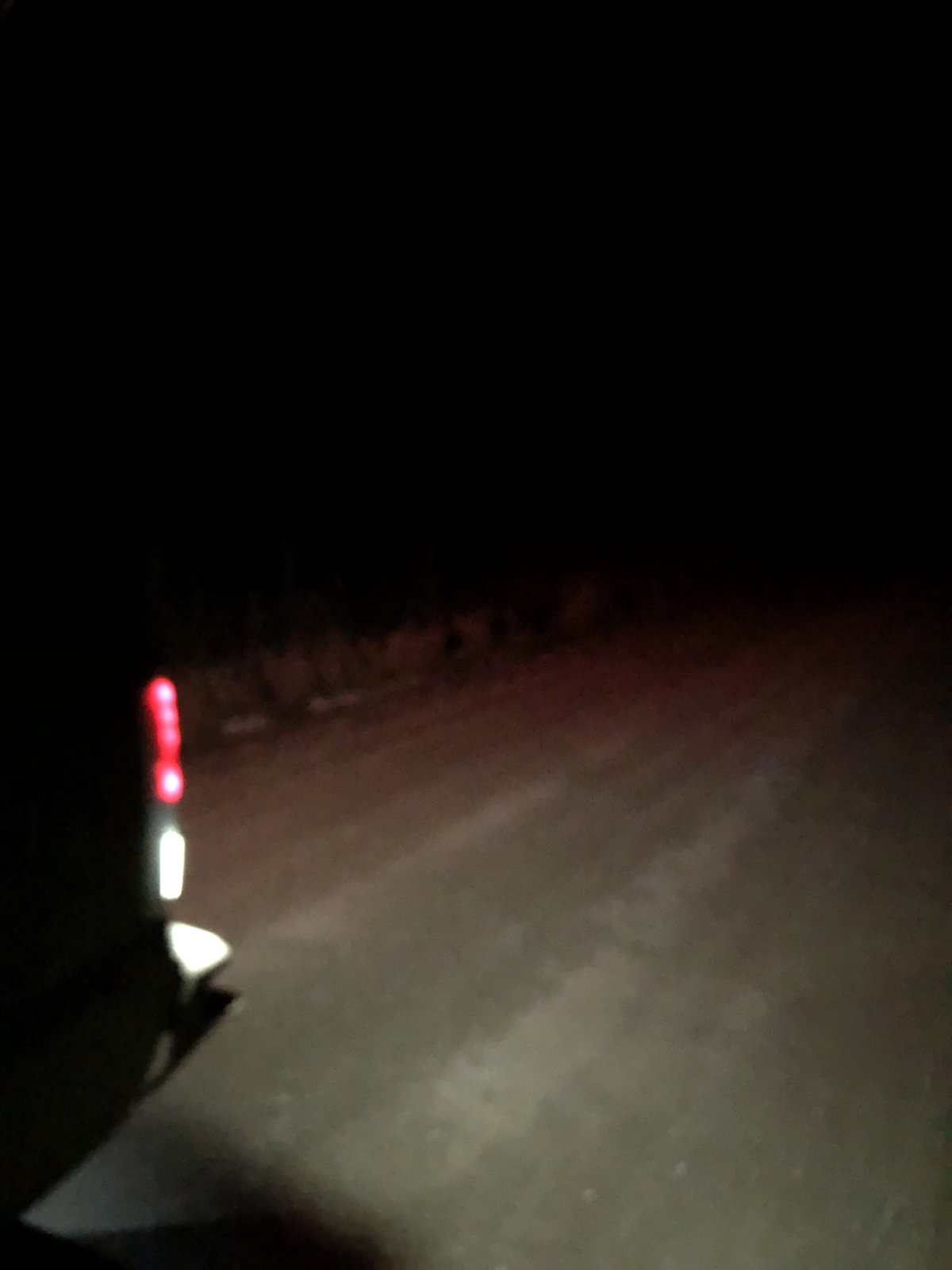

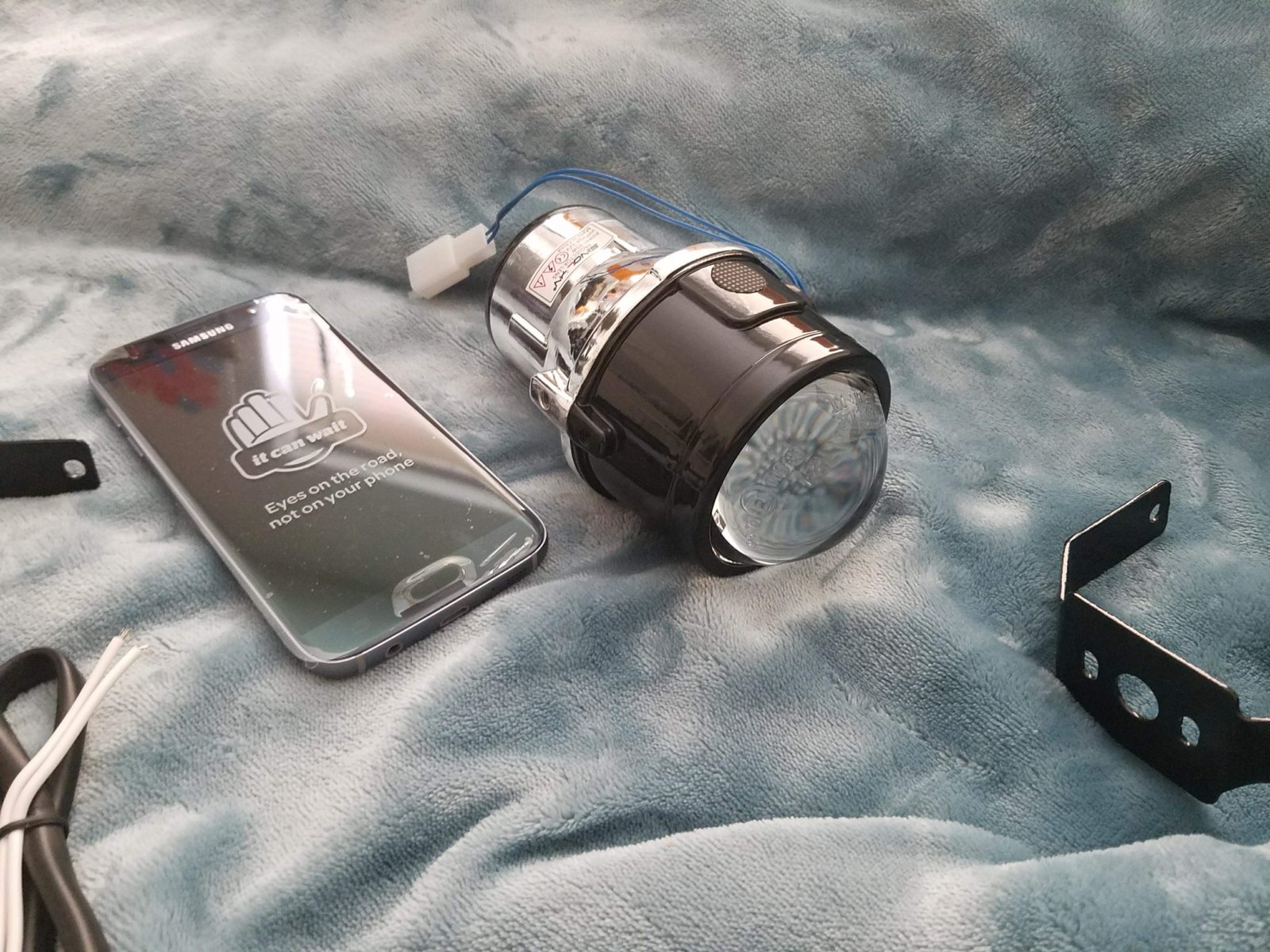

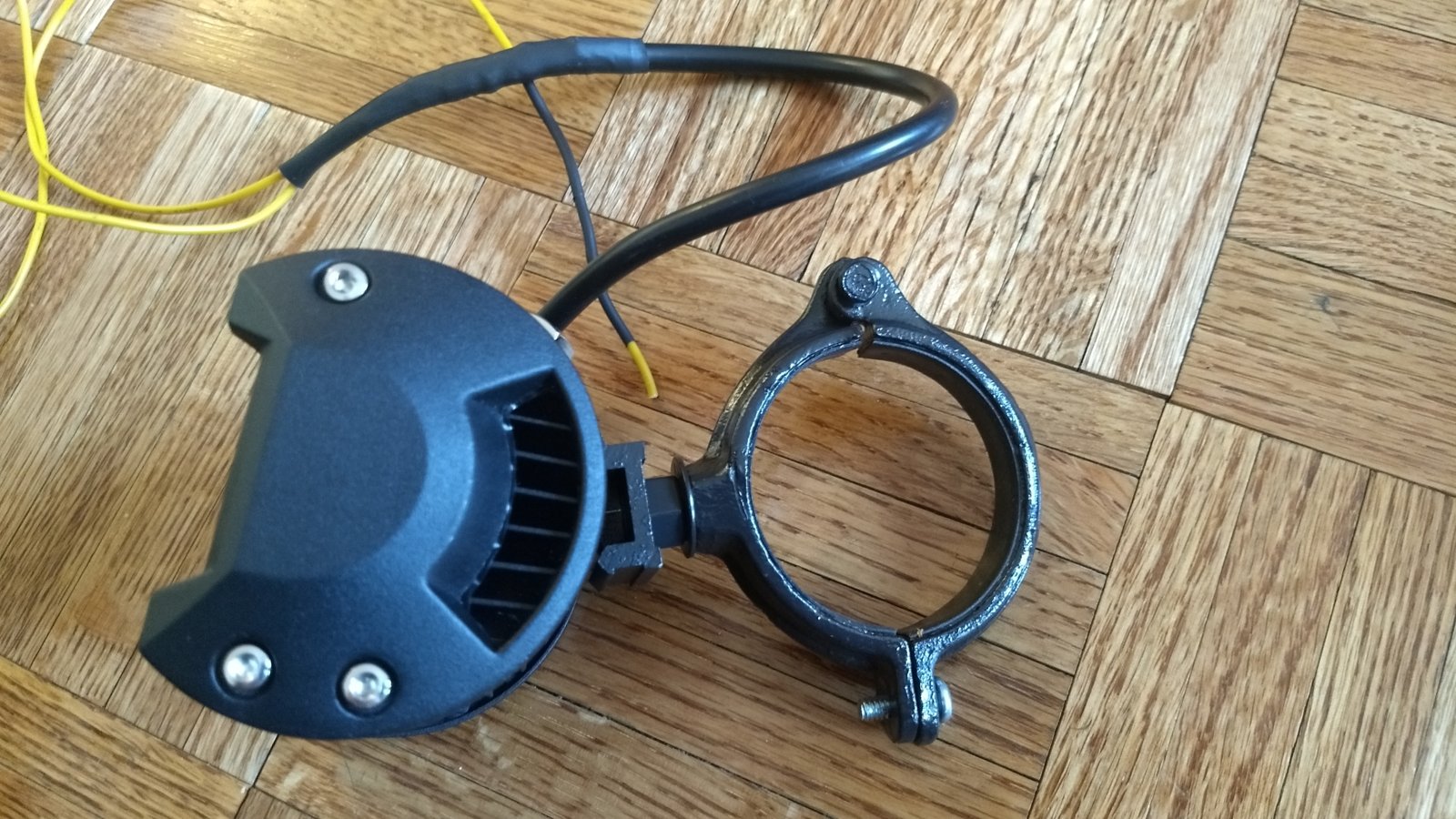

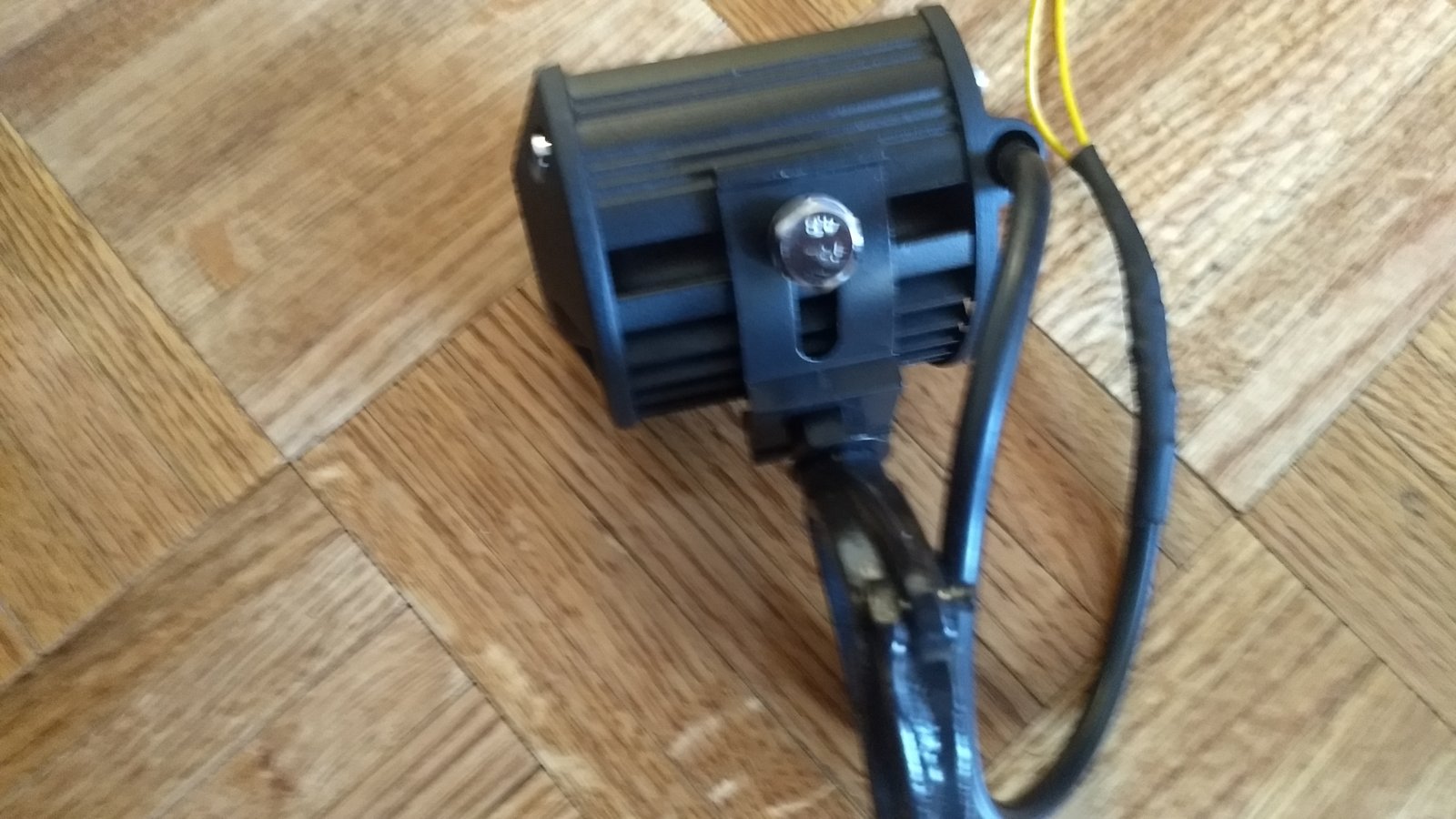

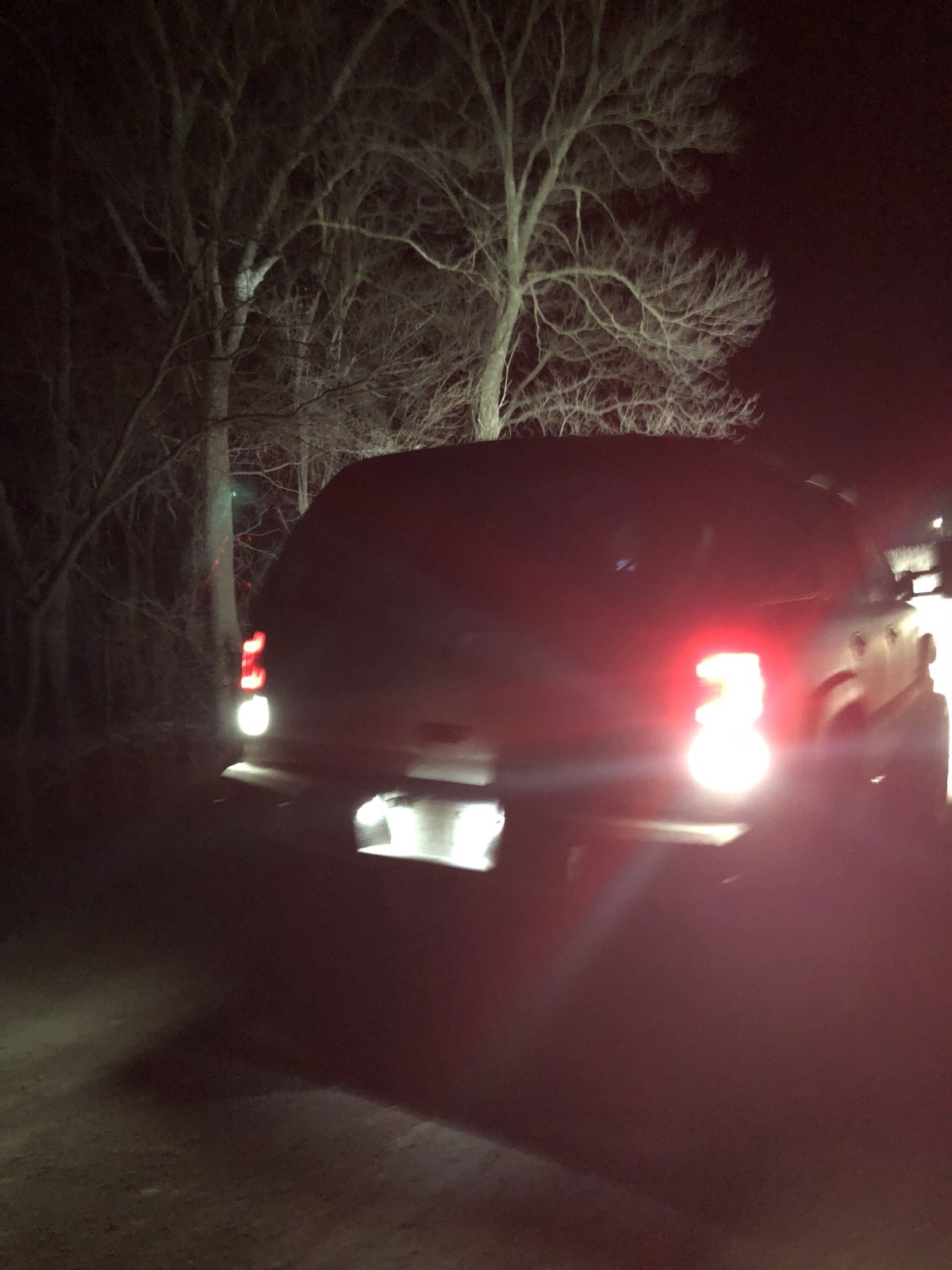

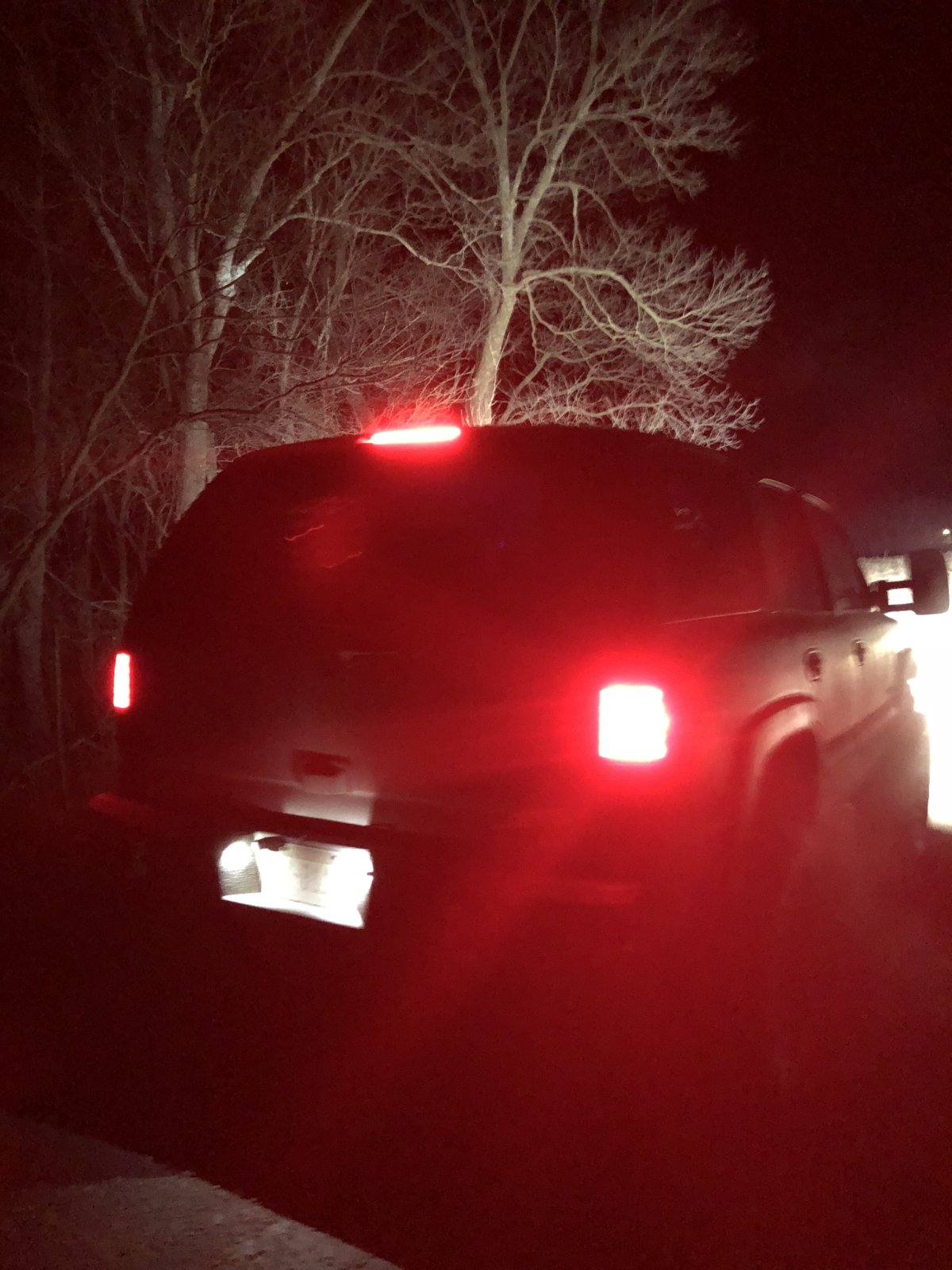

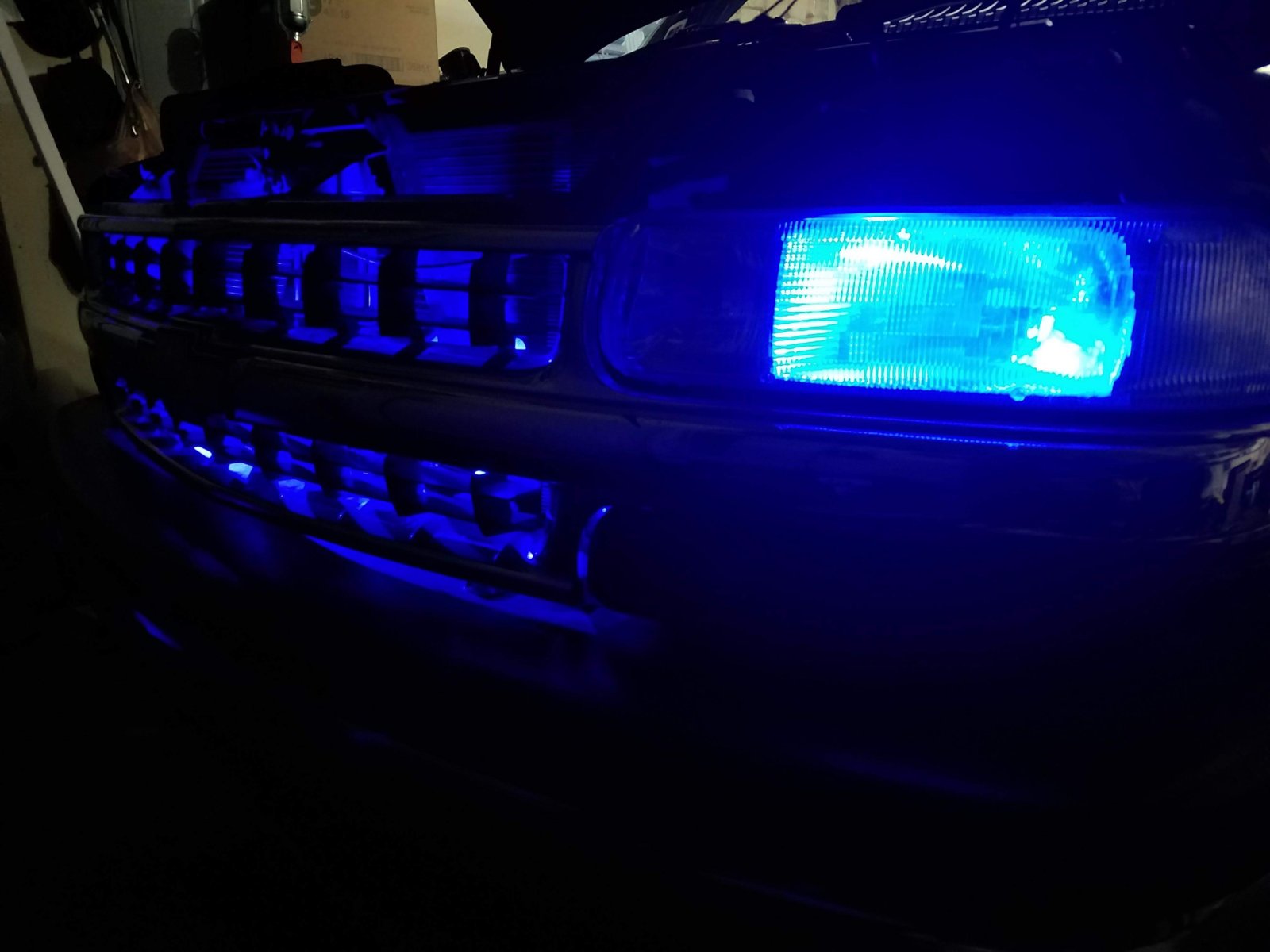

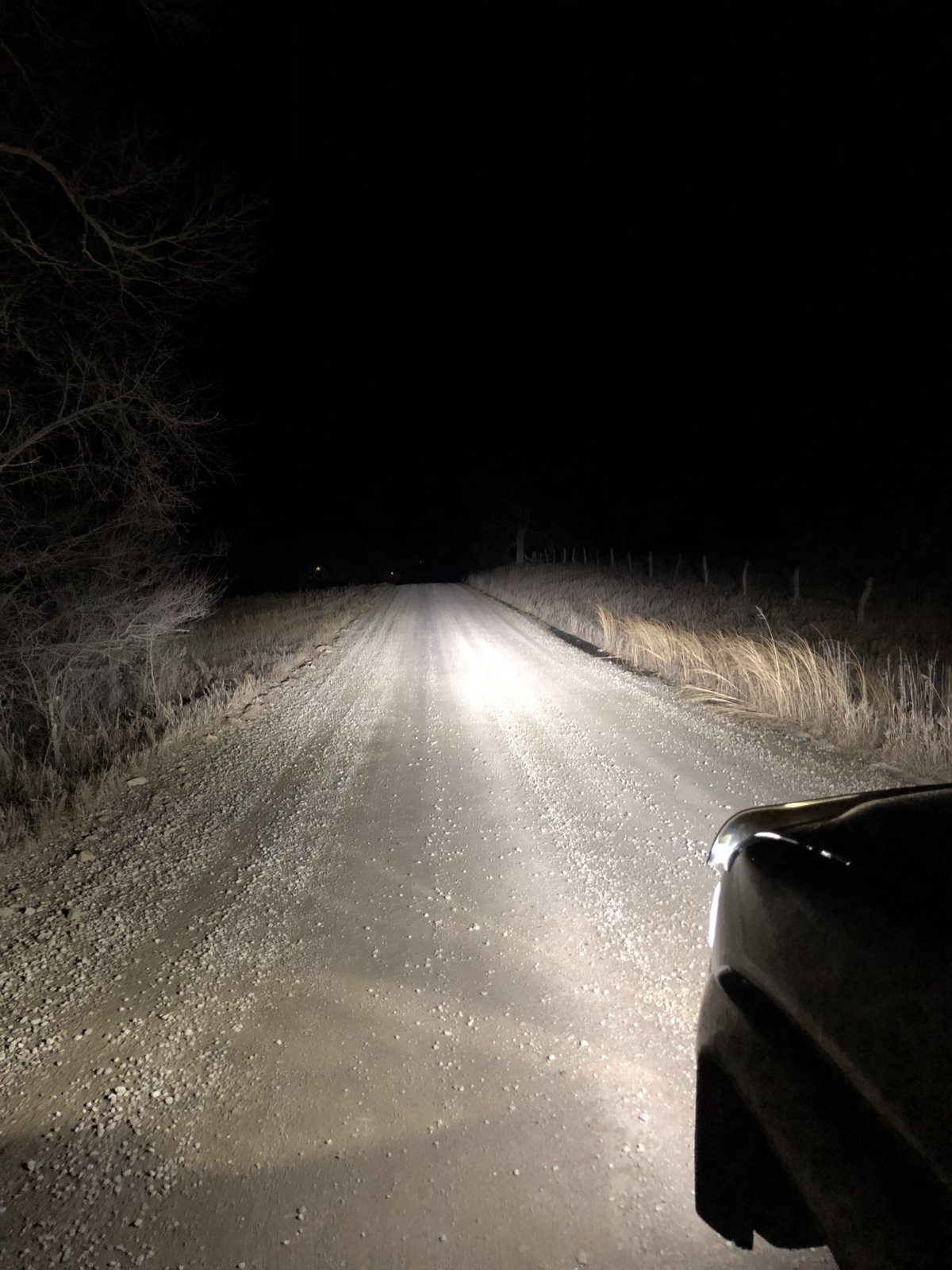

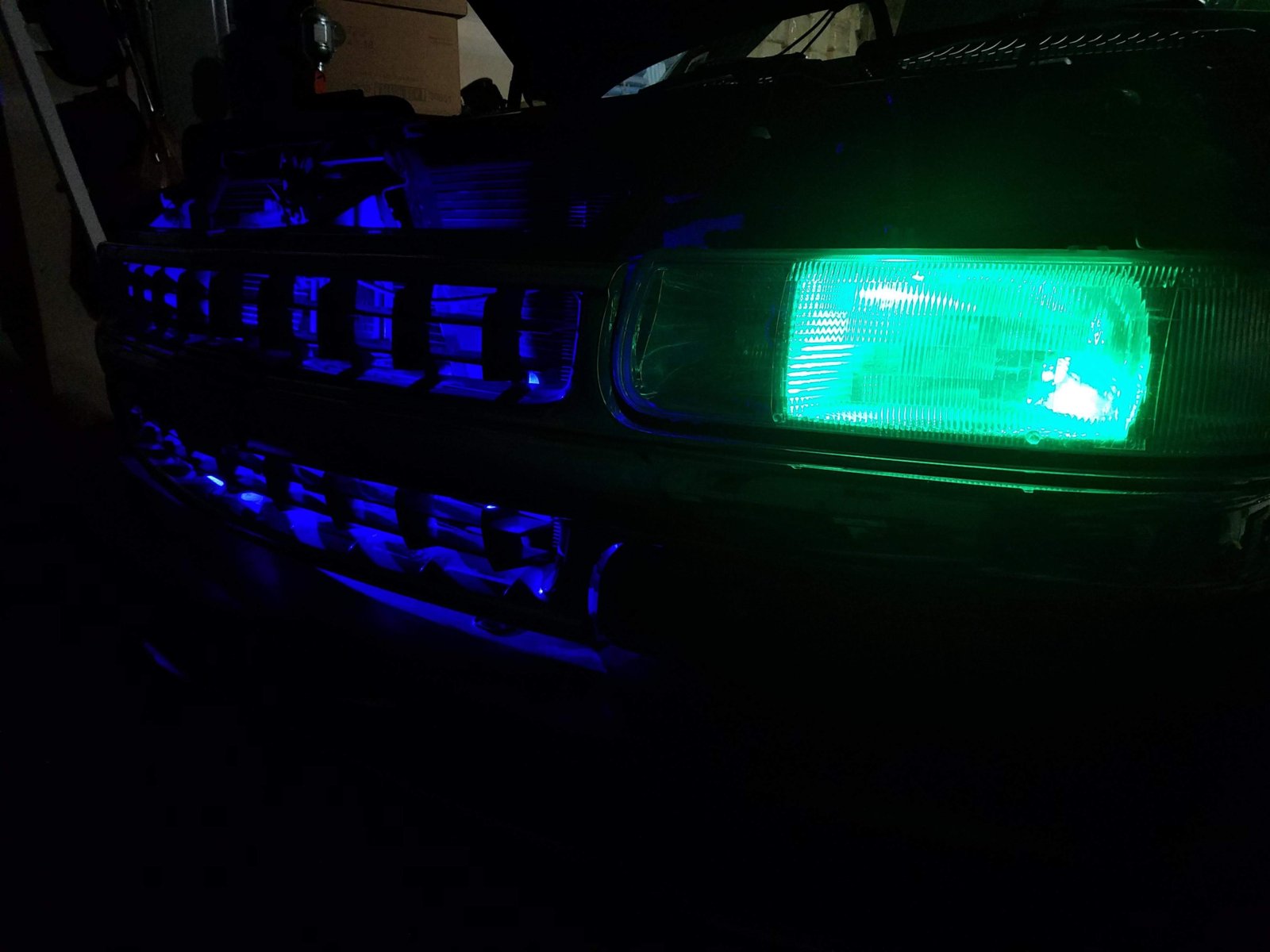

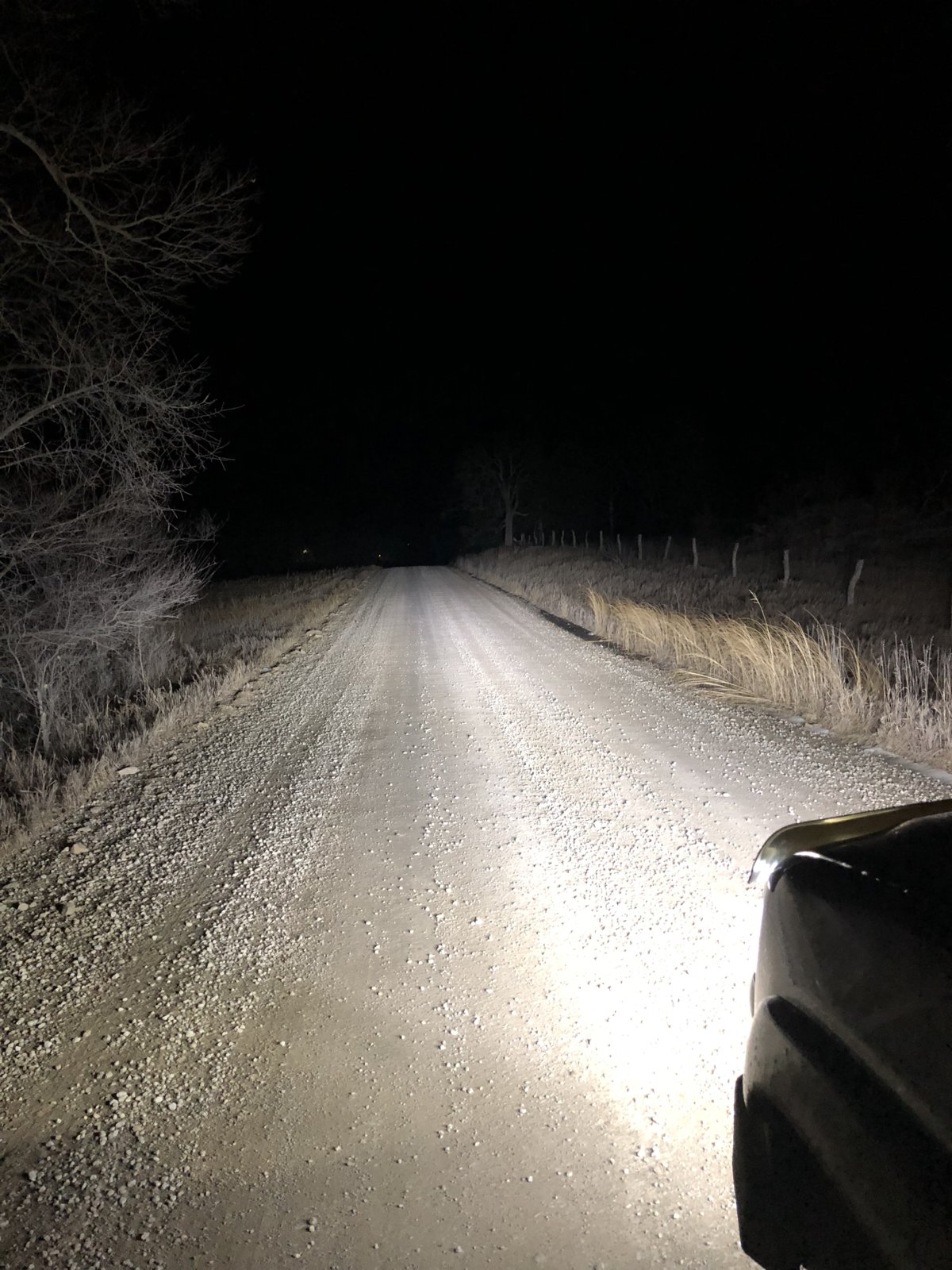

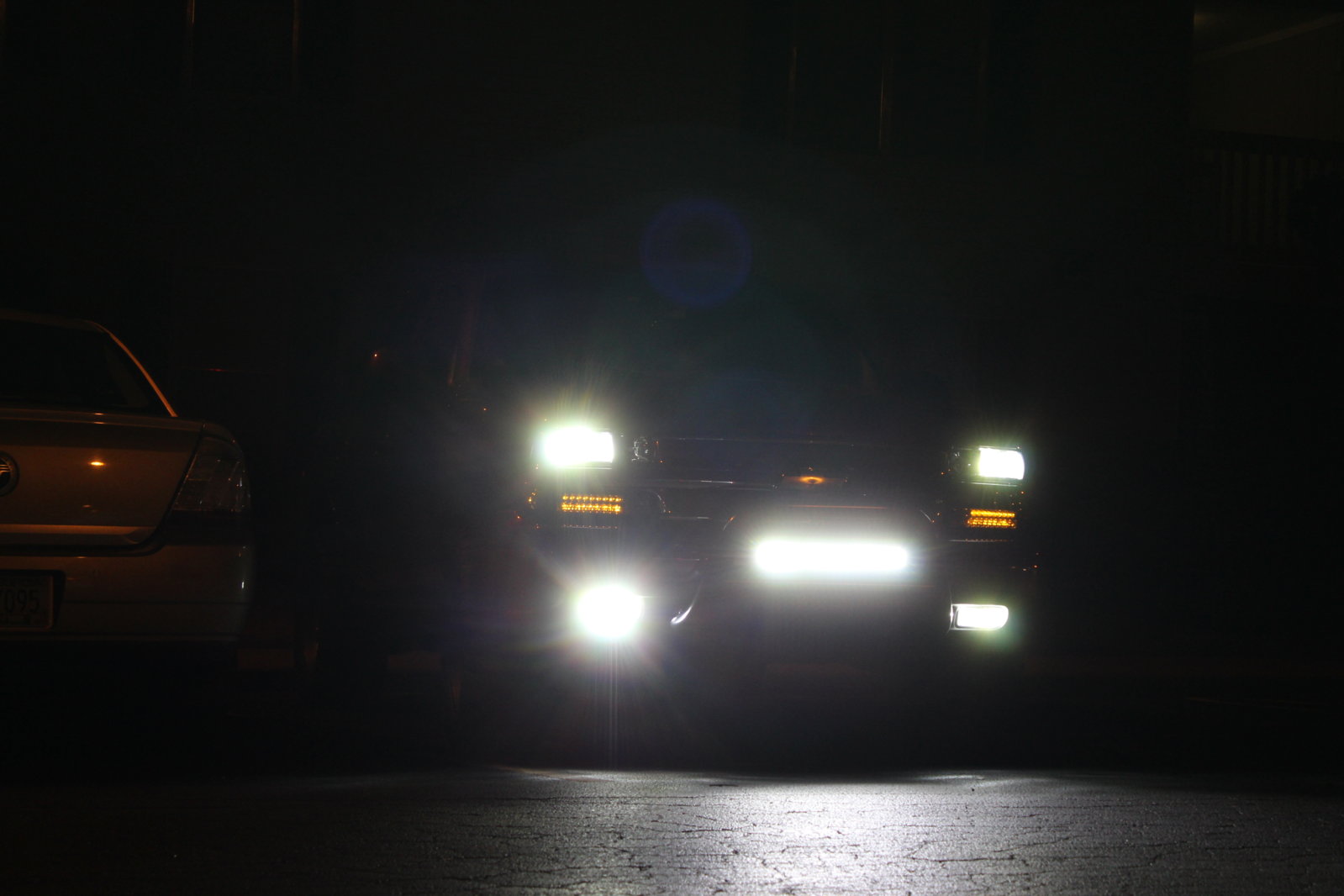

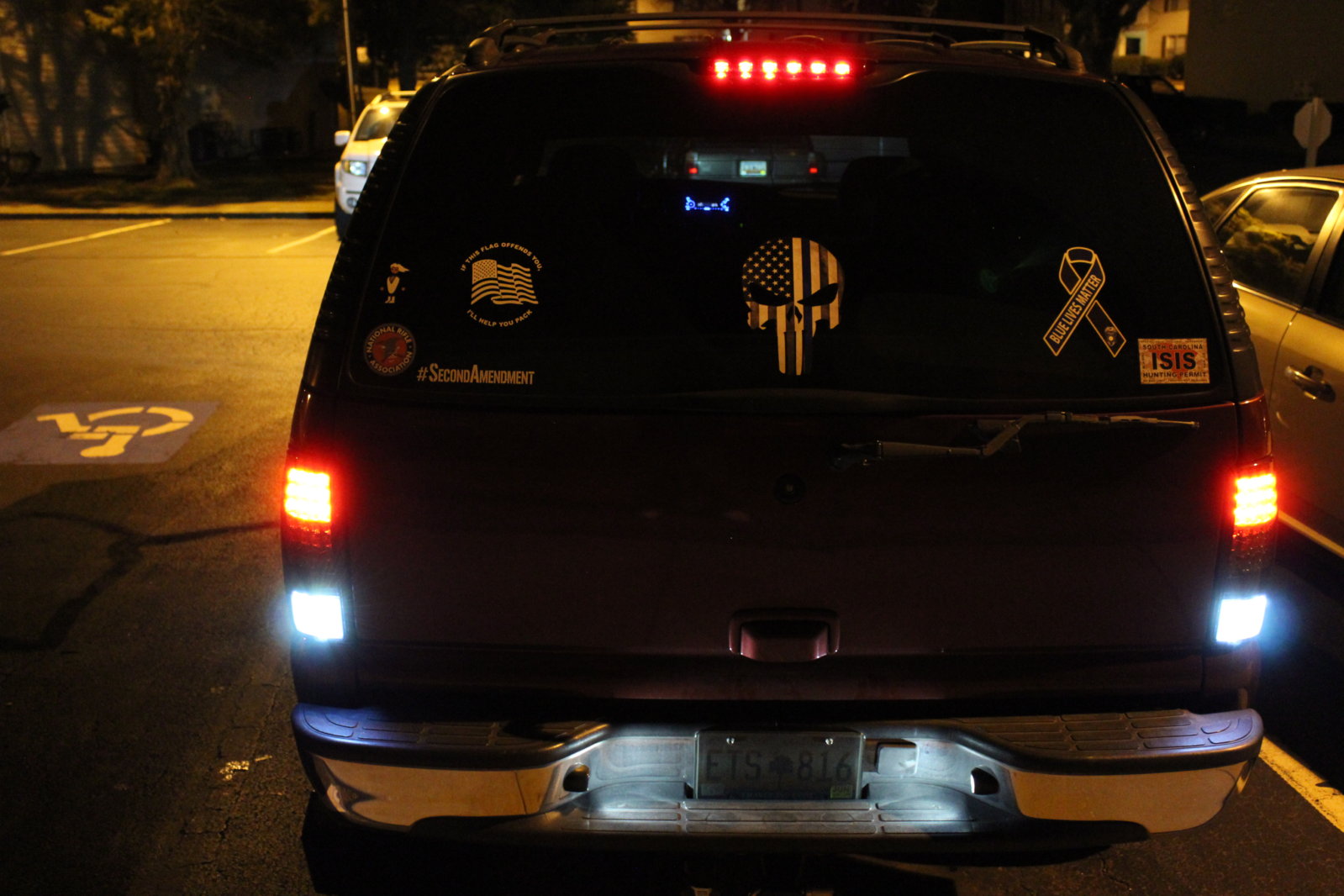

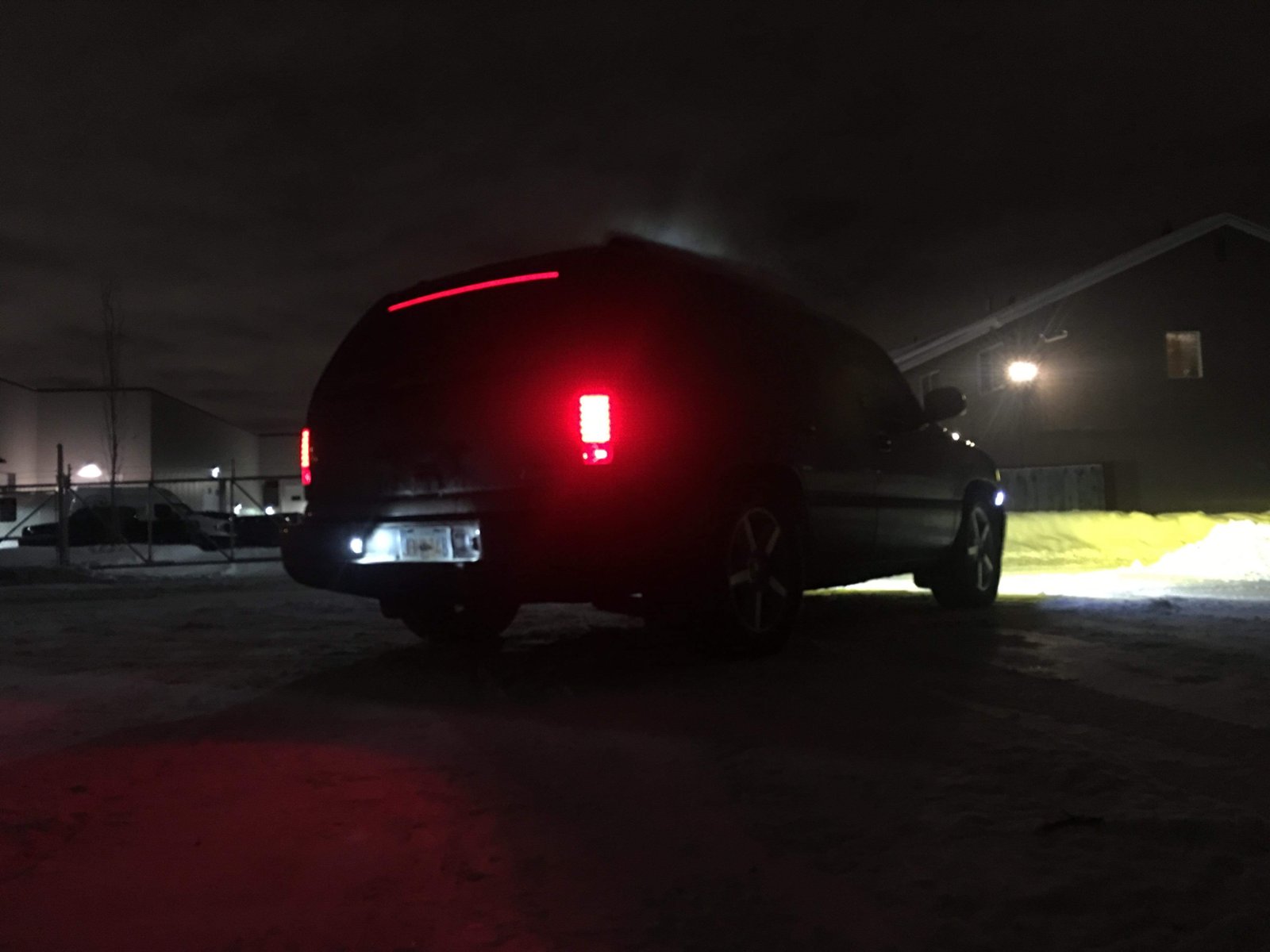

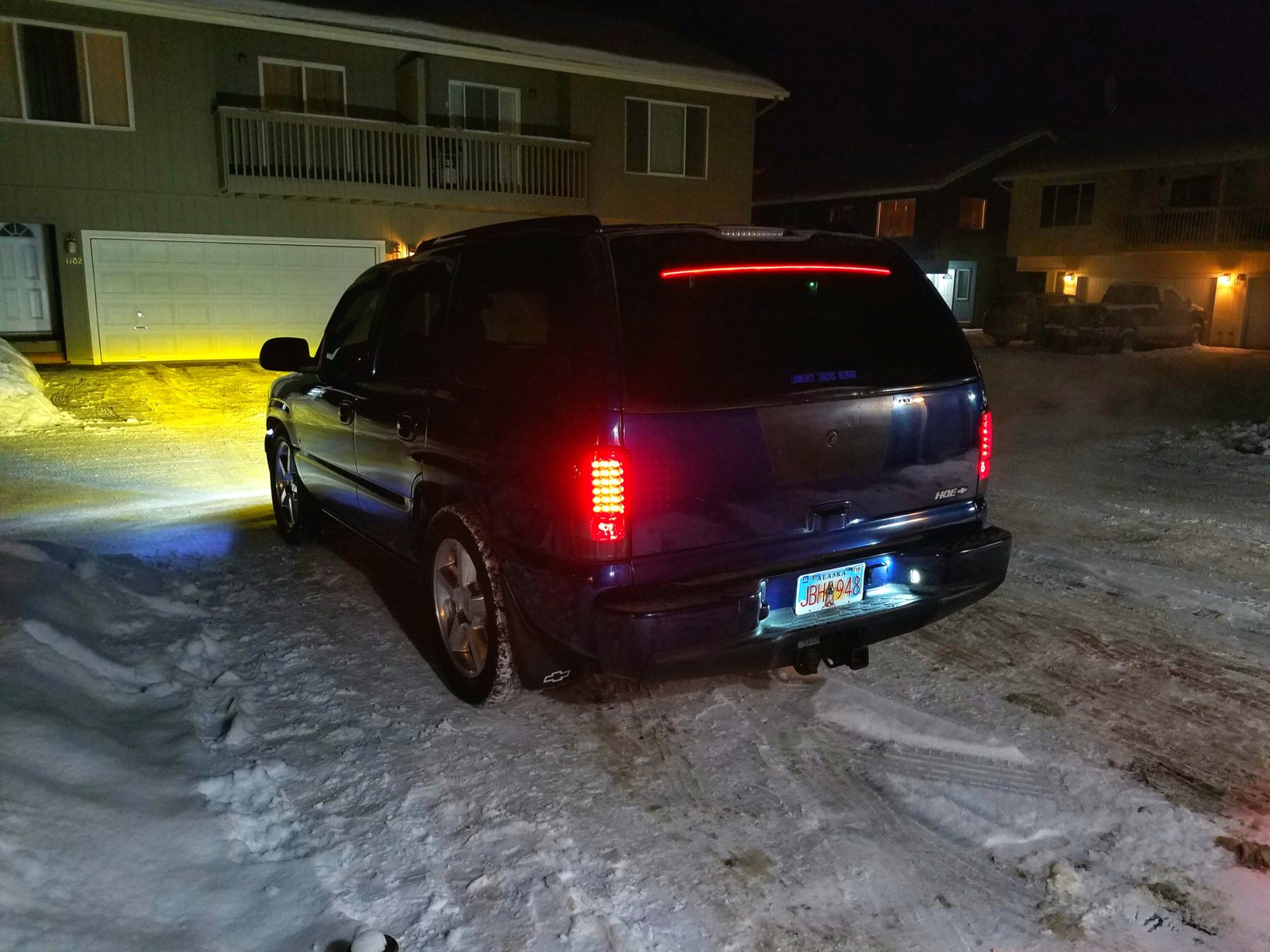

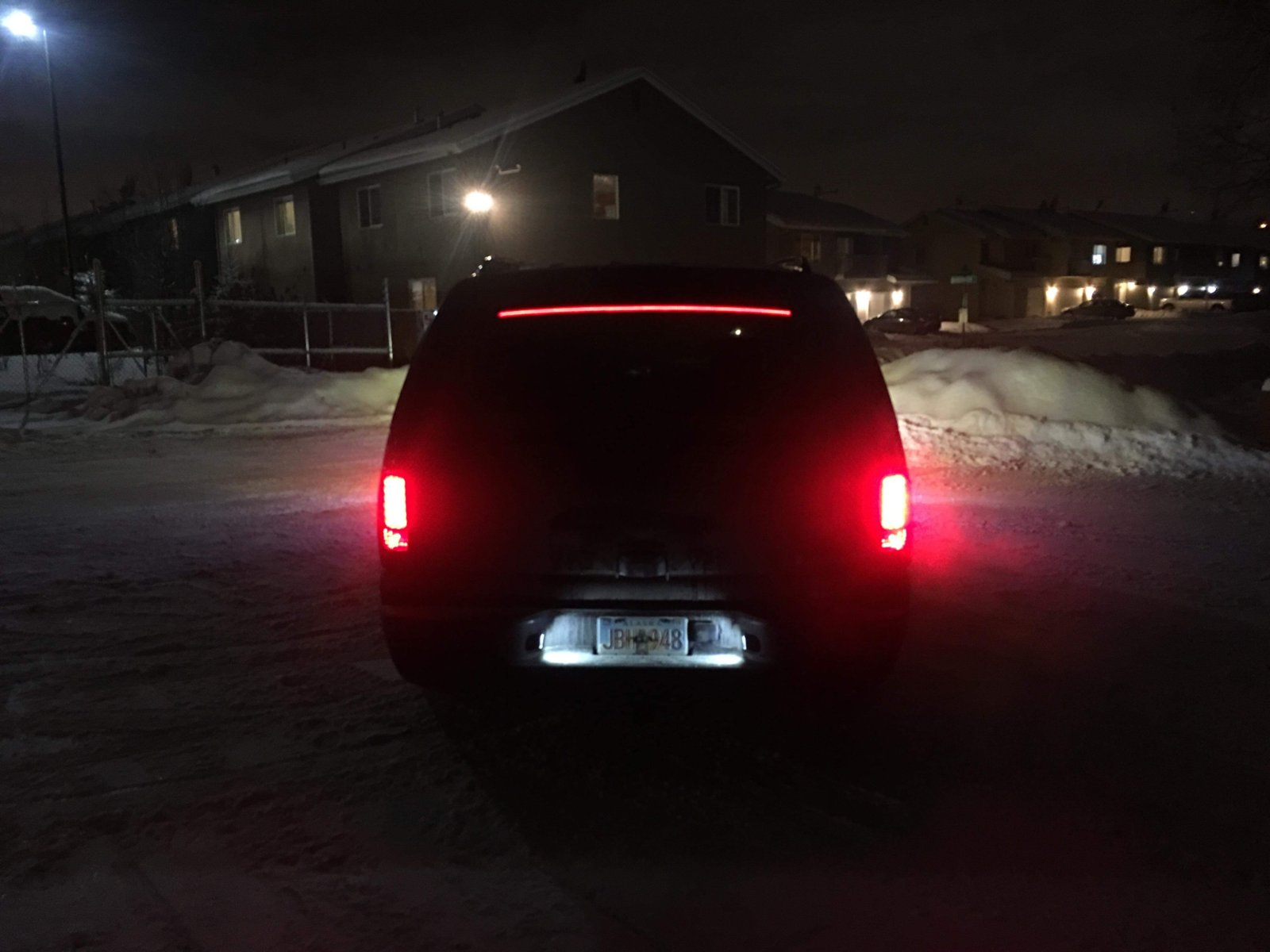

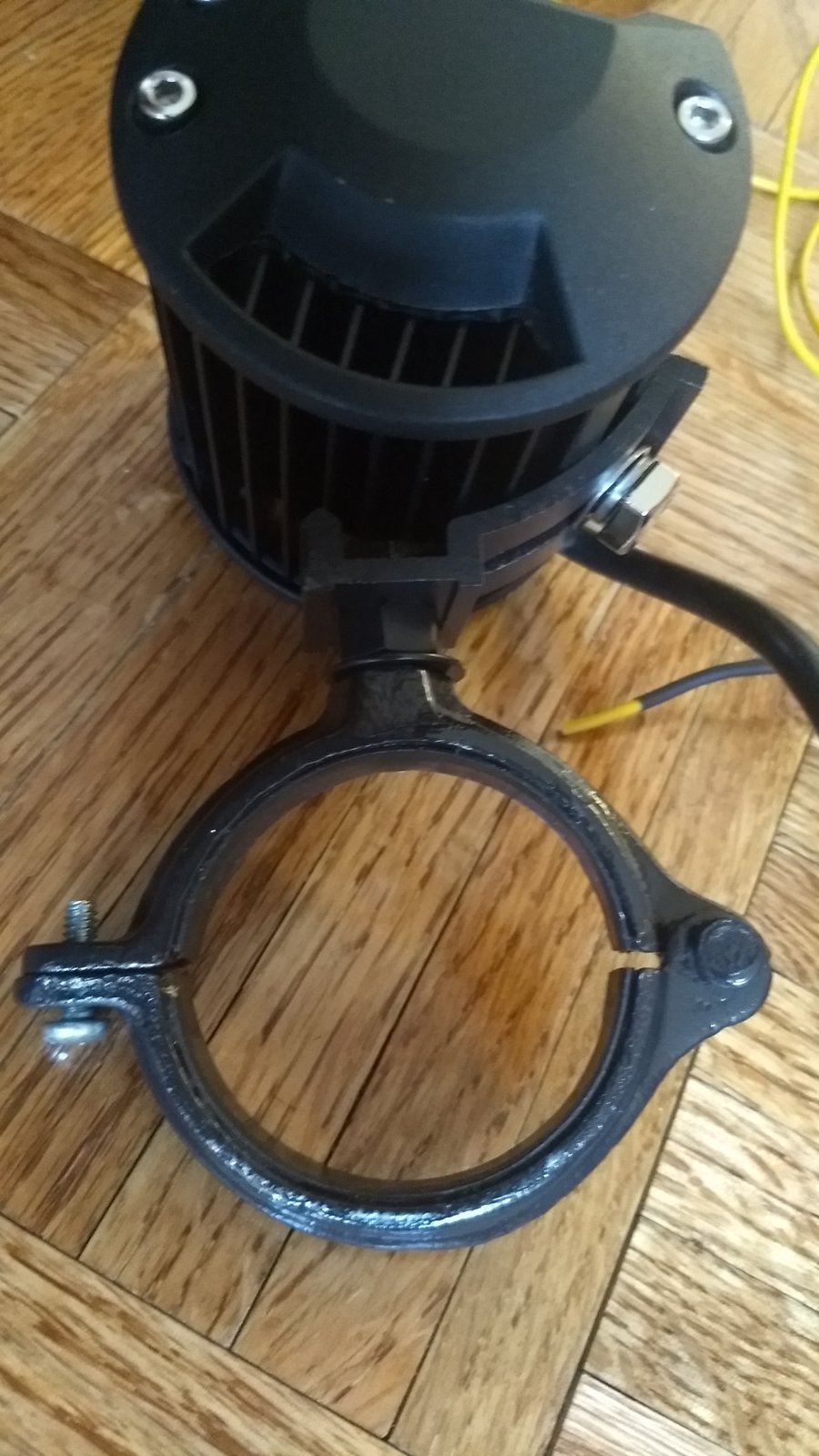

    And I finally got around to replacing and relocating the aux LED backups today.





    Going to check everything tonight to see if it needs adjusting, but I'm pretty happy with it compared to the old version.

    Rangel and MadDogDelpho like this.
  3. treehan77

    treehan77 TYF Fiend

    Posts:
    632
    Likes Received:
    89
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    hey surfer where is your LED strip for your underhood lights? is it only one, in the very front or what? did you fish the wire just under the insulation? thanks...

  4. seven9st surfer

    seven9st surfer Full Access Member

    Posts:
    277
    Likes Received:
    111
    Joined:
    Nov 29, 2011
    Location:
    Milton, FL
    Name:
    Josh

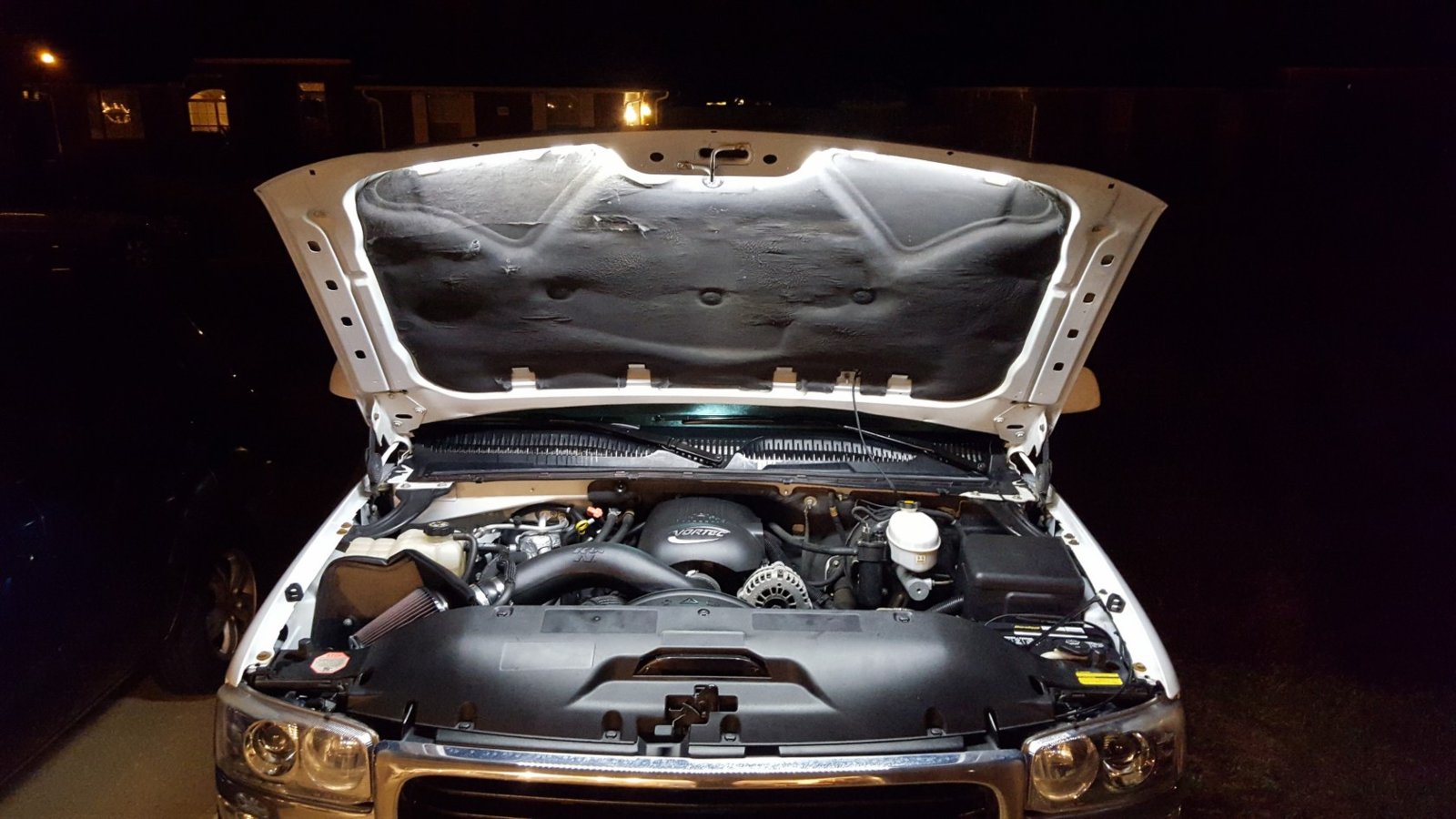

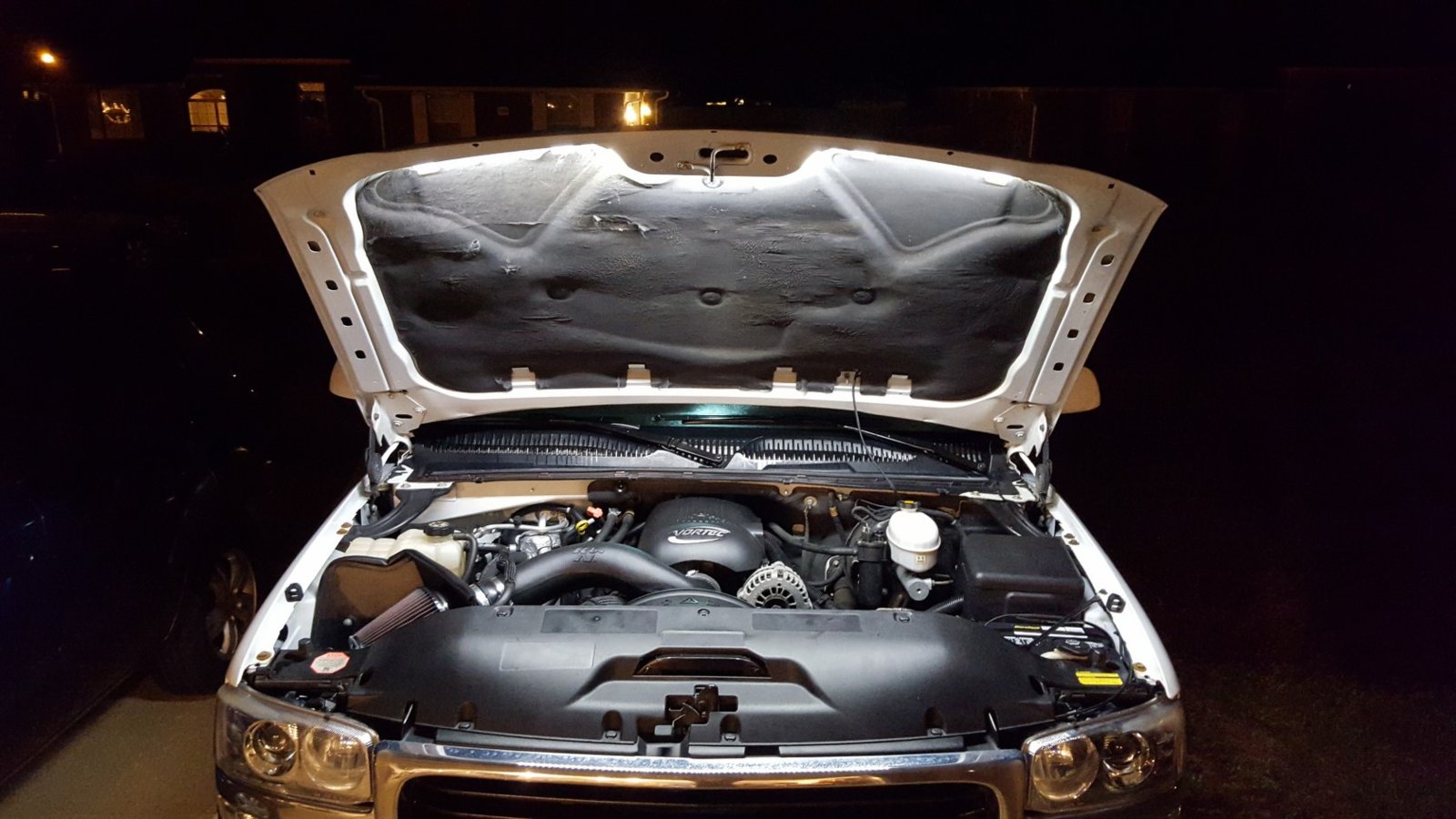

    Yeah, only the one strip at the very front of the hood. And yes, I fished the wires under the insulation and used some sleeving to clean it up a little bit.

    treehan77 likes this.
  5. treehan77

    treehan77 TYF Fiend

    Posts:
    632
    Likes Received:
    89
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    did you have to take the insulation down, or what? where did you fish from/to?

  6. seven9st surfer

    seven9st surfer Full Access Member

    Posts:
    277
    Likes Received:
    111
    Joined:
    Nov 29, 2011
    Location:
    Milton, FL
    Name:
    Josh
    From what I remember, I only had to remove it from a few tabs on the driver's side, just enough to feed the wire through. It goes from the led strip up top, under the insulation, then out where you see the black wire at the bottom of the insulation. I ran it through as much stock wiring loom as I could to the fuse box, and pulled + power from the stud under the fuse box shroud. Then you can pull - from any bare metal ground point, I think I used a stock bolt on the firewall. Then I wired in a simple switch mounted on the backside of the fuse box shroud. I'll try to grab some pics tomorrow if I can. Hope that helps.

    treehan77 and Trailblazzin like this.
  7. treehan77

    treehan77 TYF Fiend

    Posts:
    632
    Likes Received:
    89
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    Sweet thanks can't wait for the pics. Do you remember er what LEDs strip you used? Seems waaaay brighter than mine I got off Amazon for $8

  8. seven9st surfer

    seven9st surfer Full Access Member

    Posts:
    277
    Likes Received:
    111
    Joined:
    Nov 29, 2011
    Location:
    Milton, FL
    Name:
    Josh
    Don't remember what strip I used, sorry. Amazon or ebay, though.

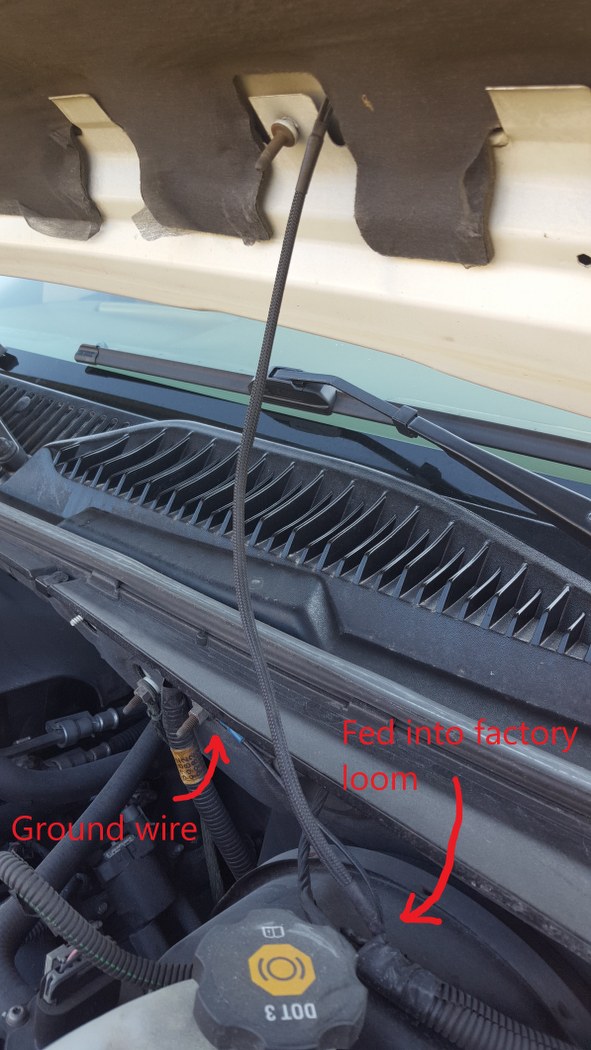

    Only thing not pictured is the wiring under the fuse box, but its really easy. Once you get the cover off, you'll see a bit stud up front.

    The wiring goes: + stud -> switch -> through factory loom -> under hood liner -> LED strip. The negative just goes firewall stud -> under hood liner -> LED strip.




    treehan77 and shreksbrother like this.
  9. treehan77

    treehan77 TYF Fiend

    Posts:
    632
    Likes Received:
    89
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis
    wow thanks for the details! I’ve got a tilt switch that I’m going to integrate, but will be following your lead for most of the install. Awesome

  10. treehan77

    treehan77 TYF Fiend

    Posts:
    632
    Likes Received:
    89
    Joined:
    Feb 1, 2015
    Location:
    Crestview, FL
    Name:
    Travis

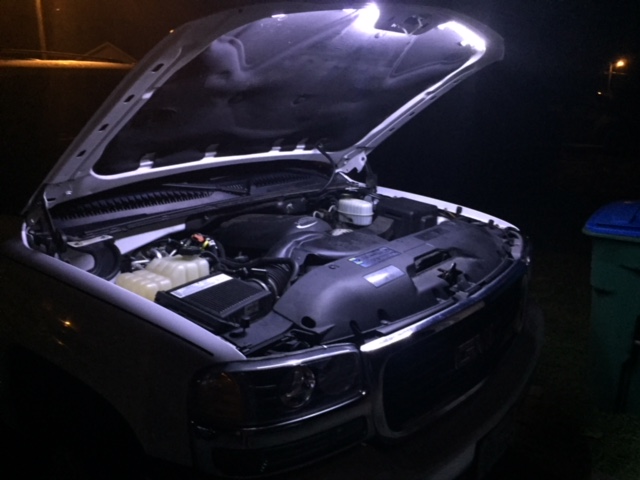

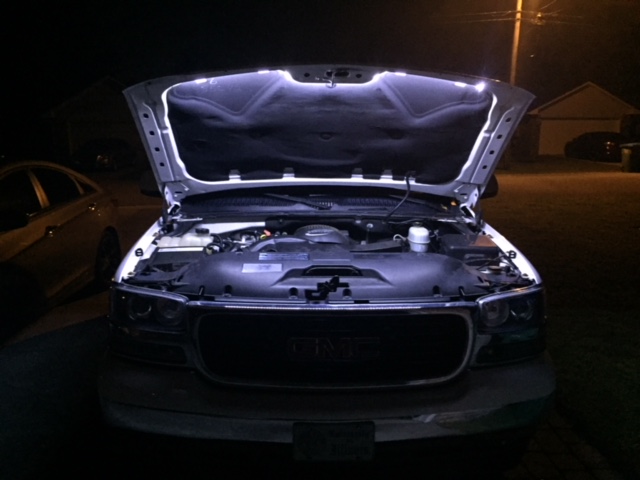

    All done. Here a couple pics and a video of the mercury switch in action. Had to fab up some aluminium stock to make a bracket that i could bend to just the right angle. Used Seven9st Surfer's tips. Thanks man!
