Can anyone identify these wires?

[Black2011PPV]

Hi,

I just picked up a 2011 PPV and I'm in the process of fixing a few issues. I noticed the rear speakers work intermittently and when they do, they are very quiet!

I've spent hours searching through this awesome forum and I'm to the point where I have removed the head unit to check the wiring (I've already checked the rear doors). I found a cut loom and I need help identifying some of the wires please?

See below...

https://flic.kr/p/26UxBAy

https://flic.kr/p/25AXg6M


I appreciate any help!

James



[2011SSVHOE]

James welcome aboard. Your pictures are a little hard to see, maybe give them a tug and poll them straight.

I did notice one of them has a tag on it .

SEO code WX7 is for the front speakers

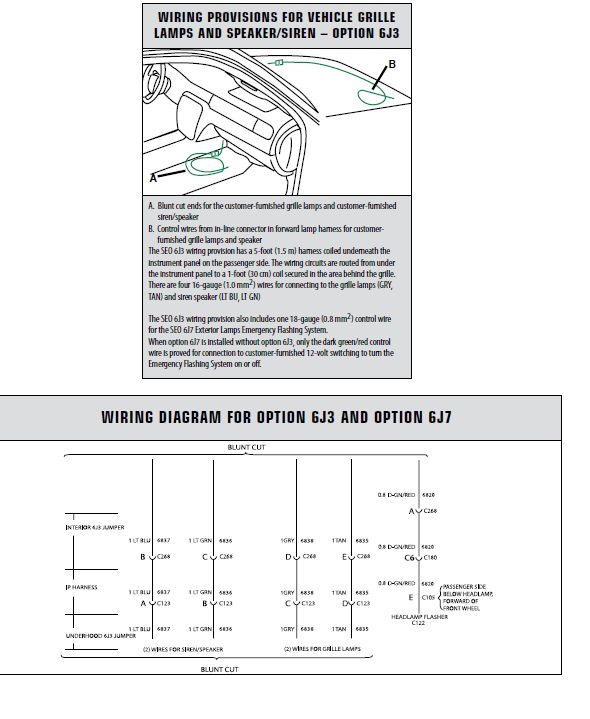

SEO code 6J3 is for the grille lights and siren










Hope this helps !



[Black2011PPV]

James welcome aboard. Your pictures are a little hard to see, maybe give them a tug and poll them straight.

I did notice one of them has a tag on it .

SEO code WX7 is for the front speakers

SEO code 6J3 is for the grille lights and siren


View attachment 198928




View attachment 198929


Hope this helps !View attachment 198928 View attachment 198929

Thank you so much for the information and welcome. I will certainly use the diagrams to see if I can resolve the issue.

I’ll let you know what I discover.
