2005 Denali Bose wiring/OEM Nav video input

[Soma1975]

Can anyone provide me with the wiring for my 2005 Denali Bose (Nav/XM/external 6 disc)? Anyone have the wiring for the OEM RSE?

I installed the XM bypass MP3 jack this week and it is a simple no frills solution for now. I will eventually add a iphone audio/charging adapter.

I am wanting to add the VSS cutout switch. Can some one provide me a picture/pinout of the connector?

I am also looking for info on hacking the RSE video to put it up front. What's the best method for this?

Thx

Paul



[TailHook]

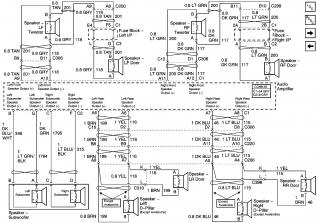

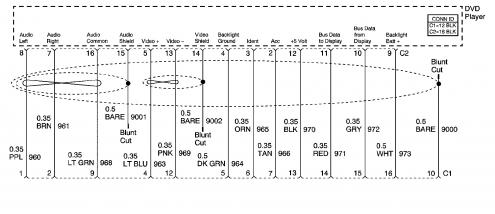

Here's something that might help...

...I have another doc that outlines the connectors on the back of the radio as well, but it is too big to post here...I can email that one to you.



[Soma1975]

Thanks !

My email is amosph at gmail dot com

Paul, Wichita KS
05 Denali

---------- Post added at 04:21 PM ---------- Previous post was at 04:11 PM ----------

Have higher res of the two you sent already?

thx

PA



[riso79]

I would love an email of those docs and the 2 wiring schematics you have too. I am trying to do this too. please send to [email protected]



[TailHook]

Email away...also sent higher resolution images of those I posted here.



[Soma1975]

Thanks

Paul



[riso79]

Got it, thank you.

Took a stab at it today and the colors were off from what i had for the factory overhead DVD but I found the wire needed.

ISSUE: for whatever reason I cannot get the 2 monitor to play without it cutting in and out. I even out a video amplifier on the video signal coming from the DVD and still get cut out on the auxilary monitor. Any thoughts why this would be? Factory monitor is fine. Converted that to an RCA plug and all so it running through the video amp too.



[TailHook]

Took a stab at it today and the colors were off from what i had for the factory overhead DVD but I found the wire needed.

Thinking the diagrams are '04-? I never got around to doing the mod myself, so I can't speak to the color accuracy...

ISSUE: for whatever reason I cannot get the 2 monitor to play without it cutting in and out. I even out a video amplifier on the video signal coming from the DVD and still get cut out on the auxilary monitor. Any thoughts why this would be? Factory monitor is fine. Converted that to an RCA plug and all so it running through the video amp too.

All of the grounds are squared away? Video, as you know, can be touchy like that...



[lfmalkun]

Would lovve to have those drawings as well. Been looking for a month for them.

thanks in advanced

[email protected]



[TailHook]

Message away, Luis...

...and welcome to the forum!
