Where does it connect to?

[5strmtrp]

The jumpseat, center console lower storage part? It has a power outlet that the connection is alongside the passenger seat just forward of the buckle inboard side. Phew that’s a mouthful! The female connector, where does it go under the dash & where does it connect?

Thanks

Paul
5trmtpr



[wjburken]

The jumpseat, center console lower storage part? It has a power outlet that the connection is alongside the passenger seat just forward of the buckle inboard side. Phew that’s a mouthful! The female connector, where does it go under the dash & where does it connect?

Thanks

Paul
5trmtpr

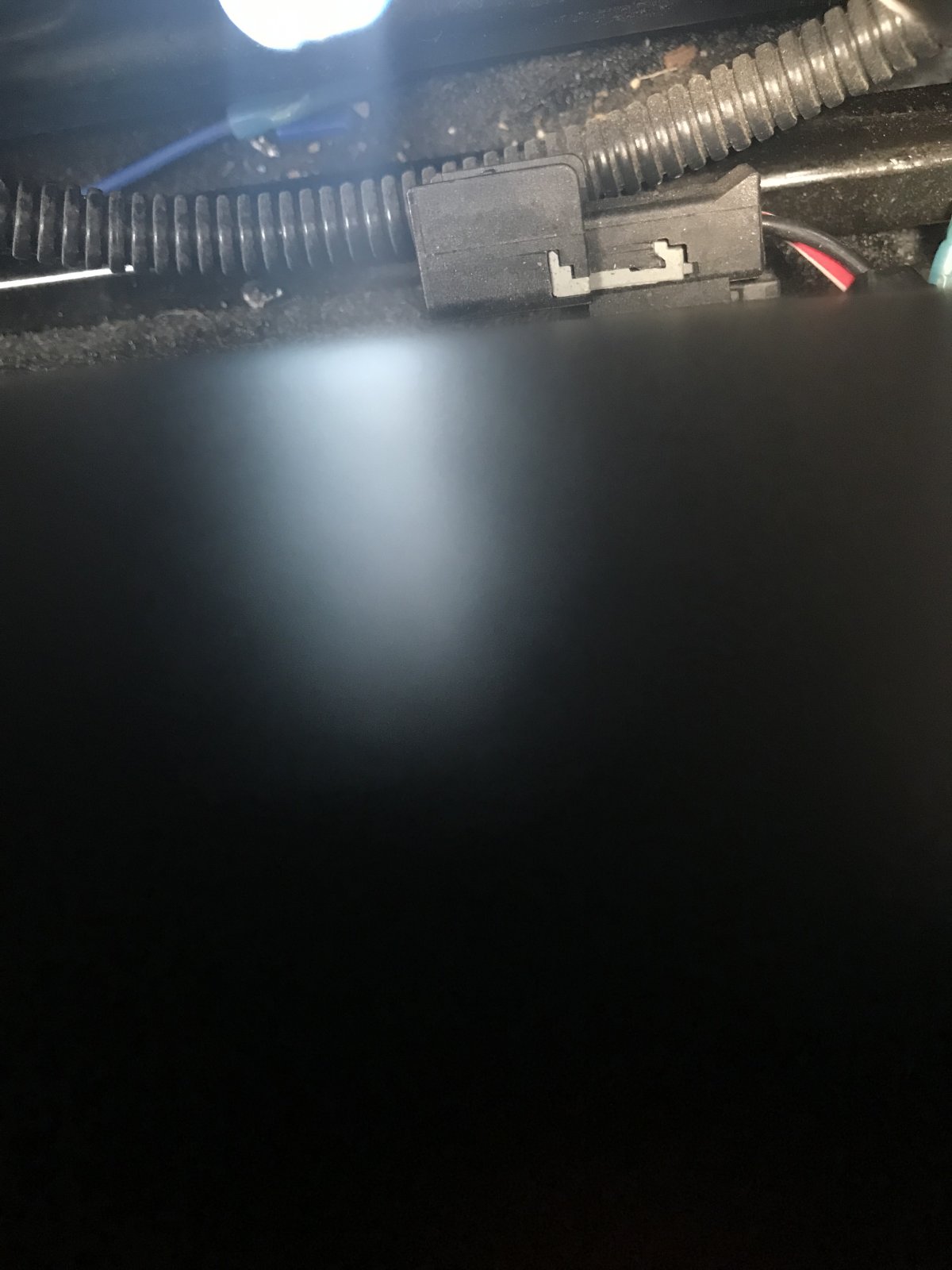

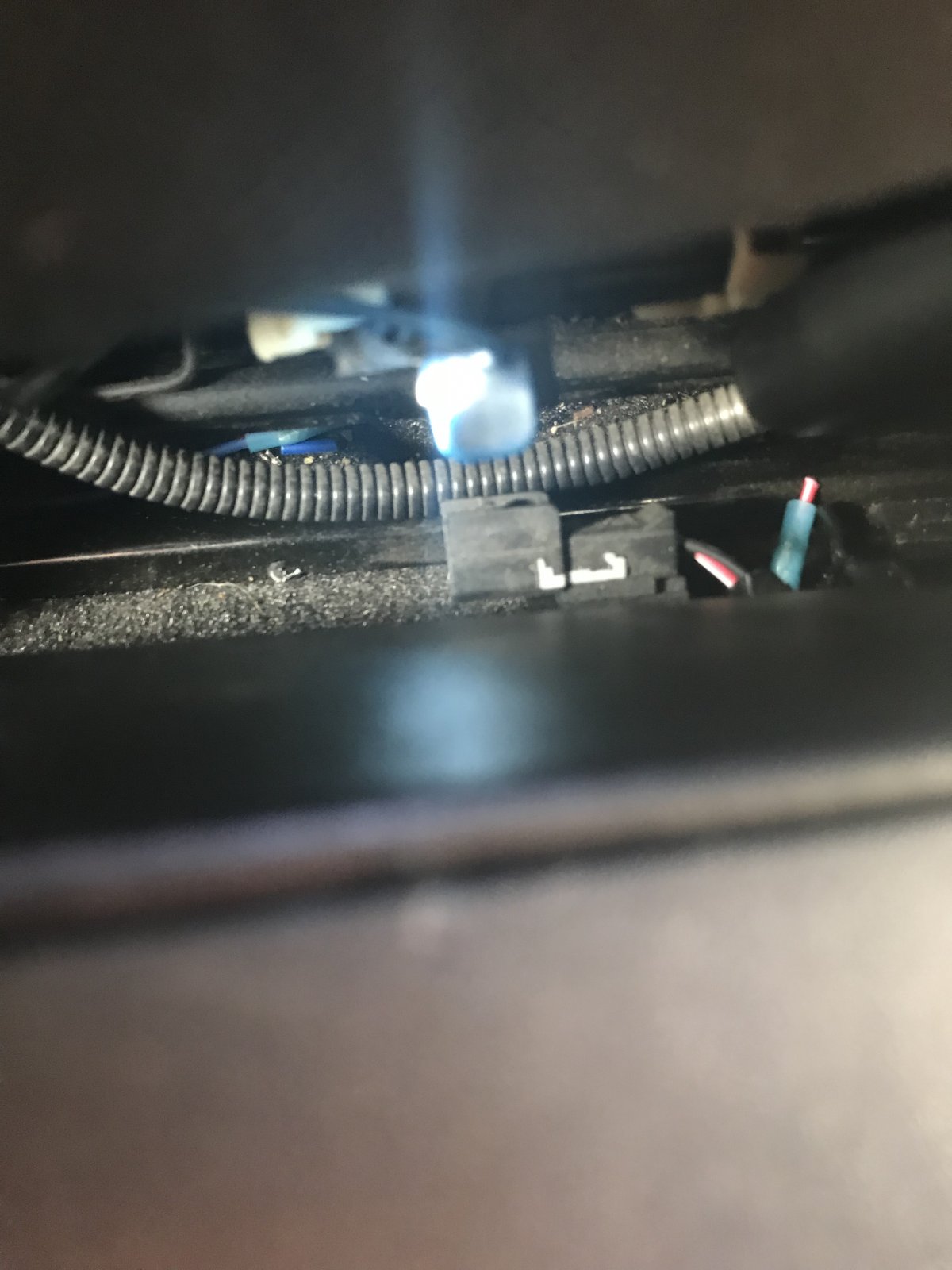

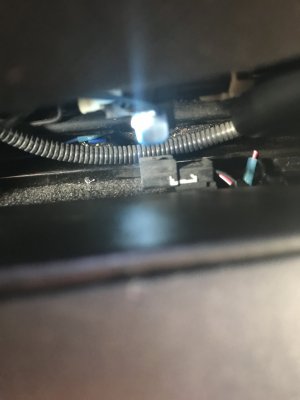

View attachment 229849 View attachment 229850

Here is a link to the schematic for 2008 vehicles. Look at page D-402. That’s where the power outlets are shown.
http://www.gmupfitter.com/files/media/photo/68/2008_LD_ElectricalPickupsChassisCabs.pdf



[bobo49505]

i found mine tucked under that plastic cover thats under the jumpseat on the floor



[5strmtrp]

I found the connector next to the passenger seat, looking to see where it goes to under the dash. I’ll look at the schematic once home and on the desktop.

Paul
