Rear view mirror "NOT WORKING"

[saif najd]

Hi

I started my new sub project wich is the "Rear view mirror"

I have the following:
1- an electronic Rear view mirror.
2- blug and wire ready and connected.

But it is dead 100% nothing is working at all so I went to the local junk yard and tried 7 rearview mirrors and non worked from 99 models until 2001

This the blug diagram showing the voltage source.



As you can see only the middle is supplying the 12v and I found very week electric supply from the second pin a showing .6v or less

And I dont have the temp sensor as shown hear (red circle)



I took it from another thread (sorry for that)

Thanks

---------- Post added at 12:13 AM ---------- Previous post was at 12:01 AM ----------

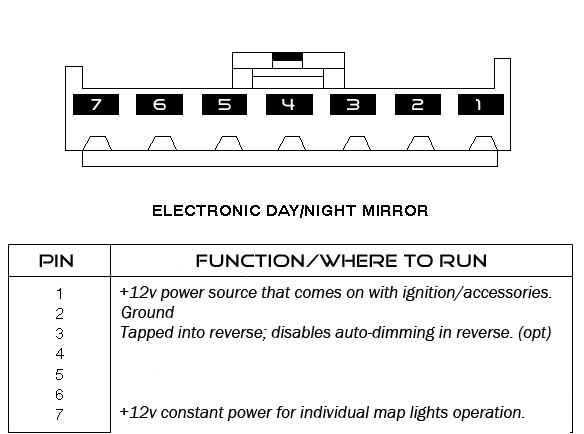

I found this diagram:



The owner of this diagram he used pins 1 and 2 to feed the mirror to work.

Could any of you please take a picture of the wires so I can compare it to what I have may be the pins are mis placed?

---------- Post added at 12:17 AM ---------- Previous post was at 12:13 AM ----------

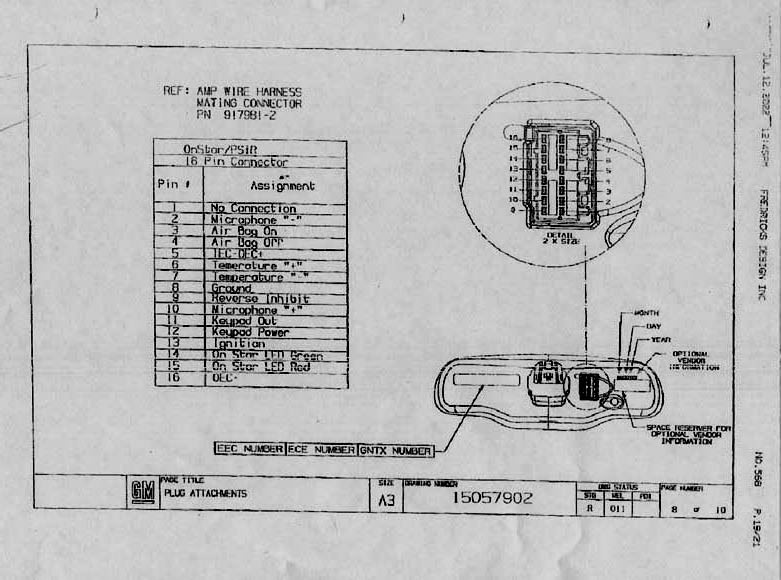

This another diagram but for the 16pin models



I need the same diagram for the 7pin model

---------- Post added at 12:30 AM ---------- Previous post was at 12:17 AM ----------

More info:



[SunlitComet]

Automatic Day/Night Mirror C1

Automatic Day/Night Mirror C2



[saif najd]

Great great info thanx bro I will do the work today to know whats wrong with my ride it seams I have a problem

---------- Post added at 01:37 AM ---------- Previous post was at 12:36 AM ----------

Is there a fuse or relay

---------- Post added at 02:16 AM ---------- Previous post was at 01:37 AM ----------

Just remembered the sun visor lights are not working too

Is there a fuse for it?? I need to know how the previous owner disconnected them



[SunlitComet]

#3 ctys


I/P Fuse Block, Front View Part 1 Of 2



[saif najd]

#3 ctys


I/P Fuse Block, Front View Part 1 Of 2

Unfortunately the fuse is fine



[SunlitComet]

then follow the other pics to the convenience center to check those plugs.



[saif najd]

then follow the other pics to the convenience center to check those plugs.

It seems this way, I will do and report

Thanx for the help



[saif najd]

Last night I checked my mirror by supplying it with 12v external source and it worked

Today or tomorrow maximum I will start to traxe the problem on the tahoe



[saif najd]

then follow the other pics to the convenience center to check those plugs.

I couldn't figure whats wrong with it I fiund out that the previous owner disconnected the sun visors so I connected them and they worked (solved a secondary problem!!)

I will take the roof down and see whats going on there

98 Chevy Tahoe 2dr Sport



[SunlitComet]

try access thru the center console be removed first. then remove the headliner only if you need to. might save you some time.
