Windshield washer hose diagram?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

th3 shifty

Full Access Member
Joined
Apr 17, 2016
Posts
262
Reaction score
365
Location
Utah
Anyone have a diagram of the hose routing from the tank/bottle to the squirters? My pump is working but the fluid is coming out the bottom near the firewall. I don’t see where it goes from the bottle … any help appreciated


Joseph Garcia

Supporting Member
Joined
Aug 2, 2018
Posts
7,223
Reaction score
9,705

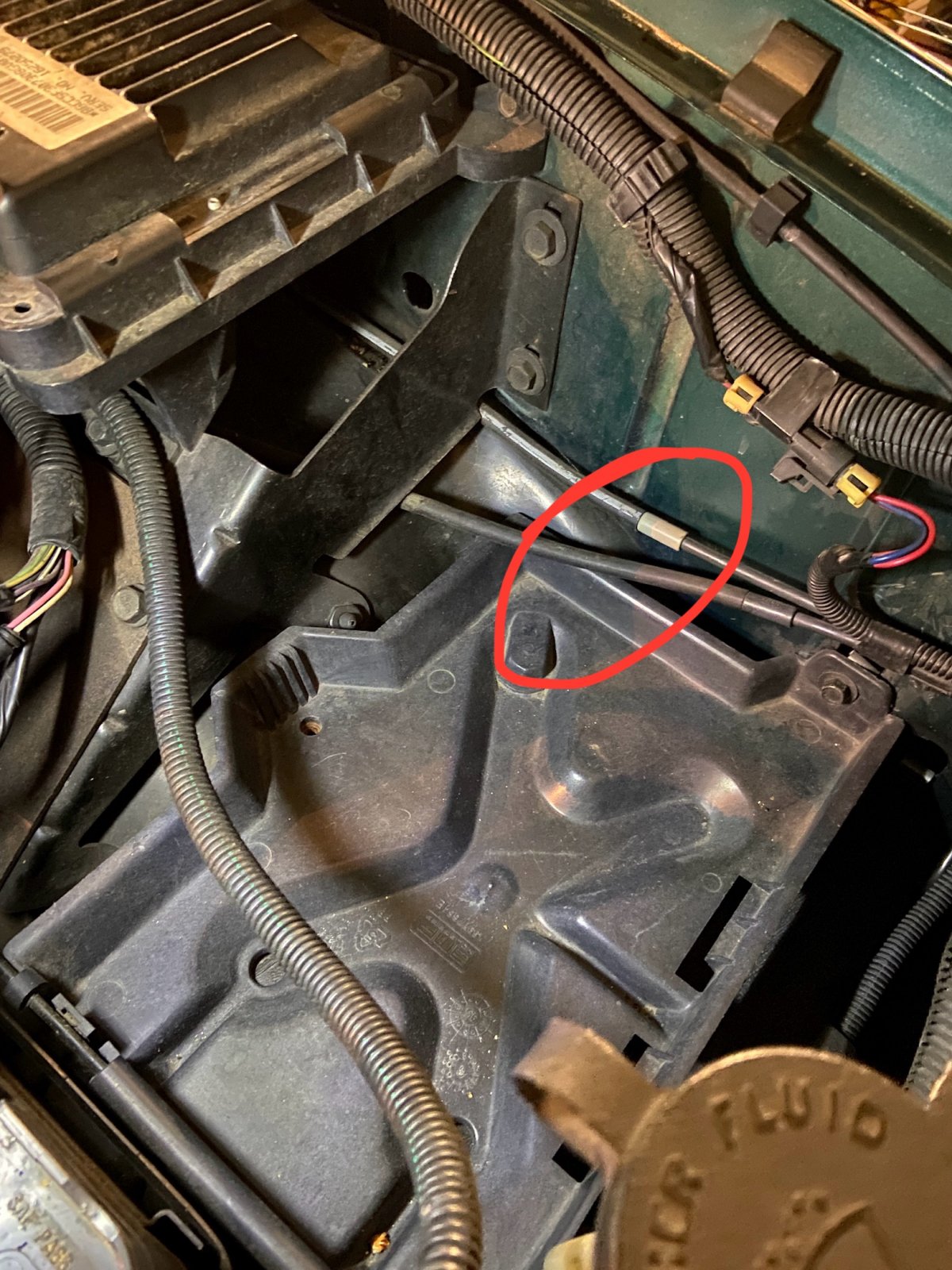

The couplings are simply push in type with no locking mechanism, so they do become separated. Mine did, as shown above where there is a coupling right next to the spare battery tray.
