Hello Gentlemen,

This past weekend, I submerged myself in the brake system of my 2013 Escalade ESV. She stopped just fine, but I wanted to clean and inspect the brakes. As well, bleed the ABS now that I had a Tech 2.

Before any of this, I wanted to deal with the bleeder screw issues in the rear calipers. I had found the passenger's side rear caliper bleed screw was very difficult to turn when I initially flushed the brakes last month. Now, I replaced all four bleeder screws. I was able to remove the passenger's side rear with a 1/4" drive ratchet and 6-point 10mm socket. It took a little pressure, but the bleeder screw came out. I installed ACDelco 88967108 bleeder screws in the rear calipers and ACDelco 25846360 bleeder screws in front calipers. I chased the threads in the calipers, flushed with brake cleaner, then let brake fluid flow to ensure the holes were clean. I made sure the little rubber sleeves and caps were installed back on all four bleeder screws.


You must be logged in to see this image or video!

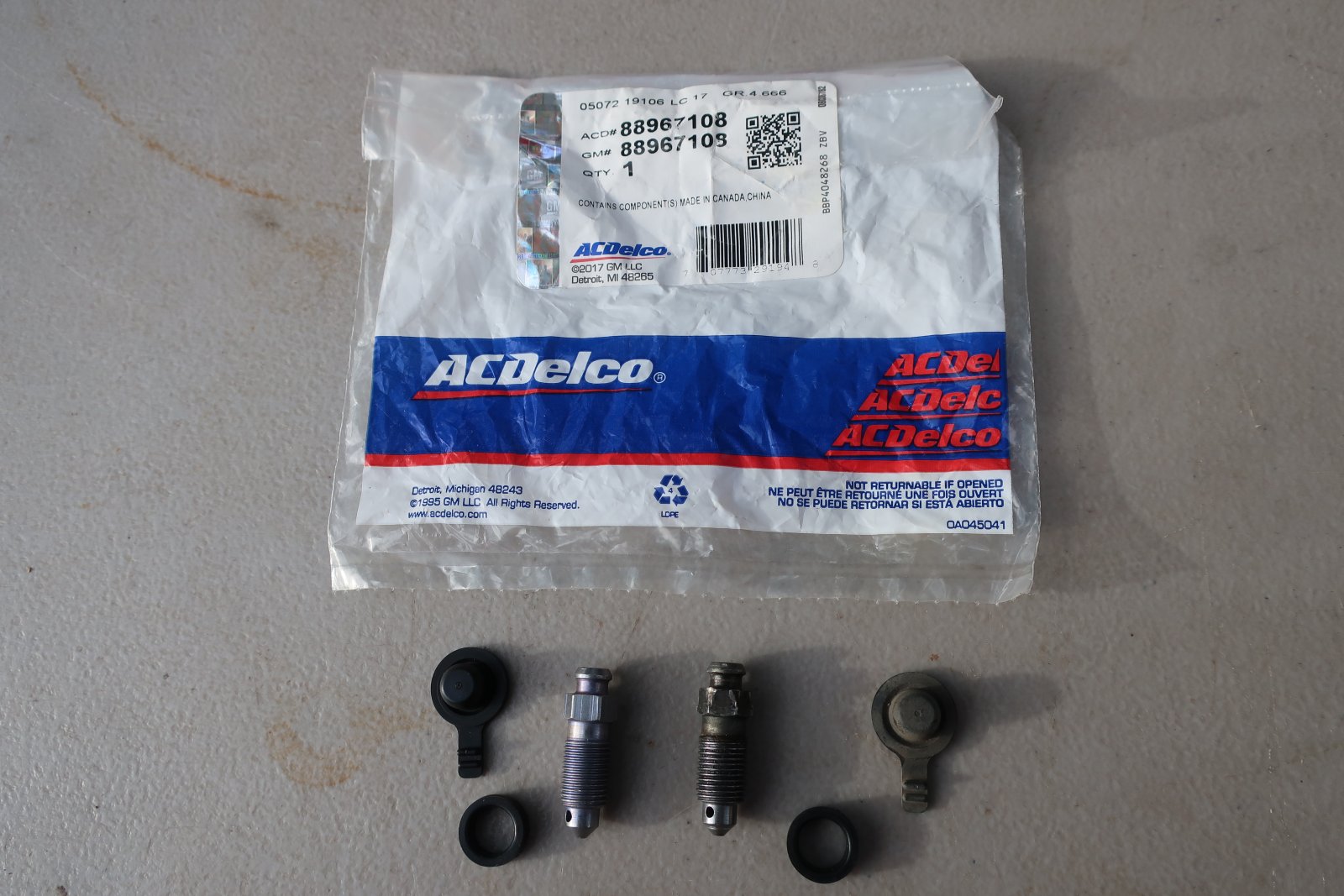

New ACDelco 88967108 rear bleeder screw at left, original bleeder screw at right.


You must be logged in to see this image or video!

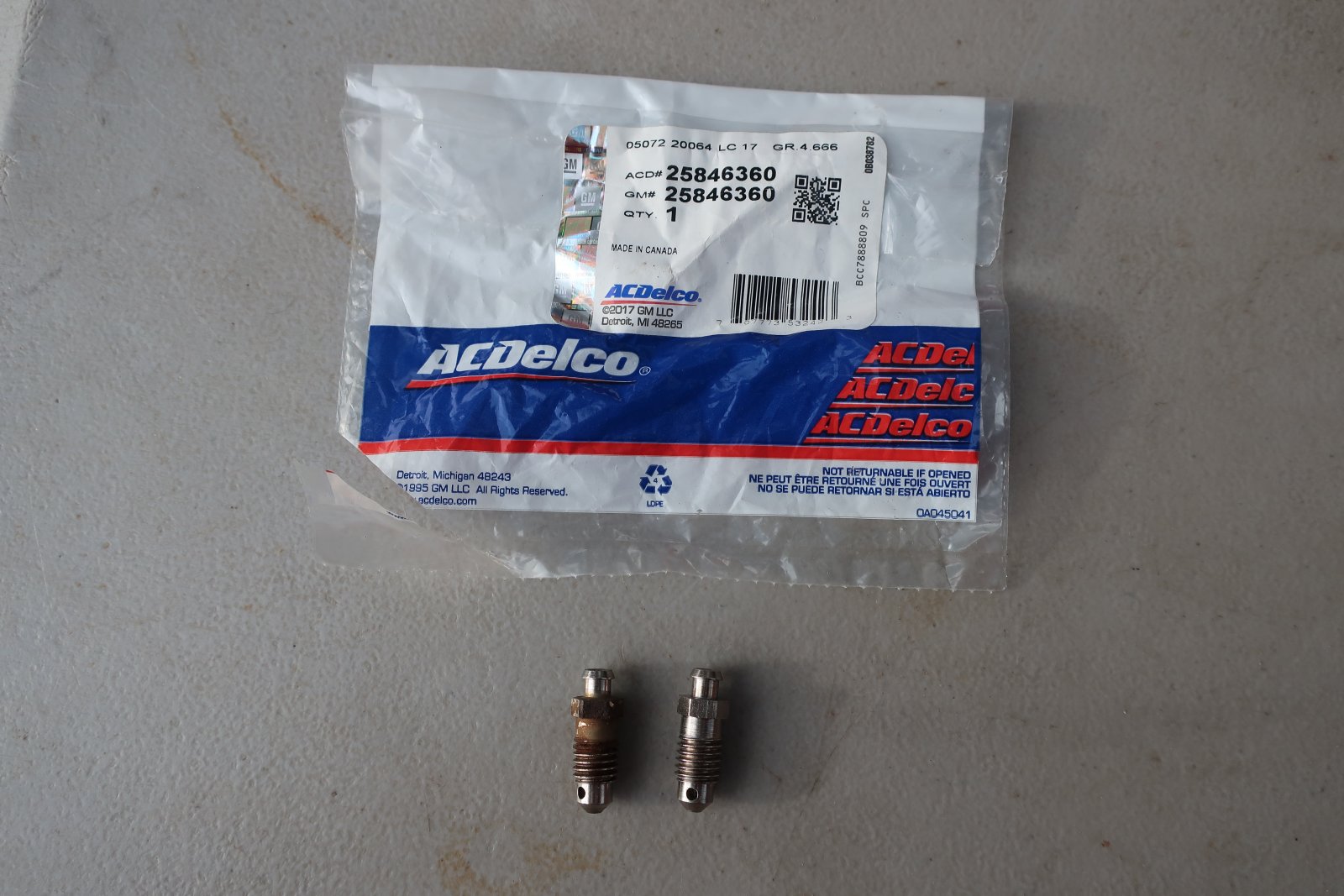

Original front bleeder screw at left, new ACDelco 25846360 bleeder screw at right.


As per the service manual, I pressure bled the brakes again before starting the Automated Bleed procedure. I got good clean fluid out of all four corners, then went to the Tech 2.

Background: I have never bled an ABS system on any vehicle. I had no idea what I was getting into. I did some google-fu, but didn't really find any procedural info.

Tech 2 Automated Bleed procedure instructed me to loosen the left front bleeder screw. No problem. Did so and connected the bleeder bottle. I hit CONTINUE, and it all went wrong...

I did not expect the ABS pump to be so loud. The Tech 2 had me continuously pumping the brake pedal for what seemed like an eternity. Once it was done, I was faced with carnage...
The bleeder bottle was full, the hose had blown off of it, and brake fluid had sprayed everywhere! More concerning, the master cylinder reservoir was d*mn near empty!!! I did not expect it to use such a large volume of brake fluid.

Looking at the procedure again, it does not instruct you to refill the master cylinder until AFTER the procedure is done. Meaning after all four corners have been done. Yeah. No. The master cylinder would have long been empty by that point.

I persevered, and did the other three corners as instructed by the Tech 2. THIS time, I put the bleeder hose through the box end of a combination wrench for weight, and then down into an oil drain pan. Once all was said and done, I had just enough DOT 4 brake fluid left to fill the master cylinder reservoir to just over halfway between the MIN and MAX markings. NOTE: I started with 3 quarts of DOT 4 on hand. Next time I do this, I will have over a gallon of DOT 4, and will keep my pressure bleeder connected to the master cylinder reservoir.

Out of paranoia, I gravity bled all four calipers again. I didn't get any air out, so that made me feel a little better.

Once the rest of the brake work was done, the test drive showed the brake pedal was not spongy. However, now I am concerned about the master cylinder. I tried not to stroke the brake pedal past the 'normal' travel so the seals would not be damaged. We shall see...

No photos of the fiasco. Its better that way.
