Rear view mirror pinout

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

brego

TYF Newbie
Joined
Nov 14, 2016
Posts
5
Reaction score
1
I have a 2012 Tahoe Z71 and need pinout for the rear view mirror. Looking to hardwire a radar detector off the powered mirror. Hoping to find 12v that is on/off with ignition.

Sent from my Nexus 6P using Tapatalk

OP
OP
B

brego

TYF Newbie
Joined
Nov 14, 2016
Posts
5
Reaction score
1
Yes! Grabbed a multimeter to figure it out, saw the existing wires were color coded, so jammed the red wire from my detector's wire harness into the powered mirror hole that had a red wire, did same for the black. Works fine except its always on.

Sent from my Pixel 2 XL using Tapatalk


kbuskill

***CAUTION*** I do my own stunts!
Joined
Mar 11, 2017
Posts
5,213
Reaction score
8,068
Location
NE. FL.
Yes! Grabbed a multimeter to figure it out, saw the existing wires were color coded, so jammed the red wire from my detector's wire harness into the powered mirror hole that had a red wire, did same for the black. Works fine except its always on.

Sent from my Pixel 2 XL using Tapatalk


OP
OP
B

brego

TYF Newbie
Joined
Nov 14, 2016
Posts
5
Reaction score
1

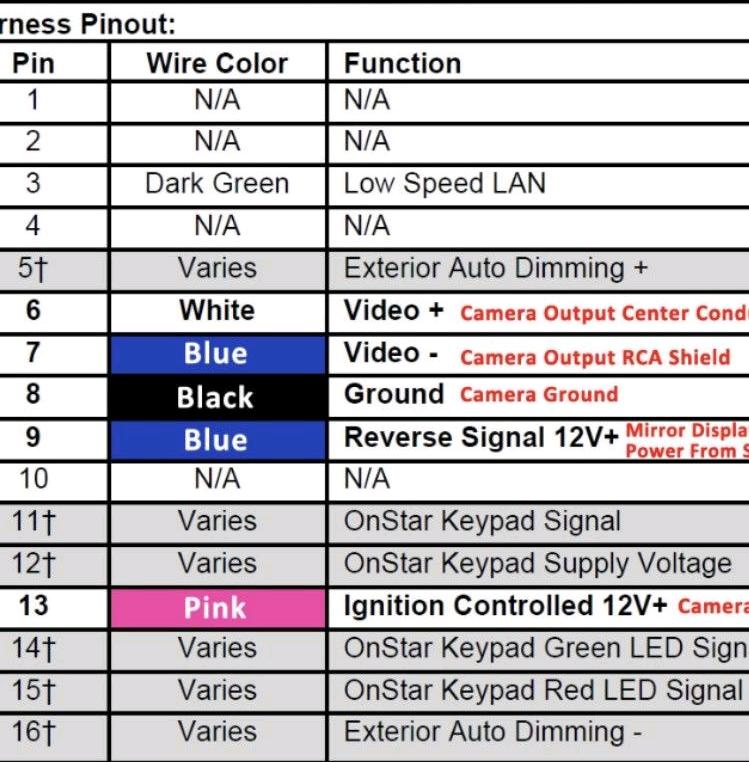

Awesome! Wish I had this a couple of years ago! Hopefully this will help some folks. Thanks for the pinout chart sir.
