Leveling question.

Discussion in 'Lifted Supension - Z71 & 4x4' started by Tractoman, Mar 19, 2017.

  1. Tractoman

    Tractoman Member

    Posts:
    51
    Likes Received:
    18
    Joined:
    Mar 1, 2017
    Name:
    Mike

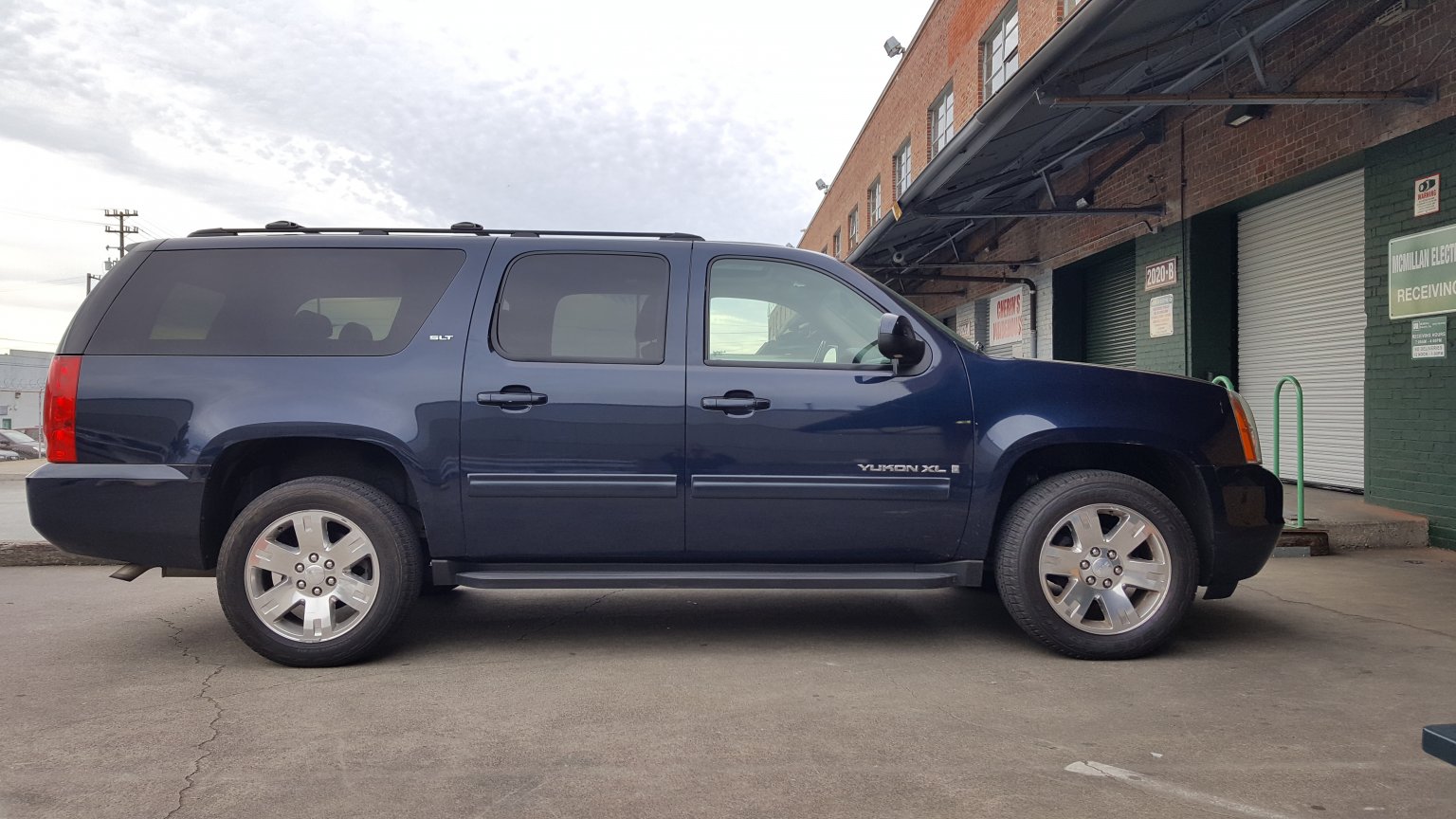

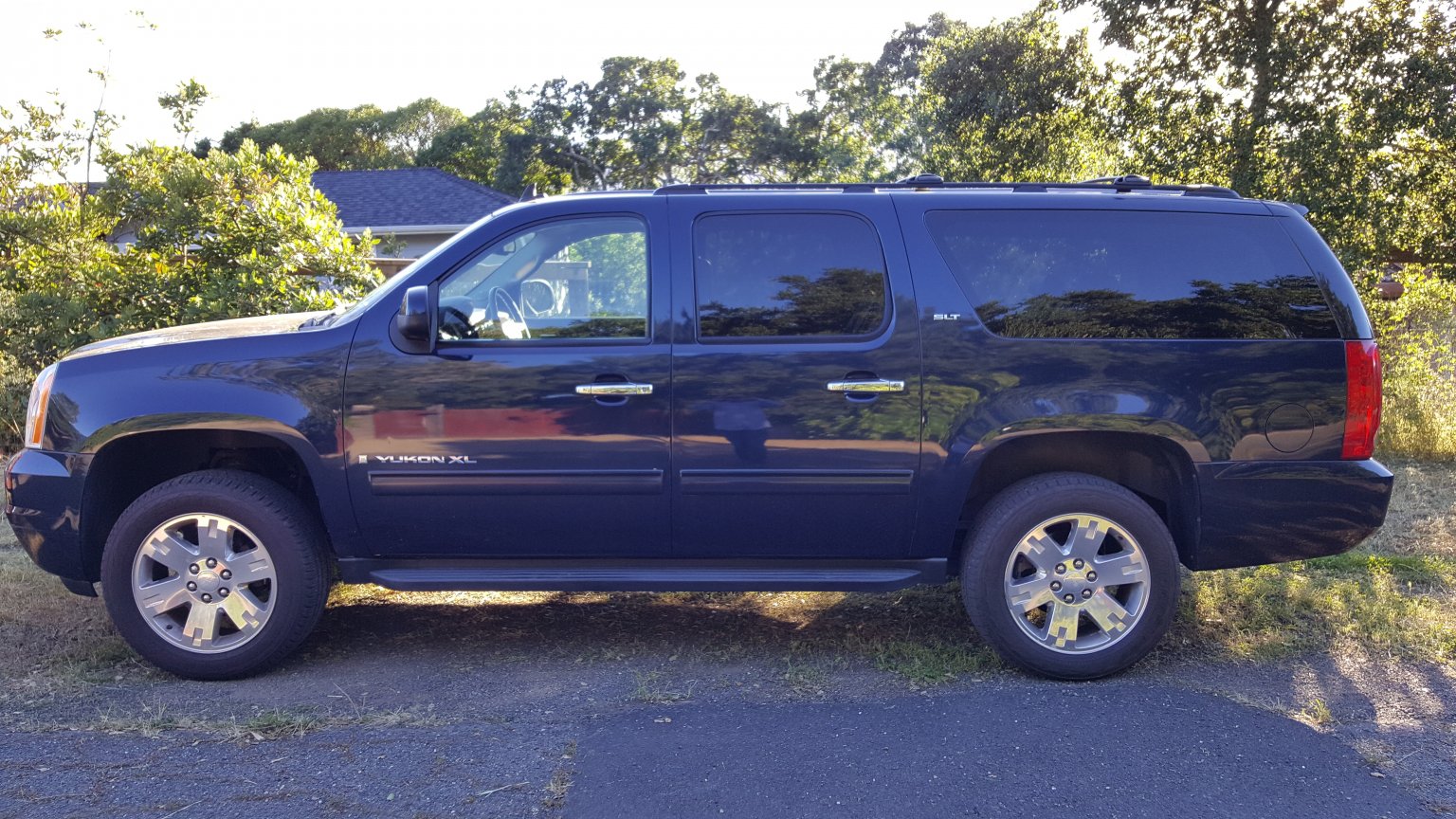

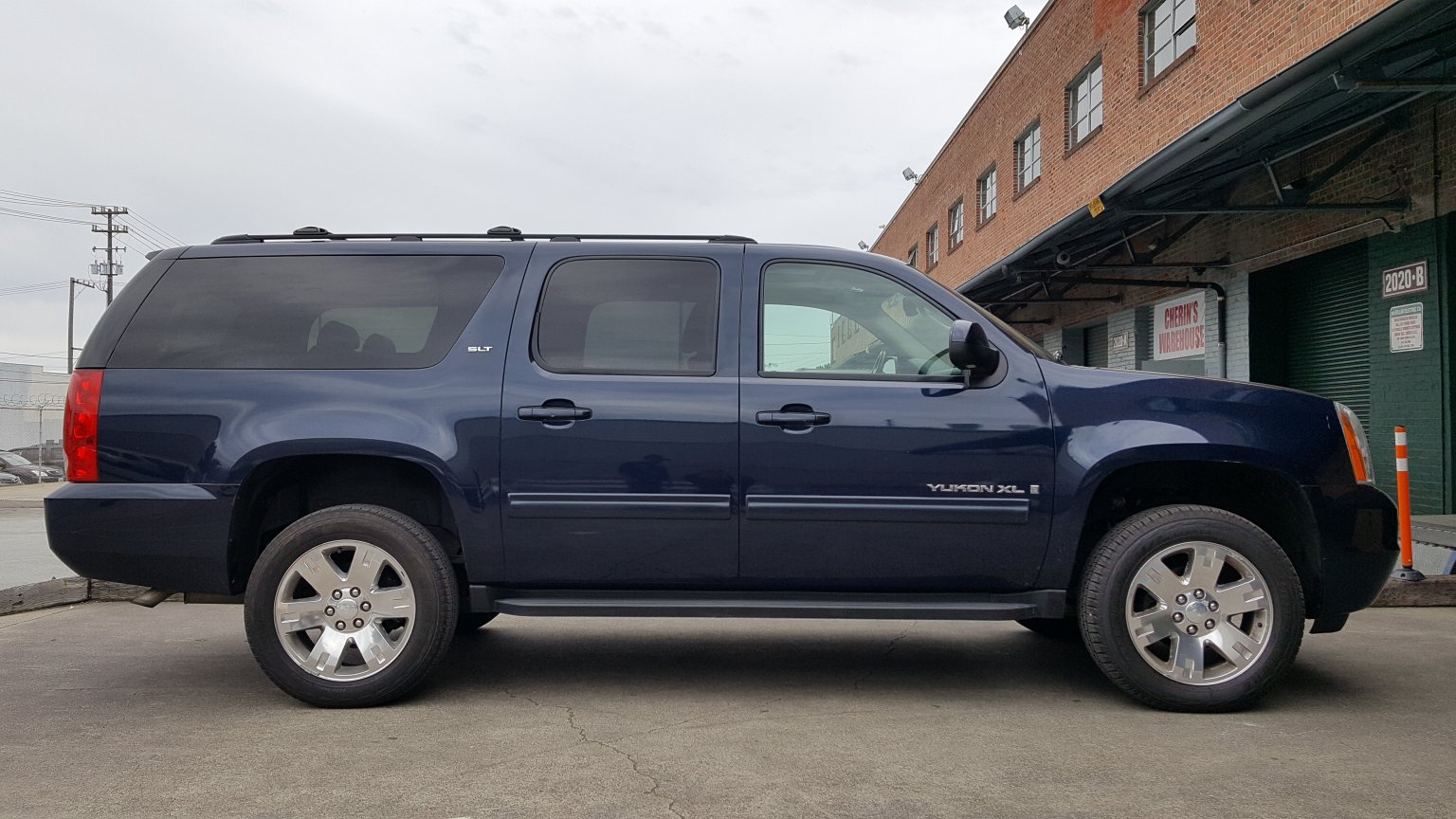

    I installed my ccm 2.5/1 kit yesterday with new 5100's in all four corners. I did not measure before but it looks way better. Found a 2-3 piece broken off a spring in the rear so will replace those soon with Moog 81069's. My question is what are we trying to level? I have always measured from the center of the wheel or hub to the fender. Are we trying to make that distance the same front and rear? Ground up to fender doesn't seem like the right place to measure. I am asking because I am wondering if the new rear springs will raise the rear at all. Here's before and after pics.



    Last edited: Mar 19, 2017
    swathdiver and Countryboy07 like this.
  2. Lil_Stump

    Lil_Stump Full Access Member

    Posts:
    90
    Likes Received:
    48
    Joined:
    Apr 22, 2016
    Location:
    Brunswick, GA
    Name:
    Conner
    I always took it as you are trying to level the front with the rear so the fender wells match in height and space between the top of the fender and the top of the tire. Instead of having say 3 inches between top of tire and fender on front compared to 6 inches between top of tire and fender on rear., you have an even amount of room between each if you get a leveling kit.

  3. Galante

    Galante Elite Member Supporting Member

    Posts:
    10,050
    Likes Received:
    8,239
    Joined:
    Nov 6, 2016
    Location:
    Up here
    Name:
    Pete
    That looks really good.
    I always thought ground thru center of hub to fender lip. That being said, if you look at side view of truck and when those measurements are equal that is level.
    Keeping what you have 2.5/1 and 5100's and then getting the moog springs may put you at almost factory rake i think.
    Please, someone correct me if im wrong.

    swathdiver likes this.
  4. NGAneer

    NGAneer Full Access Member

    Posts:
    1,758
    Likes Received:
    977
    Joined:
    Jan 21, 2014
    Location:
    NWGA
    Name:
    Matt
    I look at two things. The fender to the top of the tire and step/rocker to the ground. Because the fenders are cut higher in the rear than the front, you will have the front of the rocker higher than the rear to level the wheel wells and vice versa if you level the rocker panel.

    When I had just my TGC on the front, the wheel wells were level but the back of the rocker was lower than the front. Looked goos from most angles but kind of goofy from the back. I added a 1" coil spacer from Summit performance that brought it to some kind of equilibrium. The wheel wells are close to level but so is the rocker, though neither really is.

  5. Tractoman

    Tractoman Member

    Posts:
    51
    Likes Received:
    18
    Joined:
    Mar 1, 2017
    Name:
    Mike
    Here is the follow up with the new Moog 81069 springs installed. The new springs raised the rear 5/8" and it sits within 1/8" side to side. I assume these will settle down a little but the ride is fine and no more broken spring. I replaced the lower rubber isolators too. On to something else.

  6. contraption22

    contraption22 TYF Newbie

    Posts:
    20
    Likes Received:
    3
    Joined:
    Aug 16, 2016
    Name:
    Mike
    Thank you for posting all you've done along with pictures. To clarify, the Moog 81069 raised the rear 5/8 over the OE Soft ride springs?

    Thanks again.

  7. Tractoman

    Tractoman Member

    Posts:
    51
    Likes Received:
    18
    Joined:
    Mar 1, 2017
    Name:
    Mike
    That is correct. With the CCM 1" spacer installed in the rear, the new springs raised the rear 5/8" over the OE springs with the spacer installed. I am assuming they may settle out a little over time. Ride is great with the Bilsteins and new rear springs. Also installed new sway bar bushings and end links in front.

  8. contraption22

    contraption22 TYF Newbie

    Posts:
    20
    Likes Received:
    3
    Joined:
    Aug 16, 2016
    Name:
    Mike
    Thank you again.

  9. NGAneer

    NGAneer Full Access Member

    Posts:
    1,758
    Likes Received:
    977
    Joined:
    Jan 21, 2014
    Location:
    NWGA
    Name:
    Matt
    So... I've always heard when you replace the ZW7 shocks you have to replace the springs or you're rear end will sag. This tells me that sag may only be 5/8"... sounds pretty minimal.

    Anybody done Bilsteins in the rear and kept the stock coils?

  10. NGAneer

    NGAneer Full Access Member

    Posts:
    1,758
    Likes Received:
    977
    Joined:
    Jan 21, 2014
    Location:
    NWGA
    Name:
    Matt
    How did it ride with the stock springs and the bilsteins?
