Ignition Cylinder Bypass/Pushbutton Start Conversion Write Up

Alex_M

Member
Joined
Sep 27, 2021
Posts
45
Reaction score
77
Hey all! So you've lost your key, and the dealer cut key didn't work. Or maybe someone tried to steal your truck and buggered up the ignition cylinder. I found myself in both of these situations in the past week, in two separate vehicles. Here's my solution.

Let me go ahead and state, you will have to disable or bypass the passlock system for this to work. In my Tahoe I already had the VATS disabled VIA HPTuners. The resistor bypass should also work, but may take more figuring.

Let it be known that your truck will no longer take a key to start, unless you use a keyed switch in place of one of the toggle switches. Now, on to the write up.



This is not a super thorough write up, but there is plenty of info here for a competent person to complete the job. Pin out information is provided.

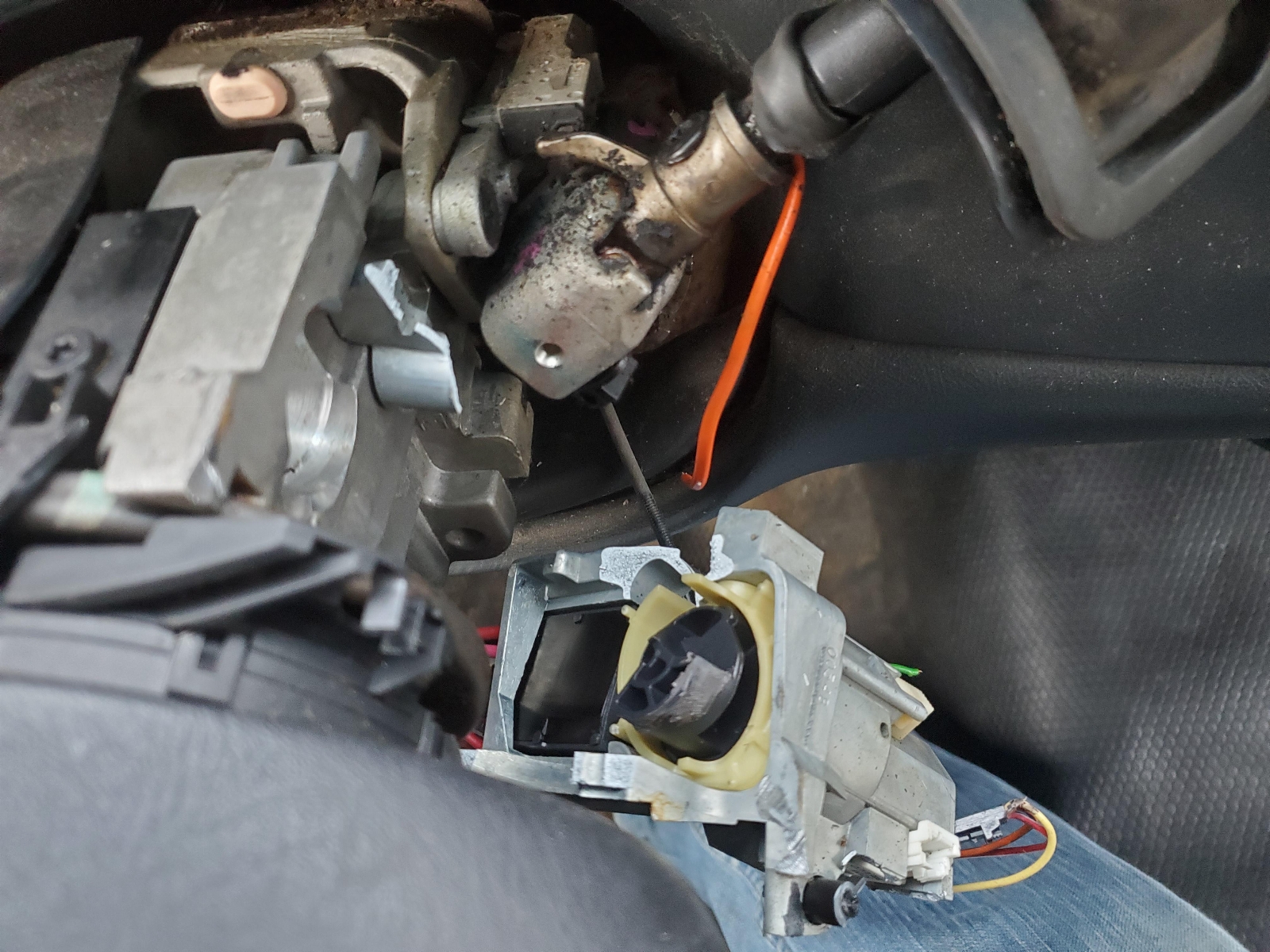

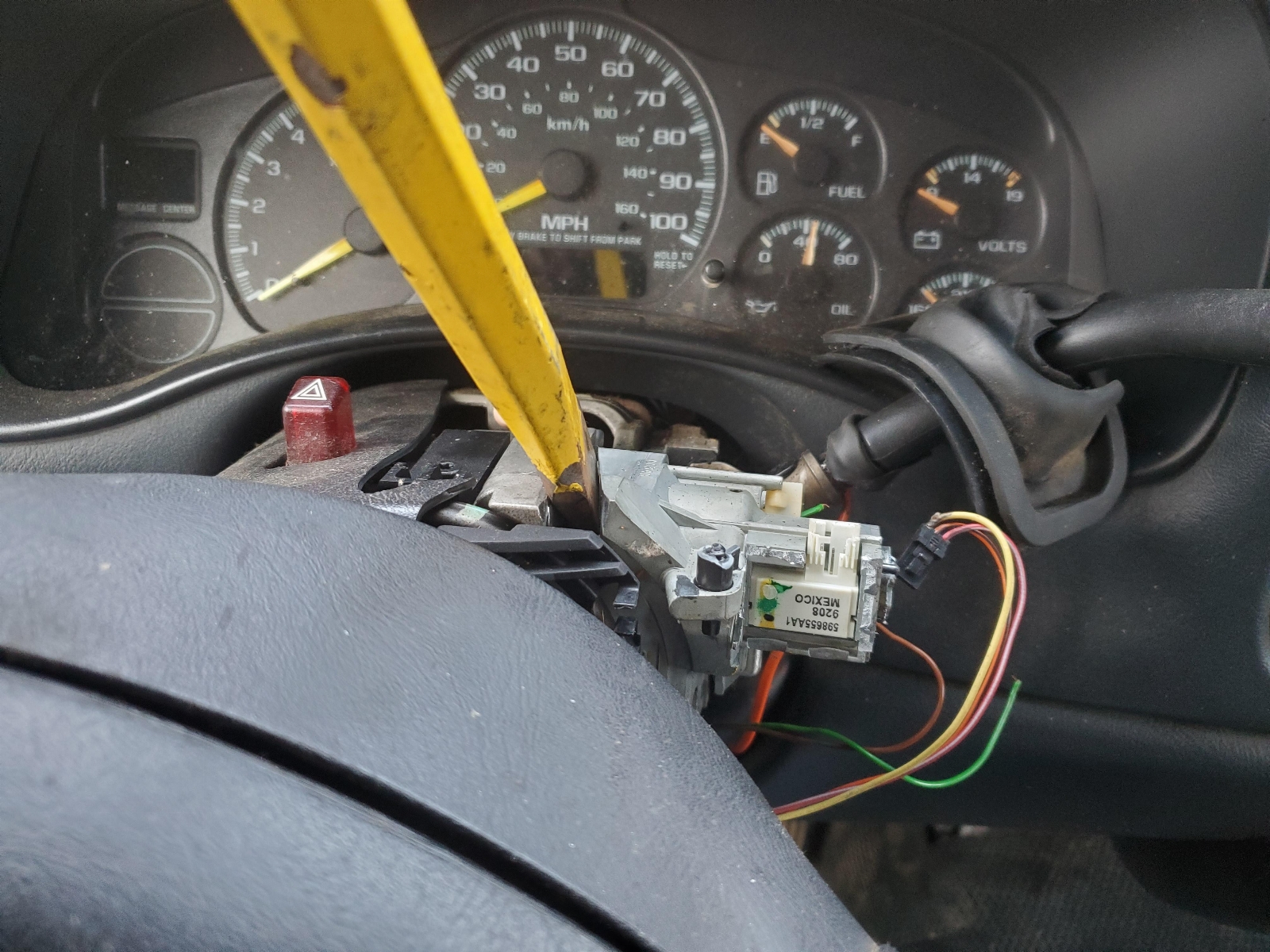

Of course you'll have to begin by removing the plastic cover from your steering column. Once that is out of the way you will take a chisel and a hammer and remove the ignition cylinder and housing. It is possible to remove them without destroying the housing, but it requires removal of the steering wheel and I never intend to go back to a keyed ignition. IF YOU DO WANT TO RETURN TO A KEYED IGNITION, DO NOT BUST OFF THE HOUSING. The housing alone is currently about $130 from the dealer, and the ignition cylinder is another $75.

You must be logged in to see this image or video!


You must be logged in to see this image or video!

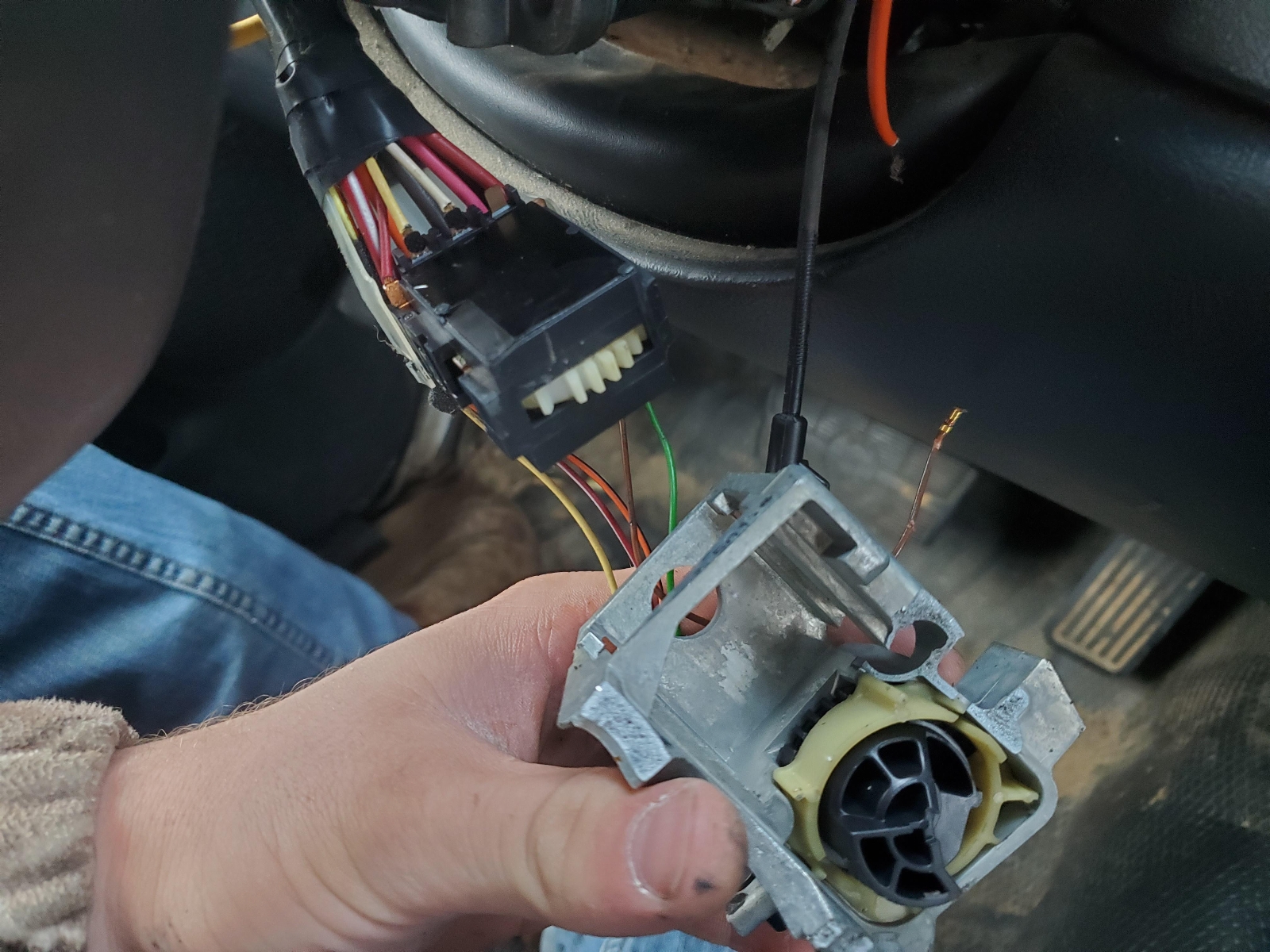

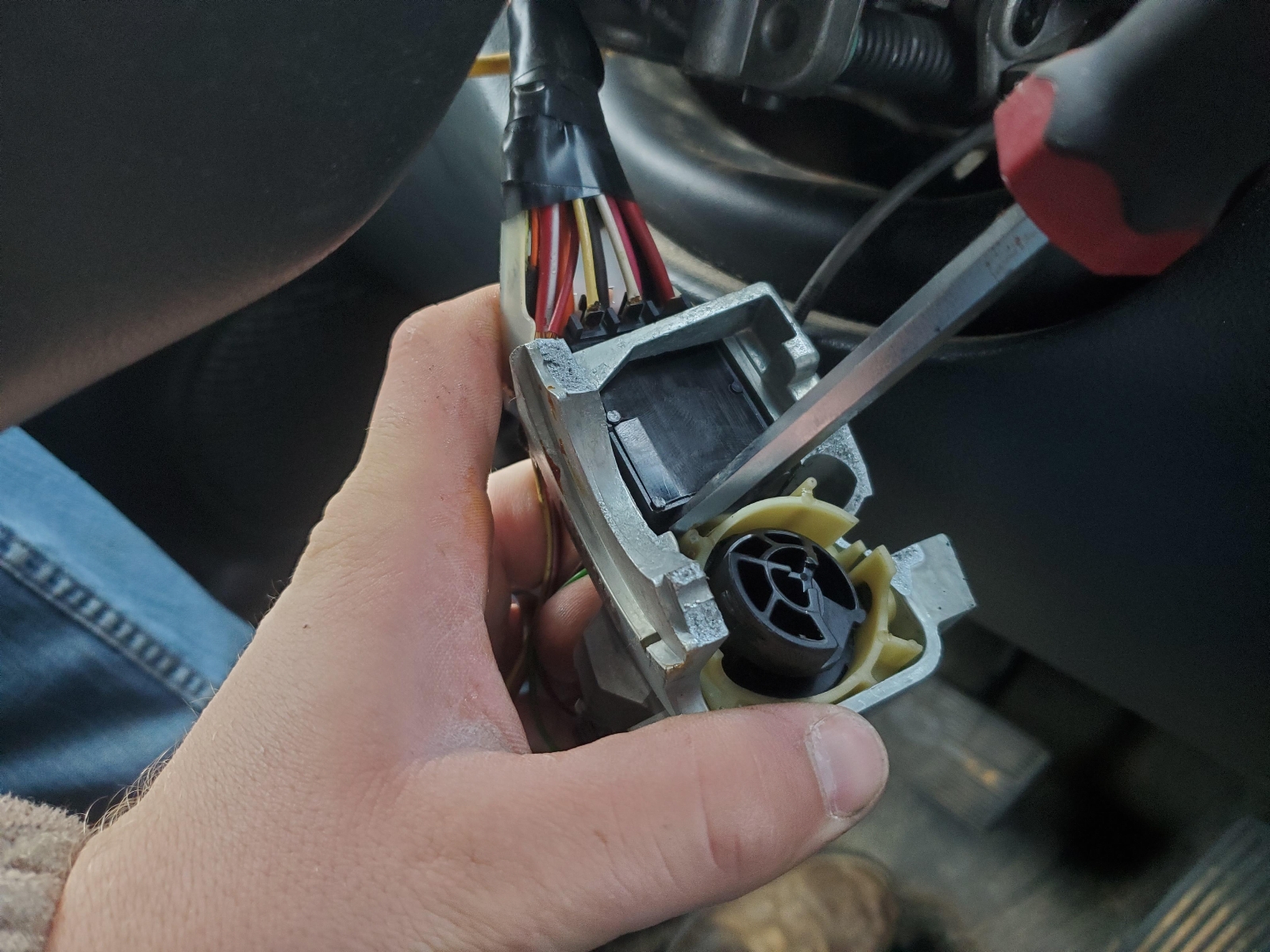

Now take a screwdriver and pop the ignition switch out of the housing.

You must be logged in to see this image or video!


You must be logged in to see this image or video!


At this point, if you're in a pinch and just trying to get home, you can roll the wheel by hand and then bridge pins 1 and 2 to start your vehicle. Again, the passlock will have to be either tuned out or bypassed with a resistor. Pin out is shown below, all pins are numbered.

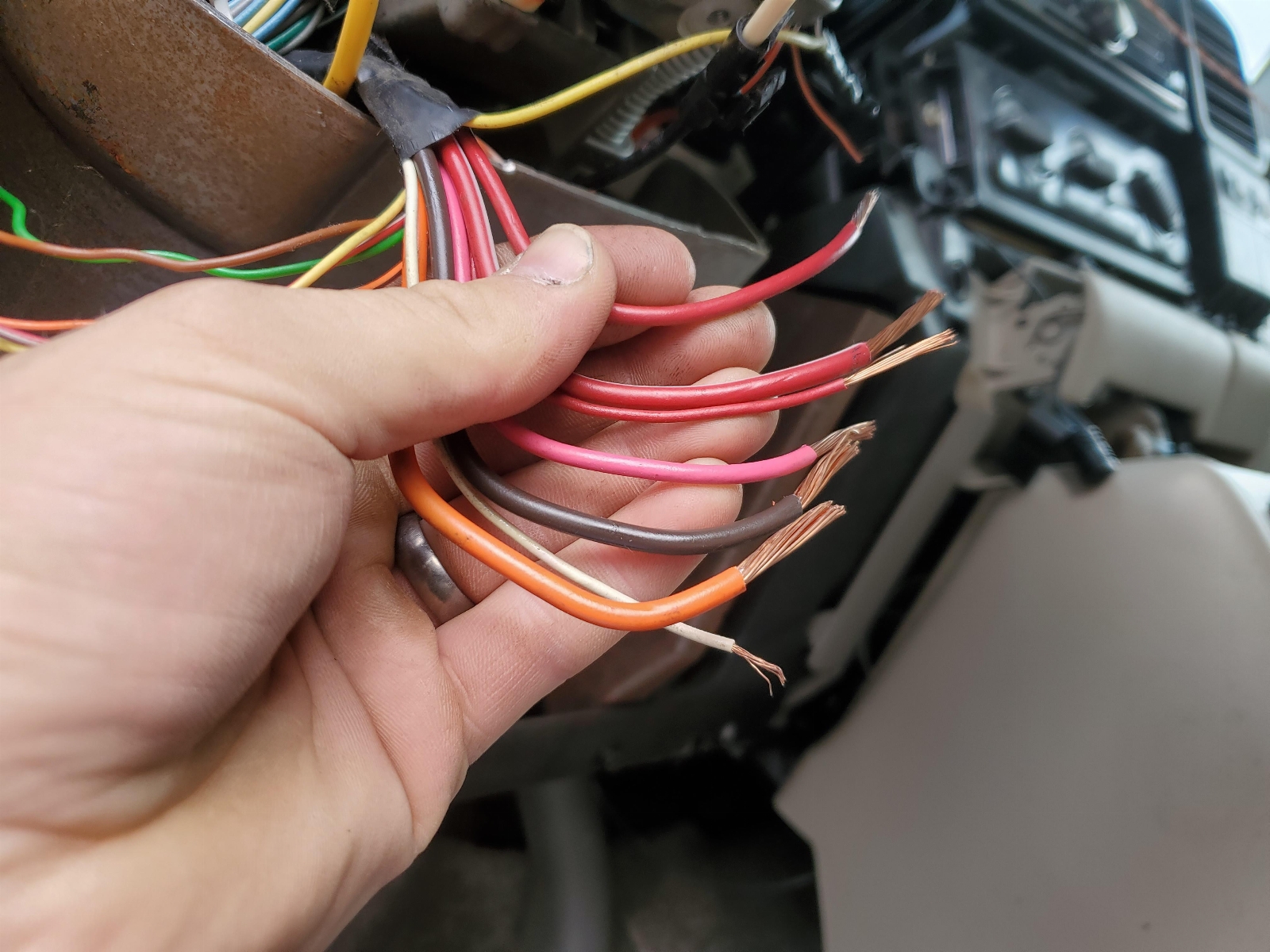

If you intend to comete the conversion, take a pair of ***** and cut all the wires free. Strip them all back enough to twist the correct pairs together.

You must be logged in to see this image or video!

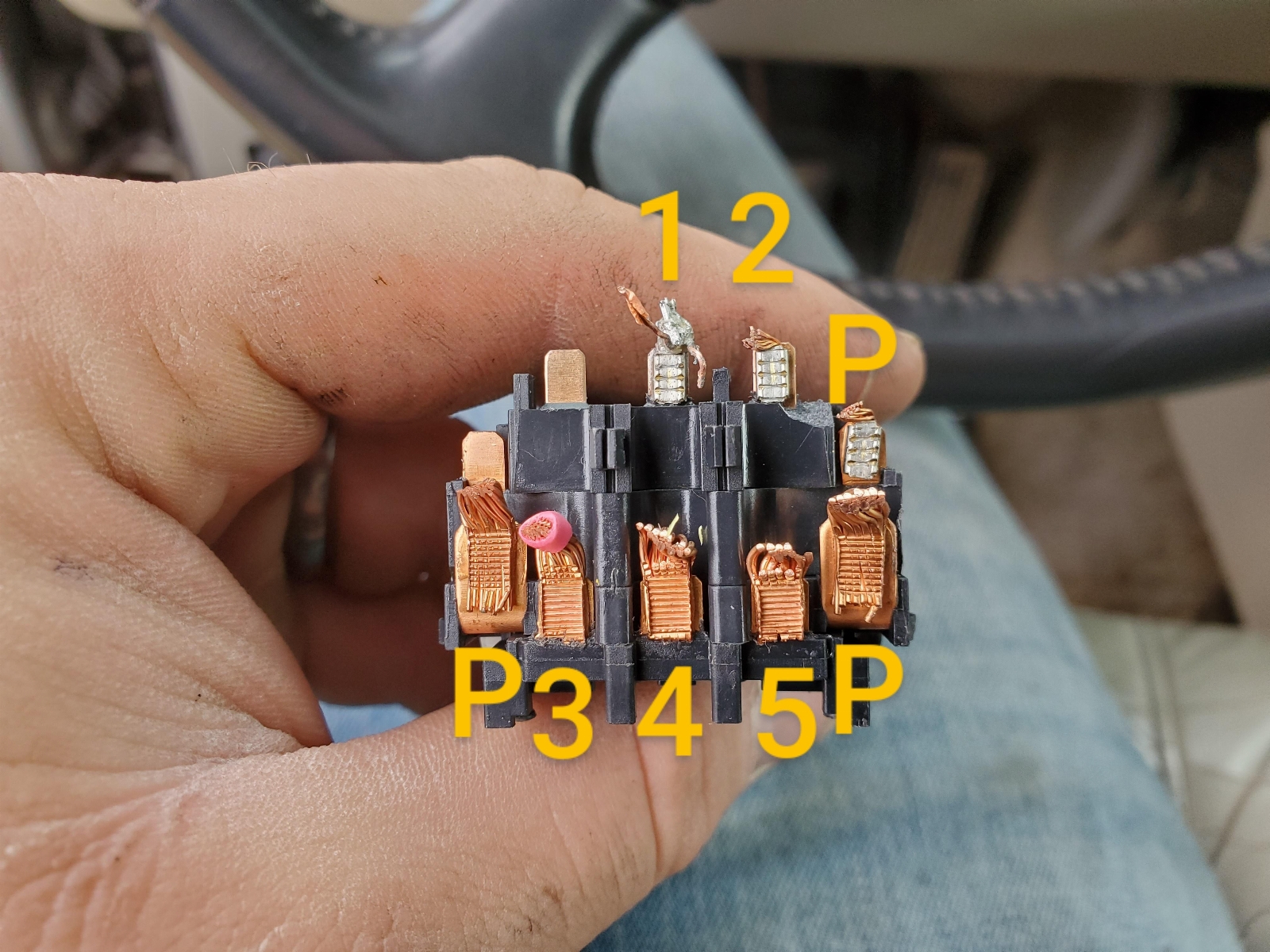

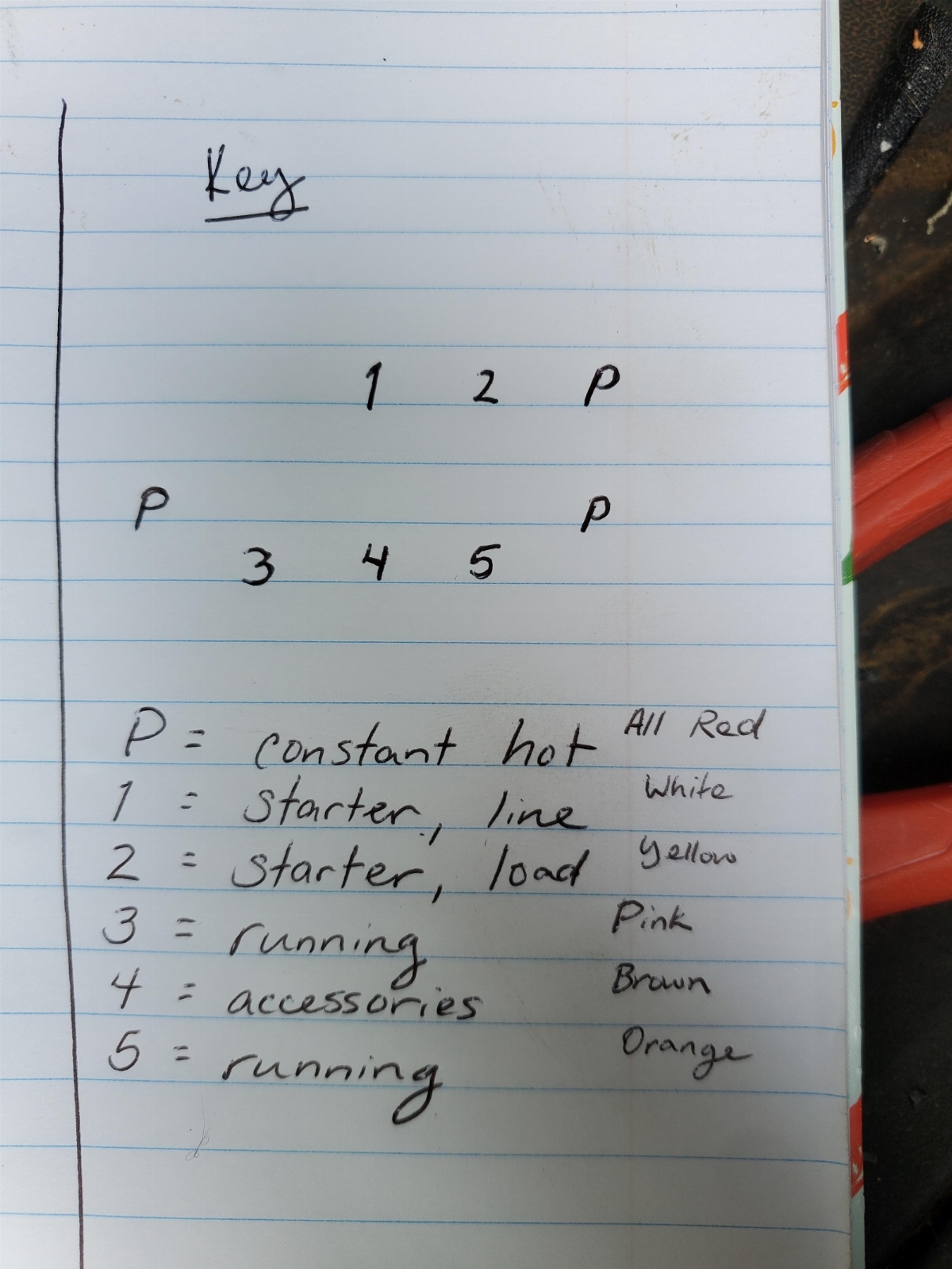

Here is the pin out.

You must be logged in to see this image or video!


You must be logged in to see this image or video!


As you can see from the pin out, your pairs are as follows.

Orange and Pink

Brown and White, plus starter button feed

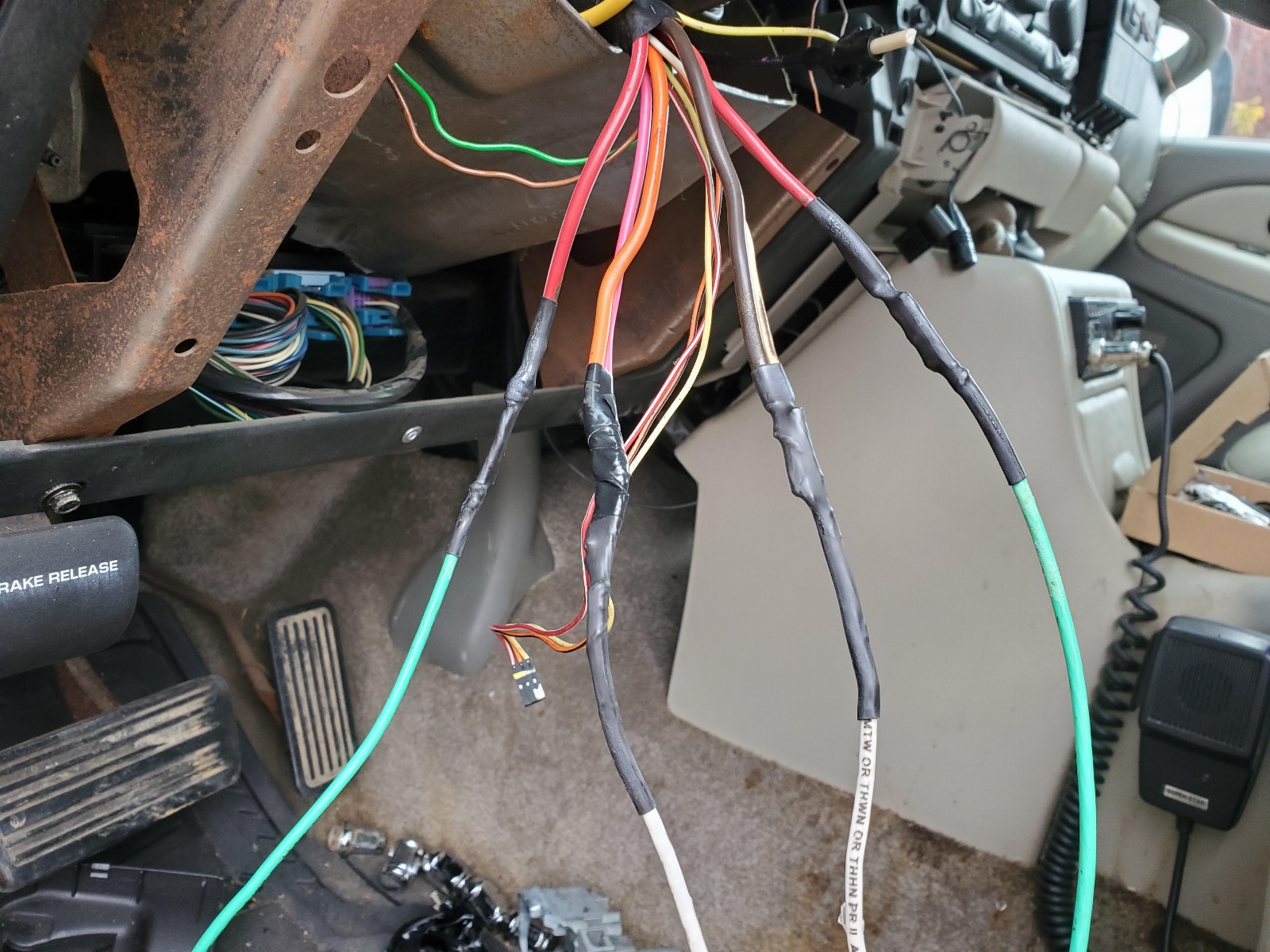

The three reds are all constant hot. Make jumpers to extend your wires far enough to reach where your switches are going to go. I highly recommend solder and heat shrink, or at the very least use heat shrink crimp connectors. I used stranded #12 THHN wire that I had laying around. That is rated for a 20a load, same as most toggle switches.

At this point, be sure to also solder in a pair of wires for the starter button. One wire should go in with the load side of one of your switches. I chose the accessories switch for easy cranking without firing if I need that capability in the future. Possibly helpful for compression tests or priming the oiling system when necessary. The other will connect back to the yellow wire, Pin 2.


You must be logged in to see this image or video!

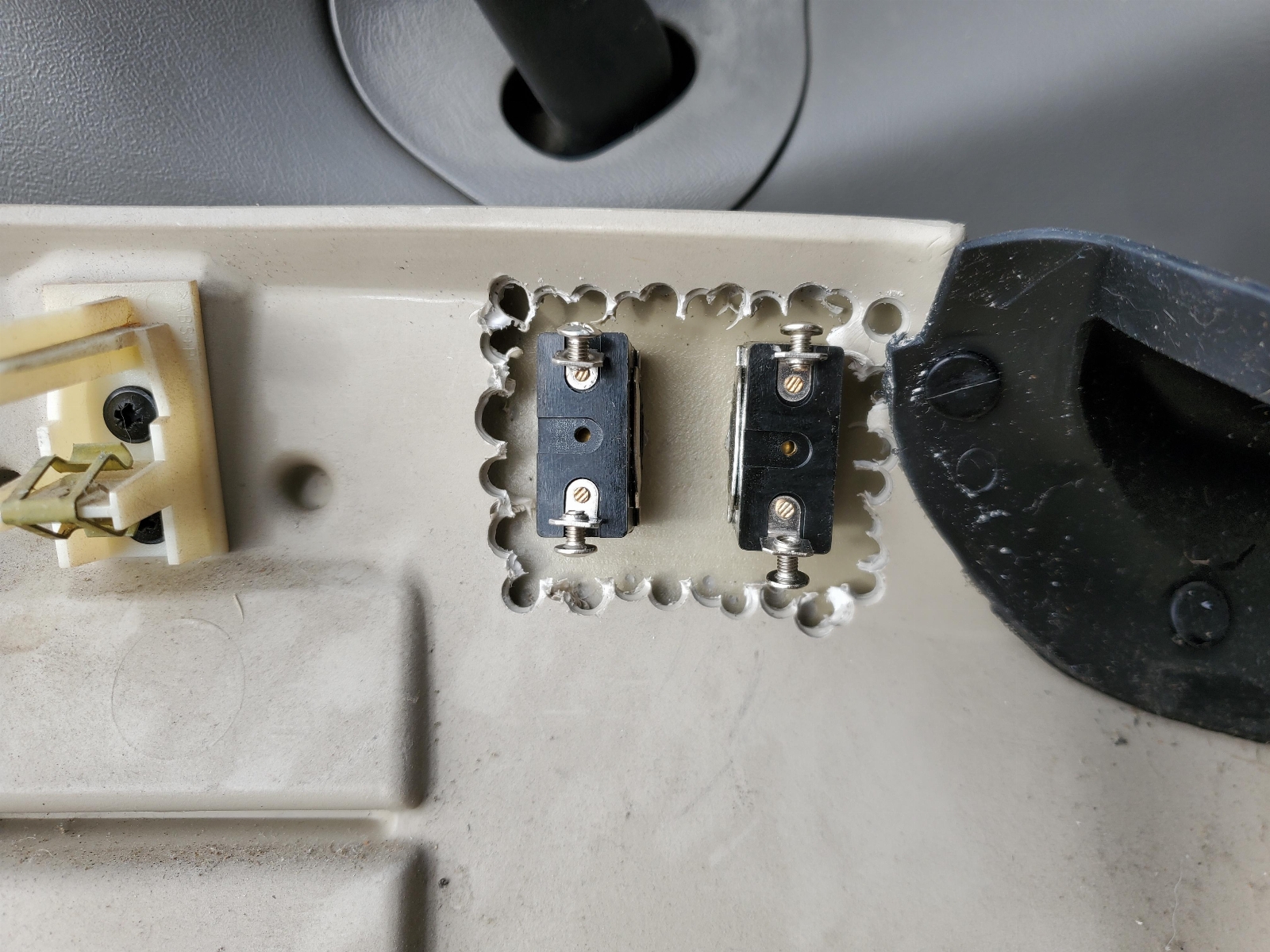

I decided to mount my toggle switches in the knee panel beside where the factory ignition switch was. This panel is double layered, so you will need to drill your hole for the switch and then trim a layer off the back side for the switches to recess into. This would be cleaner to use a Dremel or oscillating tool, but I had a drill within reach and this will not be seen.

I used two switches to my accessories and ignition are separate. I am not sure what the amp draw is on these wires, but you may have to use two in order to maintain safety. The largest of the factory wires is actually a #10 and there are two separate primary power feeds, so that leads me to believe there may be decent draw on the system.

I soldered one feed (line side) to each switch, and then my accessories load to one and ignition load to the other.

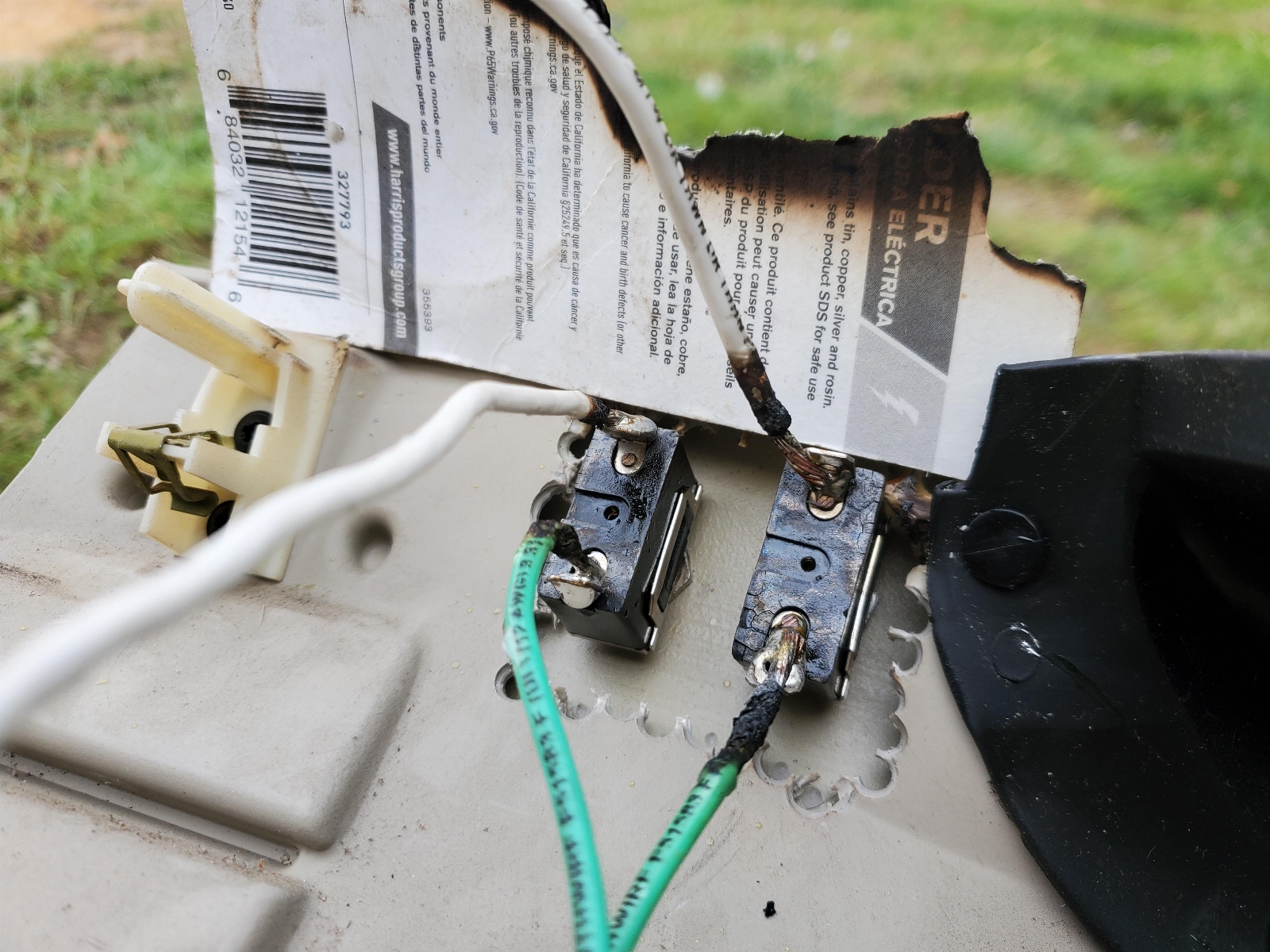

Ignore the burnt insulation. I soldered these all using propane. I'd recommend a soldering gun instead, but I used what I had handy. If you use propane, be careful. It is VERY easy to overheat and ruin the switches. Remember the very tip of the internal cone of the flame is the hottest point and will allow the quickest soldering.

You must be logged in to see this image or video!


You must be logged in to see this image or video!


At this point I decided to use some black tape to bundle the wires to keep them tidy, and I reinstalled this knee panel.

I fed my starter button wires up and around my instrument cluster to reach the location I chose for it.

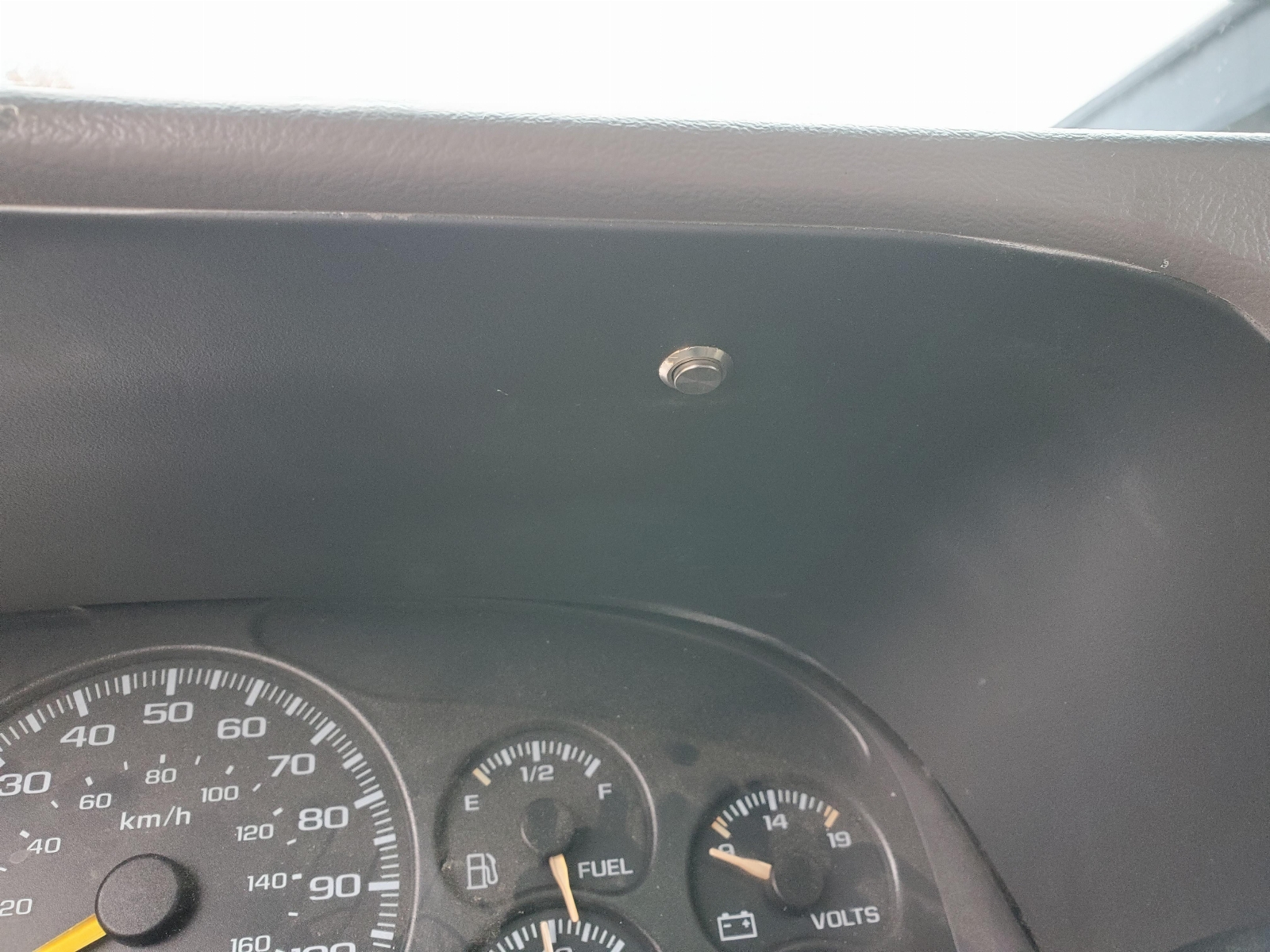

For this you will need a momentary switch. I got a nice little stainless steel momentary switch from Amazon and decided to mount it above my instrument cluster. Easily reached by grasping the dash and reaching under with my thumb, but not completely in plain sight.

This switch will not do anything unless the accessories switch is on in my setup because no power is being fed to it otherwise. If only the accessories are on it will crank, but will not fire. This gives a small amount of security requiring both switches to be on in order for the truck to start.

You must be logged in to see this image or video!

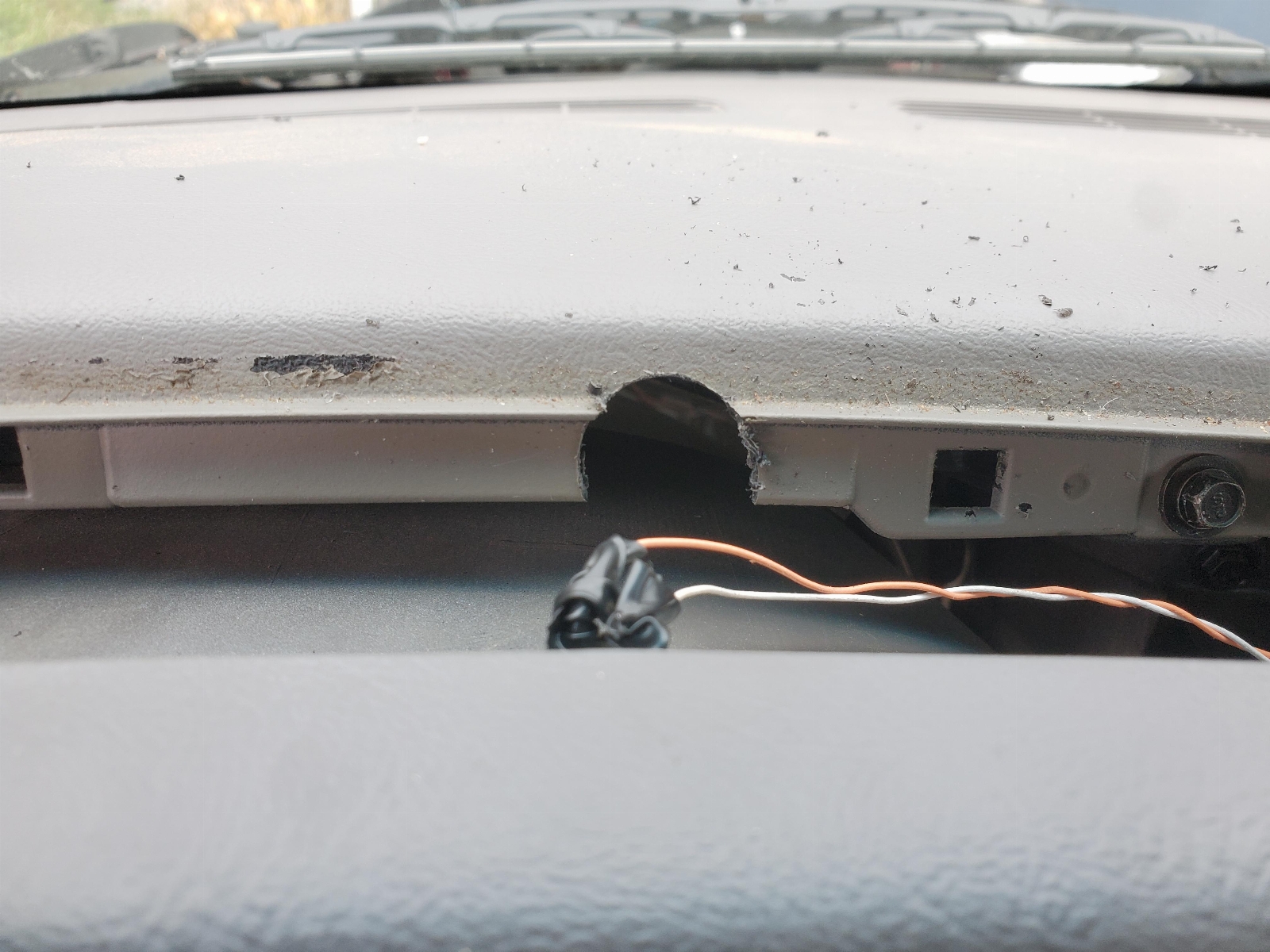

In order for it to be able to be mounted in this location I did have to trim a piece of the dash out, but this is covered back over by the dash bezel and will never be seen.

These connections were also soldered.

You must be logged in to see this image or video!

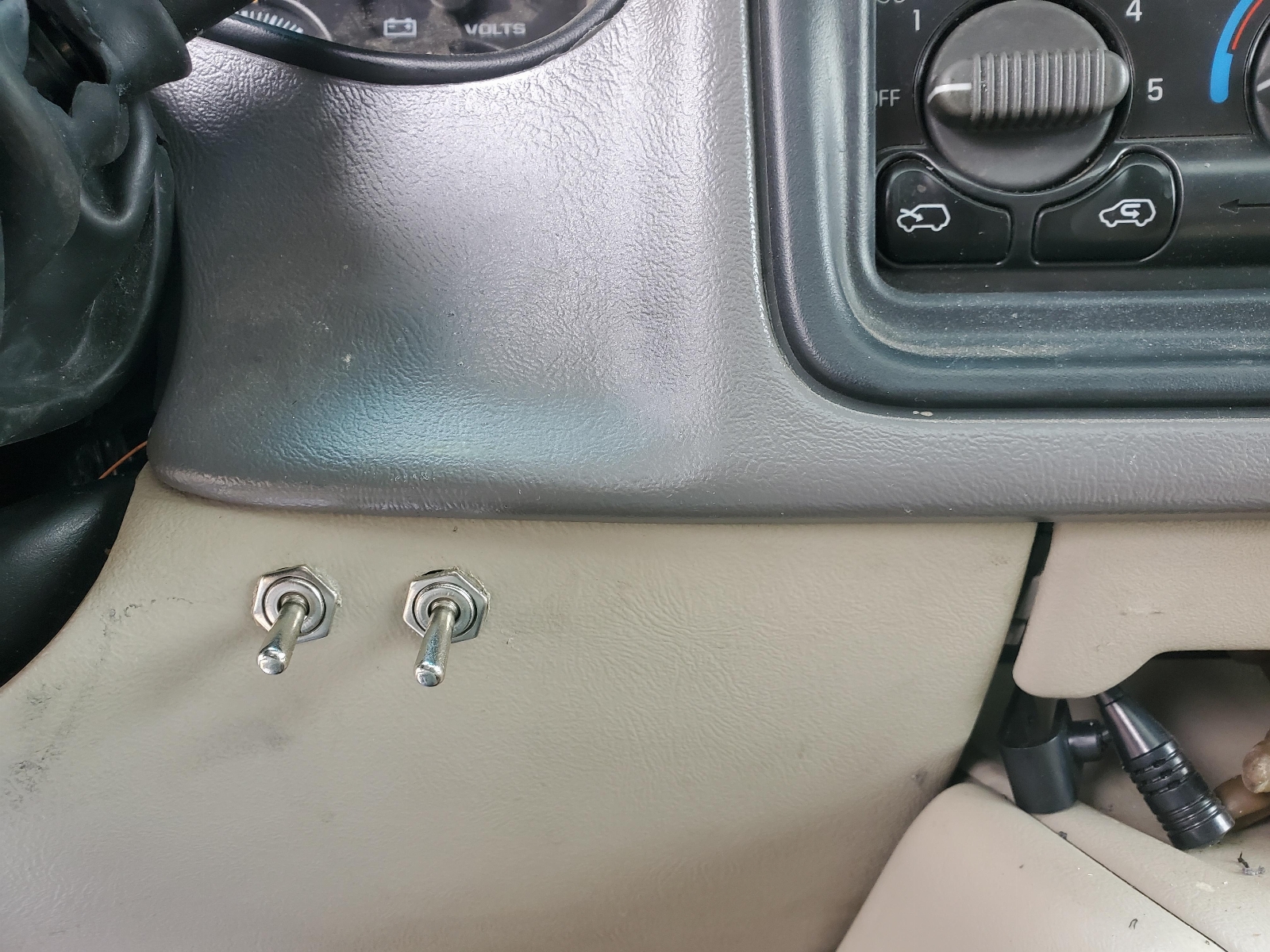

And here is the final mounted location of my switches.

You must be logged in to see this image or video!


Now! It appears I forgot to photograph this last part, but you have to disable the steering wheel lock. The lock is just a steel pin that is pushed back out of place when the ignition is turned. It is at the top of the round milled spot on the right hand side of the column.

I just pushed it back and held it out of the way with a screwdriver, then drilled a hole thru the top of the column and sent a screw down through the hole to act as a retaining pin. I did not go through the pin itself; I intersected the shelf that is cut into the pin. Very simple solution that you won't have to worry about.

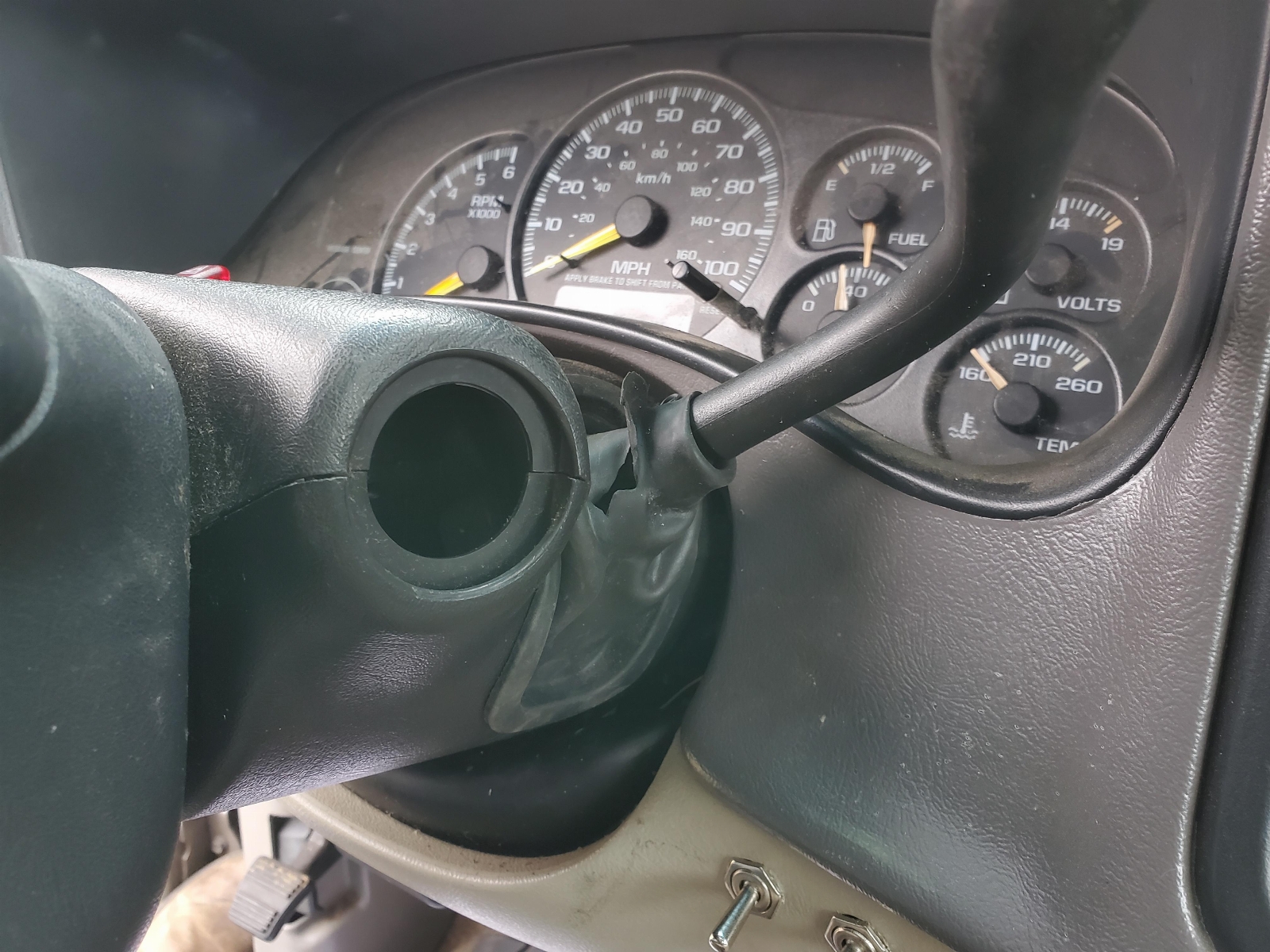

And finally I reassembled the plastic cover for the steering column. With the ignition housing removed the top piece does not have anywhere to bolt. This is not a problem. When the two halves of the clam shell snap together, the bottom piece mounts to the column and holds the top piece in place solidly.

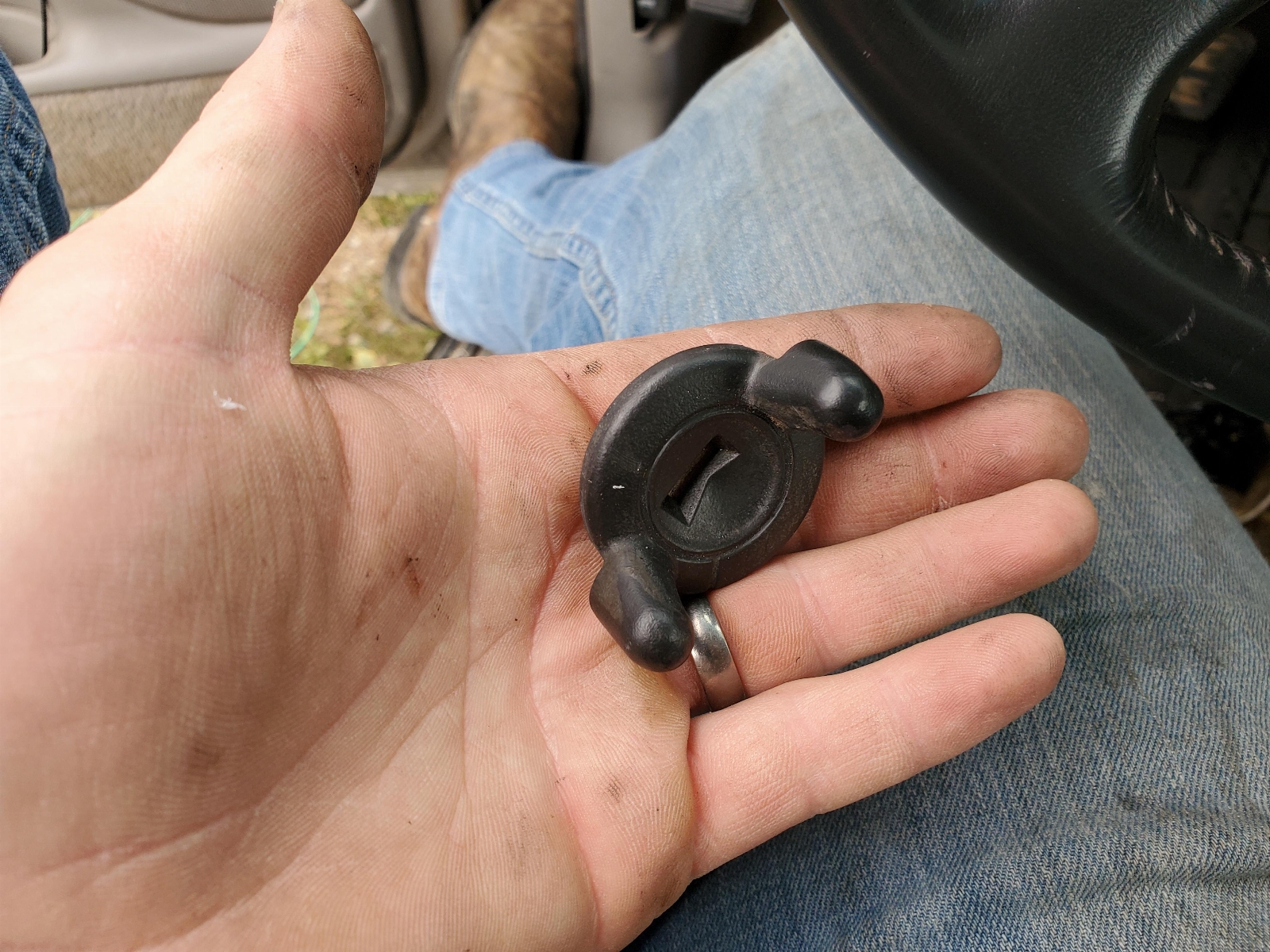

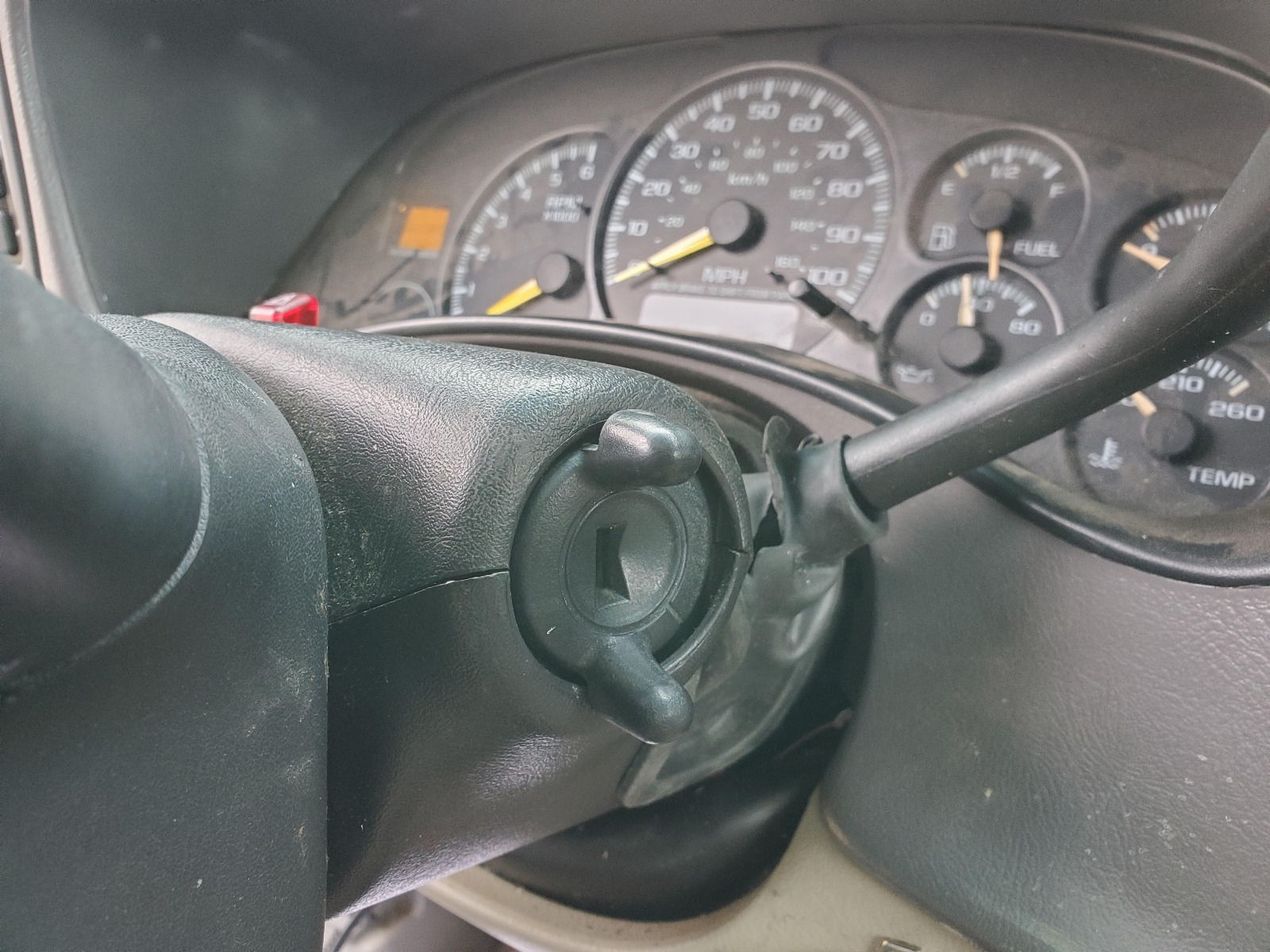

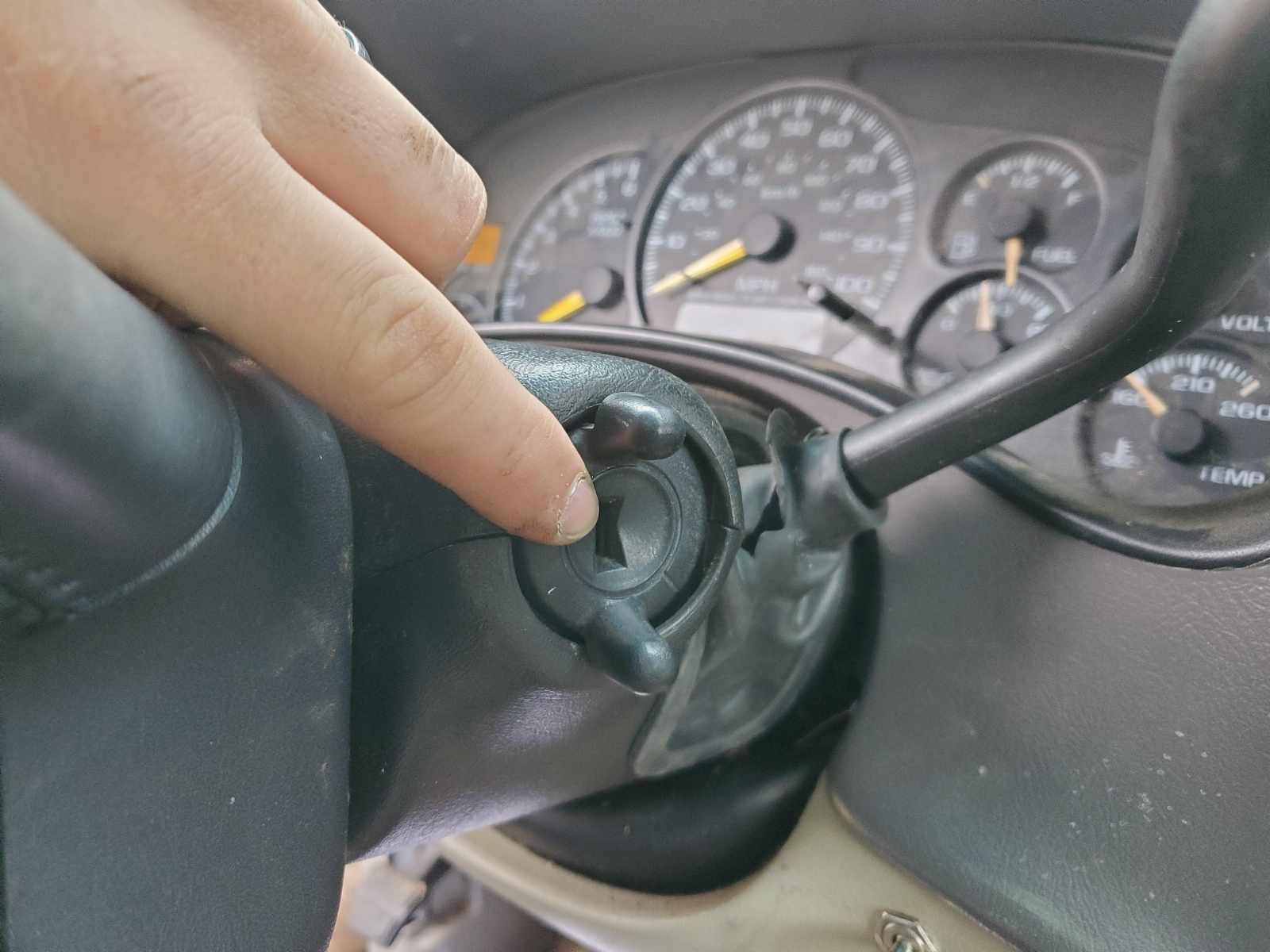

Now with the open hole left, I broke the cover off the old ignition and simply used some super glue to mount it back in place.

If you wanted to, it would be very simple to cut a piece of black plastic and mount your starter button here instead, but I preferred the alternative location.

You must be logged in to see this image or video!


You must be logged in to see this image or video!


You must be logged in to see this image or video!


You must be logged in to see this image or video!


Joseph Garcia

Supporting Member
Joined
Aug 2, 2018
Posts
3,046
Reaction score
3,580
Nice writeup!

Near the end of the life of my '97 Yukon (RIP), I had a momentary push button starter installed under the dash, rather than spend additional funds to fix the original issue. It worked fine, and bought me several more months of life for that faithful truck.


exp500

Full Access Member
Joined
May 14, 2017
Posts
1,228
Reaction score
909
Thank You Alex. Answered my questions. Great Job!


NAMERTAG

TYF Newbie
Joined
Nov 24, 2021
Posts
3
Reaction score
0
This is SUPER helpful! I appreciate it! On the starter wire you soldered. You said one went load and the other went to the yellow. That was just from the momentary contact right? Or am I missing something?


Alex_M

Member
Joined
Sep 27, 2021
Posts
45
Reaction score
77
This is SUPER helpful! I appreciate it! On the starter wire you soldered. You said one went load and the other went to the yellow. That was just from the momentary contact right? Or am I missing something?

Yep, that's correct!


Rocket Man

Mark
Supporting Member
Joined
Dec 25, 2014
Posts
21,755
Reaction score
38,971
Location
Oregon
If I did that my truck would be stolen in no time. The Passlock and steering wheel lock are probably what stopped the thieves that tried. Why not replace the ignition cylinder, it’s easy. I took my old and new one to a locksmith and he keyed the new to accept my old key. Anyway, nice write up.


Alex_M

Member
Joined
Sep 27, 2021
Posts
45
Reaction score
77
If I did that my truck would be stolen in no time. The Passlock and steering wheel lock are probably what stopped the thieves that tried. Why not replace the ignition cylinder, it’s easy. I took my old and new one to a locksmith and he keyed the new to accept my old key. Anyway, nice write up.

The company truck did get a new cylinder. We didn't have it keyed so any key works in it, but it looks like it's there anyway. As for my own, it's not worth the $200 for a new lock cylinder and frame.

O

only issue I’m having right now is when I hit my two switches only the check engine light is coming on and the starter button won’t crank it:(

Interesting. Are you sure you've got it wired correctly? Post up a diagram or some pictures of what you've got.


NAMERTAG

TYF Newbie
Joined
Nov 24, 2021
Posts
3
Reaction score
0
The company truck did get a new cylinder. We didn't have it keyed so any key works in it, but it looks like it's there anyway. As for my own, it's not worth the $200 for a new lock cylinder and frame.



Interesting. Are you sure you've got it wired correctly? Post up a diagram or some pictures of what you've got.
I’m just an idiot and forgot to put a power to one switch and the pass key was kicking my ass!
