How to do the 4 or 6 high mod on an 03-06 full size truck for $3.00

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

bigbird189

Member
Joined
Dec 17, 2011
Posts
33
Reaction score
1
So I have done this before with the 3 amp 50 volt diode on an old denali but have since sold it and bought another denali, but this time I went to Radio shack, all they had was 3 amp 200 volt and 3 amp 400. Can I use any of these? Or should I wait until I can find 3 amp volt again?


scoobyxj

Full Access Member
Joined
Oct 24, 2013
Posts
176
Reaction score
3
So I have done this before with the 3 amp 50 volt diode on an old denali but have since sold it and bought another denali, but this time I went to Radio shack, all they had was 3 amp 200 volt and 3 amp 400. Can I use any of these? Or should I wait until I can find 3 amp volt again?
Nope they will work just fine. The amperage rating is how many amps can be safely pulled through the diode, and the voltage rating is the max voltage it can handle. The relays pull less than .5 amps, and the voltage is 12-14.8 so anything rated higher than that you are good to use...


bigbird189

Member
Joined
Dec 17, 2011
Posts
33
Reaction score
1
Nope they will work just fine. The amperage rating is how many amps can be safely pulled through the diode, and the voltage rating is the max voltage it can handle. The relays pull less than .5 amps, and the voltage is 12-14.8 so anything rated higher than that you are good to use...

Thank you. I just installed these last night and freakin love this mod.


Ddbell21

Member
Joined
Feb 15, 2014
Posts
30
Reaction score
0
Location
Little rock
Just did the mod today took me about 15 minutes to do. Using th hammer to flatten the ends really does help. Amazing write up.


Attachments

  • image.jpg
    85.8 KB · Views: 43
Joined
Jan 27, 2014
Posts
31
Reaction score
0
I just read every post in all 13 pages and now i'm so confused...lol Can someone remind me how to get the fogs on with auto low beams? not interested in anything to do with highs.

Thanks!


Grimes

Full Access Member
Joined
Apr 13, 2013
Posts
413
Reaction score
4
I just read every post in all 13 pages and now i'm so confused...lol Can someone remind me how to get the fogs on with auto low beams? not interested in anything to do with highs.

Thanks!

If you do the above, which is much more involved, you will have auto fogs with the auto lows, but also the ability to turn on and off the fogs. If you do not care about turning them off and want them on whenever your lows are on, simply do the following:

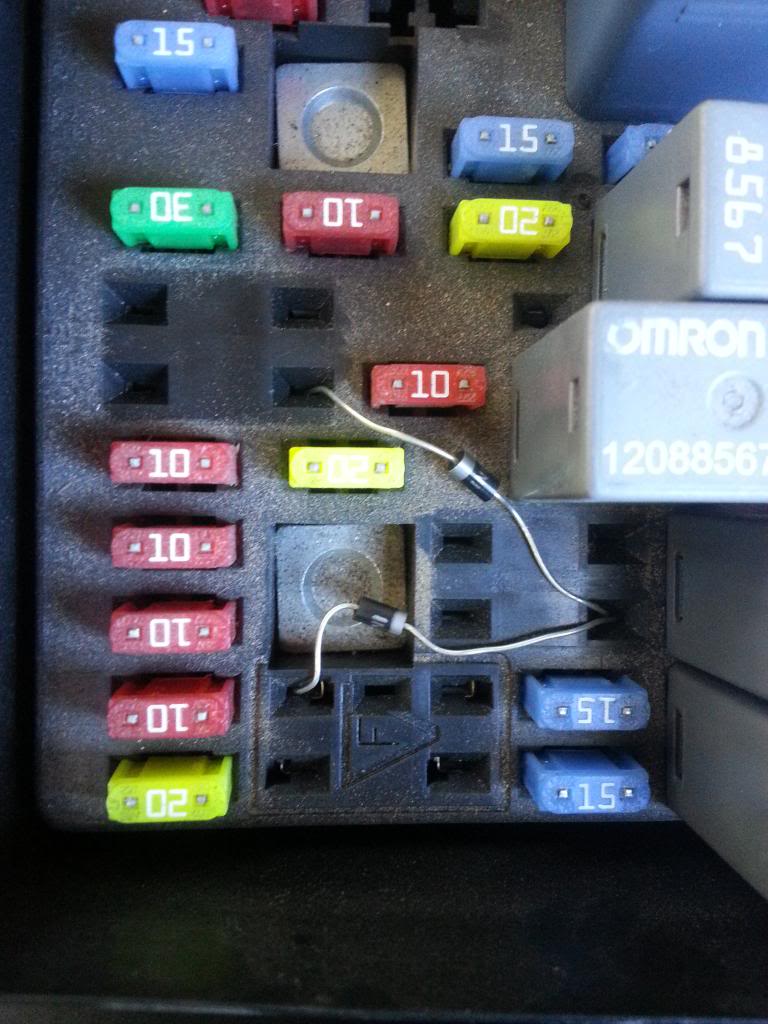

In that image, just do the wire that is towards the bottom of the image. It links the low to the fog, so whenever the lows are on, the fogs are on. Be sure the diode is facing the correct direction.

So that is a simple diode from HDLP-Low 85 to FOG LP 86.


bigbird189

Member
Joined
Dec 17, 2011
Posts
33
Reaction score
1
If you do the above, which is much more involved, you will have auto fogs with the auto lows, but also the ability to turn on and off the fogs. If you do not care about turning them off and want them on whenever your lows are on, simply do the following:


In that image, just do the wire that is towards the bottom of the image. It links the low to the fog, so whenever the lows are on, the fogs are on. Be sure the diode is facing the correct direction.

So that is a simple diode from HDLP-Low 85 to FOG LP 86.



Just make sure, shouldn't the direction of the diode go the other direction in the pic? Since the low will power the fog? I mean I don't know much about which direction for diodes but when I did high 6 they both went with grey part furthest away from low. Just want to make sure it's the right direction.
