Help, I can't find the amp in my 96 2dr tahoe

2drtahoenut61

TYF Newbie
Joined
Sep 30, 2021
Posts
1
Reaction score
0
Hello all,

I just bought a great 96 2dr tahoe. When I bought it the Dual radio unit only played through the right door tweeter. I replaced the head unit with my pioneer unit and now no sound at all. Can someone please tell me where my amp is located in my tahoe. It is nowhere in the dash, under the front seats or any where that I can find.

Help me to find my amp!!!


east302

Full Access Member
Joined
Dec 21, 2016
Posts
1,042
Reaction score
540
Location
Mississippi
You must be logged in to see this image or video!

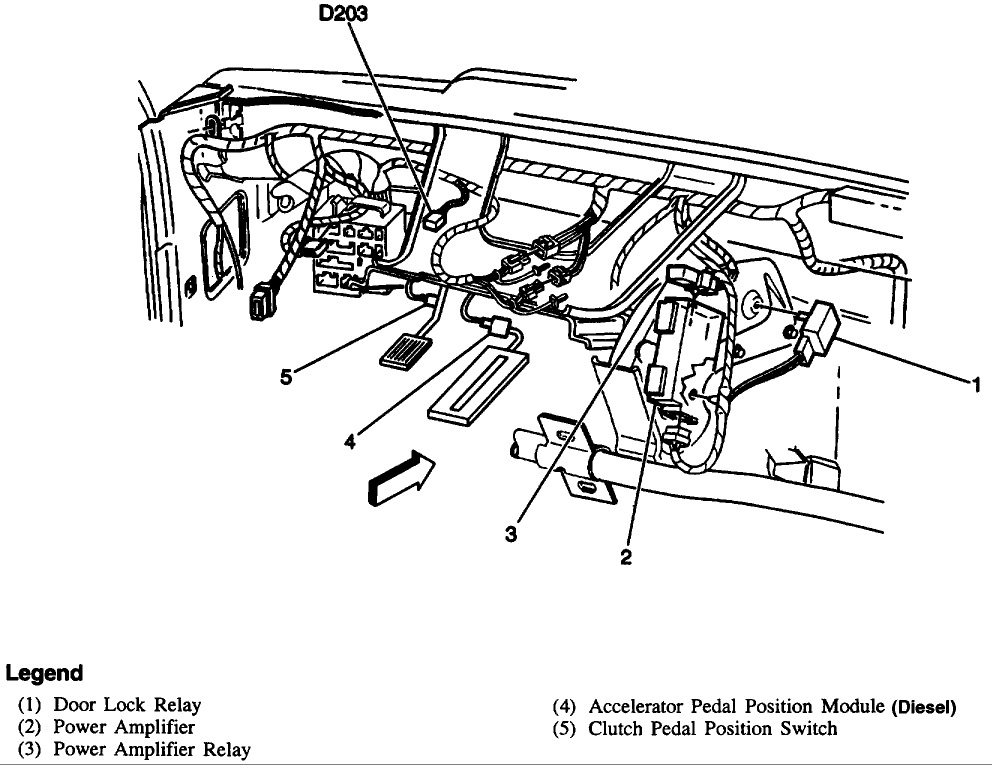

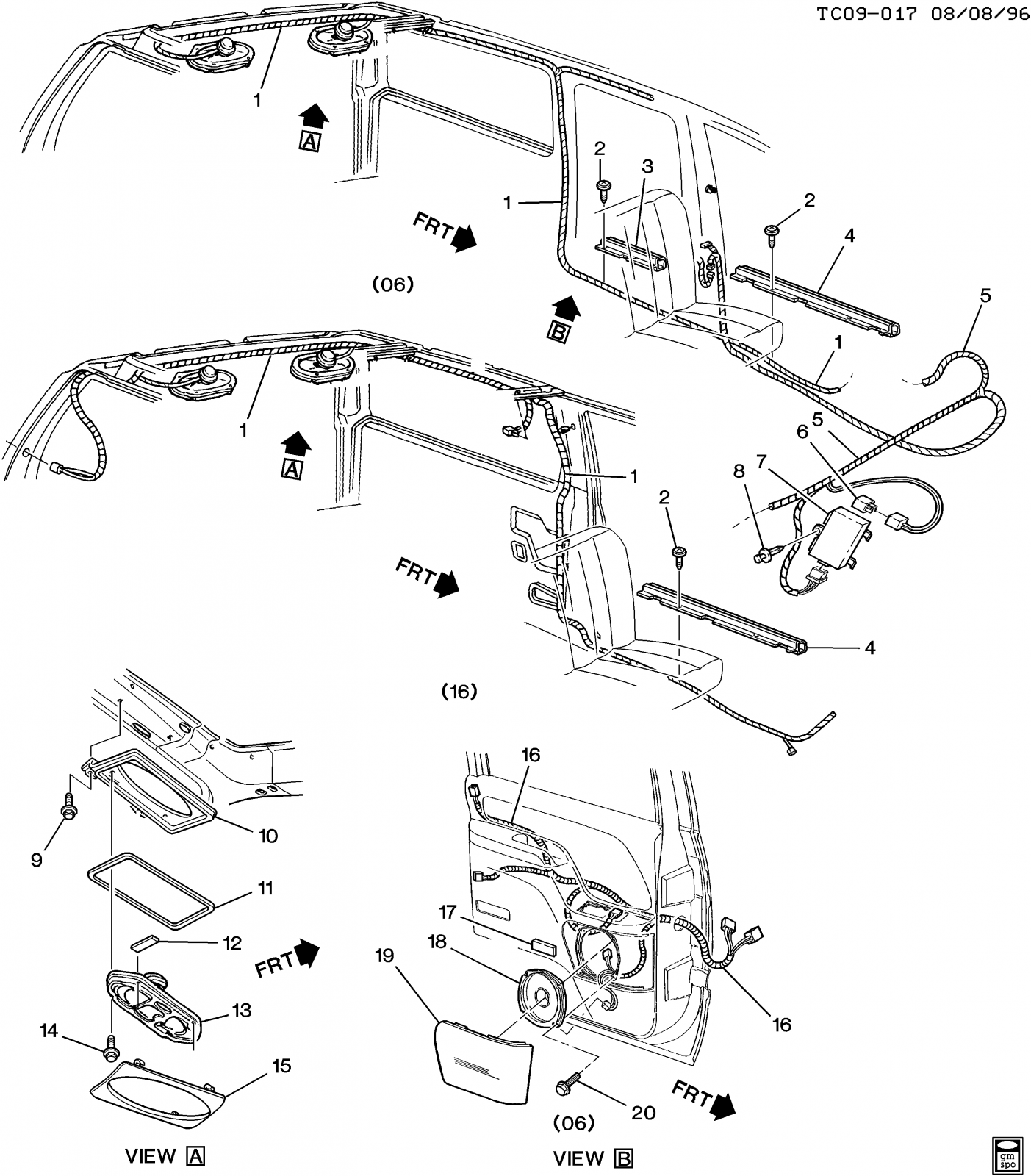

Check for RPO code UQ3 on the glovebox label. The part diagrams are showing it only for a four-door - represented by the (06) cab code in the part description.

I’ve never found one in my two-door if it helps.
You must be logged in to see this image or video!



You must be logged in to see this image or video!
You must be logged in to see this image or video!


RED TAHOE LS

Full Access Member
Joined
Jan 2, 2017
Posts
760
Reaction score
384
Location
Rossville, Georgia USA
Hello all,

I just bought a great 96 2dr tahoe. When I bought it the Dual radio unit only played through the right door tweeter. I replaced the head unit with my pioneer unit and now no sound at all. Can someone please tell me where my amp is located in my tahoe. It is nowhere in the dash, under the front seats or any where that I can find.

Help me to find my amp!!!
welcome to the forum from Georgia dawg country. east302 has the info(4 dr only).
did you check the balance/fader ? four lower small knobs oem ?


Attachments

  • Tahoe-1.png
    196.6 KB · Views: 1

Macks2DrTahoe

Member
Joined
May 1, 2019
Posts
33
Reaction score
15
Sounds (no pun intended) like the Dual was put in just to sell the 2dr. Check the door speakers to see if they are connected and in good condition. Depending on how much sound you want, the amp in the Pioneer should drive a pair of door speakers and a pair of rear speaker.

Post some pictures. We like pics.
