C notch?

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

houstone003

Full Access Member
Joined
Nov 3, 2011
Posts
201
Reaction score
0
Anybody done a c notch on our model trucks? Can yall post pics please I'm looking to do mine this weekend


Young28

The Yukon God
Joined
Aug 23, 2009
Posts
4,049
Reaction score
35
Location
ga
a little notch or a big one?

---------- Post added at 10:32 AM ---------- Previous post was at 10:30 AM ----------



WHITEOUT

Dont Hate-Appreciate
Joined
May 5, 2009
Posts
934
Reaction score
41
Location
Phoenix
a little notch or a big one?

---------- Post added at 10:32 AM ---------- Previous post was at 10:30 AM ----------


:weld: I thought you were posting up a big notch? lol.

I know GroceryGetter did a small notch, don't see him on here much anymore. But he is local to me, and think he just did a half circle notch, not sure what size. But looked like alot less work. Cut & grind frame, weld in a half circle. He would know more about it tho


Young28

The Yukon God
Joined
Aug 23, 2009
Posts
4,049
Reaction score
35
Location
ga
I knew someone did it i just couldnt remember his name.

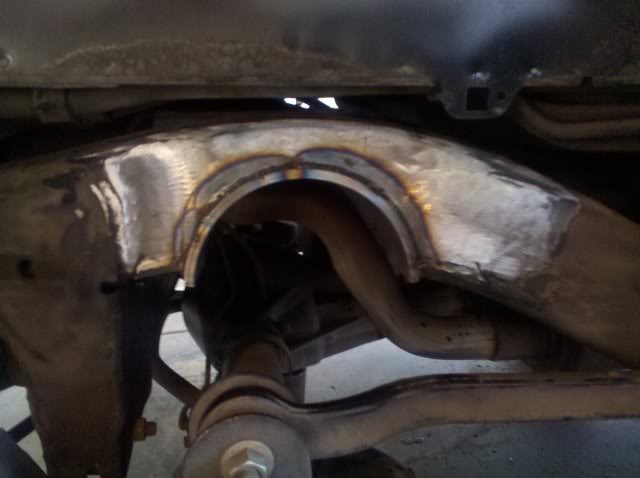

This is on groverygetter's truck

OP
OP
H

houstone003

Full Access Member
Joined
Nov 3, 2011
Posts
201
Reaction score
0
Trick 28 did you cut all into the inside through the floor for your notch? ..how big is that half pipe? Will it give me enough clearance for an 8" drop?


Young28

The Yukon God
Joined
Aug 23, 2009
Posts
4,049
Reaction score
35
Location
ga
Yes mine is cut all up on the inside. Im not sure how big the half pipe is. My guess is around 4-6"

OP
OP
H

houstone003

Full Access Member
Joined
Nov 3, 2011
Posts
201
Reaction score
0
Can you post pics? Would be nice to get it done for my future rear bag set up


waxworkz

Full Access Member
Joined
Aug 9, 2010
Posts
689
Reaction score
0
i think you'll have more issues with the rear end hitting the body floor. have you done the free travel mod and all that yet? i am on bags and can go down to about where my fender touches my tire and i am still not on the frame. i have air ride tech bag kit and running 22s, 305-45/22


Max

Mile High
Joined
May 3, 2009
Posts
3,570
Reaction score
32
Location
Denver
I may be notching mine soon for about 8" of static drop. Best way is to get some 6" diameter .250 wall pipe, cut it in half, loosen front body mounts, remove rears, plate the top of the frame with some 1/4" or larger plate, box in the frame, install low profile bumpstops on axle. I'd look at fabricating a new panhard mount and move the sway bar mounts too. I'm pretty happy with my 4/6 with helper bags but it is a ***** to get these things any lower.
