building my own front diff. Ford 8.8 LSD

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

asand

Full Access Member
Joined
Aug 9, 2018
Posts
154
Reaction score
172

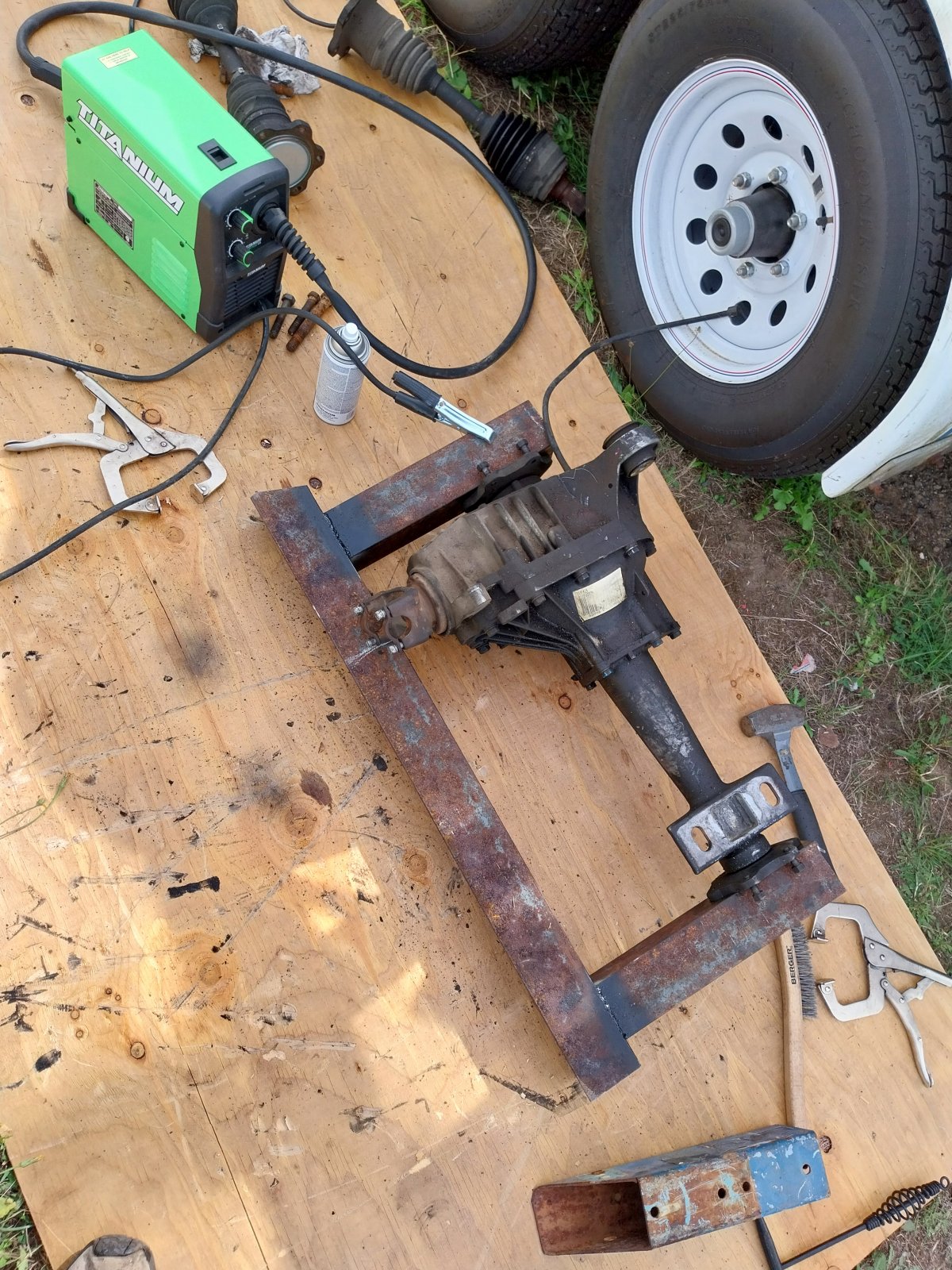

Doing a little research I've found that the AAM 8.25 has 28 spline axles. Early Crown Vic, Ranger, and other ford 8.8 rear ends also had 28 spline axles. My plan is to narrow an 8.8, put 4.11:1 gears and a LSD in it, and stab some AWD AAM 8.25 axles into it. I've already picked up the AWD diff and started building a jig.20240910_160201.jpg20240910_155834.jpg

Last edited:

rockola1971

Full Access Member
Joined
Dec 29, 2016
Posts
2,627
Reaction score
3,563
Location
Indiana (formerly IL)
"AAM 8.25 has 26 spline axles. Early Crown Vic, Ranger, and other ford 8.8 rear ends also had 28 spline axles". I hope the 26 and the 28 somewhere in there is a typo. Also are GM and Ford splines dimensionally the same? The gaps between the splines and the width of the splines themselves? Ive never been a ford guy so zero experience in that dept.

OP
OP
asand

asand

Full Access Member
Joined
Aug 9, 2018
Posts
154
Reaction score
172
"AAM 8.25 has 26 spline axles. Early Crown Vic, Ranger, and other ford 8.8 rear ends also had 28 spline axles". I hope the 26 and the 28 somewhere in there is a typo. Also are GM and Ford splines dimensionally the same? The gaps between the splines and the width of the splines themselves? Ive never been a ford guy so zero experience in that dept.
Sorry, that was a typo. They are both 28 spline. I'll fix OP. Looking around the net, with a very few exceptions Axles and diffs have all the same spline "pitch". I'll know as soon as I pick up an 8.8 rear end.

Last edited:

Mudsport96

Full Access Member
Joined
Jun 6, 2020
Posts
1,326
Reaction score
2,129
Location
40.923,-89.488. Illinois
Curious as to end game here. Just to have a LSD front diff? Not knocking the plan, Ya just didn't explain the plan well... and I'm dumb and don't seem to be able to figure it out. Lol. The 8.8 is a tuff unit though. Ran a turbo 500+ inch ford through an 8.8 in a fox body in the early 2000s. Granted it had Strange axles, but factory ring and pinion.


justirv

Member
Joined
Dec 28, 2011
Posts
92
Reaction score
105
Curious as to end game here. Just to have a LSD front diff? Not knocking the plan, Ya just didn't explain the plan well... and I'm dumb and don't seem to be able to figure it out. Lol. The 8.8 is a tuff unit though. Ran a turbo 500+ inch ford through an 8.8 in a fox body in the early 2000s. Granted it had Strange axles, but factory ring and pinion.
My guess is to replace the 8.25 front diff. It's a known weak component and not much (if anything?) in the way of aftermarket upgrades available. I recall seeing others try a 3/4 ton (2500) swap, which I beleive turned out to be extremely difficult. I'm very interested in the OP's results.


rockola1971

Full Access Member
Joined
Dec 29, 2016
Posts
2,627
Reaction score
3,563
Location
Indiana (formerly IL)
My guess is to replace the 8.25 front diff. It's a known weak component and not much (if anything?) in the way of aftermarket upgrades available. I recall seeing others try a 3/4 ton (2500) swap, which I beleive turned out to be extremely difficult. I'm very interested in the OP's results.
I believe Eaton still makes aftermarket units even though Eaton still makes alot of the OEM units for GM. I use to work for Eaton Cutler Hammer electrical division and that was a very good company to work for. As an employee you could "order" any Eaton product (even rearends) from any Eaton Division and they would put it on a truck route to your factory and you paid zero shipping and got the part, unit, system, whatever AT COST! They made generators, PLC's, UPS's, Automotive stuff, circuit breakers, breaker panels, you name it. This was back in 2005-2006.

OP
OP
asand

asand

Full Access Member
Joined
Aug 9, 2018
Posts
154
Reaction score
172
Worked on the jig a little more. Bushing mounts welded in. Pasenger side pad next.20240915_165035.jpg

OP
OP
asand

asand

Full Access Member
Joined
Aug 9, 2018
Posts
154
Reaction score
172

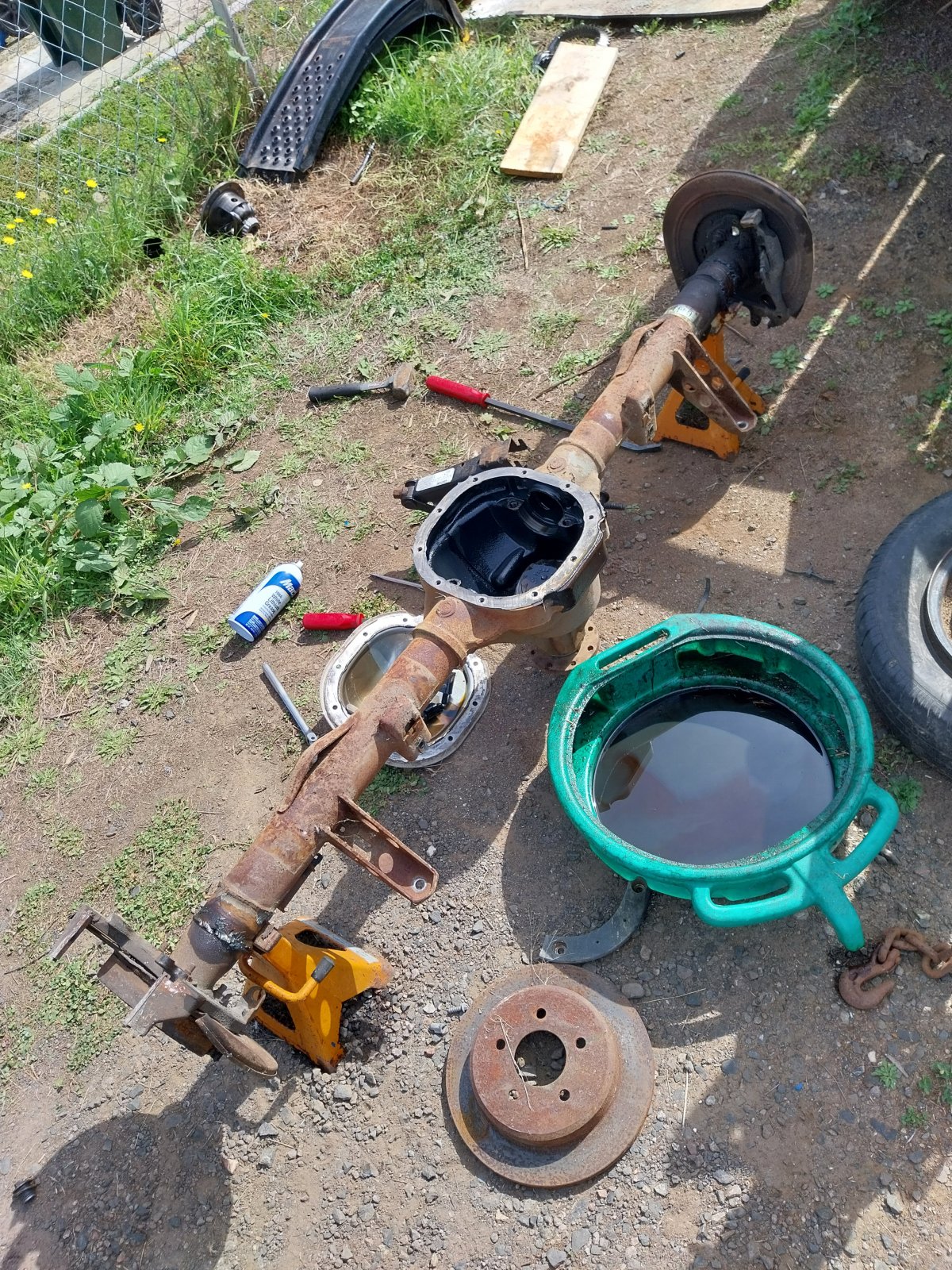

Picked up a 28 spline Crown Vic 8.8 rear end. Escalade inner axles spline in to the 8.8 diff like they were made for each other.20240923_123722.jpg20240923_123735.jpg
