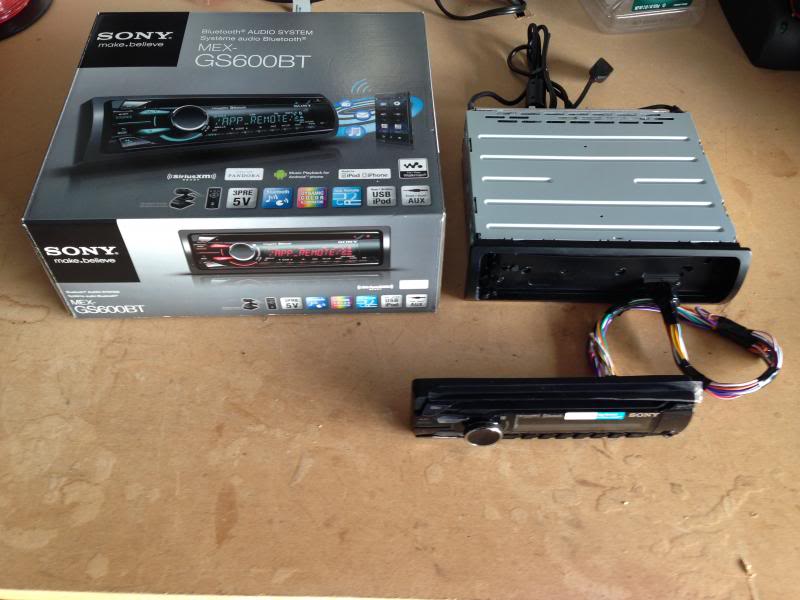

So, this has been going on a few weeks now. I molded an iPad mini in to my dash. I used a Sony MEX-GS600BT radio because Sony has an App I can use from my mini's screen. Steering wheel controls, Phone BT for calls and audio works, everything works like an OEM radio. I have a video I'm uploading to see more. The mini has AT&T service so I get full use of everything while driving. Internet, Netflix, Maps, etc. It's charged when the car is on and held in by magnets and I can slide it out at any time if needed. When I slide it out, we put the radio faceplate behind the mini. But we soldered wires from the radio itself to the faceplate because the radio won't fit that far back behind the iPad. Not that I'll take it out much, but it was just something to do for the looks.

A few questions already.

- I've got a black lightning to USB cable on it's way so that white one doesn't stick out.

- I lost my backup camera, because the iPad doesn't have an input like that. I have the 09+ rear view mirror with LCD back up screen coming.

- I lost the output from my head unit to my 4 headrest, but I think I have a solution for that. For now the headrest have built in DVD players and inputs I can hook up my iPod Touch to.

- I also lost my USB dash plug, but I got that back working, but only to charge stuff, not for input. I'll show that in the other thread







I'm actually leaving on vacation in a few minutes, but I'll try to get the video uploaded later.

The main screen

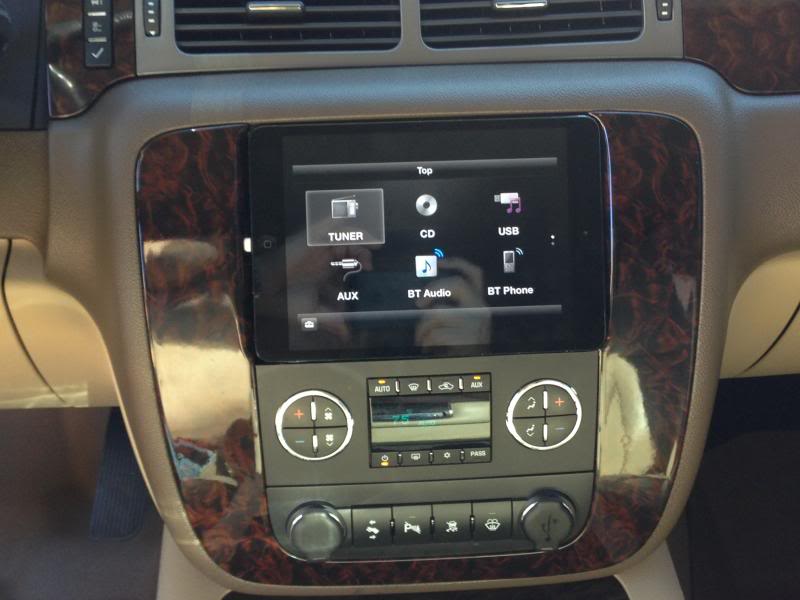

This is the Radio app that I can change the inputs, listen to the radio, etc.

Maps

Internet

YouTube

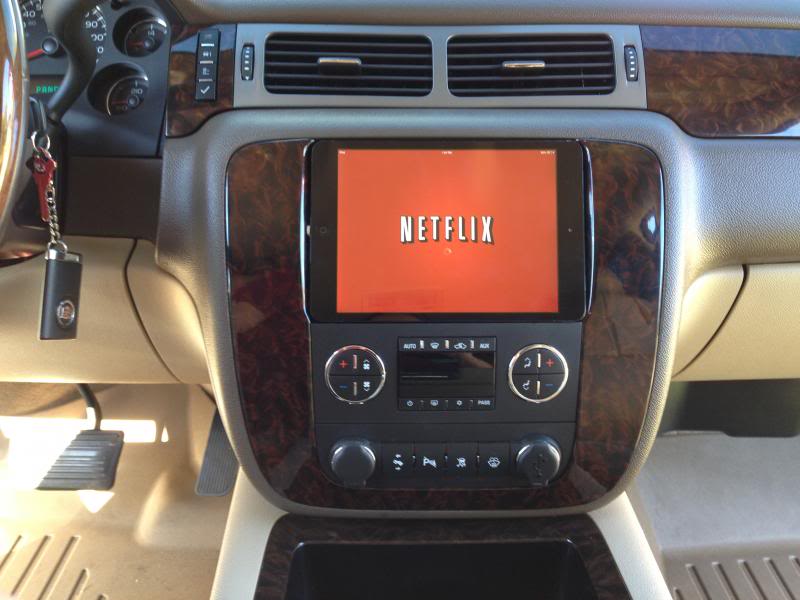

Netflix

And yes, even my air ride can be controlled through an App with Accuairs i-level

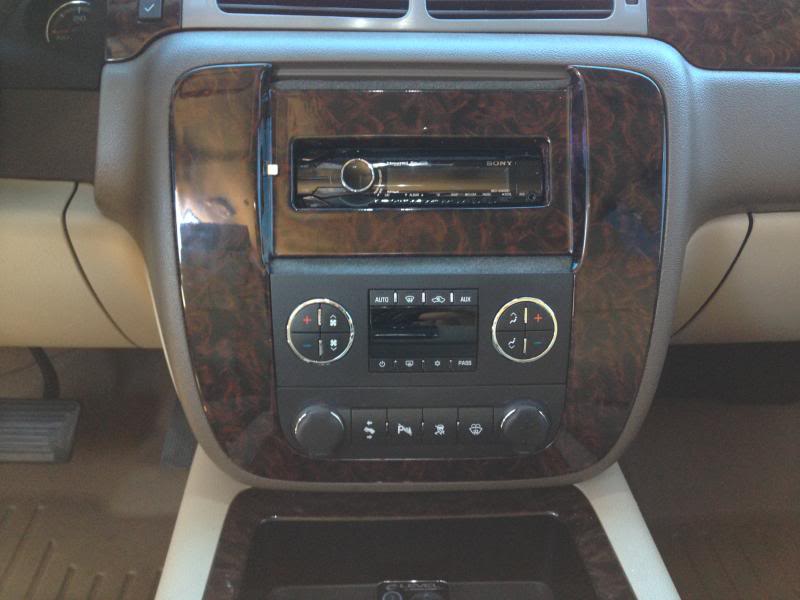

Here's what it looks like when I slide the mini out

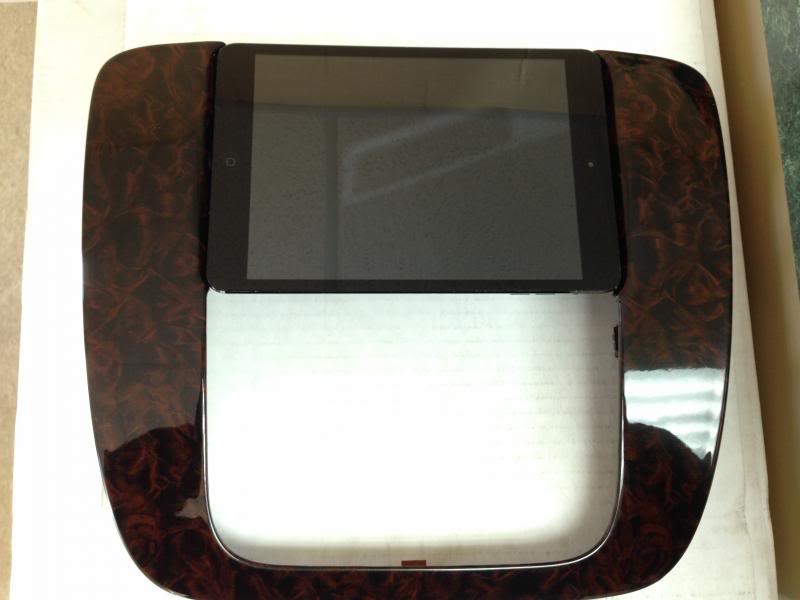

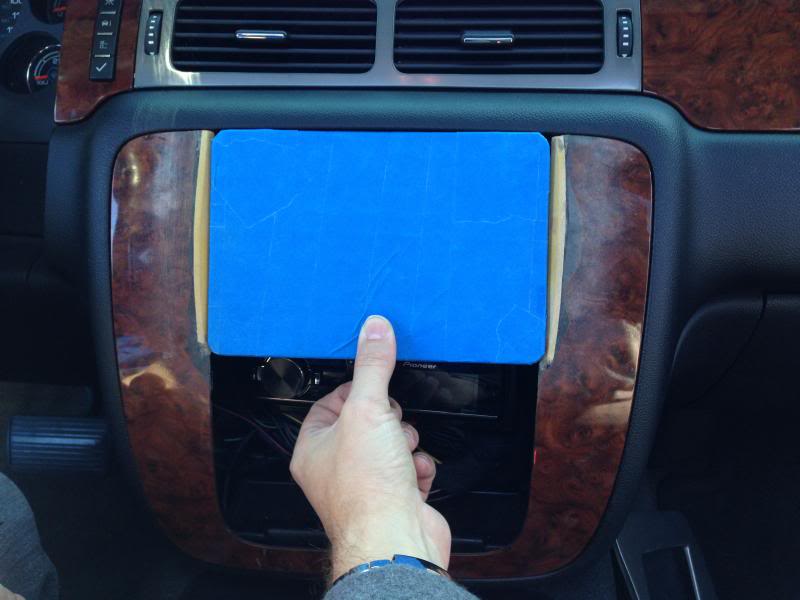

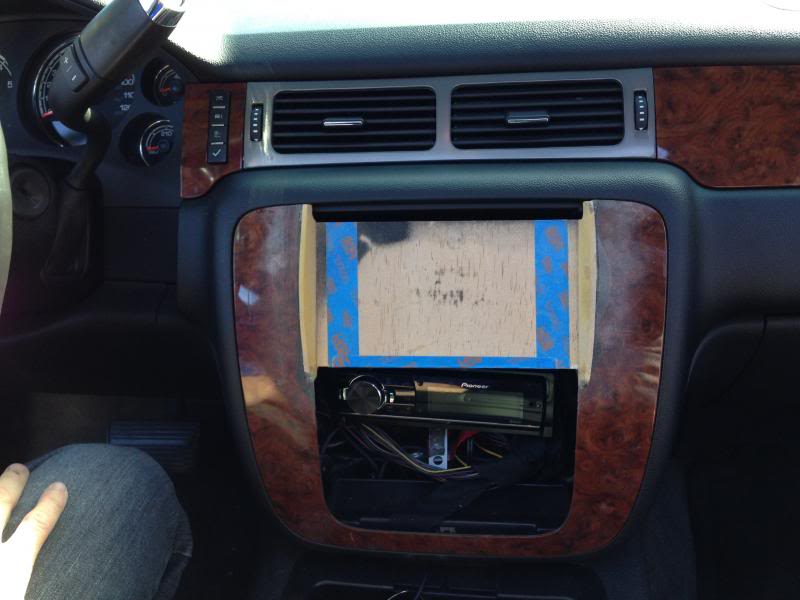

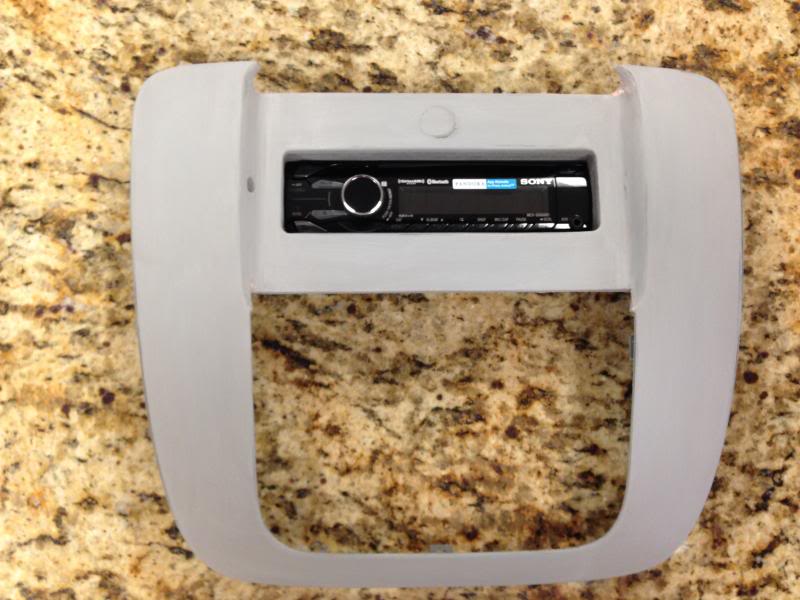

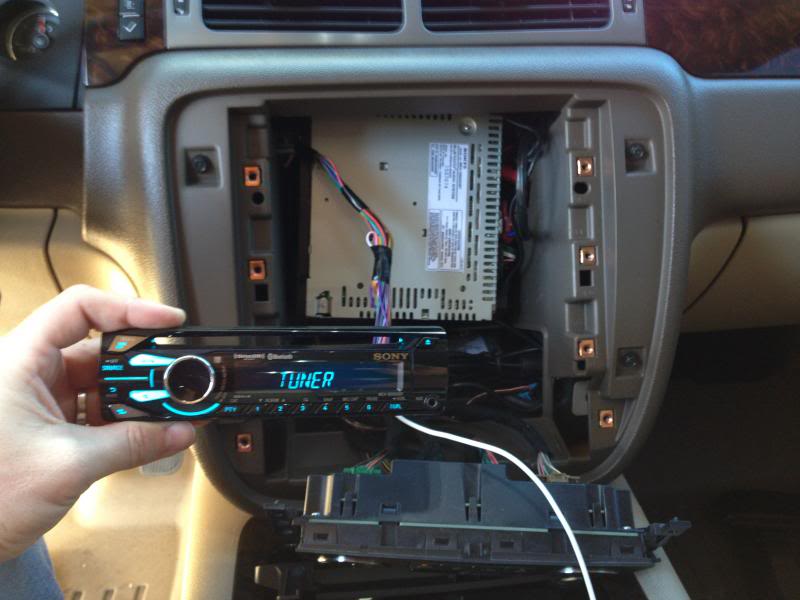

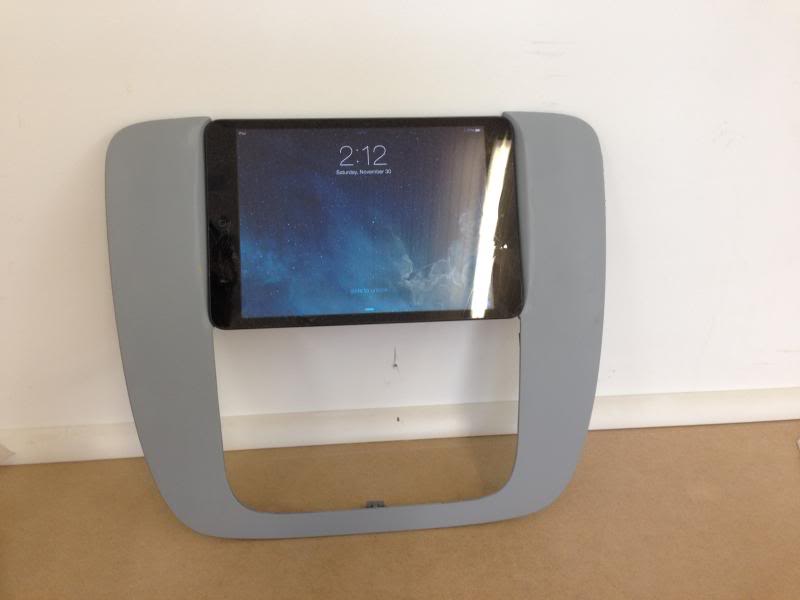

And here's some install pics. We used my friends Yukon to mock everything up and I had it hydro-dipped to match the Denali dash almost perfect.











Last edited:

07Burb

GM fan for life
Staff member
Administrator
Supporting Member
Joined
Jan 3, 2011
Posts
49,908
Reaction score
15,449

:wtf: Need to build an addition on back there just to store all the extra stuff :lol:


TnTahoe

Full Access Member
Joined
Nov 24, 2009
Posts
788
Reaction score
2
Location
TN
Nice man, just curious why didnt you put that headunit somewhere else, like under the center console or something.

OP
OP
NathanJax

NathanJax

Vacation Nathan
Staff member
Administrator
Supporting Member
Joined
May 9, 2009
Posts
49,124
Reaction score
943,577,131
Location
Jax, Fl
Nice man, just curious why didnt you put that headunit somewhere else, like under the center console or something.

I might later. No need to though. No need to see/use it. I'm leaving today to go out of town and just wanted to throw it back there. There's no harm in it staying back there though


jdpber

GOLD MEMBER
Supporting Member
Joined
Oct 18, 2010
Posts
26,277
Reaction score
24,145
Location
The America
Looks Good!
