2015 Tahoe LT- Spohn Upper/Lower Control Arms + McBay Rear Spacers

Discussion in 'Lifted Supension - Z71 & 4x4' started by 15TahoeLT, Mar 25, 2020.

  1. 15TahoeLT

    15TahoeLT Member

    Posts:
    37
    Likes Received:
    26
    Joined:
    Jul 14, 2018
    Name:
    Rob

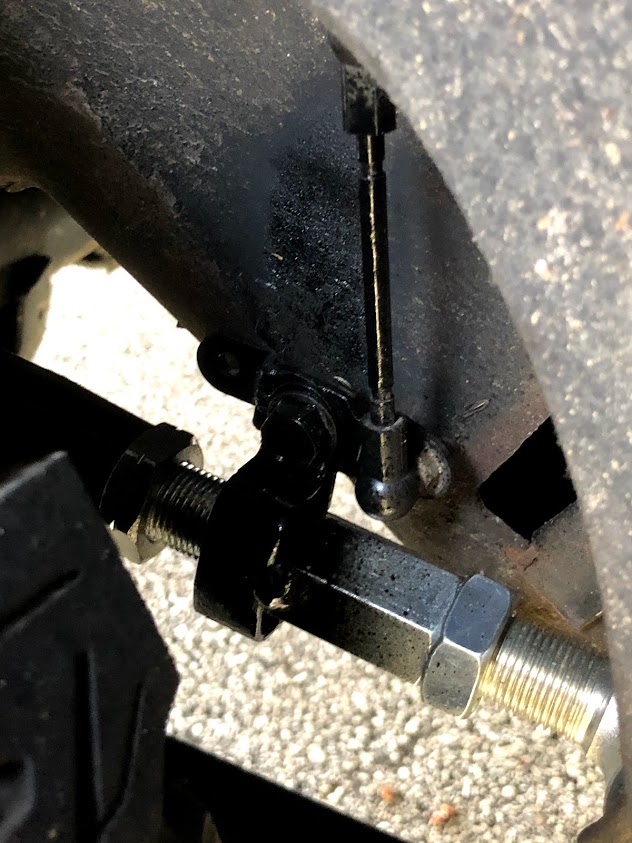

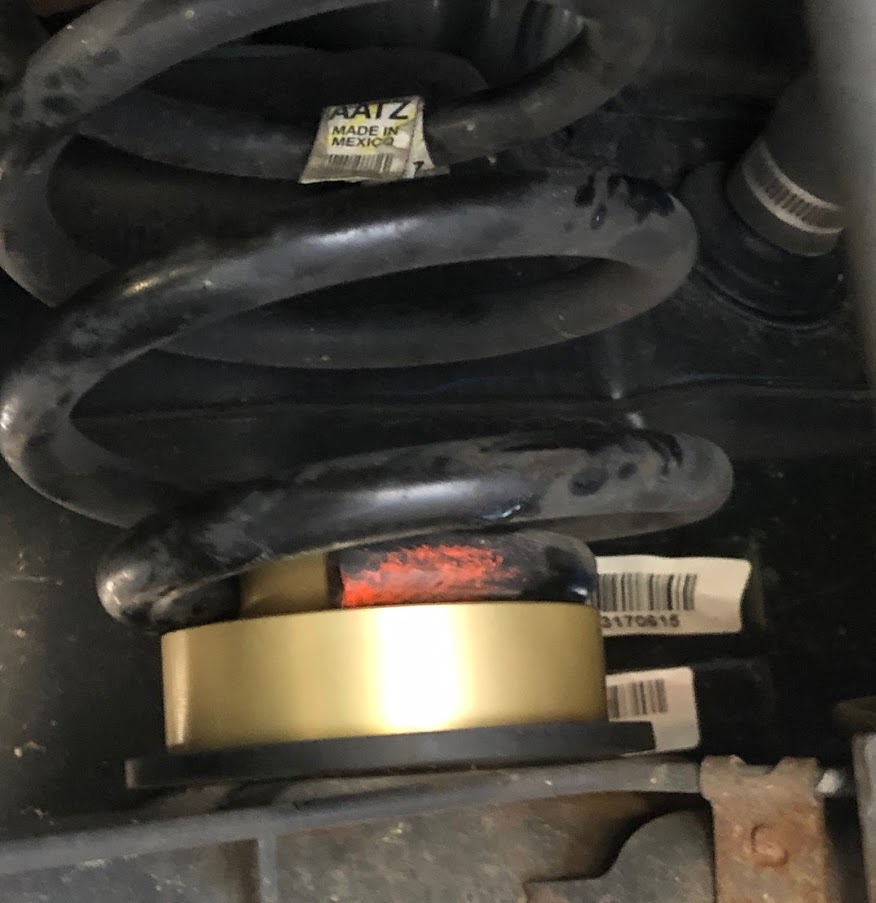

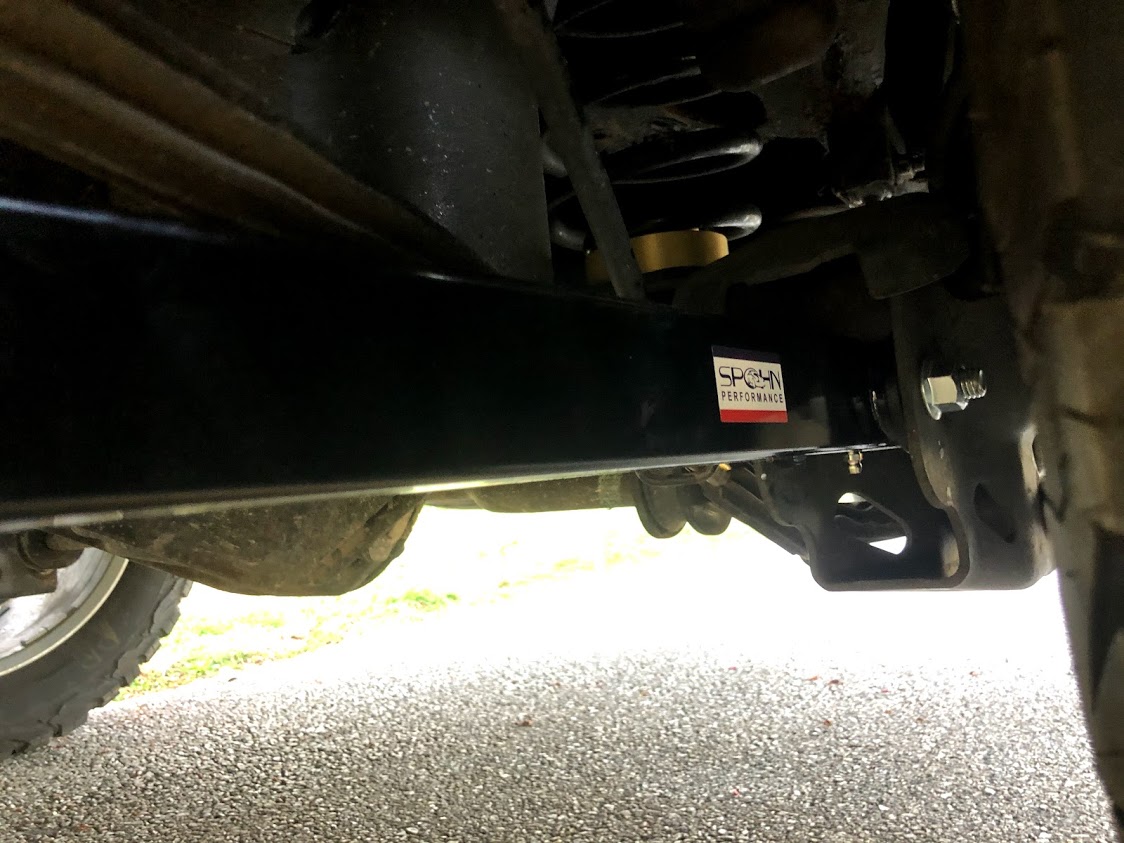

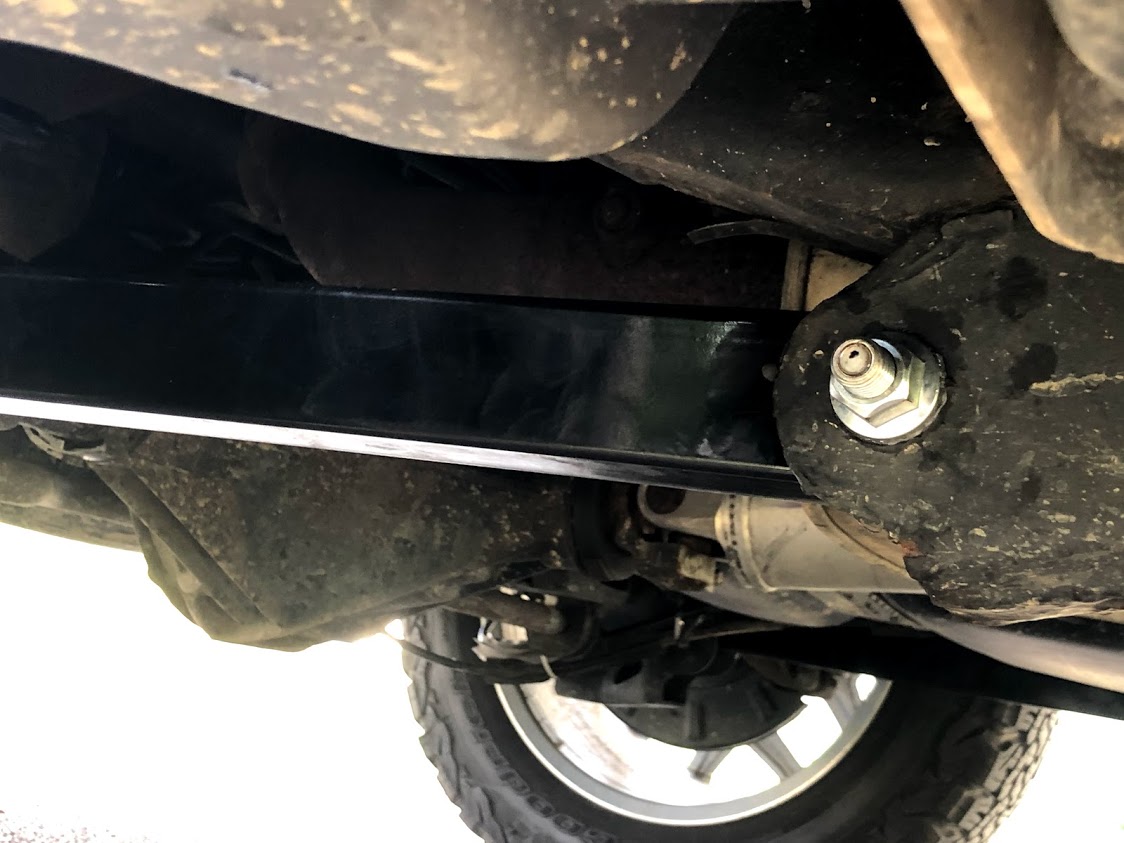

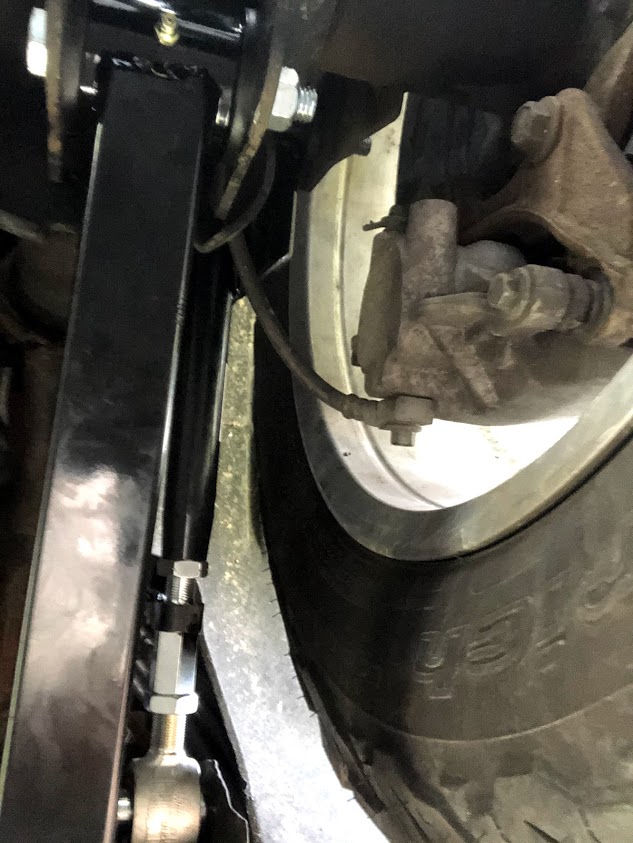

    Just installed the Spohn boxed LCAs and adjustable tubular UCAs (listed for 2007-2014 trucks but fit these as well). I previously had Rancho 3/4" rubber spacers in the rear and replaced them with McBay Performance 1" alloy spacers as the Ranchos deformed pretty quickly. I have the autoleveling rear so we had to weld the existing brackets onto the new tubular upper arms. Otherwise all good! Now the truck is perfectly level with the front after installing Fox coil overs and tubular front UCAs. (I'd guess about 2.25" higher than stock front and 1.25" rear over stock).


    IMG_7860.jpg IMG_7861.jpg IMG_7864.jpg IMG_7870.jpg IMG_7871.jpg

    Staggered 02 likes this.
  2. Staggered 02

    Staggered 02 Full Access Member

    Posts:
    372
    Likes Received:
    611
    Joined:
    Jul 5, 2019
    Name:
    Juan

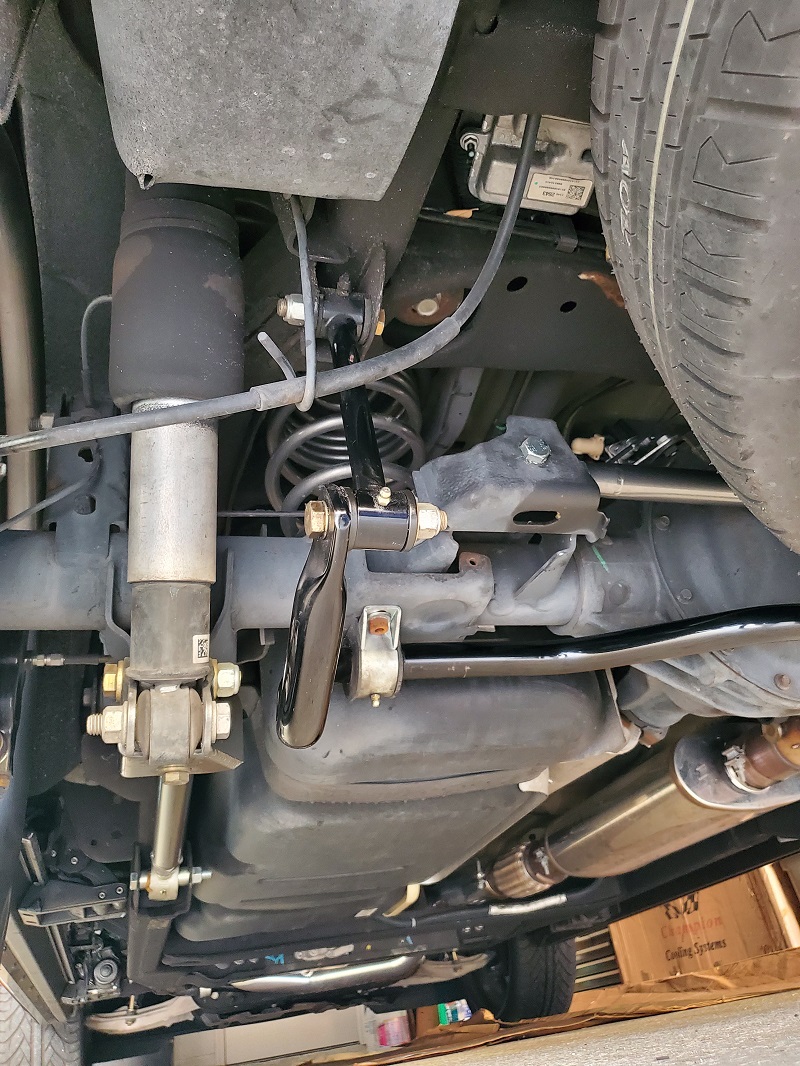

    ^^^^ Looks great. Any pics of the upper with the welded bracket? I installed my lowers but left the uppers off until I had the time to do that or work on finding a way to attach.

    Thanks.

    20190919_185629.jpg Sphon LCA Screenshot.JPG

  3. cireallin

    cireallin Full Access Member

    Posts:
    90
    Likes Received:
    44
    Joined:
    Jan 21, 2017
    Name:
    Cire
    Awesome setup and install. Nice work.
