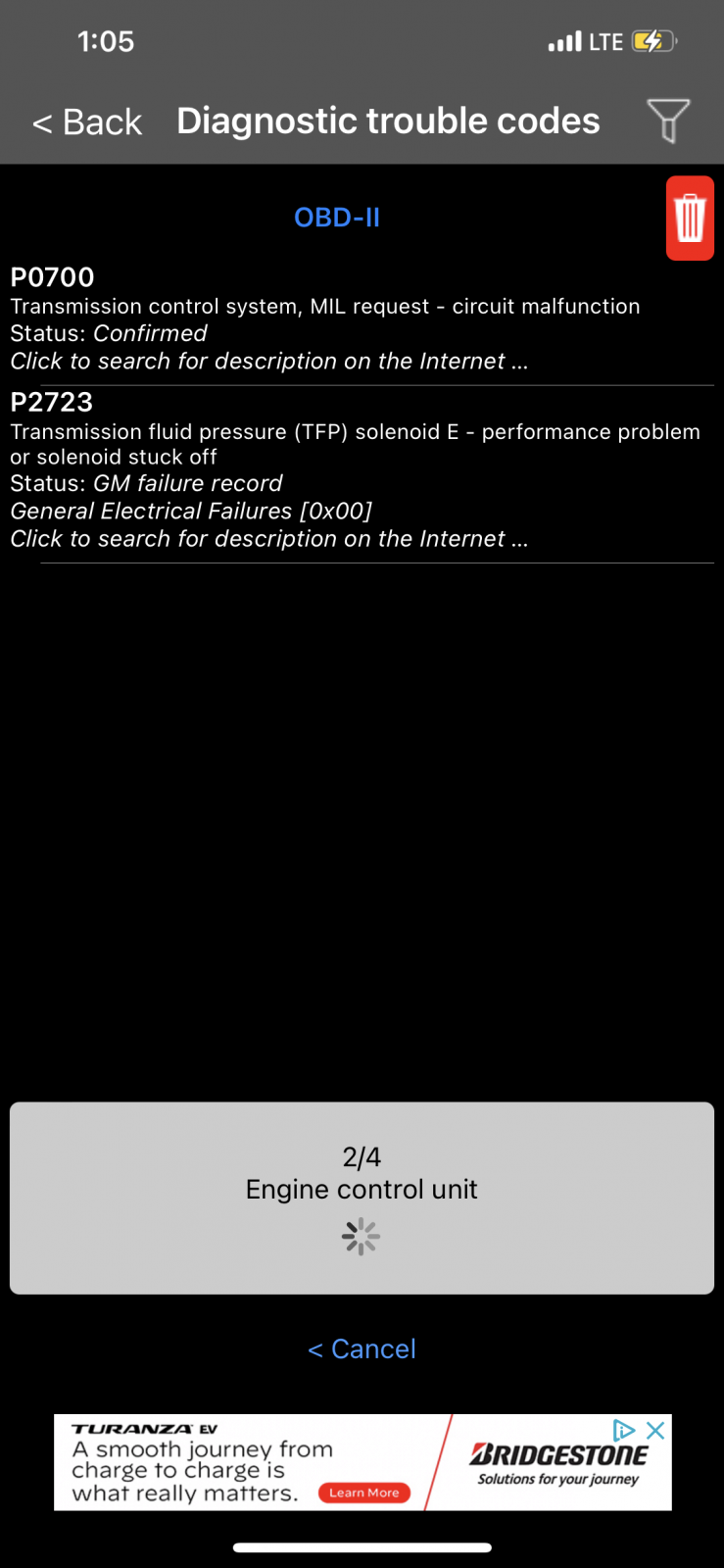

Problems started when going 0-15 mph, high revs but no engagement then finally it would run soon after that i got the P2723 and P0700

-P2723 (Clutch Pressure Solenoid 5 stuck off)
-P0700 ( Trans control system malfunction)

Checked fluid level, noticed it was dark so i dropped the pan. No sign of metal shavings just a bit of gunk on the magnet. Decided to put new fluid and filter (level was good) disconnected battery and (manually cleared TCM by pressing on the gas pedal all the way then letting go procedure) ran a little better then the codes came back. This time it went into limp mode, dropped the pan again took off valve body.

Resistance for clutch pressure control solenoids are all (5.3 ohms)

Resistance for shift solenoids are (23.8-24 ohms)

Resistance for pressure switches varies (0.9-1.7ohms) closed for open circuit while pressing with pencil eraser it goes up to (35 ohms/sometimes even 50 ohms)

Is it supposed to max out at 12.5 ohms? Am i applying too much pressure with the pencil? ✏️

It does drop down to (1.7 ohms) all the time.

What do you think i should try at this point? The pressure switches seem to be fine and not torn maybe its the TEHCM malfunctioning any help is greatly appreciated thanks alot!


Attachments

  • IMG_1342.jpeg
    517.8 KB · Views: 4
  • IMG_1339.jpeg
    452.3 KB · Views: 4
  • IMG_1229.jpeg
    61.4 KB · Views: 4
  • IMG_1338.jpeg
    321.7 KB · Views: 4
  • IMG_1279.png
    293.3 KB · Views: 4
OP
OP
JayDaGreatt

JayDaGreatt

TYF Newbie
Joined
May 26, 2023
Posts
27
Reaction score
20
Problems started when going 0-15 mph, high revs but no engagement then finally it would run soon after that i got the P2723 and P0700

-P2723 (Clutch Pressure Solenoid 5 stuck off)
-P0700 ( Trans control system malfunction)

Checked fluid level, noticed it was dark so i dropped the pan. No sign of metal shavings just a bit of gunk on the magnet. Decided to put new fluid and filter (level was good) disconnected battery and (manually cleared TCM by pressing on the gas pedal all the way then letting go procedure) ran a little better then the codes came back. This time it went into limp mode, dropped the pan again took off valve body.

Resistance for clutch pressure control solenoids are all (5.3 ohms)

Resistance for shift solenoids are (23.8-24 ohms)

Resistance for pressure switches varies (0.9-1.7ohms) closed for open circuit while pressing with pencil eraser it goes up to (35 ohms/sometimes even 50 ohms)

Is it supposed to max out at 12.5 ohms? Am i applying too much pressure with the pencil? ✏️

It does drop down to (1.7 ohms) all the time.

What do you think i should try at this point? The pressure switches seem to be fine and not torn maybe its the TEHCM malfunctioning any help is greatly appreciated thanks alot!

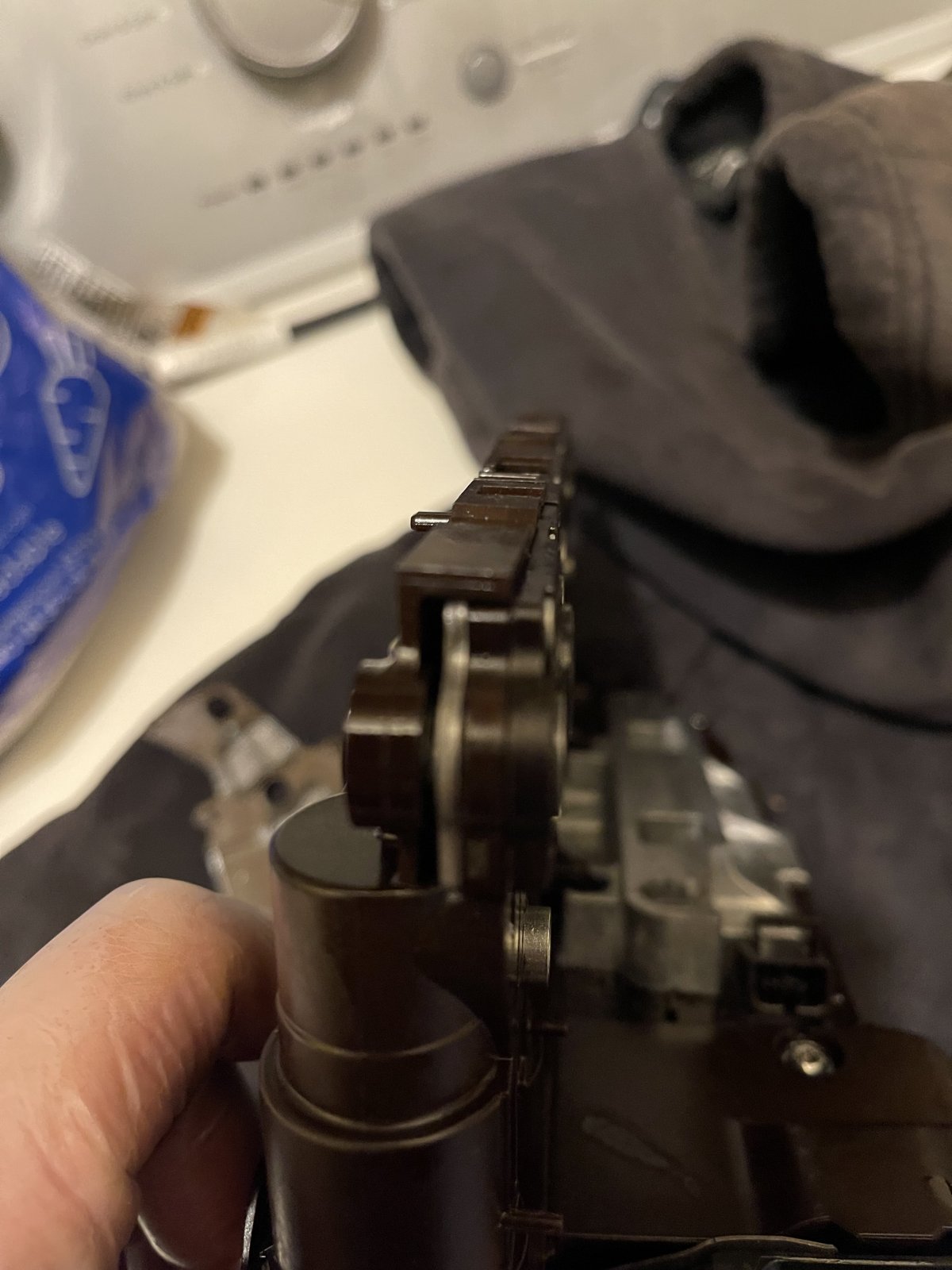

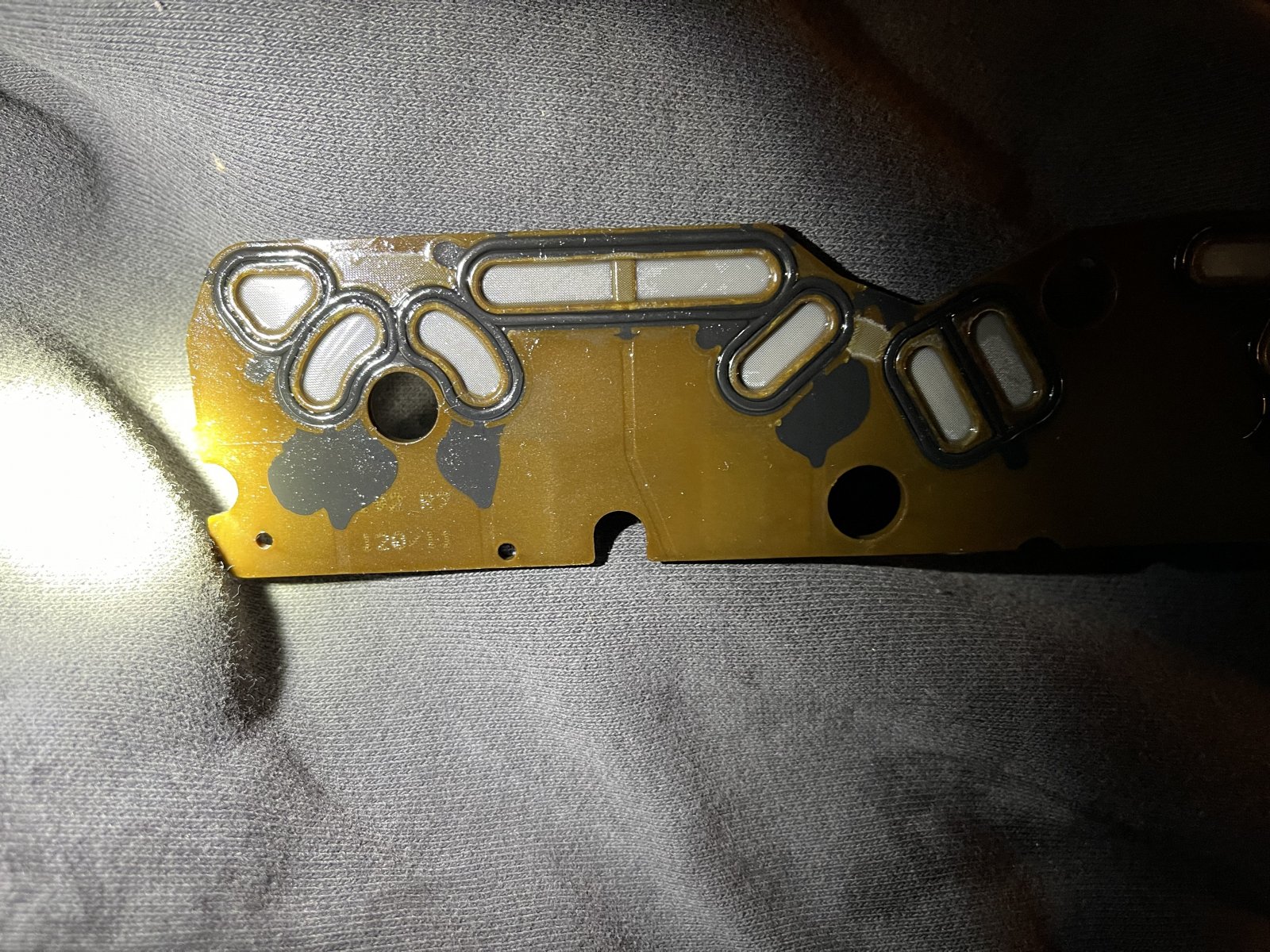

Update: The TECHM's pressure switches board seemed to be a little warped looks like some stuff got in there also the clutch pressure solenoids dont click the same (12 volt test) ended up ordering a remanufactured one from Street Smart lets hope for the best. Now just needing a capable scanner to fast learn & adapt the vehicle wish me luck!
