1999-2018 GM 1500 Series Wilwood TX6R 6-Piston 16" BBK #140-13876-R "Partial Kit" w/ New & Used Parts

CMoore711

Full Access Member
Joined
Jul 18, 2017
Posts
781
Reaction score
549
1999-2018 General Motors 1500 Series Wilwood TX6R 6-Piston 16" BBK #140-13876-R "Partial Kit" New & Used Parts

This brake kit will fit various Chevrolet, GMC, & Cadillac 1500 Series "Full Size" Truck and SUV Models

Included in the sale are the following:
(2) Lightly used Wilwood TX6R 6-Piston Front Calipers Red - <62K miles
(2) Used Wilwood Brake Pad Retainer & Pin Kits. One for each Caliper
(2) Freshly Powder Coated Gloss-Black Wilwood 16" Rotor Hats. One for each Driver & Passenger side.
(2) BRAND NEW Wilwood Caliper Mounting Brackets w/ Hardware. One for each Driver & Passenger side.
(1) BRAND NEW Wilwood Caliper Bolt Kit, Bracket Hardware w/ Washers & Shims. Includes mounting hardware for both Driver & Passenger side.
(2) Paper copies of Installation Instructions
Various Wilwood stickers

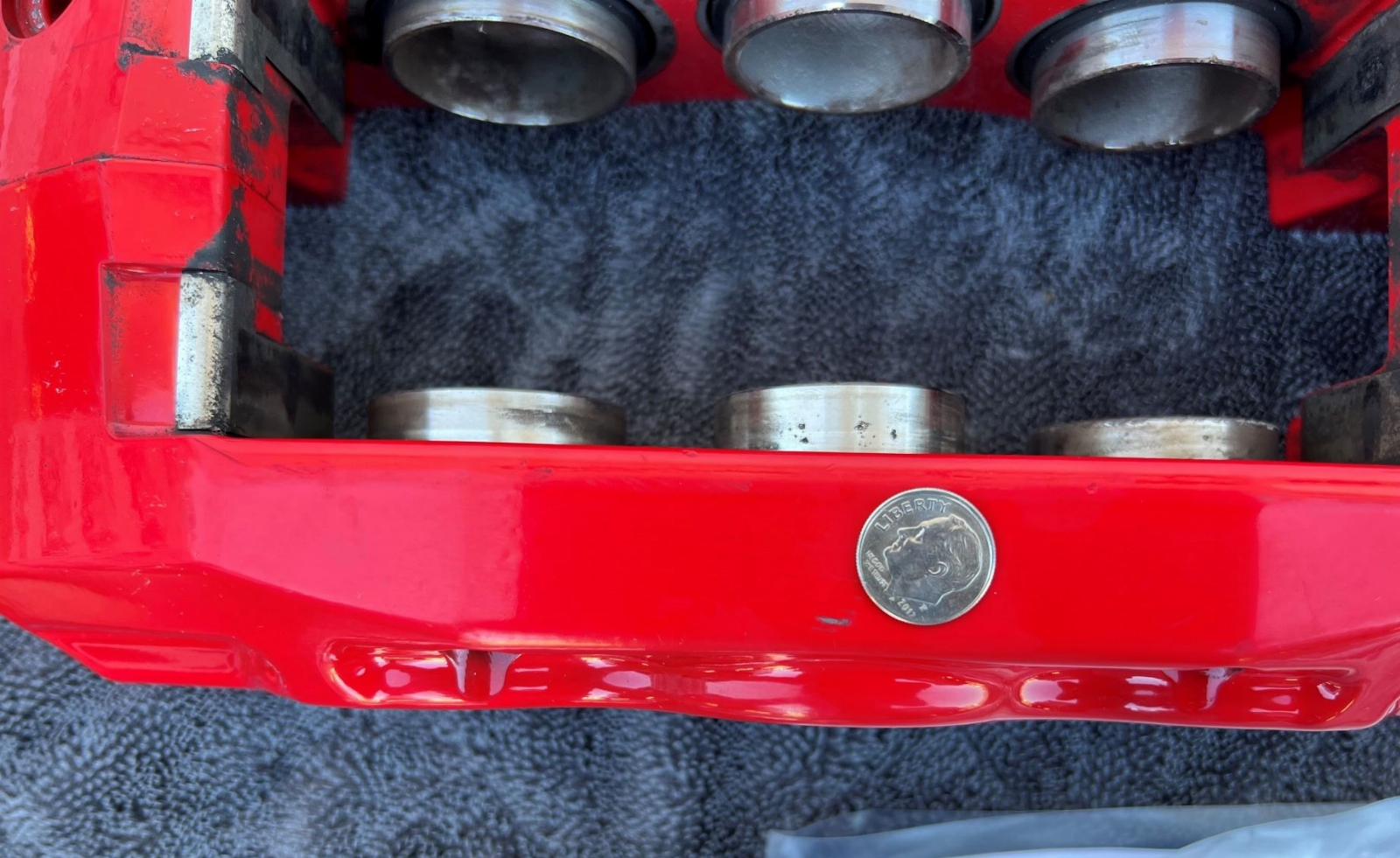

The calipers are used but in great shape and in good working order. I tried to clean them up as much as I could to show their condition but there are still a couple tough spots of brake residue in some areas and small hard to reach places. There are a few marks/scratches in the powder coat in some areas on the calipers, more visible on the drivers side caliper than the passenger side. Most of them are not visible once installed but for some small ones on the driver side caliper. I attribute these marks to normal wear and tear.

Posting a lot of detail on the condition of used items I'm selling is important to me, as well as taking the time to take very detailed pictures. I have a lot of pictures with detail, and am highlighting even minor blemishes that have no affect on the form and function of the brake calipers themselves.

While the kit was on my truck for about 62K miles I only ran Wilwood Hi-Temp 570 Brake Fluid #290-0632.

Parts You Will Need to Complete the Big Brake Kit:
(1) Wilwood Left Hand Rotor Ring #160-8954-GTB
(1) Wilwood Right Hand Rotor Ring #160-8953-GTB
(2) Wilwood Rotor Hat Bolt Kit #230-12176
(1) Wilwood BP-20 Brake Pads (4 Pads) #150-13773K
(1) Wilwood Stainless Steel Brake Lines #220-10979 or #220-8998 (Depending on the model year of your GM Truck/SUV)

The Wilwood Stainless Steel Brake Lines are needed to install these brakes. Please note that this Wilwood 140-13876-R brake kit does not include the Wilwood Stainless Steel Brake Lines #220-10979 or #220-8998 as a standard item in the kit, but must be purchased to install.

Asking $800 OBO Plus Shipping and Paypal Fees. I'm located in Dayton, OH and willing to meet up with anyone within reasonable distance. Calipers will be bubble wrapped and shipped in their original Wilwood boxes, rotor hats will be bubble wrapped, and all hardware packaged separately will ship together in their own larger original Wilwood box that the items arrived in.

Feel free to DM me with any questions, offers, or if you need any additional information.

I'll post a lot of pics. There are additional pics that can be seen at the imgur album link here:

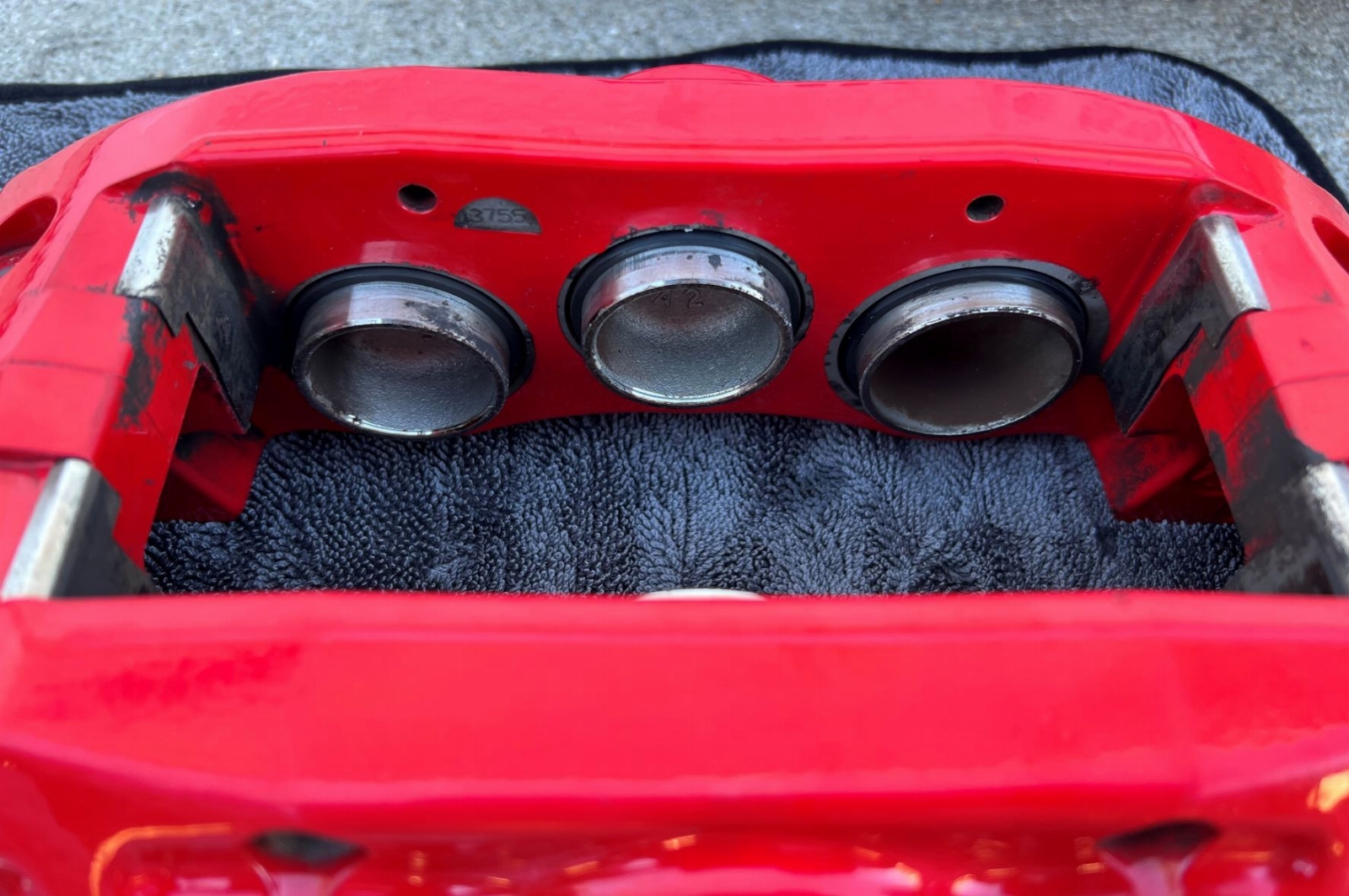

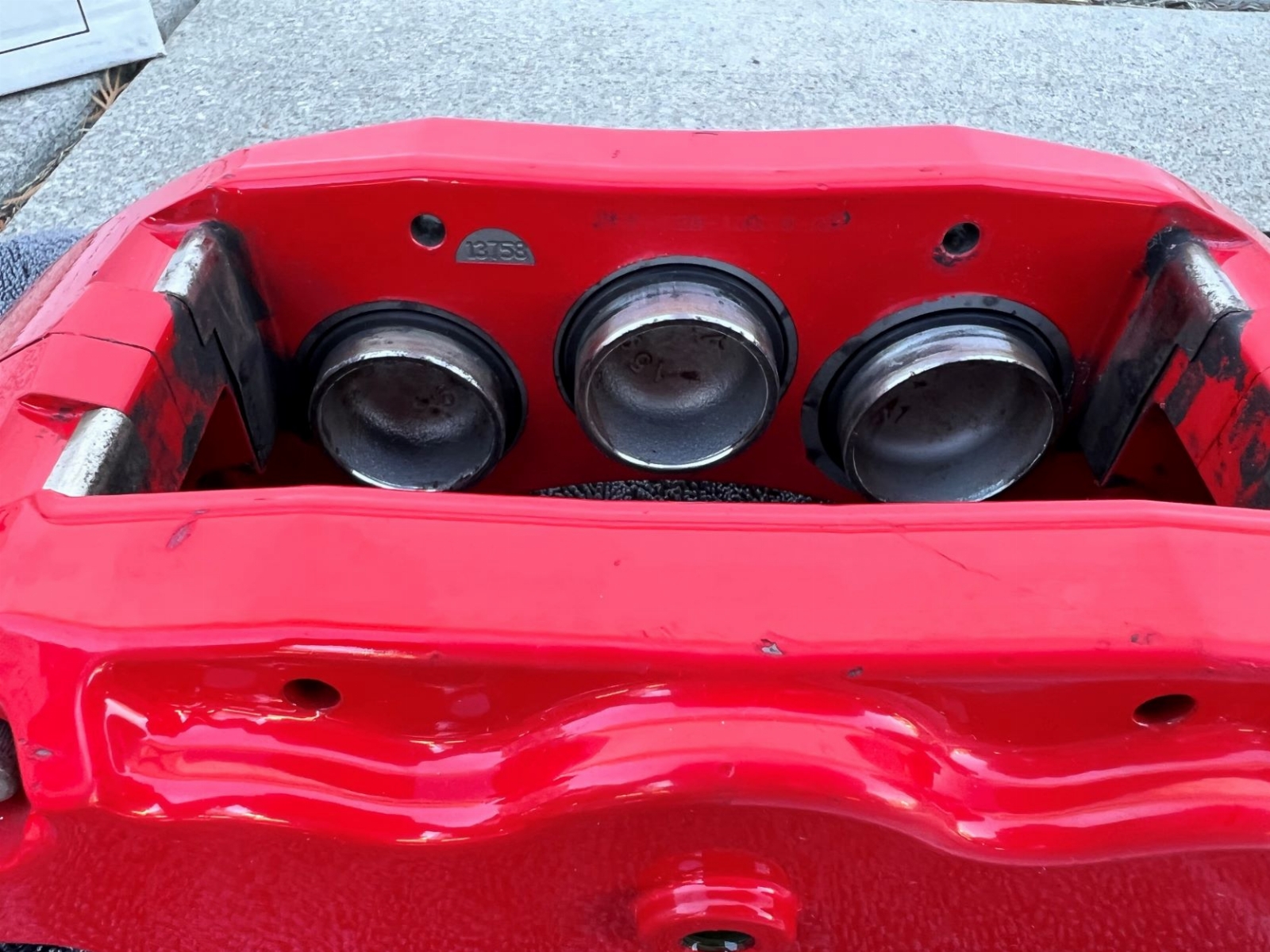

PASSENGER SIDE CALIPER:

DRIVERS SIDE CALIPER:


tRidiot

Full Access Member
Joined
Dec 21, 2011
Posts
359
Reaction score
272
Man I'd love to jump on this, but with the additional stuff I would need, I've got other things I need to focus on first. <sigh> I guess I'll just do the '20 Silverado upgrade when the time rolls around. Good luck, man, this is an incredible deal, and I'm sure it won't last long!


Tyrant

Member
Joined
Mar 19, 2022
Posts
61
Reaction score
14
Does anyone happen to know if there is a compatible 1 piece rotor with the correct diameter and offset for these calipers?
