Wiring that runs down driver side

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Hickory

TYF Newbie
Joined
Sep 2, 2014
Posts
26
Reaction score
2

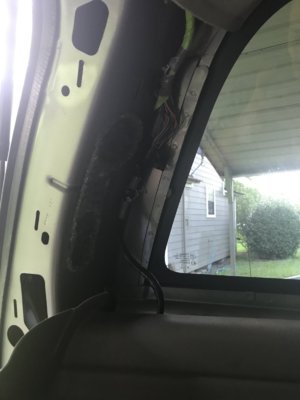

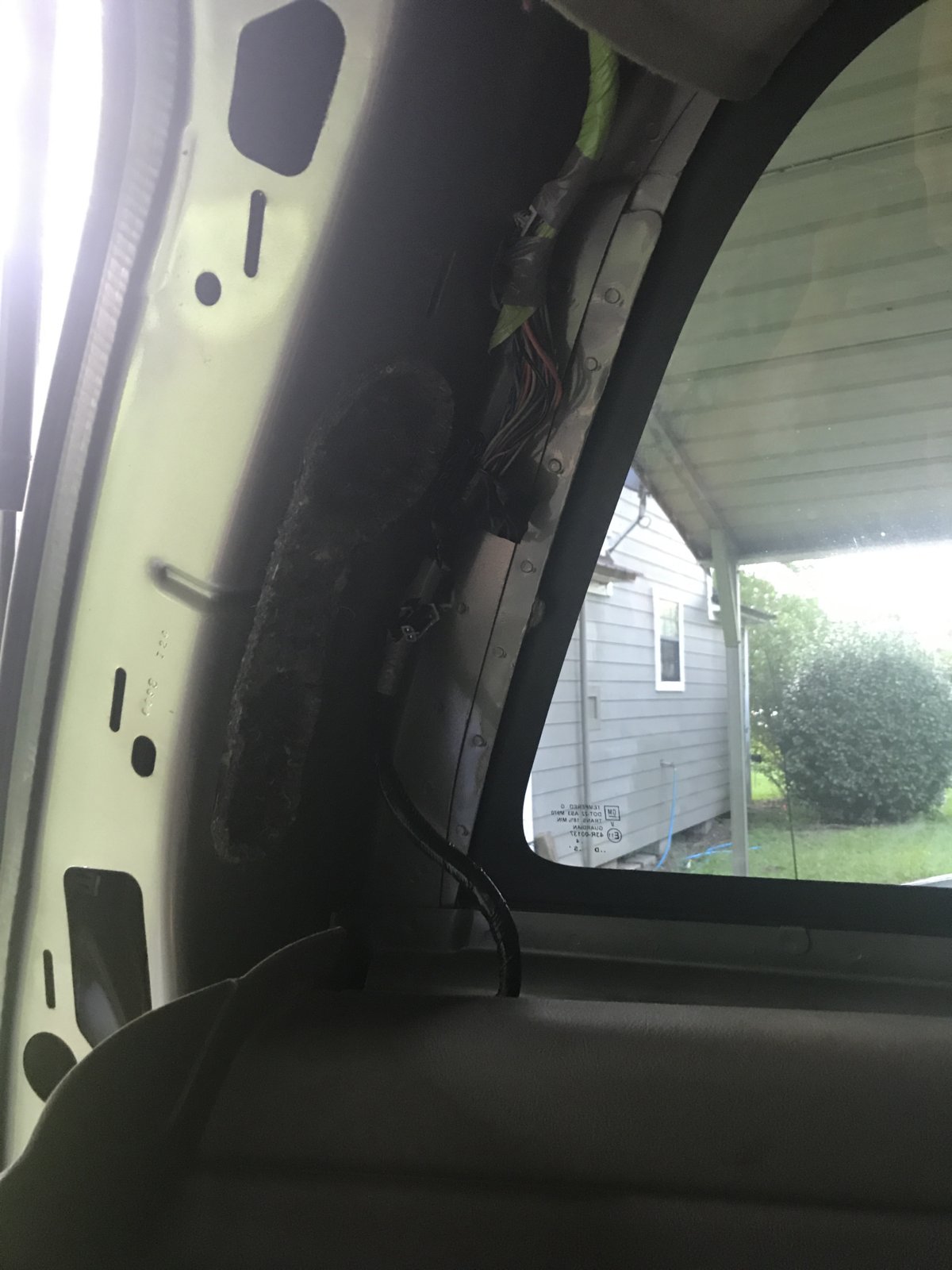

Hey folks, been searching for awhile and can't find the answer to this. Does anyone know which wires in the large, taped bundle that run all the way down the driver's side then up and over to the passenger side are keyed power and ground? I'm trying to install a backup camera and those are my easiest wires to access.

Thanks!


OP
OP
Hickory

Hickory

TYF Newbie
Joined
Sep 2, 2014
Posts
26
Reaction score
2
That's a terrible title. What it should be is, "where to get 12v keyed power in cargo area"


Cattivo

Full Access Member
Joined
Dec 21, 2016
Posts
1,251
Reaction score
2,207
Location
The Concrete Jungle
Best place to find the reverse wire(keyed power) is behind the drivers side A pillar...remove the pillar and look for the lime green wire, that's your reverse wire

For ground, you can simply tap into just about any black wire

OP
OP
Hickory

Hickory

TYF Newbie
Joined
Sep 2, 2014
Posts
26
Reaction score
2
Does the reverse wire have constant keyed power? I'd like to be able to turn on the camera when I'm not in reverse.

OP
OP
Hickory

Hickory

TYF Newbie
Joined
Sep 2, 2014
Posts
26
Reaction score
2
I will hook the headunit to the grey wire on the bcm to have it swap over to the camera automatically when I put it in reverse.


MidwestMike

Full Access Member
Joined
Jul 14, 2017
Posts
181
Reaction score
66
Location
Southwest Michigan
Constant power, or power when running...?

Finding existing 12 volt back there with the vehicle turned off sounds like a challenge.

(And what are you trying to do? Will this be an night vision camera...:) )

OP
OP
Hickory

Hickory

TYF Newbie
Joined
Sep 2, 2014
Posts
26
Reaction score
2
*constant keyed power.

I'm hooking up a backup camera. I have the headunit hooked to the reverse light wire coming out of the bcm to trigger the camera when I put it in reverse. I want have constant power to the camera whenever the truck is on so I can toggle to the camera even when the truck is not in reverse.
