I was in such a hurry to get home and install the new bracket that I forgot my welding helmet. I have tomorrow off so I'll be borrowing one to get the truck back on the road. Work is 40 miles away.

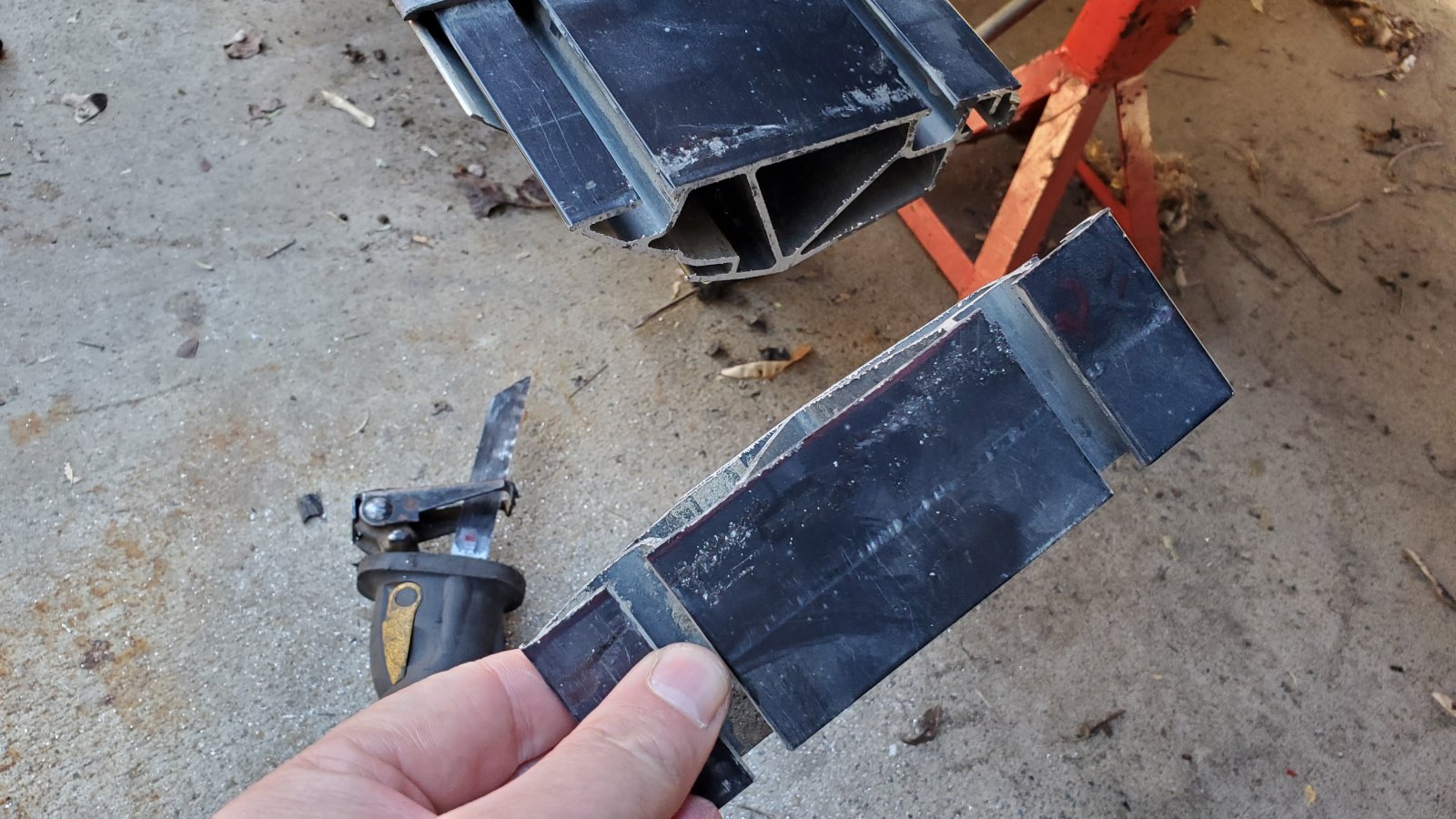

Here is the finalized bracket cut out of .188w ChroMoly.




I also made a bracket to connect the top and bottom(not shown) of the bracket together. SO the bottom will have to be welded on first in order to get to all the weld areas.

I cleaned off all the weld areas.






Juts one last round of mock up to confirm fitment before final welding.


OP
OP
slow4dr

slow4dr

Member
Joined
Feb 19, 2017
Posts
58
Reaction score
96
I was a little rusty using my own welder. It took a little practice but it came back quick once I cleaned the tip out so the wire could feed properly.


I guess I'll call this Phase 2..........Brake hoses are from my work. Just need two banjo adapters to -3. I debated between regular reservoirs with air bumps for the rear. Decided to go with bypasses without air bumps. It ended up being the cheaper option. These have 12" travel and will require custom upper mounts. The limit straps will be used on the front. The 10" coilovers that are currently on the back will be moved to the front.


The front is going to be so dang wide that without rear spacers it would just look funny.


OP
OP
slow4dr

slow4dr

Member
Joined
Feb 19, 2017
Posts
58
Reaction score
96
Spent a little time this weekend on the truck. I've been working on designing the new upper shock mounts. No matter what design I end up with the stock exhaust & hanger are going to be in the way. So I did some measuring and figured out a good place to cut it and do a simple rework.



This hanger needs to removed to clear the new upper shock mount.


I cut the stock tip off and reused a short bend radius. Then just added roughly 15" of straight pipe. The outlet sits right underneath the stock bumper(with hitch removed) This will be a temporary fix until I make the new rear bumper.

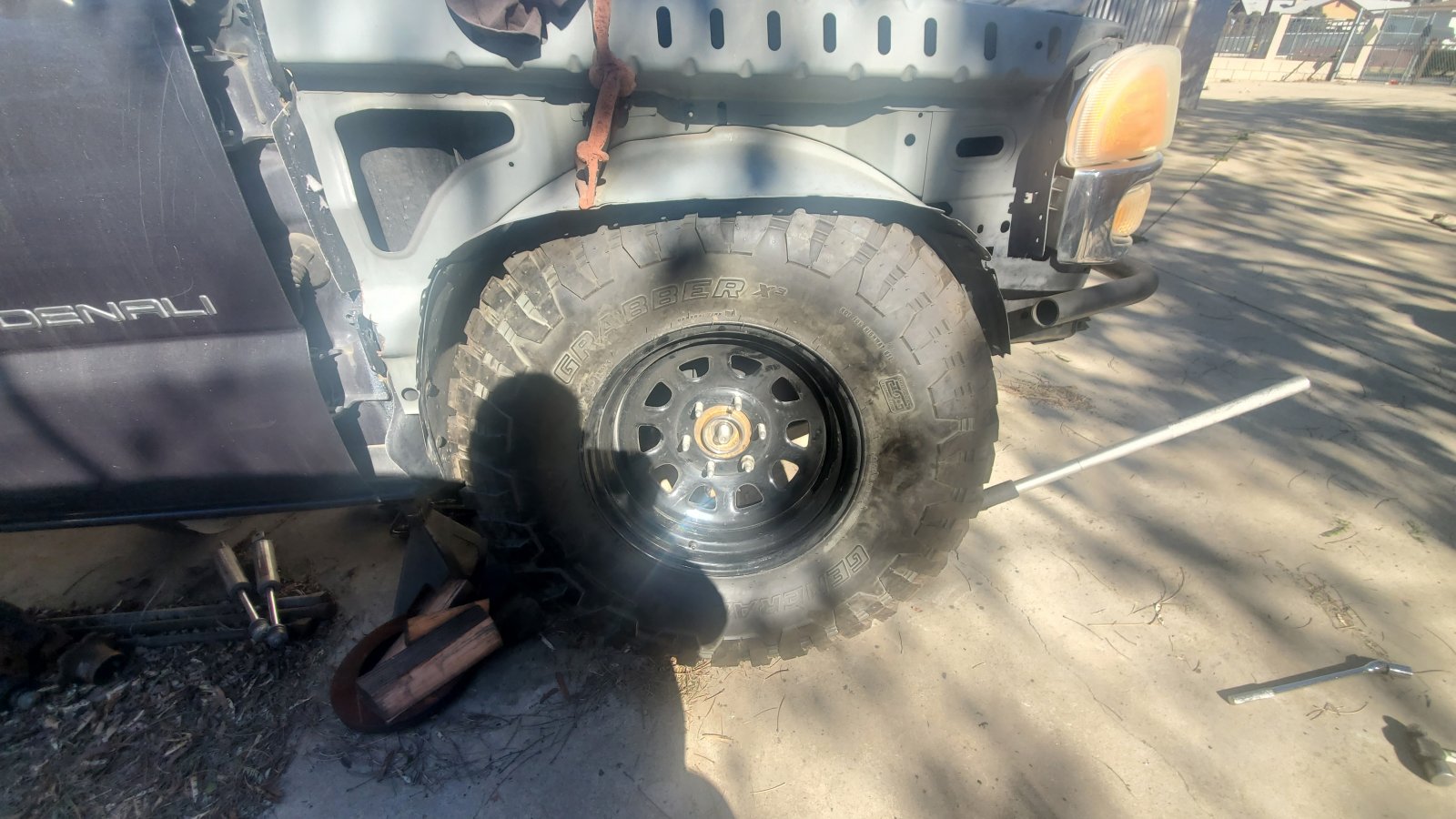

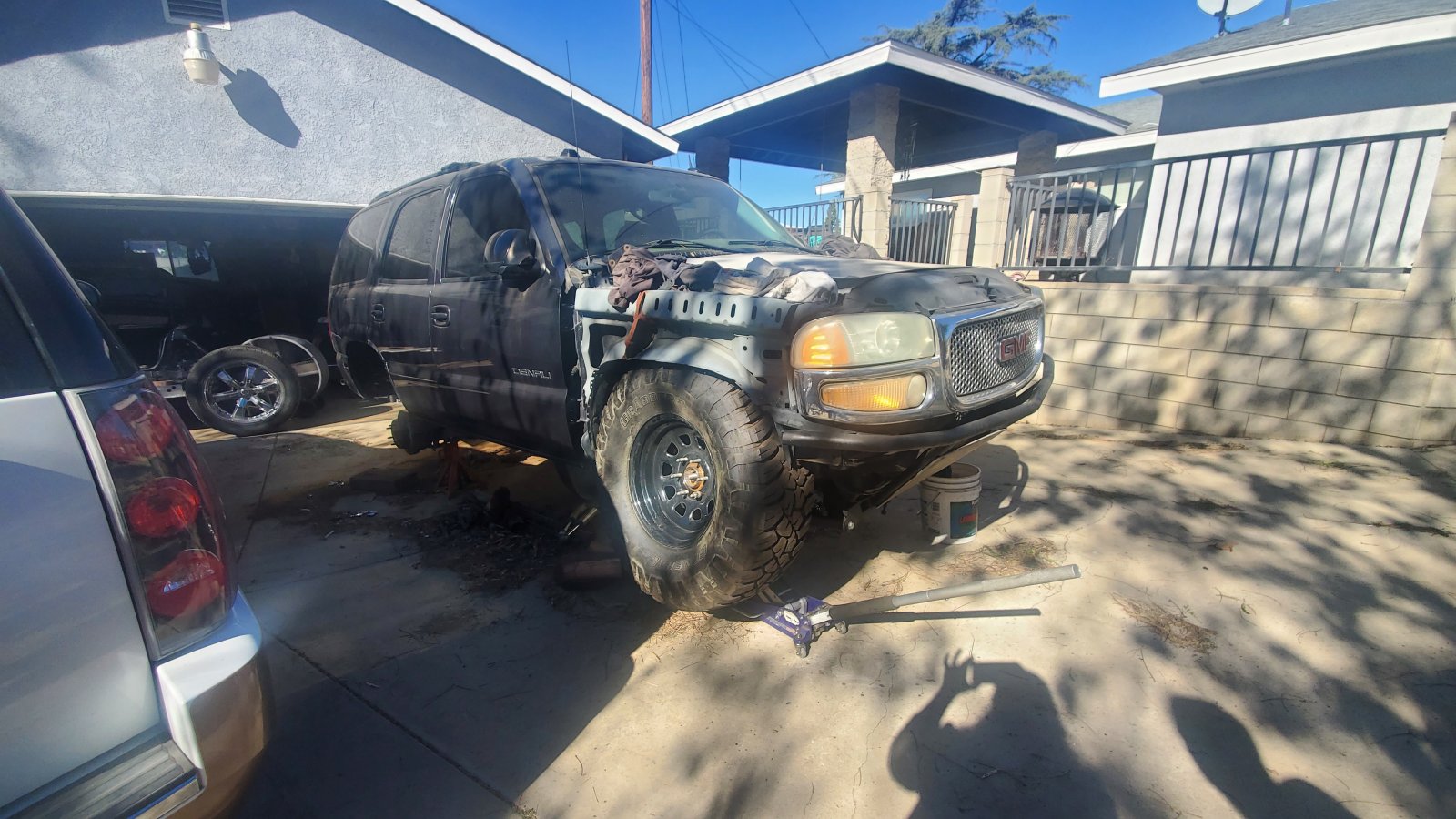

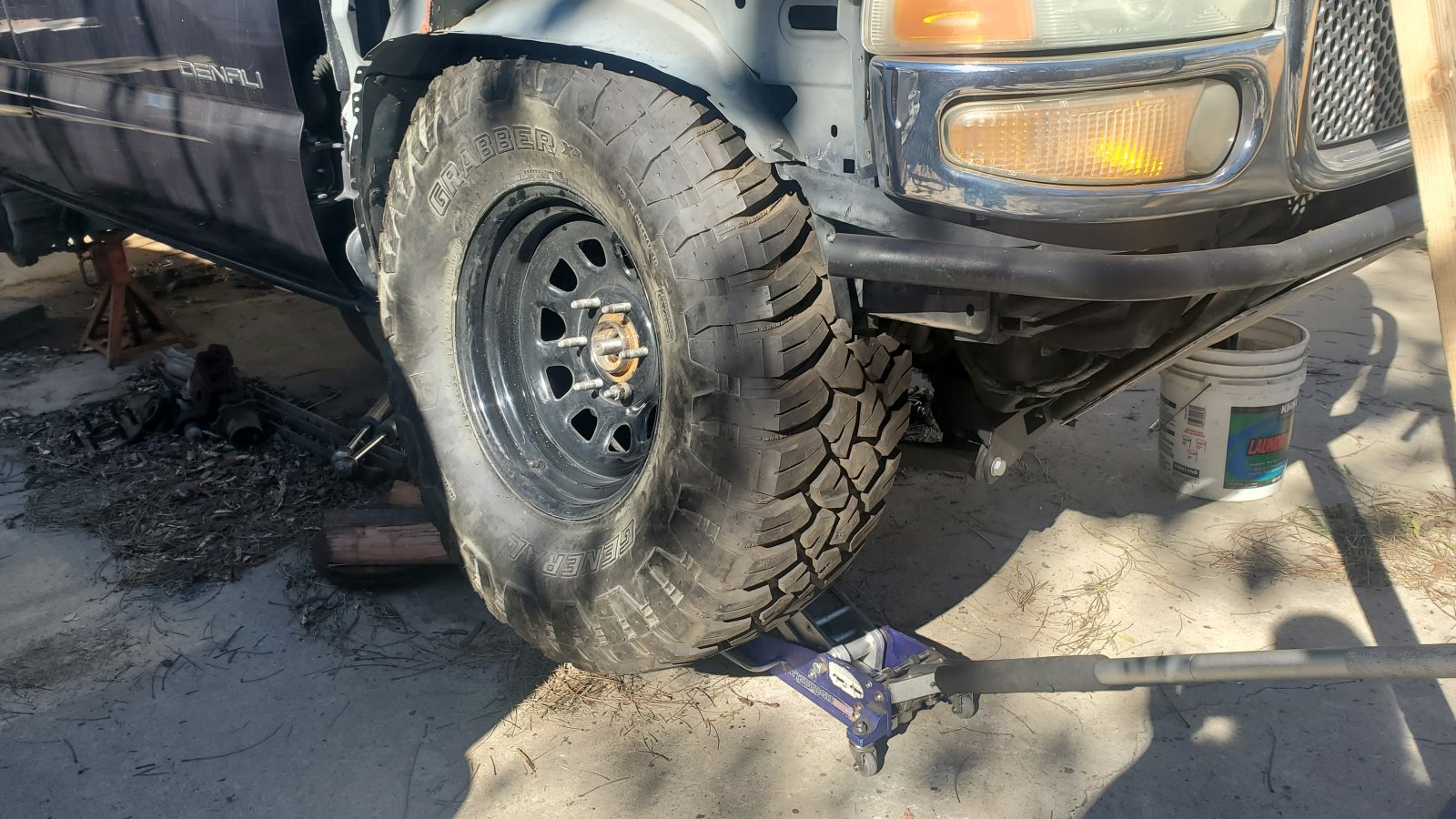

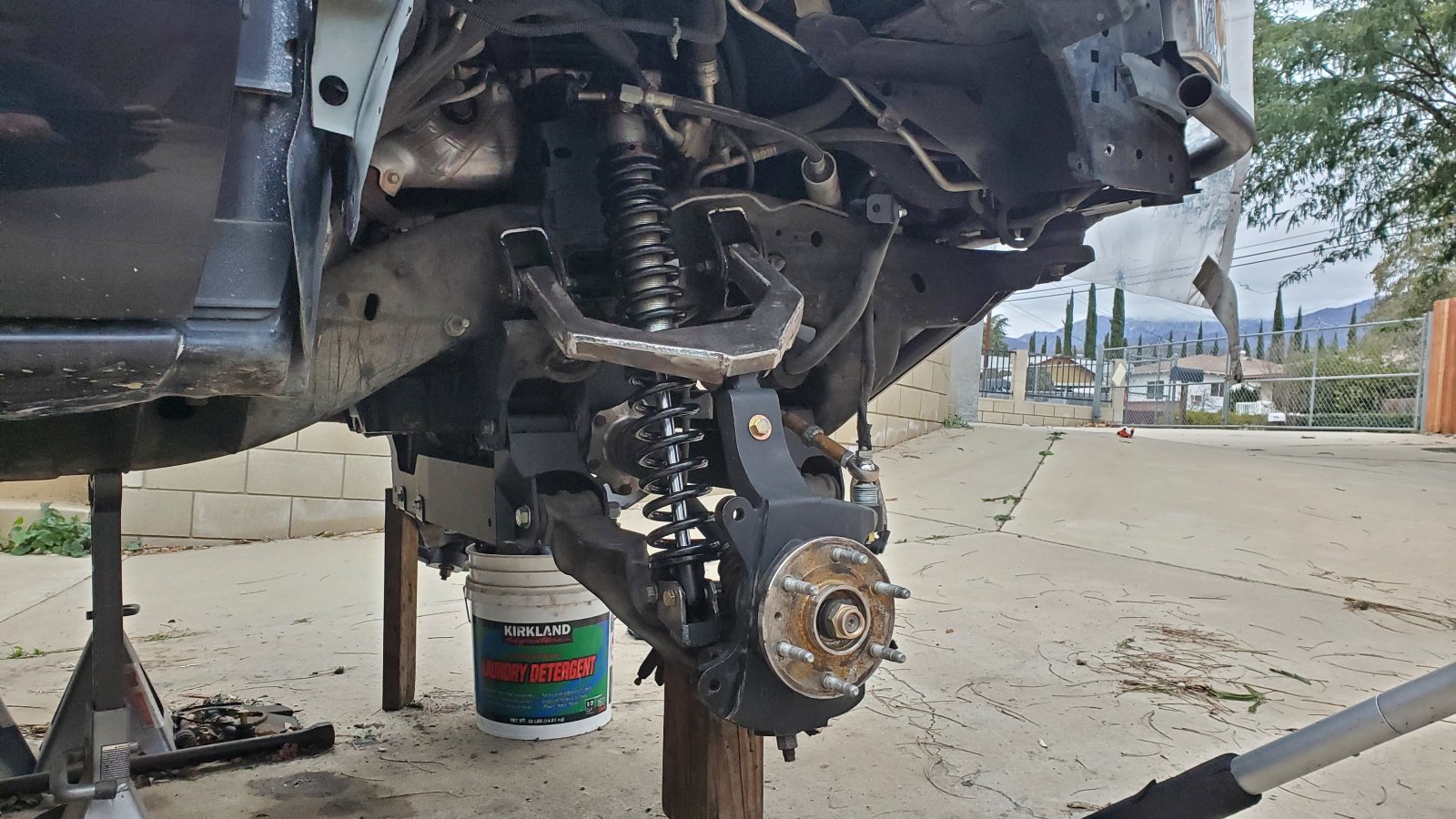

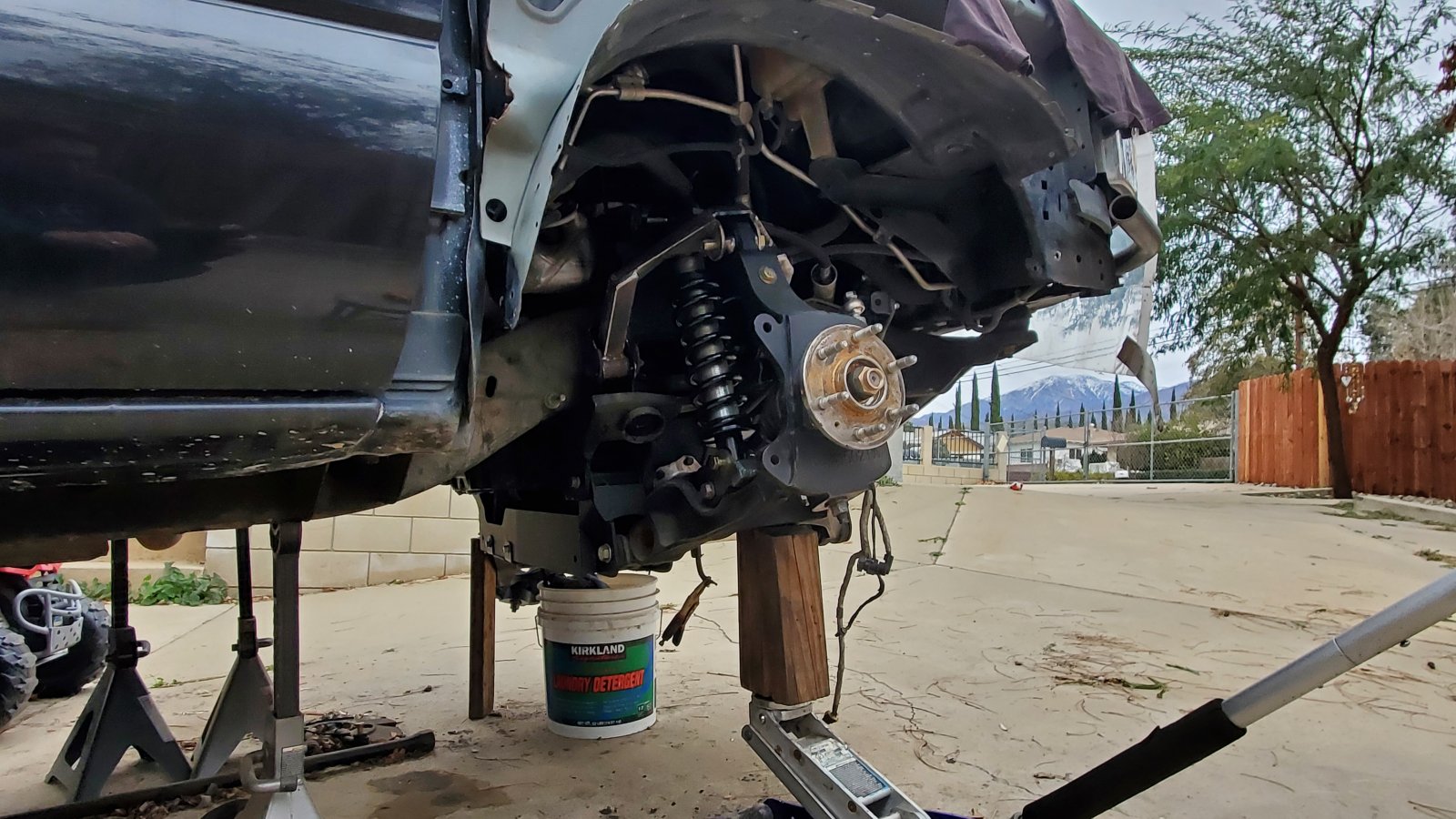

I didn't have much else to do with the rear suspension this weekend. Not wanting to waste valuable time I moved to the front. I removed the bumper cover for easier access to the inner fender. Inner and outer fender were removed as one assembly.



I started drilling out all the spot welds.





There was one area that still required some cutting near the door jam. Then the two halves could be split.


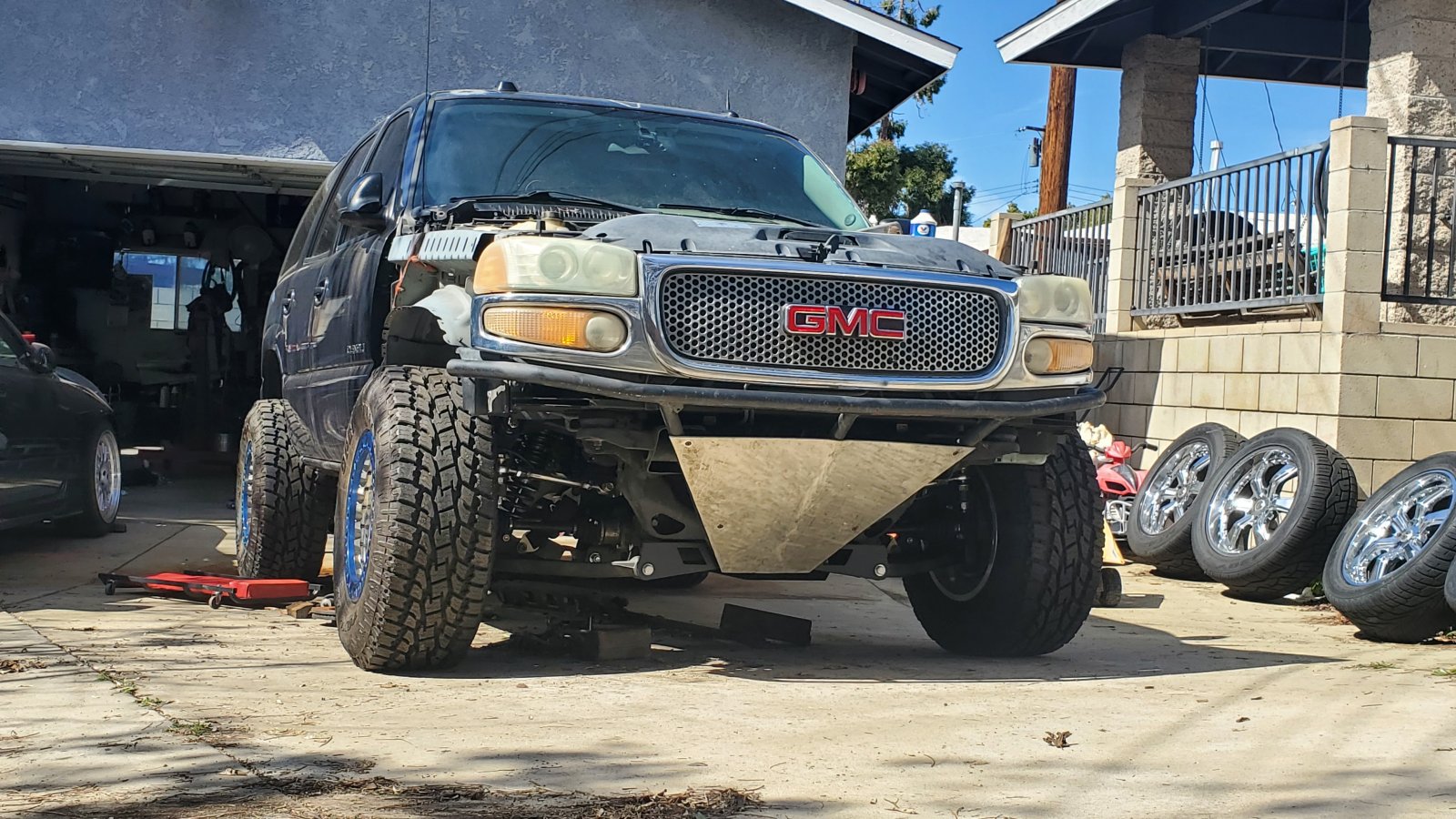

I didn't take any pics during the fiberglass modification portion of the install. There was a bunch of trimming at the top/front to clear headlights. The passenger side fit much better than the driver side. Plus the gaps on the driver side are terrible at the door jam. I will have to fill in the gaps later. Luckily the wife doesn't care what it looks like right now. She sees the bigger picture.






Last edited:
OP
OP
slow4dr

slow4dr

Member
Joined
Feb 19, 2017
Posts
58
Reaction score
96
Here's a couple pics of the exhaust mod. I had planned on this being a temporary fix until the rear bumper is made but it's tucked up high enough that I might be able to leave it.

I still need to make e-brake cable clamps. Zip ties are there temporarily, hopefully.




I cut the stock hangar off and reused it further back.



A little set back on the upper shock mounts. I have been working on these off and on for the last week. The further along they went the more I didn't like them. There's not a lot of space in the area where they will be mounted and I just didn't think this design was going to be strong enough. So, I am going to scrap them and start fresh with a completely different design.
