Post your lifts.

[timinsk]

Dont know if this has been posted but if everyone would post their lifts.

Lift type
Manufacturer
Trim/model version
Lift Height:
Weld or Bolton
Any modifications?
Review.

Pics


Im wanting to lift my 05 tahoe with autoride but theres to many to chose from and having mix reviews. I think this would help me best.



[02 Burb]

It all depends on how much lift your expecting to get. For just a couple inches get gm white keys or ford keys and a spacer. You will also need shock extenders or newer shocks as well, bilstein 5100 are the go too. Or are you wanting a bigger like 4 then you would go for a suspension lift. Also you should get z71 springs for the rear.



[timinsk]

I was looking at 4-6" suspension lift. But id like to see what it looks like and consider how it handles for everyone as well. Ive seen and heard mix results so id rather have a thread to compile all in one



[TxDrewski]

Pics Of my Truck in my profile. 3" Body lift, but done correctly so that no frame shows. Adding keys, spacers and UCA's here pretty soon. I run 33" AT Tires with zero rubbing currently.

Lift type- Body
Manufacturer- Performance Accessories
Trim/model version - Z71 Tahoe
Lift Height:- 3"
Weld or Bolton- Bolt On
Any modifications?- Custom brackets for step rails, rear receiver and brush guard. Gap Guards.
Review.- Love it



[jgoff2011]

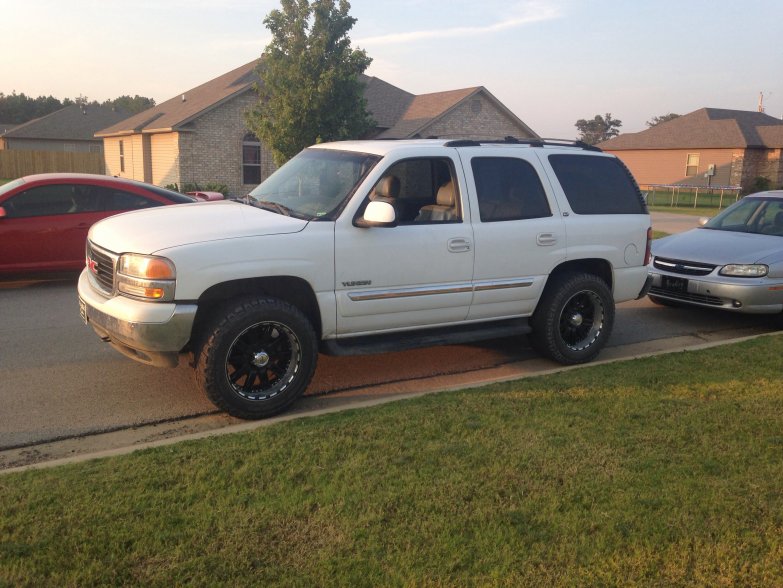

03 yukon

Just got my 305/55/20's put on today. I just have keys and shock extender brackets. Had to cut some of the bumper close to the wheel well, cut the bolt on the left side, and gonna cut some of the plastic out. I tried uploading a picture. Don't know if it worked. If not I'll try again.



[chrisreed822]

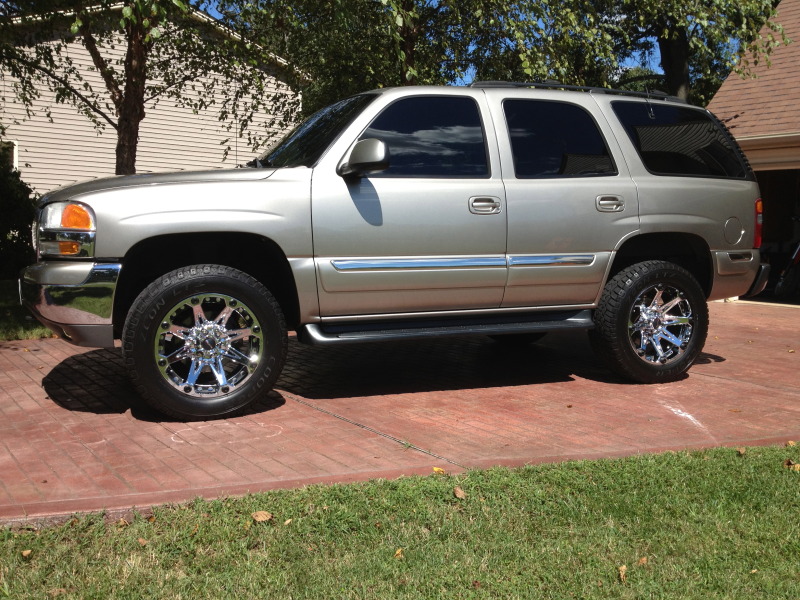

3" lift spindles, keys cranked just a little up front
2.5" spacers, z71 springs and extended sway bar links in the back with 5100's all around.
I got about 3.5-4 inches all the way around and I love it but now I want to go higher.



[crossone81]

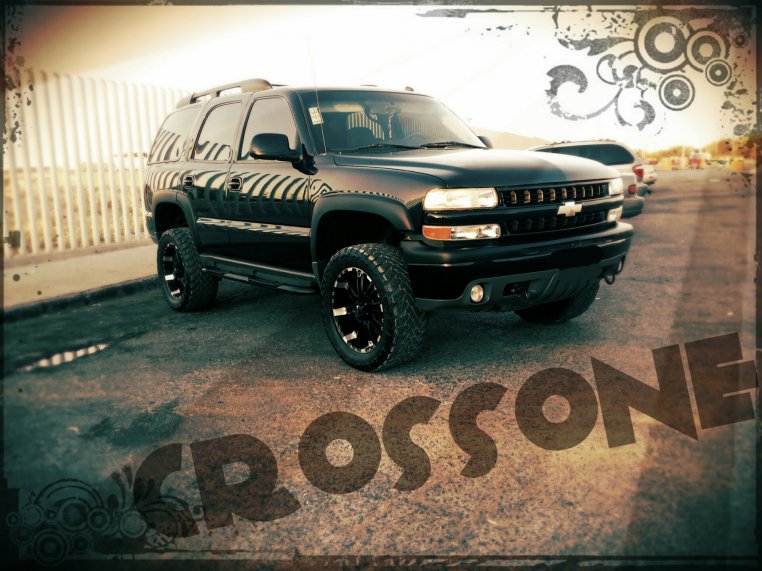

my tahoe 2004 on 33 12.50 r 20 toyos, body lift 3 inch, kyes all cranked,



[fire730]

3" lift spindles, keys cranked just a little up front
2.5" spacers, z71 springs and extended sway bar links in the back with 5100's all around.
I got about 3.5-4 inches all the way around and I love it but now I want to go higher.

View attachment 28204

What brand are your spindles and do you have a PN for the rear end links? Thanks.

Also what size tires are you using?



[chrisreed822]

I can't seem to find the info for the spindles, but I got them off eBay. The links I ordered through amazon because the shipping was faster than the actual website. "Zone Offroad TJ Rear Sway Bar Link for 4-5" Lift" is the description.



[01Konvict]

ebay lift keys, gold anodized 2" spacers, z71 springs, tj rear sway bar links, airlift 1000s bags, 5100s all the way around, 33s on 20s
