Loose Red Wire Driver Side Wheel Well

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

YukonCrazy

Full Access Member
Joined
Jun 13, 2013
Posts
349
Reaction score
46
Location
Raleigh, NC
I was changing brakes and noticed this red wire dangling that is not connected to anything but should be. Any idea where this connects to?

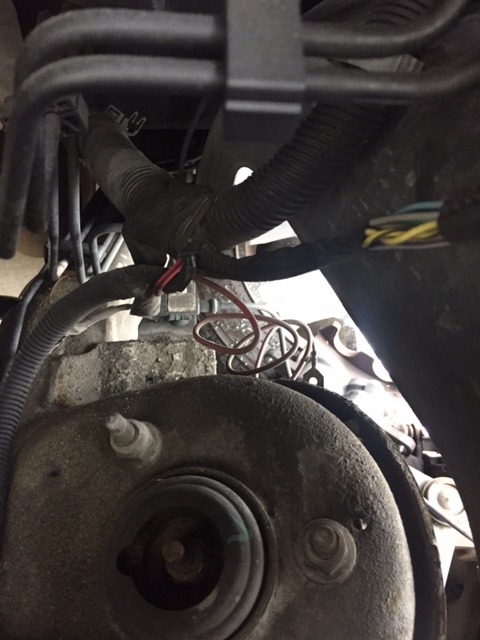

Looking down under under the hood....

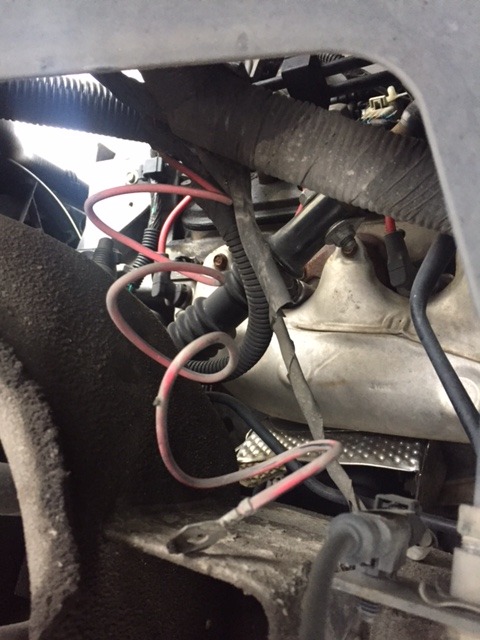

Looking from drier side wheel well...



NGAneer

Full Access Member
Joined
Jan 21, 2014
Posts
1,783
Reaction score
1,023
Location
NWGA
I've got the same wire but it's taped up. Not sure what its for but being that it was crusty when I got the truck, I just left it unhooked. I'm guessing it's aux power for something.


kbuskill

***CAUTION*** I do my own stunts!
Joined
Mar 11, 2017
Posts
5,213
Reaction score
8,068
Location
NE. FL.
I was changing brakes and noticed this red wire dangling that is not connected to anything but should be. Any idea where this connects to?

Looking down under under the hood....


Looking from drier side wheel well...


I've got the same wire but it's taped up. Not sure what its for but being that it was crusty when I got the truck, I just left it unhooked. I'm guessing it's aux power for something.

That's a wise choice my friend!

That is one of the wires that gets hooked up to one of the two studs on the front of your fuse box under the hood to give power to your 7 pin trailer connector and your brake controller wiring that is located under the drivers side of the dash. There should be a second red wire bundled with tape in front of the fuse box. They have different size lug terminals on them that correspond to the different sized studs that I mentioned earlier.


NGAneer

Full Access Member
Joined
Jan 21, 2014
Posts
1,783
Reaction score
1,023
Location
NWGA
That is one of the wires that gets hooked up to one of the two studs on the front of your fuse box under the hood to give power to your 7 pin trailer connector and your brake controller wiring that is located under the drivers side of the dash. There should be a second red wire bundled with tape in front of the fuse box. They have different size lug terminals on them that correspond to the different sized studs that I mentioned earlier.

Good to know. Appreciate it.


05Single

afraid of the dark
Joined
Feb 26, 2015
Posts
8,183
Reaction score
11,447
I had no idea, my comment was just trying to make a funny about his avatar. Nobody got it tho :smh:


PG01

Supporting Member
Joined
Nov 6, 2016
Posts
14,730
Reaction score
17,773
Location
Up here to the right
That is one of the wires that gets hooked up to one of the two studs on the front of your fuse box under the hood to give power to your 7 pin trailer connector and your brake controller wiring that is located under the drivers side of the dash. There should be a second red wire bundled with tape in front of the fuse box. They have different size lug terminals on them that correspond to the different sized studs that I mentioned earlier.

X2
