HOW-TO: 03-06 NBS Gauge cluster LED conversion

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

ScottyBoy

Full Access Member
Joined
Jun 27, 2010
Posts
2,563
Reaction score
1,723
Location
Shreveport, La
LEDs are becoming all the rage now, and more and more people are wanting to convert their interior lighting and gauge backlighting to LEDs. Here is some info on how to do this upgrade on any Tahoe, Yukon, Suburban, or Escalade from 2003-2006. Patience, a steady hand and soldering skills are a must if you want to tackle this upgrade. You will need about 10 5mm LEDs and enough resistors to go with them. The resistor value depends on whaich type and/or color LED you end up using. For the Blue LEDs I use, I pair them with 470 ohm resistors.


First, remove the cluster from the vehicle, and lay it out on your table or workbench. You will need a small flathead screwdriver or similar prying tool and pry the cluster open. You will want to take off the clear guage lense first. Do this by prying up the tabs, and slowly working your way around the cluster.


With the front lense/bezel removed, the cluster now looks this.

Next you will need to remove the guage needles. Be VERY careful with this step. You will need to mark where each needle is pointing, and re-install each needle in the same exact position when you re-assemble the cluster. To remove the needles, the best tool is a simple dinner fork. Yes, I said dinner fork. Slide the firk under each needle and pull straight up, being VERY CAREFUL to pop the needle off without turning it. Remember, you need to have it pointing in the same spot when done.

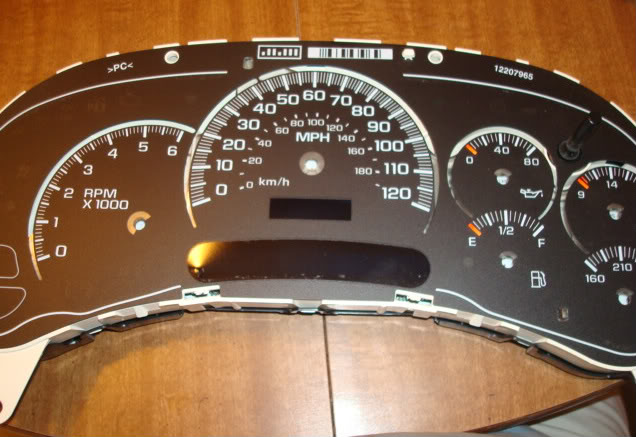

Now with all the needles removed, you can then remove the guage overlay. It is just popped onto some tabs or "nubs" around the cluster face. Just carefully pop the overlay up off of each nub.

Now you have to lift out the clear light diffuser that is laying inside the cluster. Just carefull lift it straight up, it isnt secured to anything.

Now with the light diffuser removed.

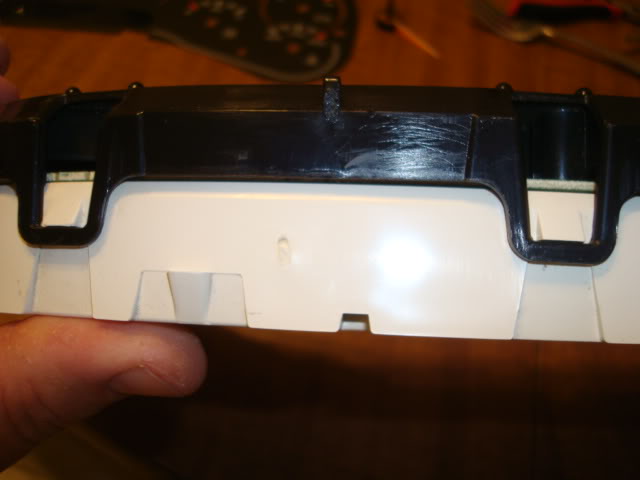

Now you need to remove the white surround to get to the actual circuit board. You will need to pry it off just like the lense/bezel was.

Now this is what you have with everything removed except the back of the cluster.

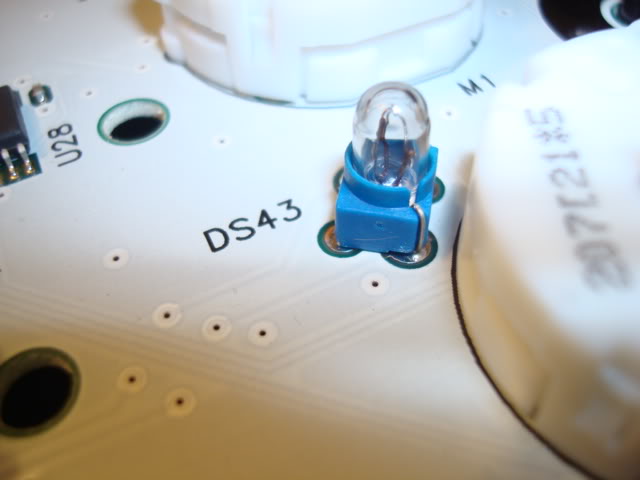

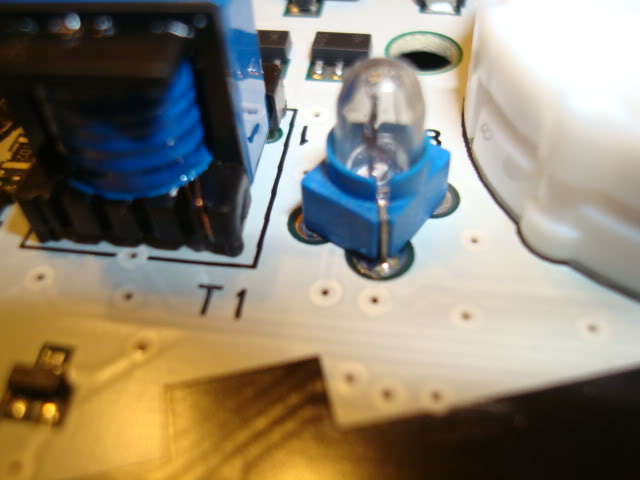

Now you need to remove all the stock bulbs from the board by unsoldering them. Only remove the ones on the white area of the board, which is the area behind the guages. This is what the stock bulbs look like.

At this point, you need to go plug the cluster back into your truck and use a meter to find out which solder terminals for each bulb are positive and negative. You do NOT want to use a conventional grounding test light, use a digital multimeter. You could also do this before you remove the bulbs if you choose to. Use a sharpie and mark each one postive and negative.

Another option is to go cut a harness pigtail from a truck in the junkyard and you can then power the cluster on your workbench with a 12v power supply. That is what I did.

Now at this point, you should have all your polarity marked and the stock bulbs removed. Now you can solder your resistors to the LEDs. The resistor needs to go on the positive leg of the LED. Now carefully solder the resistor to the terminal that you marked positive, and the other leg of the LED to negative terminal.

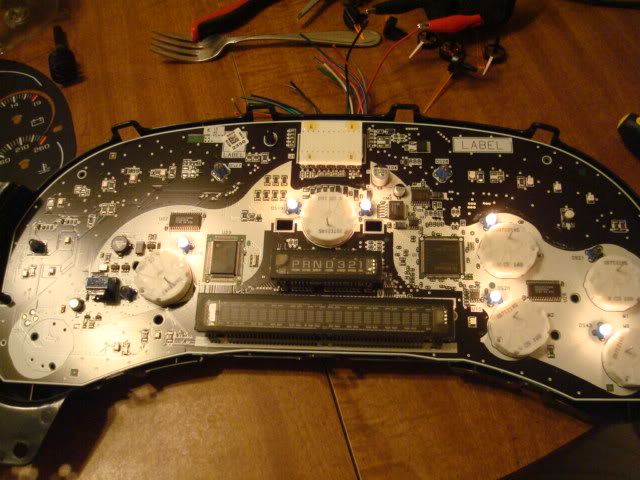

Now do the same thing across the board with 9 more LEDs. Now power up the cluster to verify all the LEDs are working, before you re-assmble everything.

At this point you can lay the clear diffuser and the graphic overlay back on and see if any of the LEDs need to be moved or "adjusted" for better light output or spread.

OP
OP
S

ScottyBoy

Full Access Member
Joined
Jun 27, 2010
Posts
2,563
Reaction score
1,723
Location
Shreveport, La
Now once you are satisfied with the light output of the LEDs, you can re-assemble the cluster. Re-assembly is the reverse of the dis-assembly process. Just be VERY careful when putting the needles back on to get them in the same exact spots they were in before you removed them.

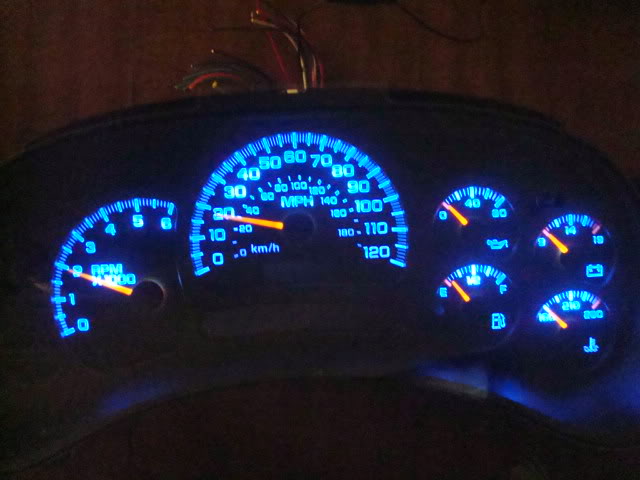

Now once you get the cluster all back together, go plug it in your truck and be amazed at how frikkin awesome your cluster now looks. Now go have a cold beer.







I also have to give much thanks to Tahoewhat, he let me use his cluster as my "guinea pig" so to speak. His was the first one I did. Thanks for trusting me enough to tear into your cluster Mike. :Handshake:


chip

Full Access Member
Joined
Mar 24, 2010
Posts
1,591
Reaction score
19
Location
Tampa
Man, I can't tell you how badly I want you to do my whole truck for me! I know I can do it myself, but there is no substitute for the experience you have. Very well done my friend! You will be hearing from me just as soon as I am no longer broke. LOL!


Vincesrg03

Full Access Member
Joined
Nov 5, 2010
Posts
181
Reaction score
0
Location
Illinois
Scotty Boy that is a great looking cluster. Thats the exact color i want for my cluster. How long did it take to do? Where did you get the leds? Is there any problems you encountered while doing this? I know its a lot of ?, but i am kind of freaked out pulling apart the cluster. Great write up!!!!!!!


chip

Full Access Member
Joined
Mar 24, 2010
Posts
1,591
Reaction score
19
Location
Tampa
Scotty Boy that is a great looking cluster. Thats the exact color i want for my cluster. How long did it take to do? Where did you get the leds? Is there any problems you encountered while doing this? I know its a lot of ?, but i am kind of freaked out pulling apart the cluster. Great write up!!!!!!!

You should be freaked out about pulling the cluster. I don't care what anybody says, IMO there is an art form to messing with those things (and I'm a computer systems engineer - LOL). The experience is the most important element IMHO, and scotty seems to have that. That's why I'd rather pay him to do it. That's just my opinion of course.


ritter6

TYF Newbie
Joined
Mar 15, 2011
Posts
1
Reaction score
0
Help Please

I have a cluster I am trying to test out off the tahoe. I have a wire harness from the junkyard and tried everything with no luck. Can anyone tell me what pins to apply voltage/ ground to, to get the cluster to do the startup process (where it resets the gauges and turns the odometer on). Thanks so much in advance. You guys are awesome.


OmarR

Full Access Member
Joined
May 4, 2009
Posts
442
Reaction score
16
Location
Indianapolis, IN
I have a cluster I am trying to test out off the tahoe. I have a wire harness from the junkyard and tried everything with no luck. Can anyone tell me what pins to apply voltage/ ground to, to get the cluster to do the startup process (where it resets the gauges and turns the odometer on). Thanks so much in advance. You guys are awesome.

This is for 03-06:

B11 Orange_ _ _ _12V
B09 Pink_ _ _ _ _ _IGN (12V)
A12 Black_ _ _ _ _ Ground
B12 Black/white_ _Ground

A11 Red_ _ _ _ _ _12V for lights


91RS

Full Access Member
Joined
Nov 15, 2009
Posts
2,447
Reaction score
1,801
Location
GA
Thanks for this! I found your post on Truck Mod Central through a Google search, my resistors should be here any day and I'll be doing this to my Trailblazer.


fire730

Full Access Member
Joined
Jan 4, 2010
Posts
979
Reaction score
29
Location
Louisiana
SICK!

If you ever come down to NOLA bring your tools and I will supply the fork!

I am a do it yourself person but I dont really have the nerve to tear apart the cluster and solder in there.
