Escalade Tail Light Swap

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Excon11

Banned
Joined
Oct 12, 2009
Posts
438
Reaction score
3
Location
North Dakota
Sorry for how late this has been i've had family come down to the house and havent really had to much time. Total install time for me was around an hour and 15 or so minutes. Gonna help my best to make it as clear as possible.

Tools Needed:
1. Phillips head screwdriver
2. Escalade Tail Lights L+R DSCN0211.gif
3. 2 5 to 4 trailer harness converter (Hopkins # 48845 is the ones I used).
4. 6 Ohm 50w Power resistor (Superbright LED’s #RL-650 is again the ones I used).
5. Crimps or a soldering Iron
6. Crimp tool(If using Crimps) * I used crimps was easier IMO*
7. Heat Shrink to insulate the wires from water just incase.
8. Heat Gun.
9. Extra Harnesses incase you mess up ( I just used my stocks)
10. Wire Cutters
11. Zip Ties.

Instructions:
1. Dis-install the stock tail lights using the screwdriver
2. Remove the bulbs and put the stock lamp to the side.
3. I left my harnesses plugged in the whole time so you can either decide to unclip them from the bottom just what ever is easier.
4. Cut the wires a little below the side marker bulb to get full access to the wires.
5. Cut the Escalade harness little above the 6 pin connector( It takes alot of guts to cut these trust me) DSCN0213.gif
6.*This is the wiring Diagram I used works perfectly* The Sideways slants are where the crimps are used.
7. I did the direct connections first after than I started with the converter. I cut the wires short and cut the unneeded wires (Brown and Yellow) almost completely off and than insulated them with electrical tape DSCN0299.gif
8. Escalade to harness is pretty straight forward just fallow the colors and crimp where it says to crimp.
9. Disregard the Pink+Black and Yellow+Black Wires on the Escalade too I cut them short and covered them in electrical tape as well.
10. Wire the direct connections on the tahoe side just like you did with the escalades side.
11. Where it gets tricky is the Tahoe to the converter with the resistors.
12. The red and green wire only get one resistor on them while the white has two DSCN0295.gif.
13. Superbright Led resistors come with these blue crimp locks that work amazing. you put the wires threw the slot and connect to its designated wire using the diagram but than the resistor goes in the slow that doesn't go all the way threw.

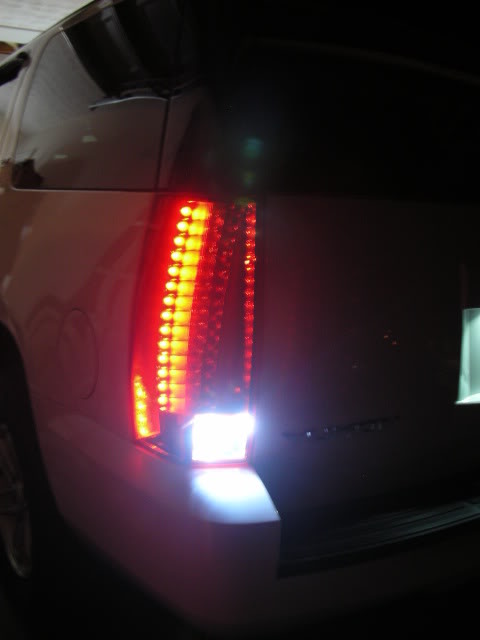

14. After that test using the unlock function and watch your escalade lights come to life.
15. After seeing that they work move the heat shrink tubing over and go over it with a heat gun sealing them and after that put them back in the black plastic tubing as well as you can. DSCN0297.gif
16. Put the wiring down the slot so it hangs all under your bumper and go to work installing the zip ties (See above pics of mine) ** Make sure you keep the resistors away from the wires they do get hot and might burn threw**
17. Than install and repeat on the opposite side (2nd half gets very easy since you know exactly what your doing.
18. Install using the screws and the phillips head and than enjoy your tail lights :Handshake:. If you have any questions at all don't hesitate to ask me i'm more than happy to help, and sorry I didn't have more detailed pics I realized I should've taken pics during the install but spaced.
19. Just test all hazards, turns, etc It should all work.

Im not electrical genius its more of a mental challenge than physical just take deep breaths and you'll be just fine.

Hope you all enjoyed my write up :hands:.


NJ Metsfan77

Member
Joined
Jan 2, 2010
Posts
39
Reaction score
0
Location
New Jersey
Thanks Excon for the detailed instructions. I'm currently looking for some Escalde lights now. Do you know if this will work on an 09 Tahoe? Same schematics? If I have any questions I might reach out to you. Thanks again. Keep the Hoe looking Hot & Fresh


zach2011

Platinum Member
Joined
May 18, 2009
Posts
1,640
Reaction score
4
Thanks for the great write up!

If my G4's ever go wrong then I may do this...or find someone to do it for me, a 16-year old can NOT wire anything, let me tell you. Lmao. i nearly killed myself trying to change a light switch.

In any case, this is a good thread!


yukon07Artic

Full Access Member
Joined
Oct 25, 2009
Posts
194
Reaction score
0
Location
Dirty South ATL
so you need 4 of the #RL-650 am i right? I actually found this conversion at chevrolet forum first. the guy did your project stated that we need 4 of the #RL-650 .

Im trying to do the third break light as well but i have to purchase the escalade spoiler as well.


laynlow

TYF Newbie
Joined
Feb 5, 2010
Posts
9
Reaction score
0
Location
IL
It looks like the Escalade tail lights are shaped different then the G4's. The rear posts on the esky appear to have a sharper edge/ Either way, they look great!


yukon07Artic

Full Access Member
Joined
Oct 25, 2009
Posts
194
Reaction score
0
Location
Dirty South ATL
Thanks for your writeup. The diagram was more than sufficient. I just had my conversion and i have to say its one of the best mods i did. I cant take any credit though, cause my boy installed it for me
