Denali D3S 5500k and Led hi beam and fog lights. A lot of pics inside

[Slow5.0]

Since i bought my 2016 Denali i didnt like low/hi beam and fog light setup
So i ordered Uxcell PSX26W 30w 6000k led
On driver side is Uxcell 6000k foglight, on passanger side is my other option fog light Xenon Depot 5000k led



Next pics is comparison pics of OEM Osram D3S lows with Uxcell 6000k fog led on driver and Xenon Depot 5000k on passanger side



Next pics OEM D3S lows with OEM 9005 Hi beams

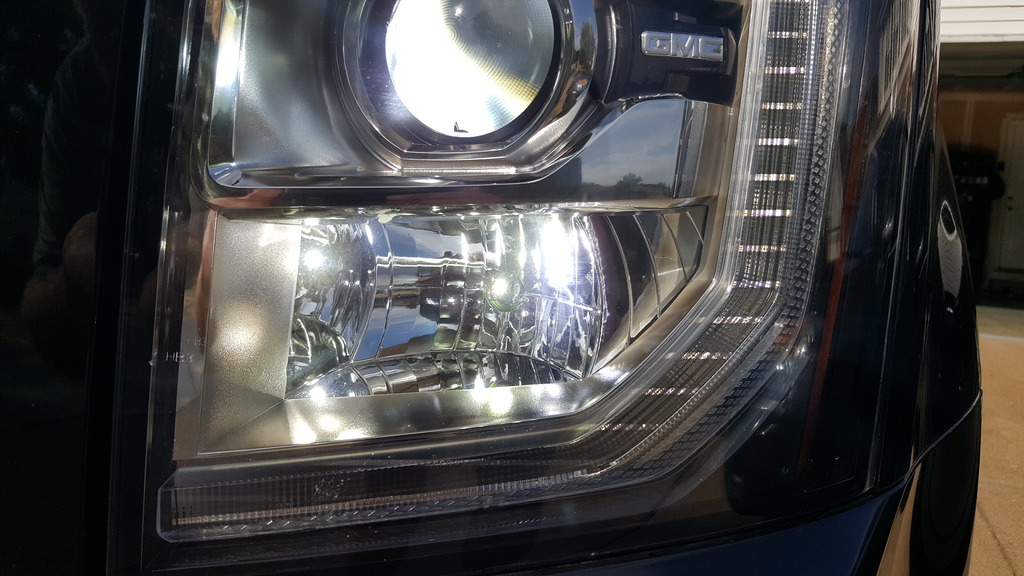

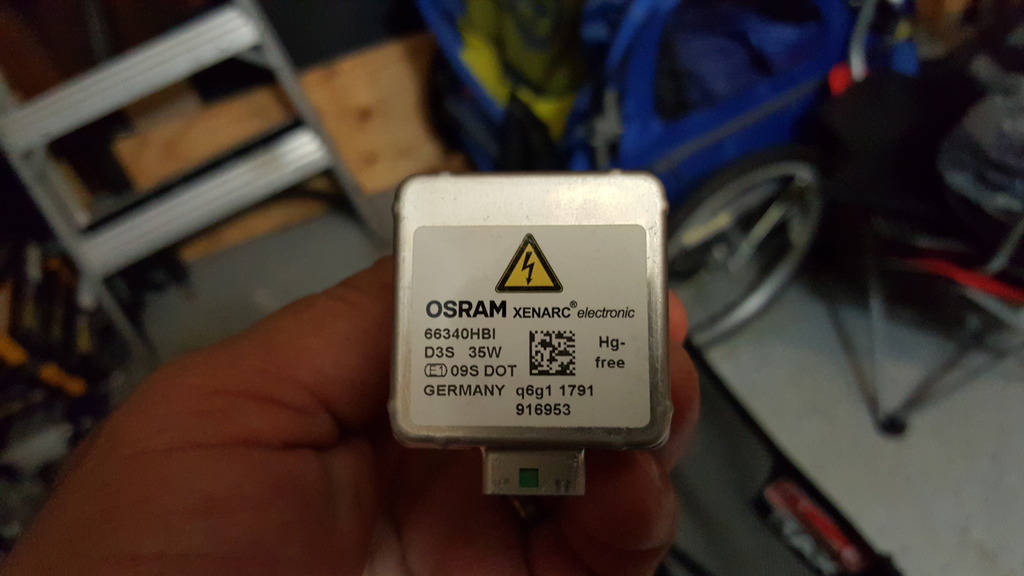

Next pics is OEM OSRAM D3S 66340HBI rated 4300k or 4650k

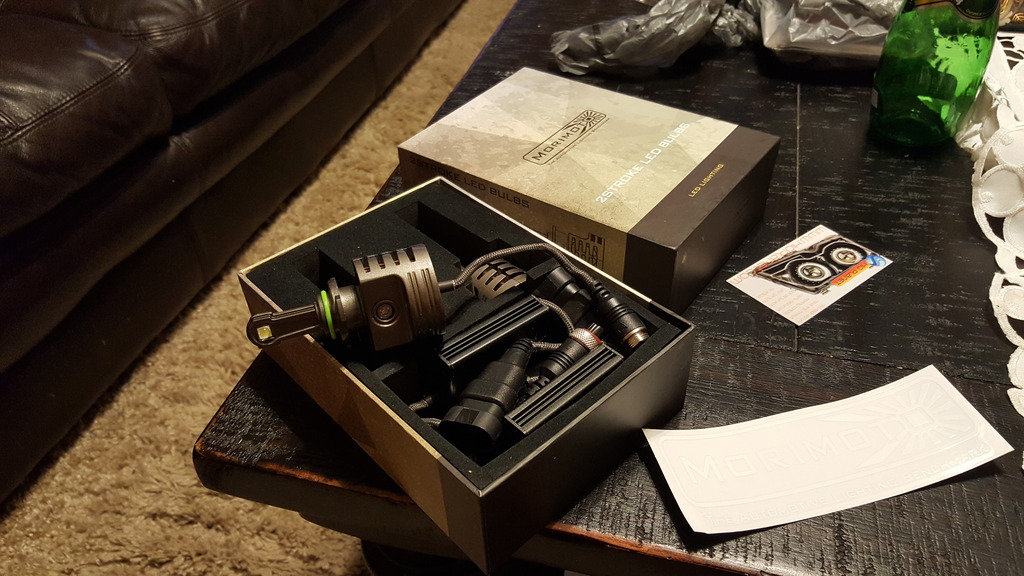

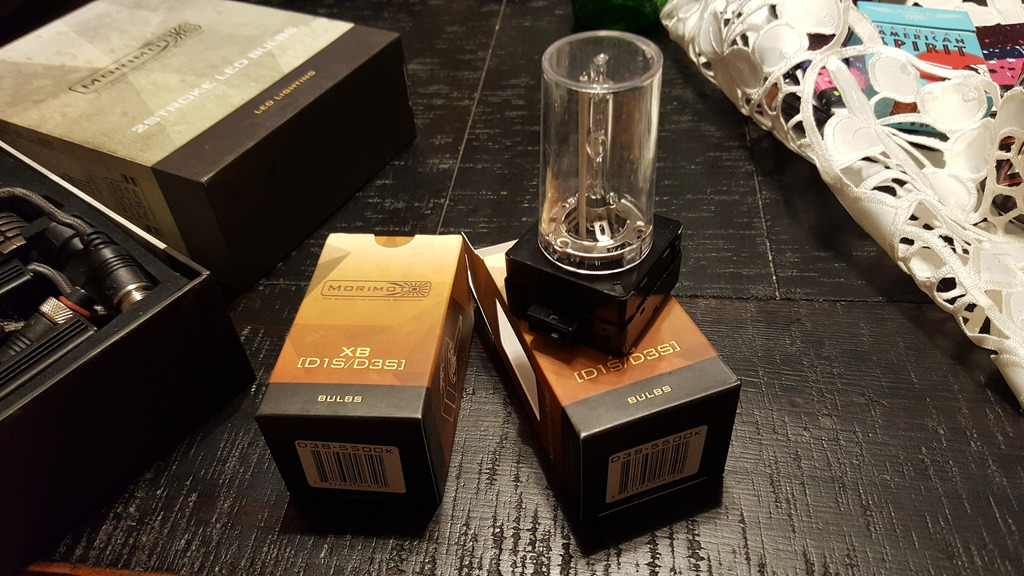

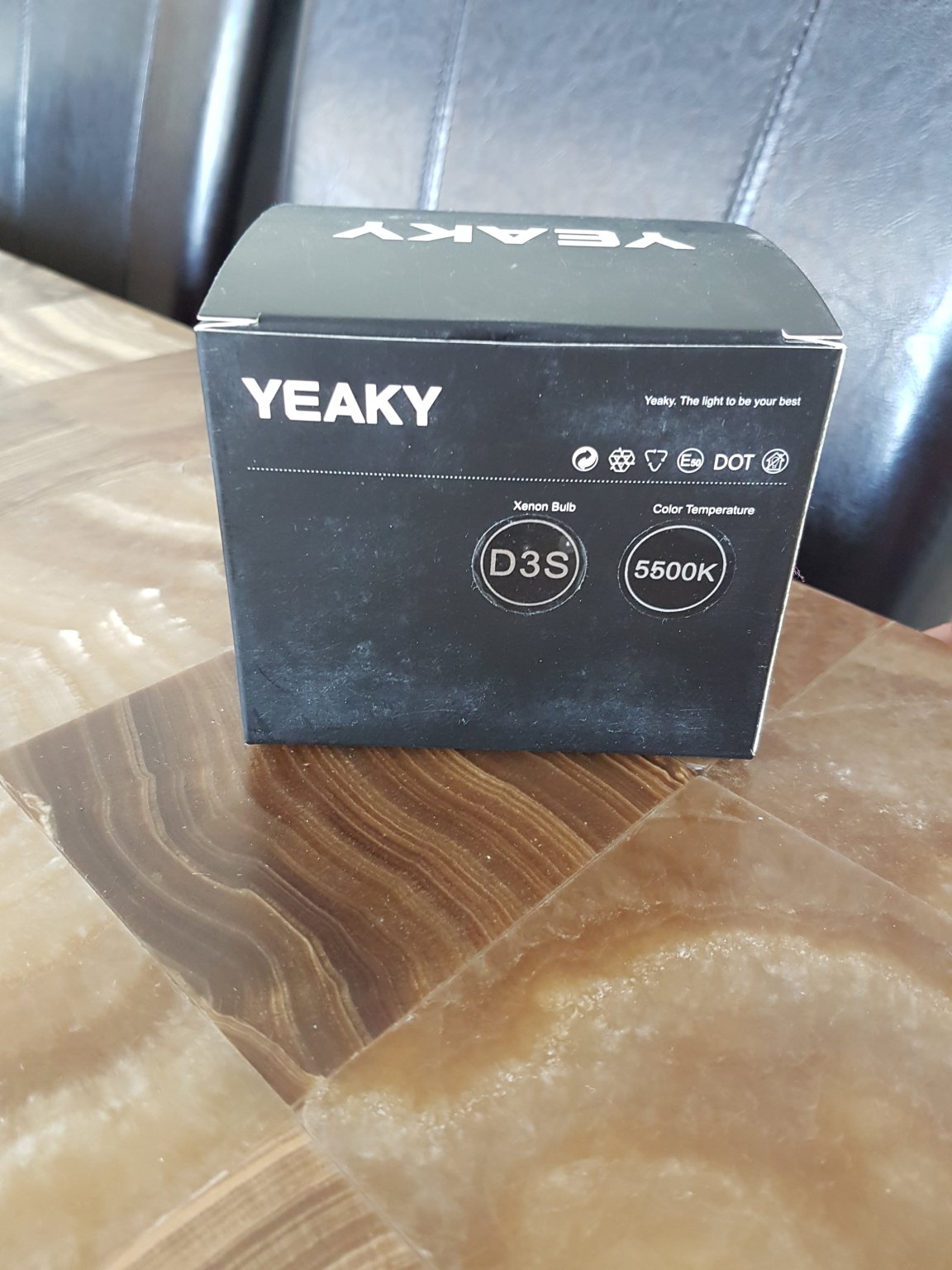

Next is TRS Morimoto D3S 5500k



Next pics is TRS Morimoto 2Stroke 9005 6000k led for hi beams

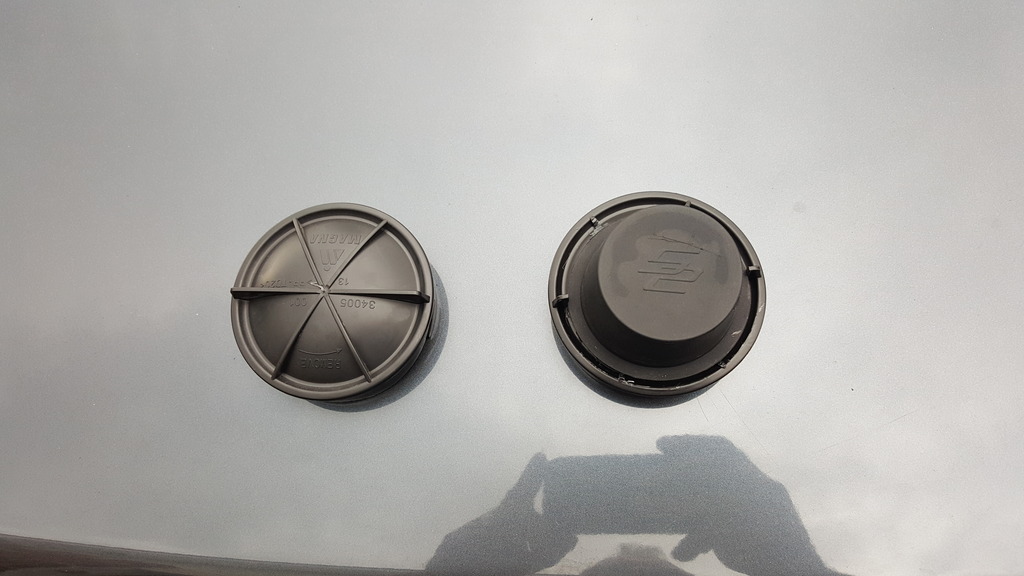

Since i didnt know if TRS 9005 led is gonna work i didnt wanna mess up OEM headlight low/hi beam bulb cover, i bought 4 new ones part# 22941303 on ebay $4.15 each. Also TRS 9005 leds comes with extended rubber caps and i use them on moded OEM caps



I use Lenox 2 1/4 hole saw from lowes part# 348138 and drill about 3mm off center on bulb covers since Led will be close to this cap, and i use black RTV silicone to seal rubber cap to OEM cap



Here is how rubber cap looks like after everything is installed. I did pull male 9005 connector out and connect it to Morimoto ballast and tuck/zip tied
I used Scotch outside red double side outdoor tape and attach ballast under low beam bulb housing






Next pics is Xenon Depot 5000k led fogs



Next is Xenon Depot 5000k led fogs, TRS 5500k D3S low beam on driver side and OEM D3S on passanger side



Next is TRS D3S 5500 lows on driver side, OEM D3S on passanger side



Next is TRS D3S 5500 low on driver side, OEM D3S on passanger side, TRS 9005 hi beam led on driver side and OEM 9005 on passanger side



Next is TRS D3S 5000k lows on both sides

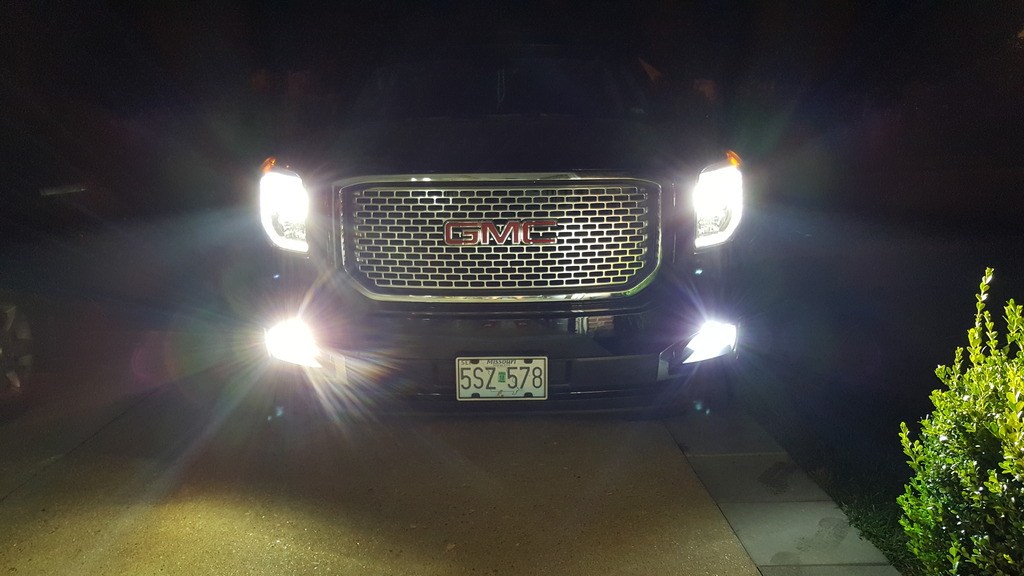

Next one is TRS D3S 5500k lows with Xenon Depot 5000k led fogs



This pics is TRS D3S 5500k lows with TRS 9005 led hi beams



[Slow5.0]

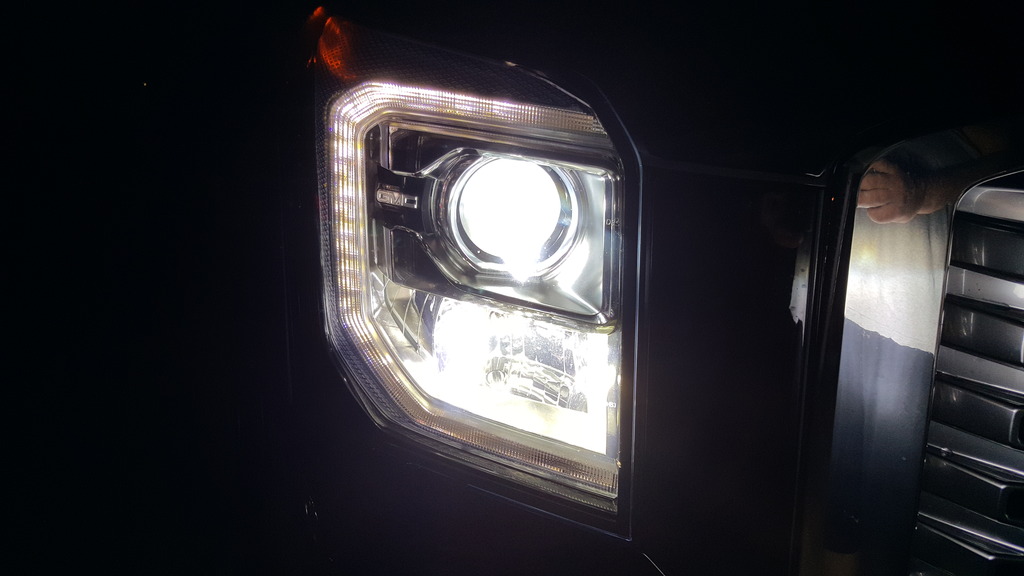

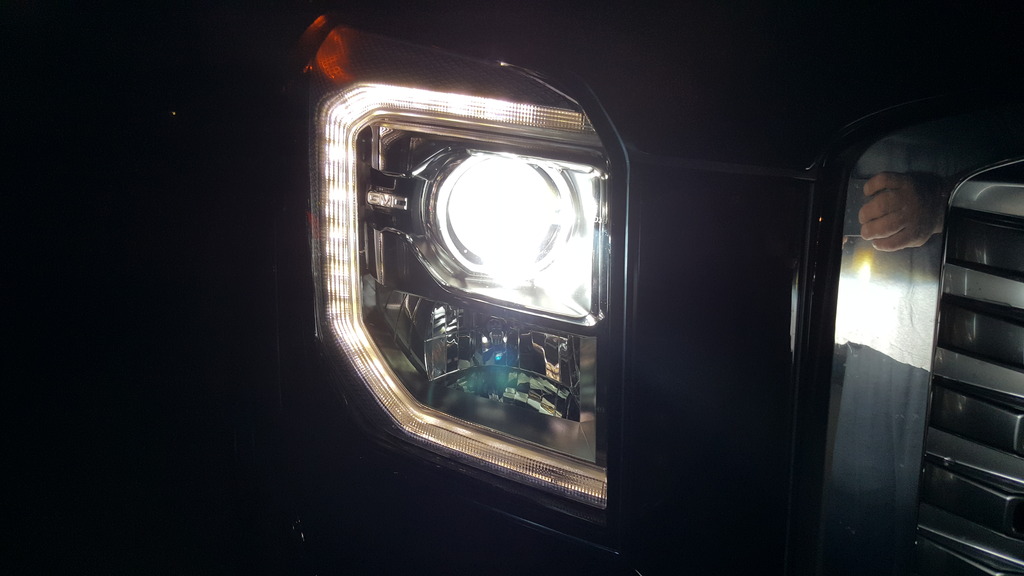

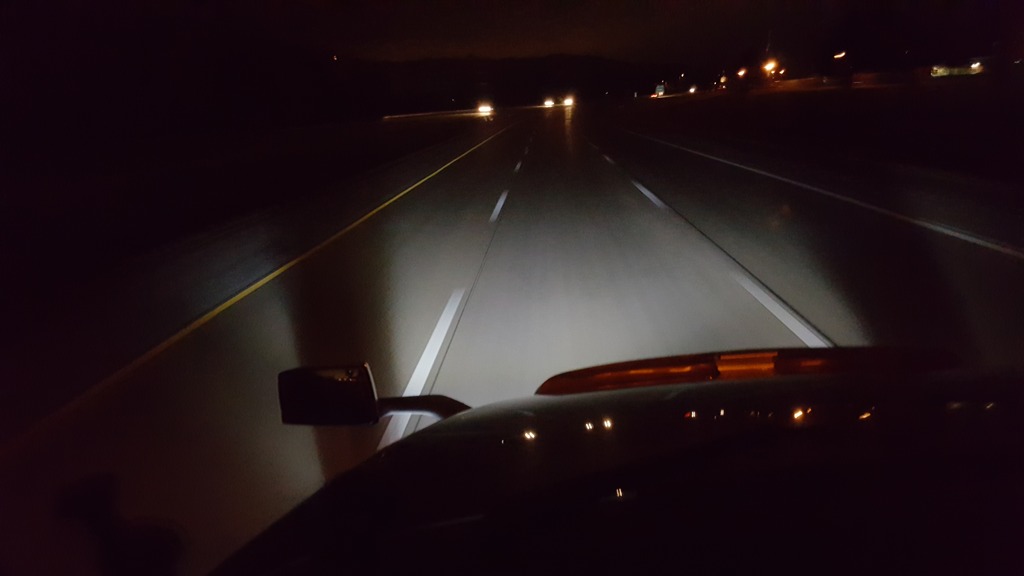

Now some close up pics of TRS D3S 5500k lows and TRS 9005 led hi beams. 1st two pics are from day with low/hi beams of and on. Last 4 pics are from night with just lows and than lows and hi beams








From the outside TRS D3S 5500k low beams looks like they have some blue in it but from inside car they are bright white. TRS 9005 6000K hi beam led are bright white. Also Xenon Depot PSX26W 5000k led fog lights are bright white
TRS have 4500k D3S and Xenon Depot have 6000k PSX26W. So i may try experiment with them
I hope this helps because i dont think anyone tried different hi beams so far



[cardude2000]

Now some close up pics of TRS D3S 5500k lows and TRS 9005 led hi beams. 1st two pics are from day with low/hi beams of and on. Last 4 pics are from night with just lows and than lows and hi beams








From the outside TRS D3S 5500k lows looks like they have some blue in it but from inside car they are bright white. TRS 9005 6000K hi beam led are bright white. Also Xenon Depot PSX26W 5000k led fog lights are bright white
TRS have 4500k D3S and Xenon Depot have 6000k PSX26W. So i may try experiment with them
I hope this helps because i think nobody did play with different hi beams

That's a lot of data and pics. Thanks.

Which fogs are you going to keep? Which were the brightest?


Sent from my DynaTac8000 using Tapatalk



[Slow5.0]

Xenon Depot ones are brightest. Like insaid ill order them in 6000k and see if is better match with 5500k lows. Problem is matching with led DRL. They are not bright white, they got some yellow in it
Yeah i posted all those pics and info on my S6 edge. It took a long time



[08HoeCD]

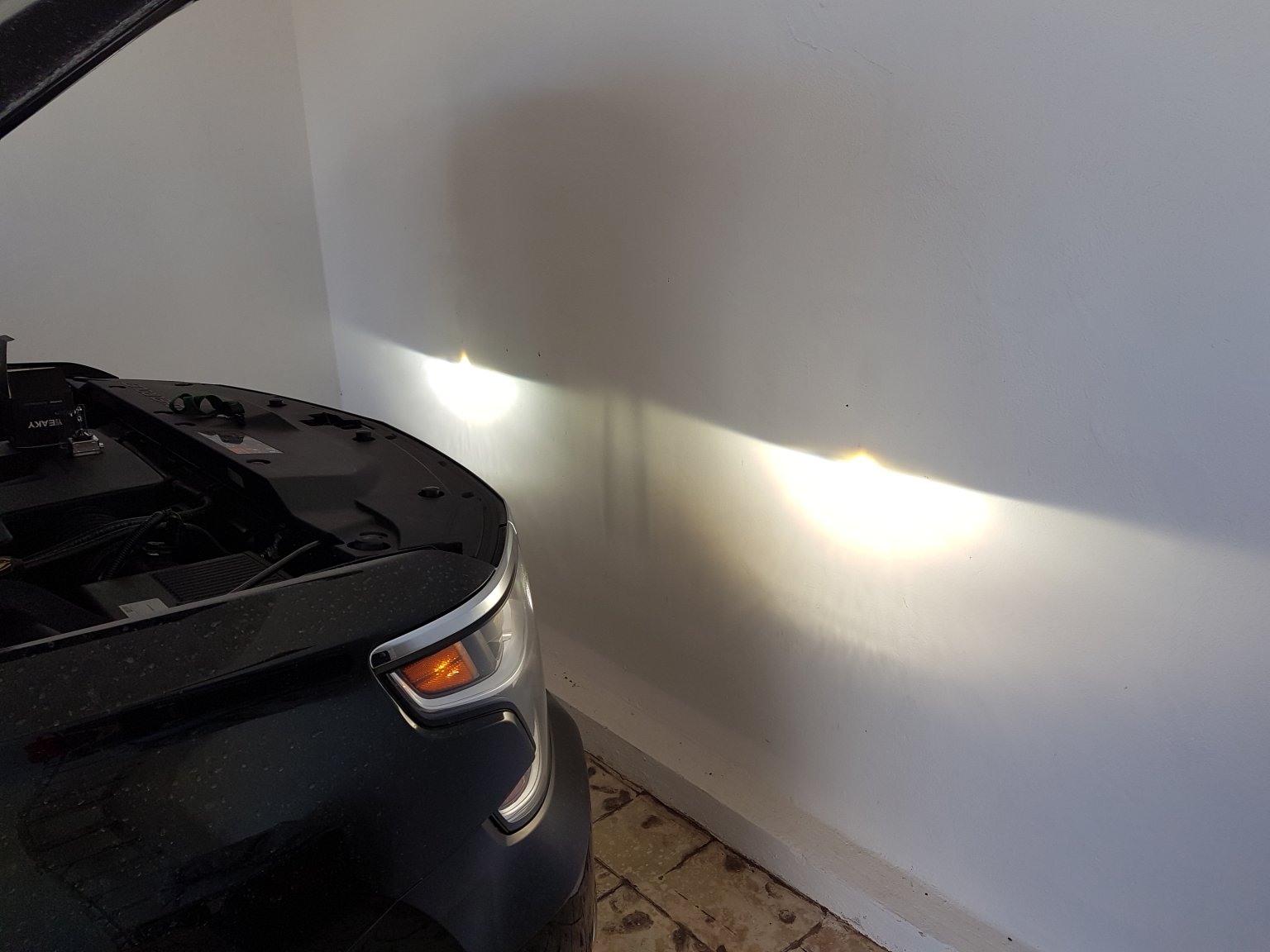

Would be ideal to see the actual output----like showing the light hitting a structure, like a wall or garage door.



[Slow5.0]

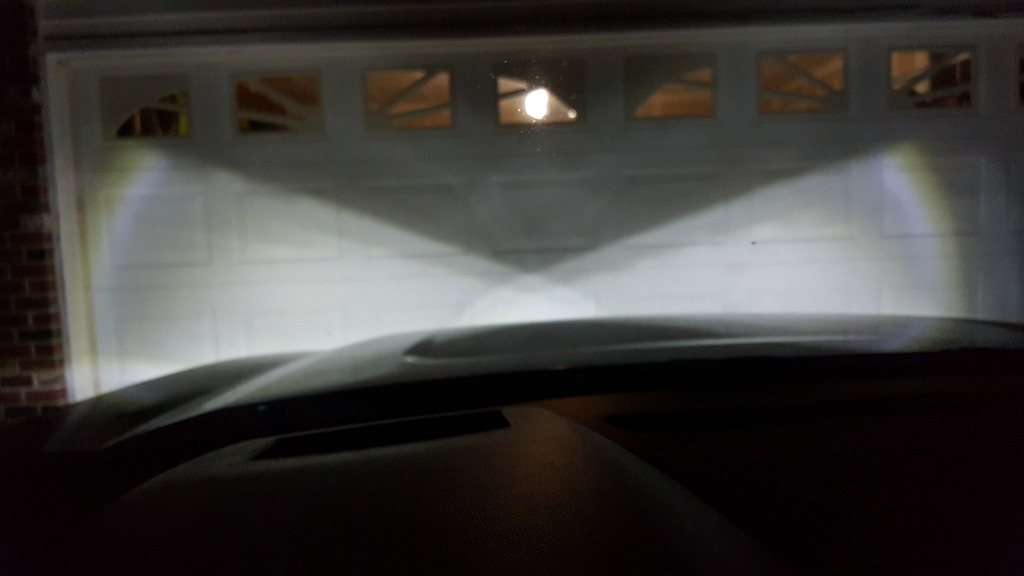

I have to adjust low and hi beams. I left it how Denali came from the factory. Here is low beams TRS D3S 5500



Now TRS D3S 5500 and TRS 2stroke 9005 hi beam Led



TRS 2stroke Hi beams only

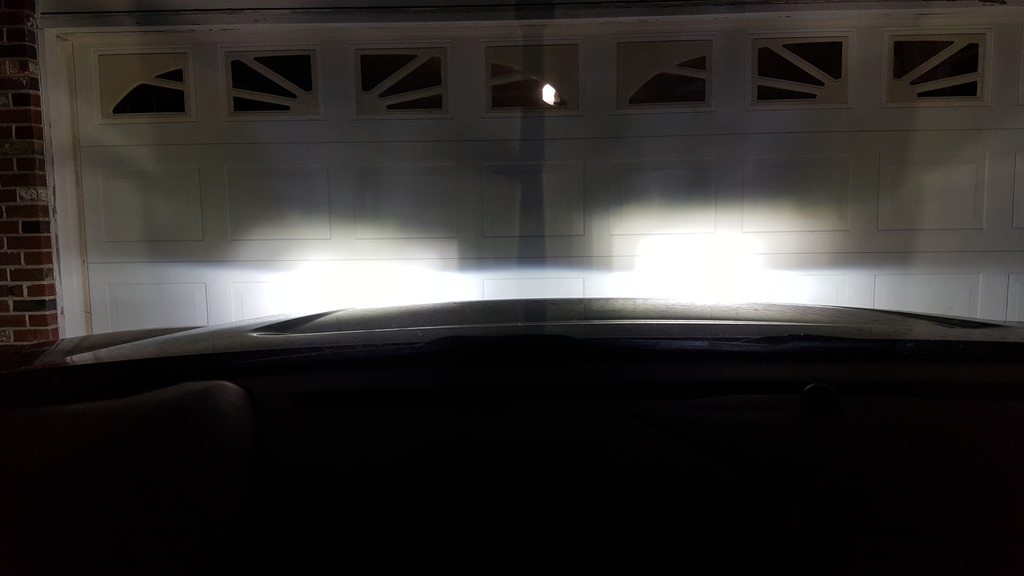

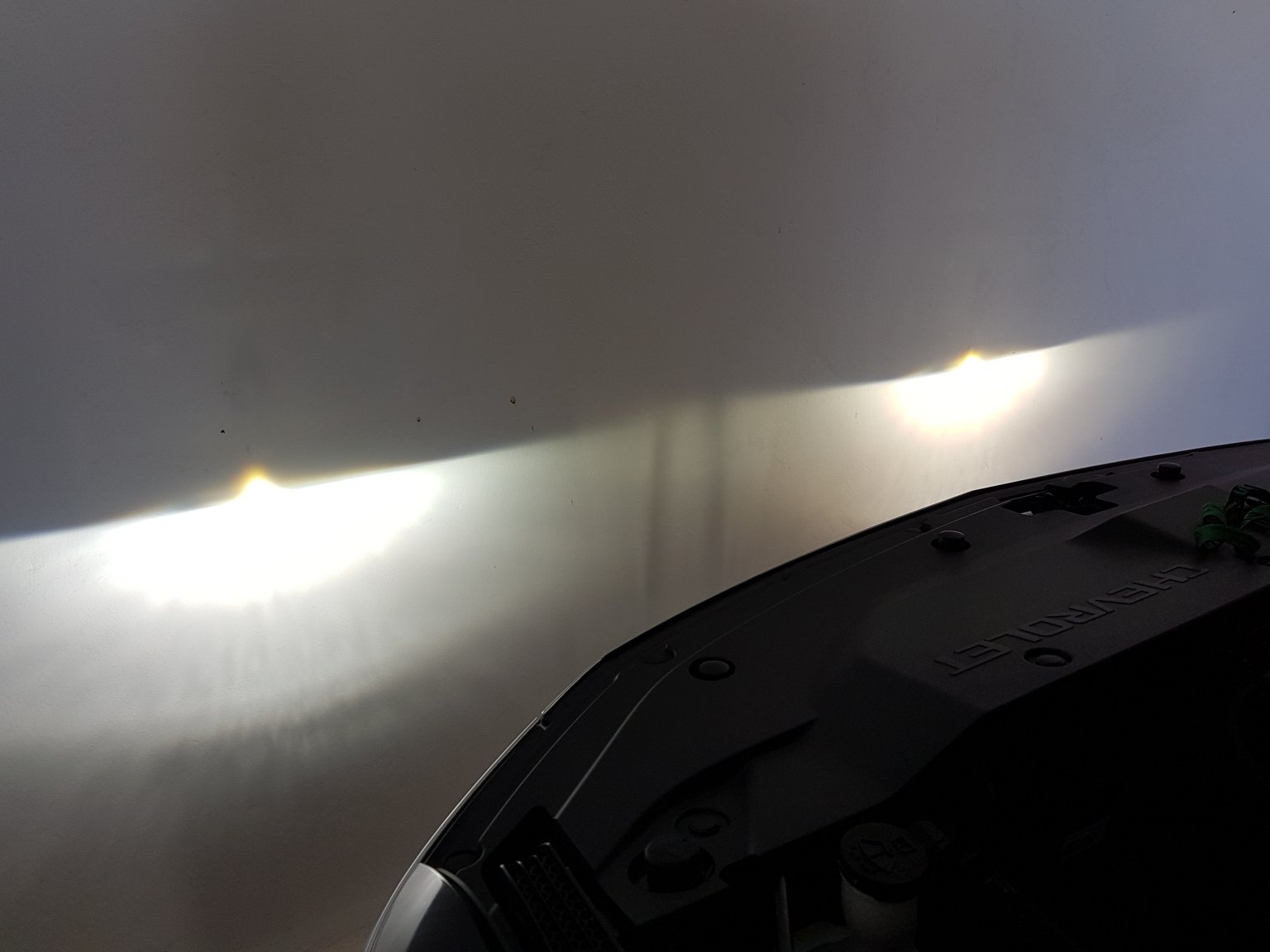

Now only Xenon Depot PSX26W 5000 led fog lights



I did say im gonna experiment with different fogs. Here is TRS 5500 lows and Xenin Depot PSX26W 6000k on passenger and 5000k on driver side



XENON Depot fog lights only, 6000k passenger and 5000k driver side



Now fog lights, Xenon Depot 6000k on passenger and Uxcell 6000k on driver side. As you can tell Uxcell are worthless



Same thing fog lights, Xenon Depot 6000k on passenger and Uxcell 6000k on driver side



Now fog lights only Xenon Depot 6000k on both sides



Same thing Xenon Depot 6000k led fog lights

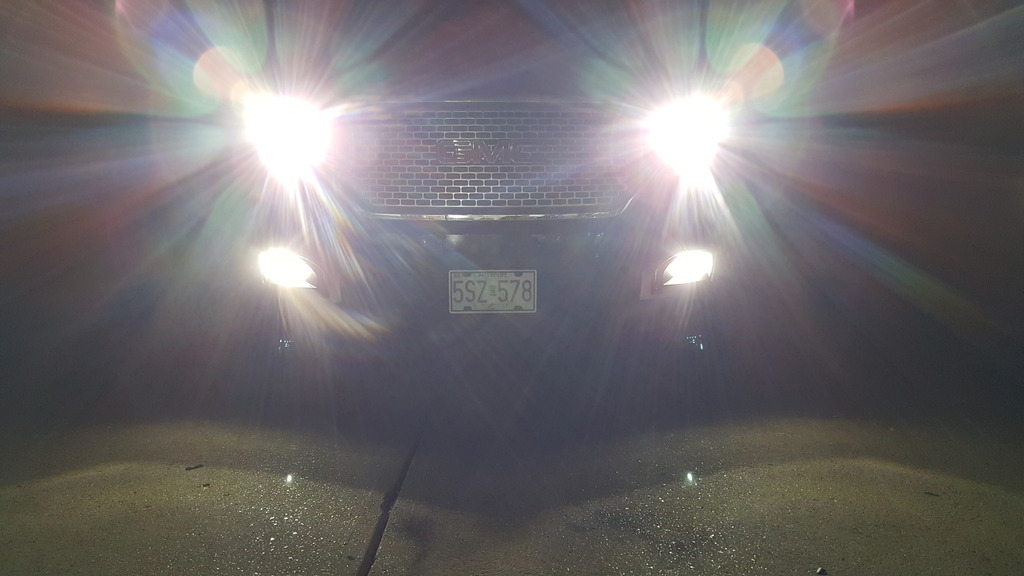

TRS D3S 5500k lows with Xenon Depot PSX26W 6000k Led fog lights



TRS D3S 5500k lows with Xenon Depot 6000k Led fogs



So if you gonna use OEM Osram D3S 4300-4650k low beam HID, use Xenon Depot 5000k PSX26W Led fog lights
If you using TRS D3S 5500k HIDs, use Xenon Depot 6000 PSX26W Led fof lights



[jenielsen]

Wow, that's some serious data. I also like how you modded the dust caps. I never thought of that back when I tried switching out the highs on mine. Still wish though that there was a way to get everything behind the dust cap so that all the connections were inside the housing.



[08HoeCD]

Interesting. Thanks for ajj the output photos.

In my humble opinion, the TRS units show superior beam pattern and cut-off; and keeping the temp to 5000K or lower seems to yield best (most useable) light output.



[Slow5.0]

Off topic

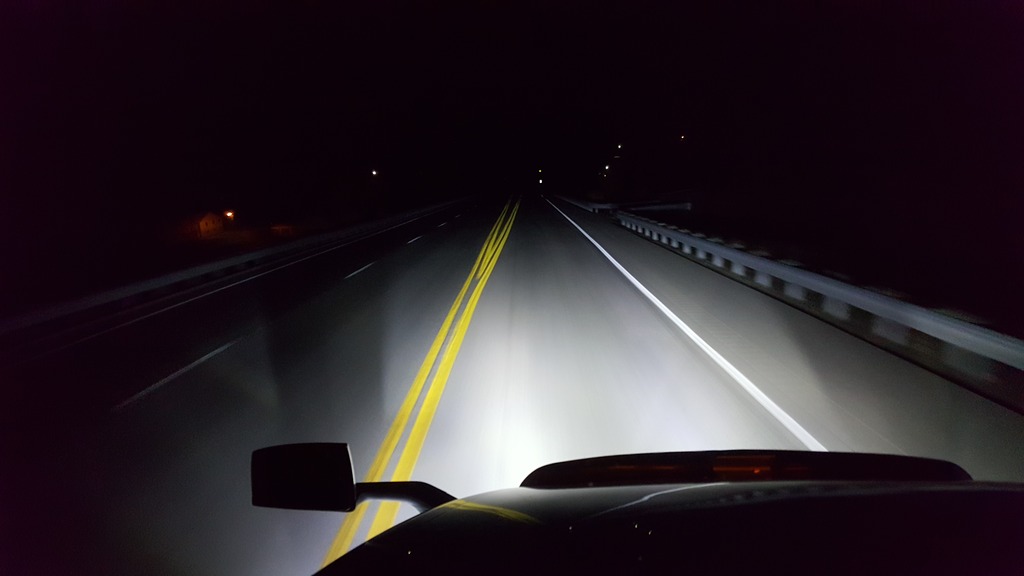

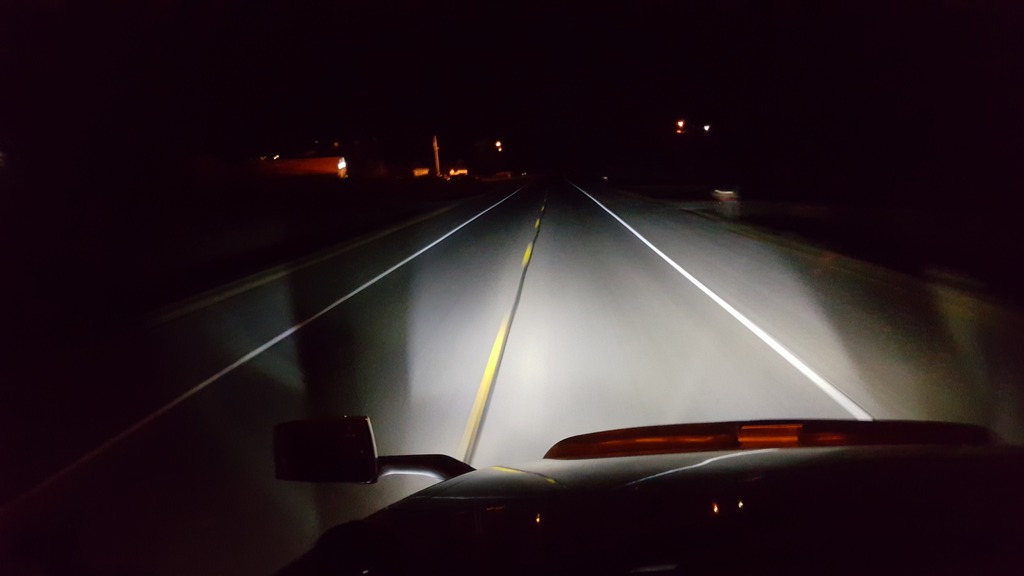

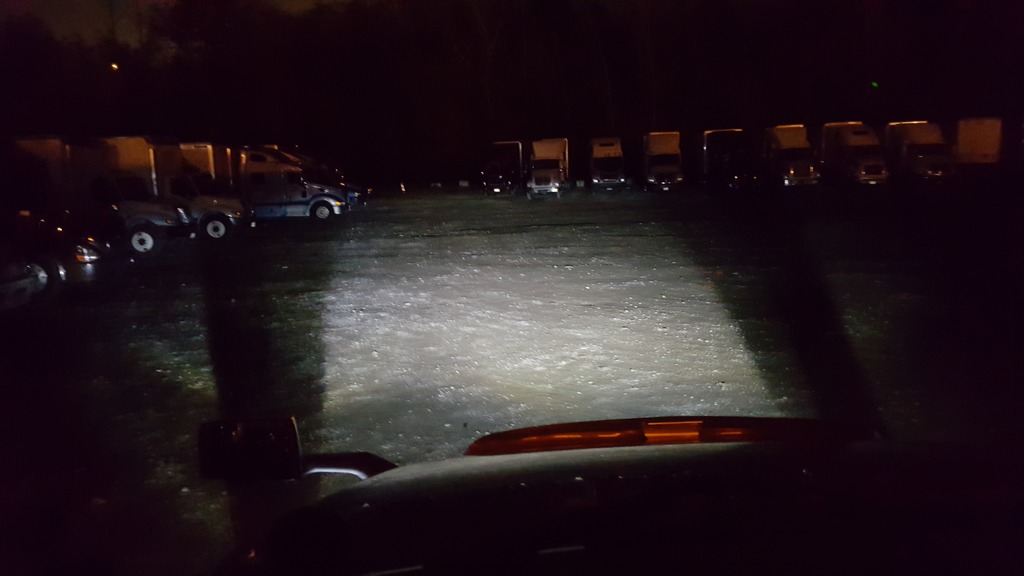

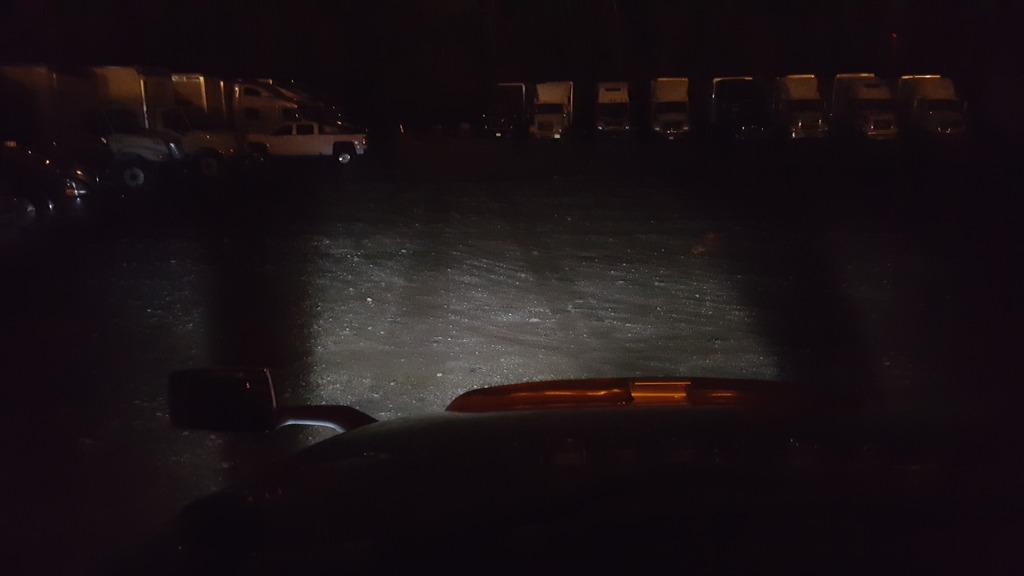

I just installed low beams H11 TRS 2Stroke led kit in wifes 09 Altima with reflector low beam housing. Boy its bright. Also bought Xenon Depot H11 led for fogs in 5000k. I may order H11 6000k leds for fogs for better low beam/fog light match

TRS H11 2Stroke 6000k led kit low beams with Xenon Depot H11 5000k led fogs




Halogen H11 low beams



TRS 2Stroke led kit H11 low beams



[Slow5.0]

A few more pics of Xenon Depot H11 5000k and 6000k led fog lights for better matching with TRS 2Stroke H11 led kit

5000k on driver side, 6000k on passanger side



6000k on both sides



So there you go. To me this TRS 2Stroke led kit is worth every penny. Color is abaut 5500k with hint of blue. I will use same kit to replace Hi power H11 led kit that i curently have in my Volvo 18 wheeler. I use to like HID in my cars and trucks but now im switching everithing to the led. I had good aftermarket HID in my semi and i was tired replacing ballasts and bulbs every 10-12 months since HID kits last 2000-2500 hrs or around 120k miles and i made that miles in 1 year but when HIDs are used in cars they will last lice time of that car. I like led kits since they last longer and they light up road nice
