Denali Cluster with Heads Up Display

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

cmatt

Full Access Member
Joined
Apr 29, 2009
Posts
601
Reaction score
646

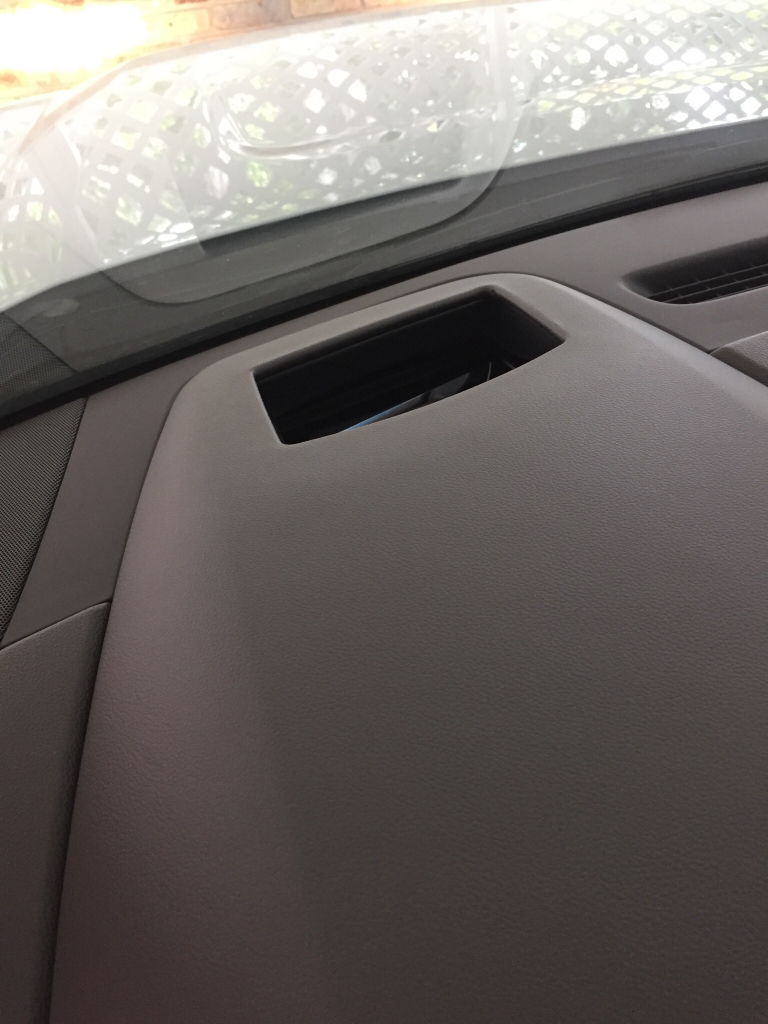

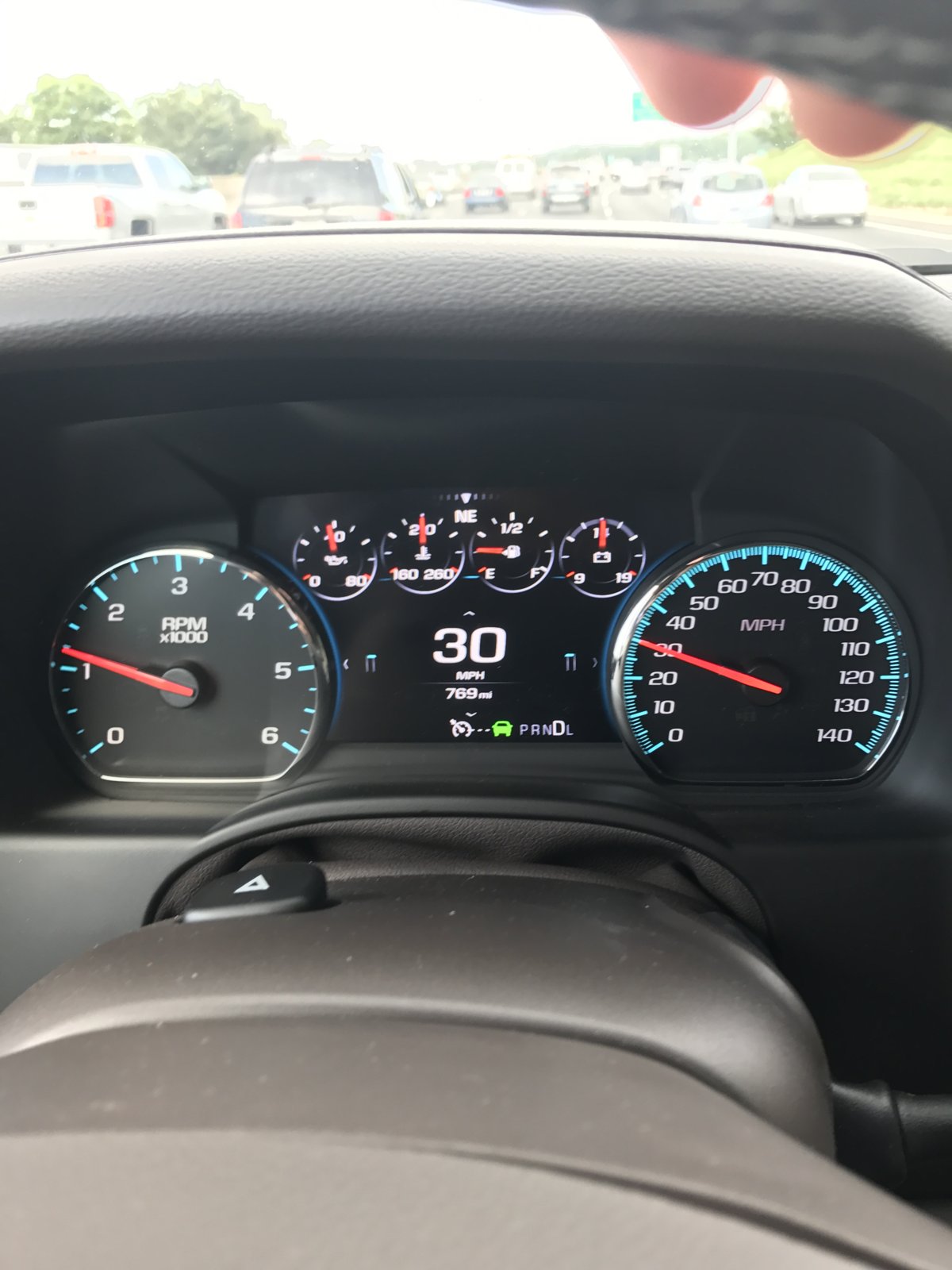

Installed a Yukon Denali cluster and HUD unit in my 2015.5 Yukon SLT this weekend. The cluster had to be programmed to my vehicle and to enable HUD functionality. I created a custom wiring harness as the only way to add those connections is through swapping the I/P harness. The rest was just swapping parts.






Sent from my iPad using Tapatalk


toi

Full Access Member
Joined
May 24, 2012
Posts
233
Reaction score
59
and now you see all the letters reflected double on your windshield because the units with hud come with different windhields...


MechEng813

Member
Joined
Jan 11, 2017
Posts
73
Reaction score
63
Nice work, lots of effort to get that in there.

I had a factory HUD in my Grand Prix and now my Yukon, but used a cheap OBD connected HUD in my Avalanche to get the speedo.

If the double image start to get to you, try one of these as a quick cheap solution.
Way cheaper than a new windshield and it really wasn't that horrible.

OP
OP
C

cmatt

Full Access Member
Joined
Apr 29, 2009
Posts
601
Reaction score
646
Thanks for the suggestion. I'll give it a try.


tomsquad418

Full Access Member
Joined
Jul 30, 2013
Posts
123
Reaction score
15
Installed a Yukon Denali cluster and HUD unit in my 2015.5 Yukon SLT this weekend. The cluster had to be programmed to my vehicle and to enable HUD functionality. I created a custom wiring harness as the only way to add those connections is through swapping the I/P harness. The rest was just swapping parts.






Sent from my iPad using Tapatalk
Would it be possible to do this in my 2015 Tahoe ltz? Can a custom wiring harness be made??


Qlassic418

Member
Joined
Apr 20, 2017
Posts
73
Reaction score
14
Can i replace the cluster only
I like the one from the denali and i found one with the same mileage for $150


tomsquad418

Full Access Member
Joined
Jul 30, 2013
Posts
123
Reaction score
15
Installed a Yukon Denali cluster and HUD unit in my 2015.5 Yukon SLT this weekend. The cluster had to be programmed to my vehicle and to enable HUD functionality. I created a custom wiring harness as the only way to add those connections is through swapping the I/P harness. The rest was just swapping parts.






Sent from my iPad using Tapatalk
In looking to do this on my Tahoe would you be able to create a custom wiring harness? How involved was it? Something I'd be able to do or a local shop or you for some extra bones? Been dying to add hud and swap the cluster out!
