Cabin filter retrofit?

[SnowDrifter]

Does anyone have a source for a guide or some images so I can get a visual idea of what I'd be doing? The ones I've found used photobucket as their hosting site and are unviewable



[Doubeleive]

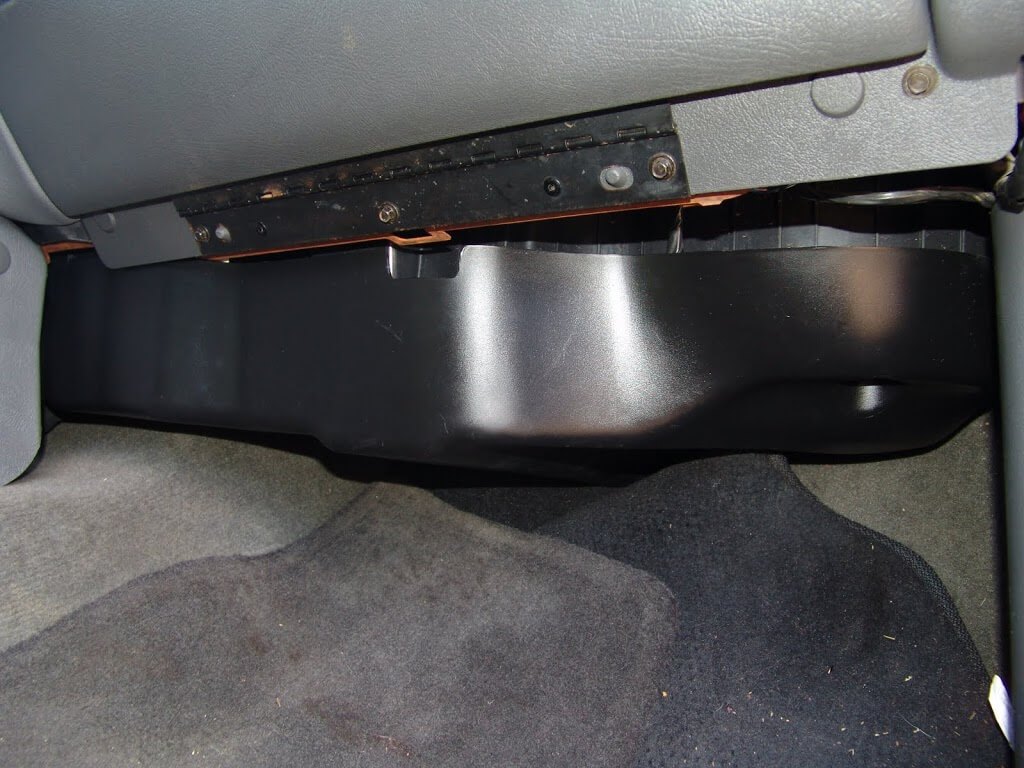

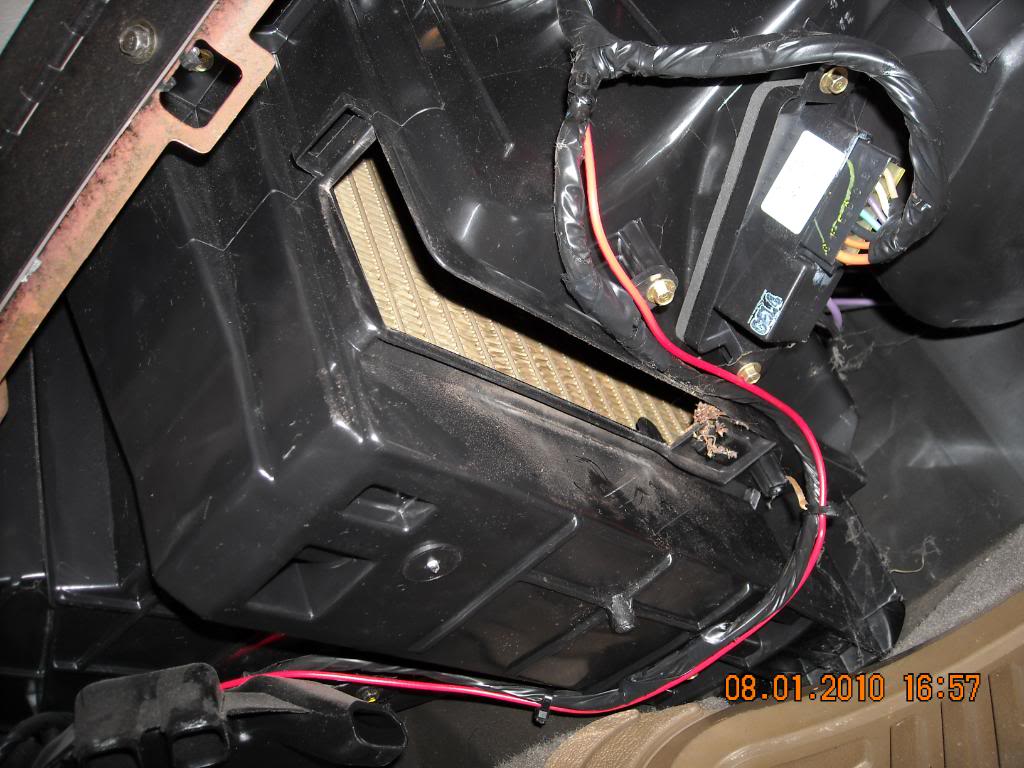

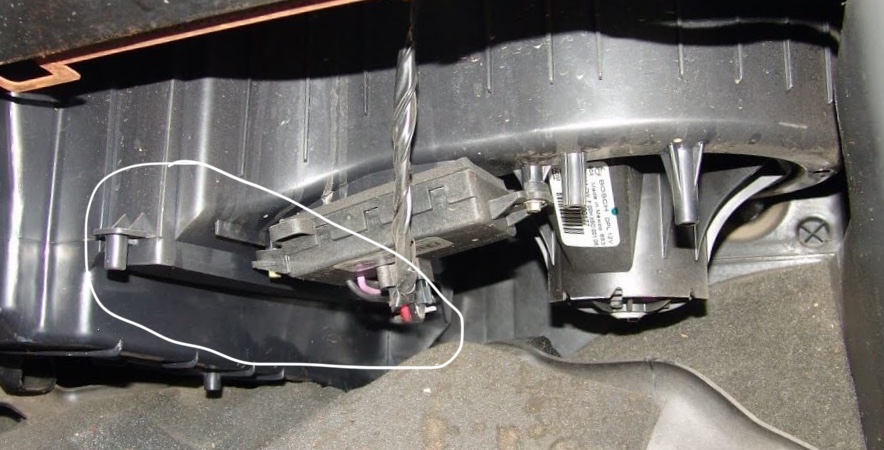

Here ya go, only difference is your going to cut that slot open instead.



[SnowDrifter]

Thank you much

Can anyone confirm if I need the straight bracket or L bracket to seal and retain the filter?

https://www.gmpartsgiant.com/parts/gm-cover-52494070.html



[PG01]

Thank you much

Can anyone confirm if I need the straight bracket or L bracket to seal and retain the filter?

https://www.gmpartsgiant.com/parts/gm-cover-52494070.html

07-14 or 06-14 def straight. 00-05 are L



[swathdiver]

GM = 22759208 OR Dorman = 259-201

Everything you need. These use 1 filter so you make a full length cut. Some aftermarket or homemade ones cut halfway and use two filters.

I have a great pdf if you want, send me an email.



[SnowDrifter]

Thanks for the info guys. Any interest if I were to do a little writeup on it?



[95escahoe]

Thanks for the info guys. Any interest if I were to do a little writeup on it?

I’d be interested might do this to my truck


Sent from my iPhone using Tapatalk



[swathdiver]

I reckon the more the merrier. We've done ours already.



[Doubeleive]

my kit is sitting in the box in living room, lol I've had 5 kids here the past week no time to do it yet



[PG01]

Thanks for the info guys. Any interest if I were to do a little writeup on it?

There are a few but have at it!
