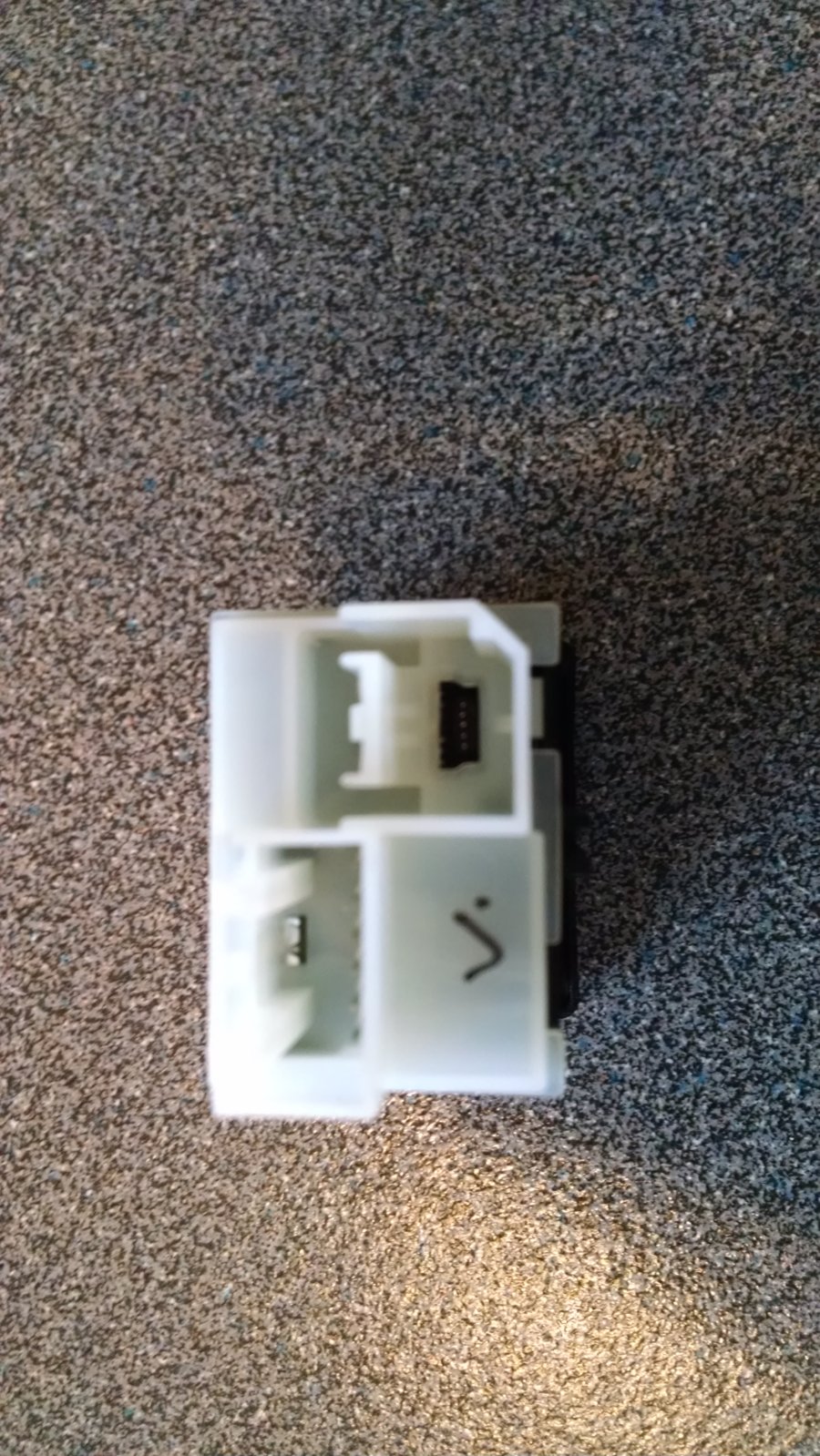

I bought this "14-15 FACTORY OEM GM CENTER CONSOLE USB PORT DOUBLE USB MINI PORT AND SD CARD" (I'll attach some pictures.
It has an aux port, two USB ports, an SD card reader and an extra mini USB port in the back. I tried connecting it with the USB port in the back, and of course that didn't work. However, there are 6 pins, next to the USB port in the back. I took the thing apart, to see what's in there, and I am pretty sure it is just a 'regular' 2.0 USB hub, The six pins, I am pretty sure are 4 USB pins and 2 "aux" pins (audio style probably).
The USB of the radio, is regular USB (not just for power, charging). It does accept one of these small USB "port hubs" that are powered through the USB connector, and all the hubbed ports work. It also seems to see a regular USB SD reader, it sees the disc (but complains it didn't recognize the format of it, probably because I formatted wrong).
btw: I found out that a lot of the later model "basic"radios, also have a USB port, so adding ports (into a aftermarket center console) would work with these radios in our SSVs and PPVs too
Long story short... Does anyone know what the pinout is on these connectors? (color of the wires typically would give away that secret, USB typically is red/black/green/white, red power, black ground, green data, white data ground.)
Once I know the pinout, it's easy to build a connector for it.)
(Someone knowing the pinout is probably a long shot, if I figure it out, I'll post it here.)
Also, what format do drives need to be for a Navigation radio to recognize them?
Ron
