2016 Suburban LT Fog Lamps install with OEM switch

[TaBro]

Tabro,

Did anyone ever answer regarding how the 4 (four) DEI 611t switches should be set??

No not yet..

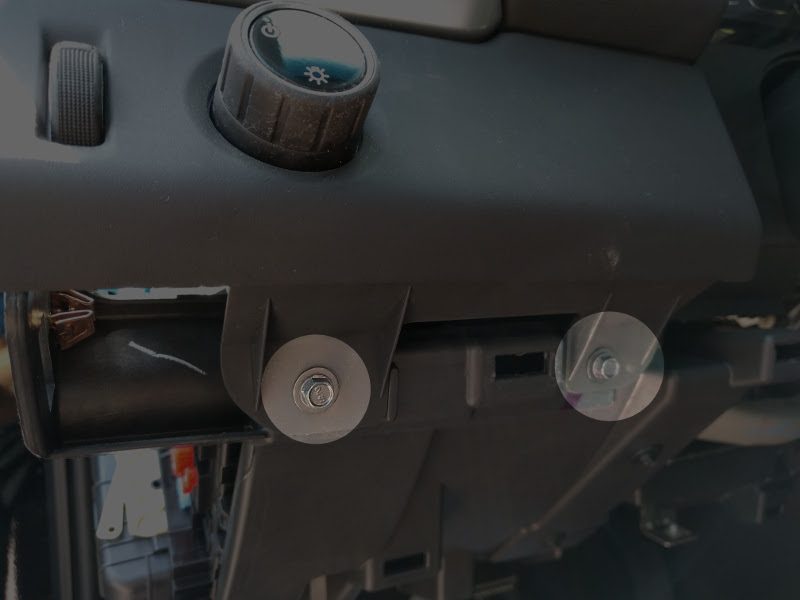

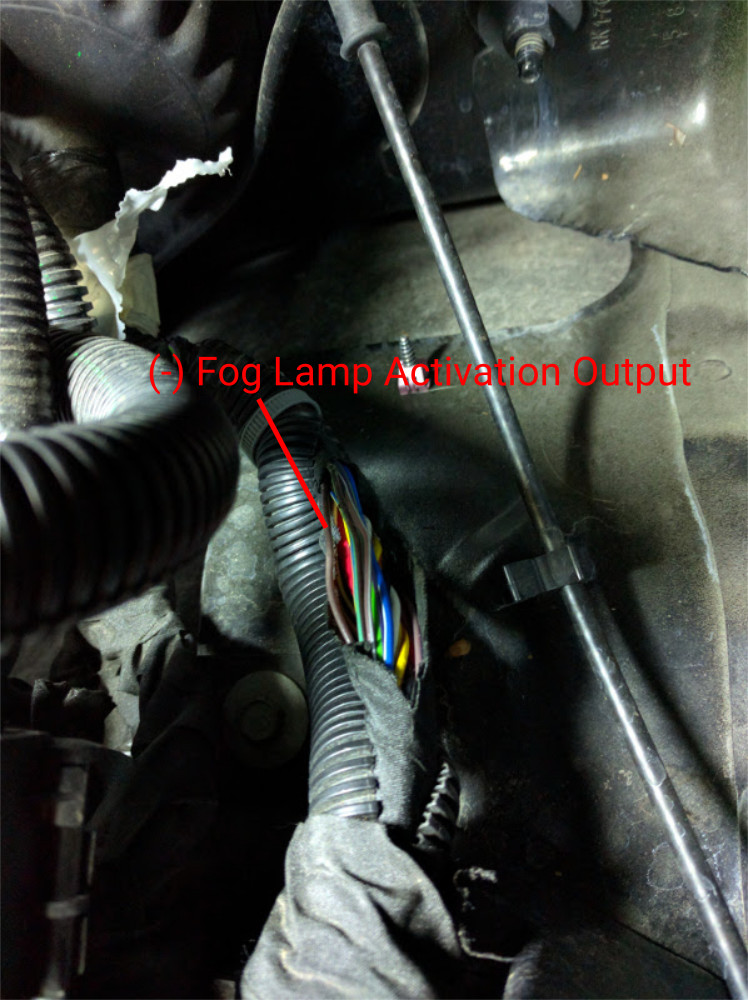

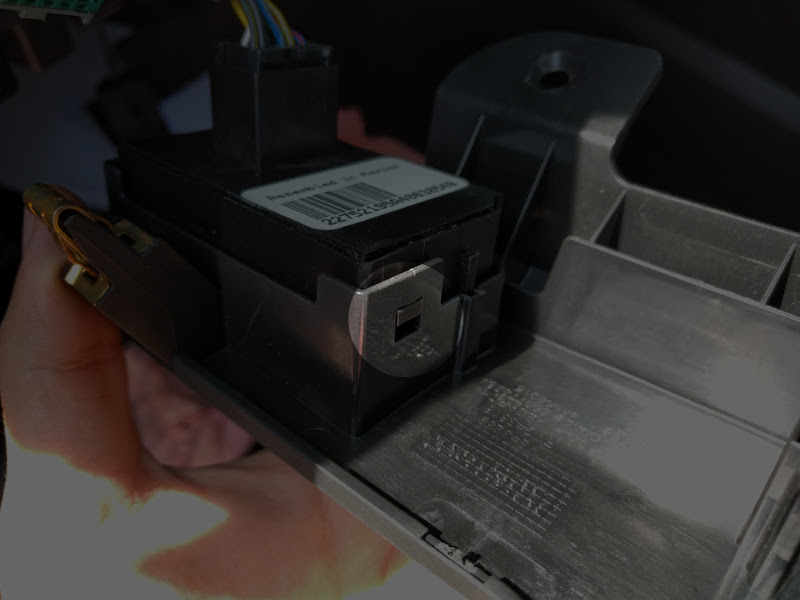

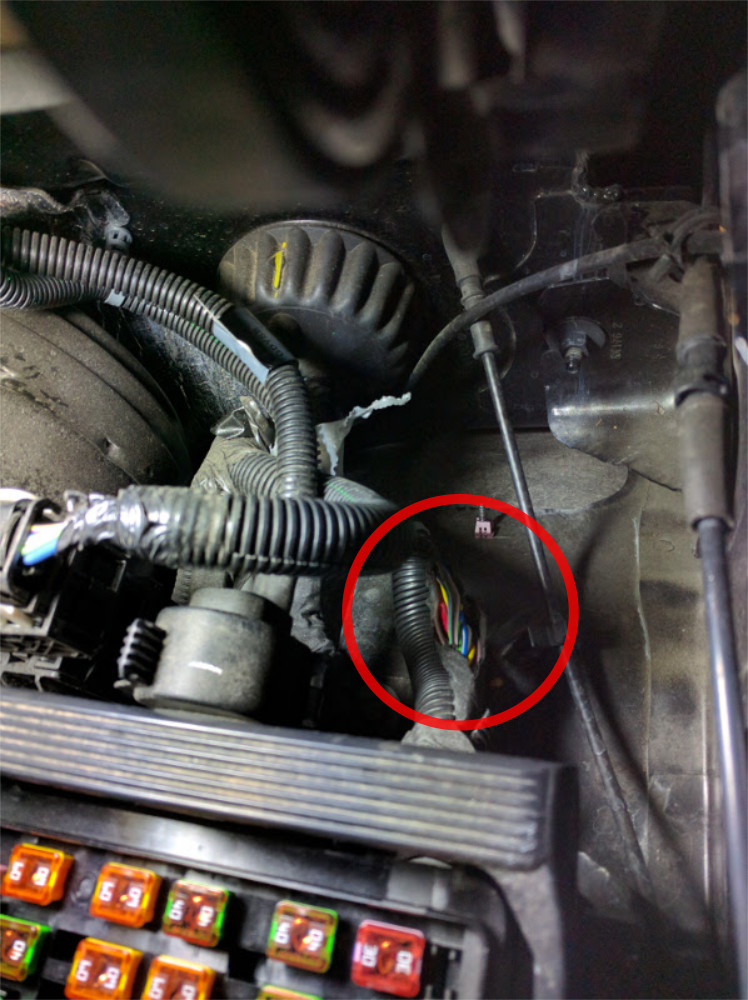

But figured out that I had the wrong fog lamp activation wire under the hood- I didnt realize I was suppose to locate a brown wire going Thru the firewall and into the fuse box. That being said after correcting the mistake - they still don't work



[awz26]

No not yet..

But figured out that I had the wrong fog lamp activation wire under the hood- I didnt realize I was suppose to locate a brown wire going Thru the firewall and into the fuse box. That being said after correcting the mistake - they still don't work

No not yet..

But figured out that I had the wrong fog lamp activation wire under the hood- I didnt realize I was suppose to locate a brown wire going Thru the firewall and into the fuse box. That being said after correcting the mistake - they still don't work



[awz26]

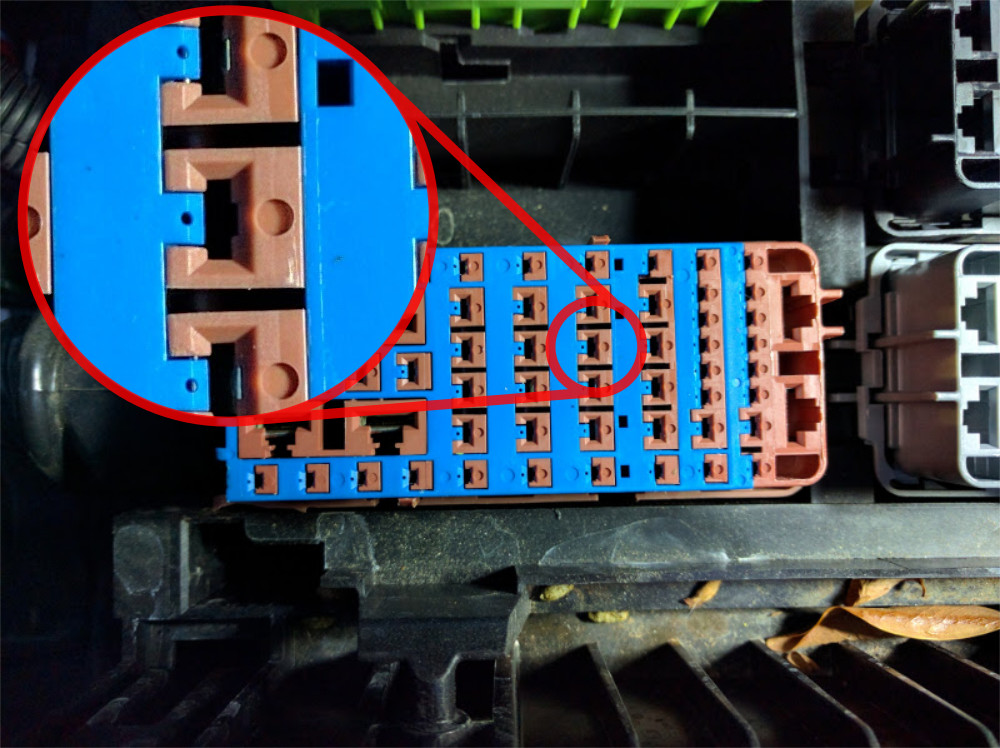

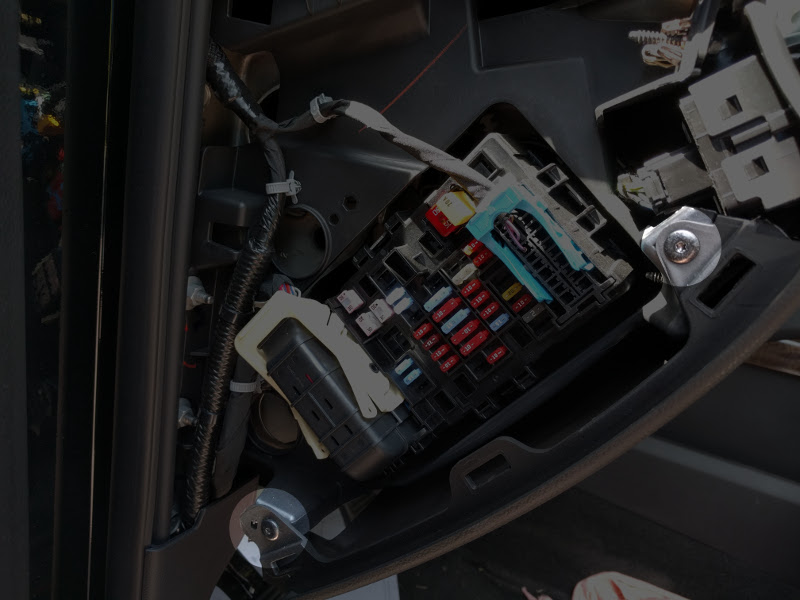

How did you conect the brown wire at the fuse box?



[TaBro]

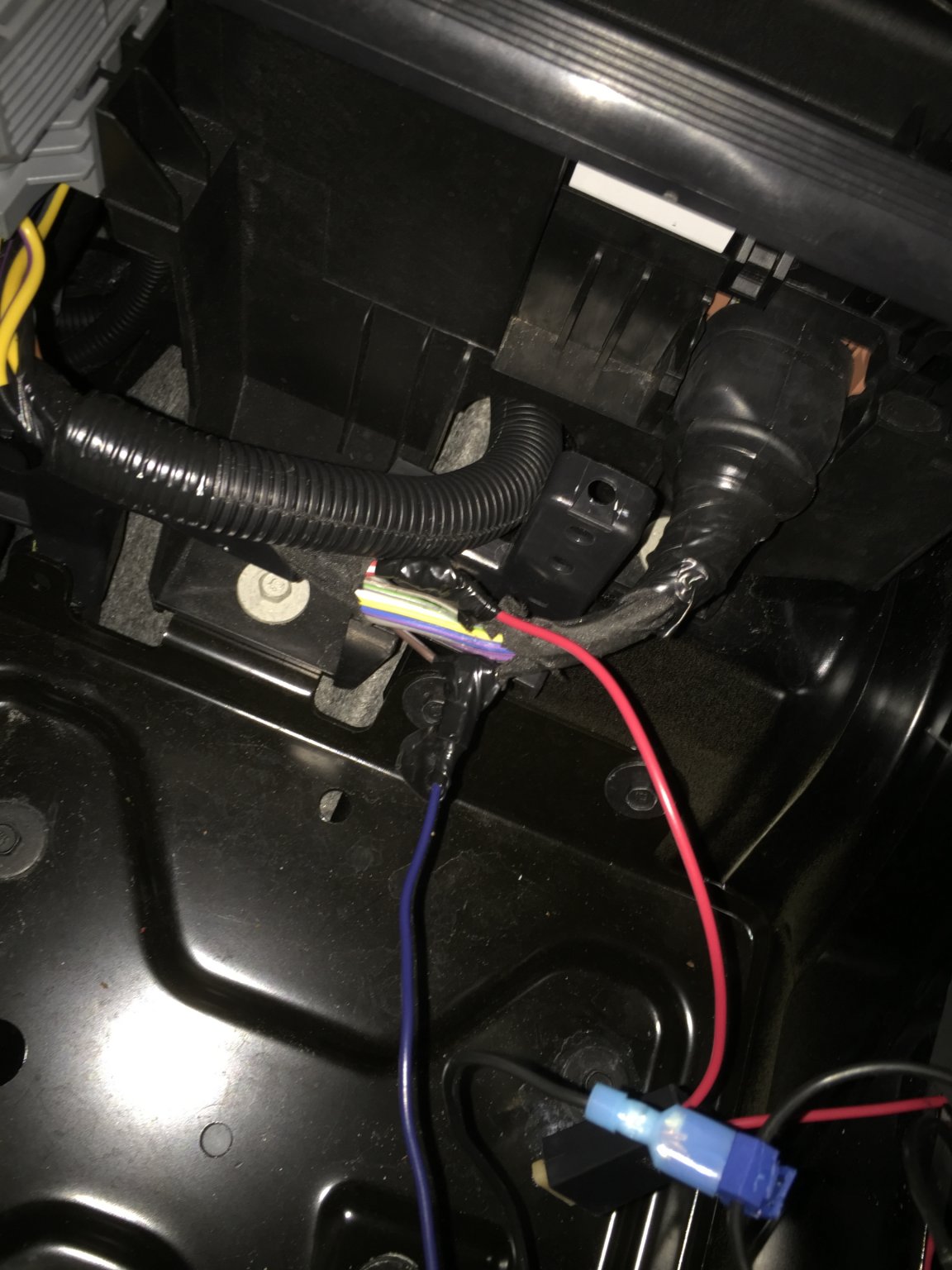

http://www.tahoeyukonforum.com/attachments/img_5631-jpg.69249/

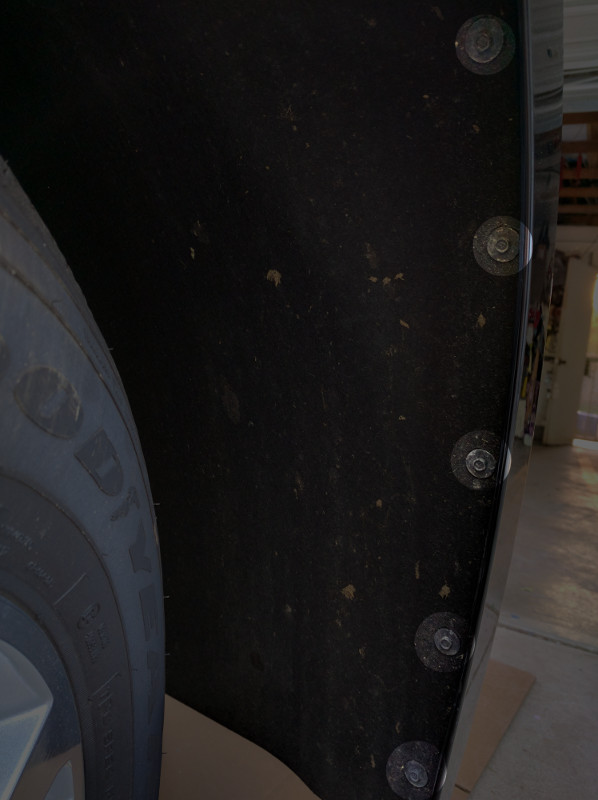

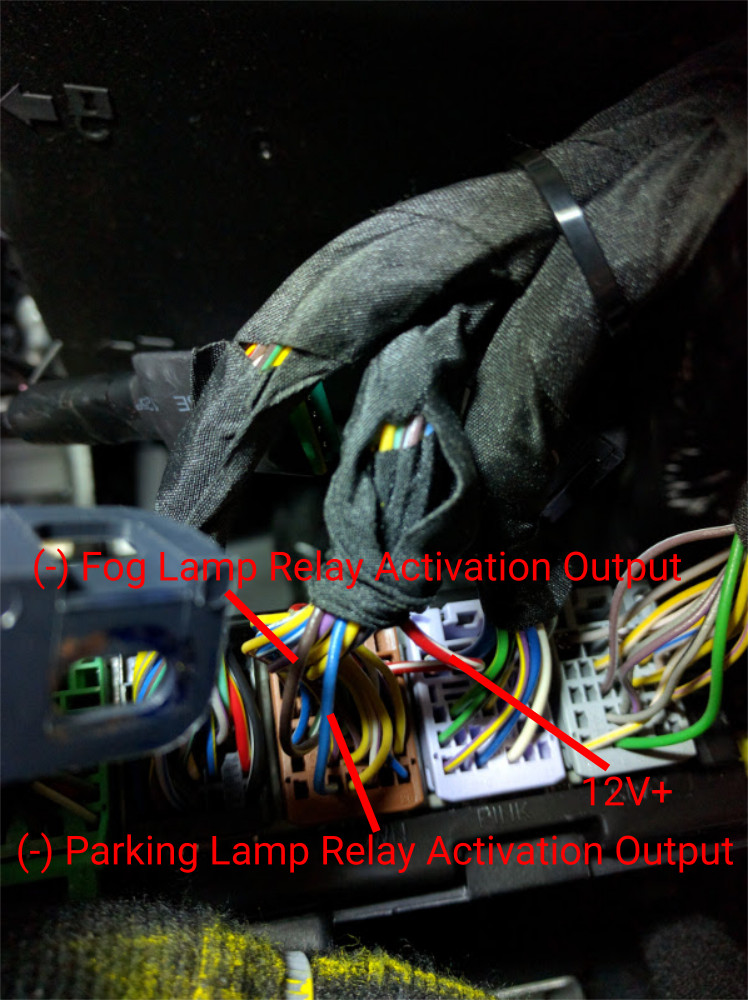

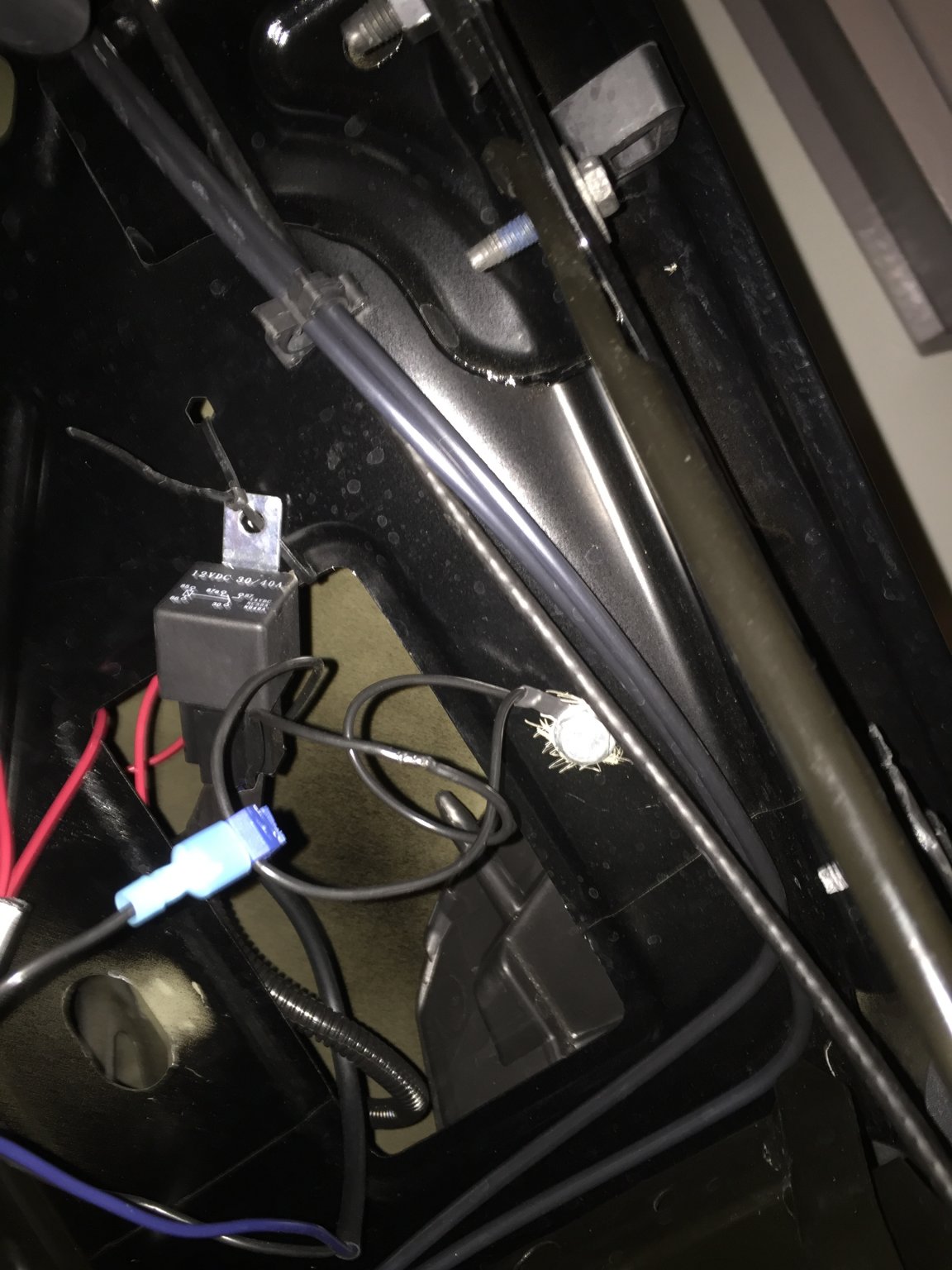

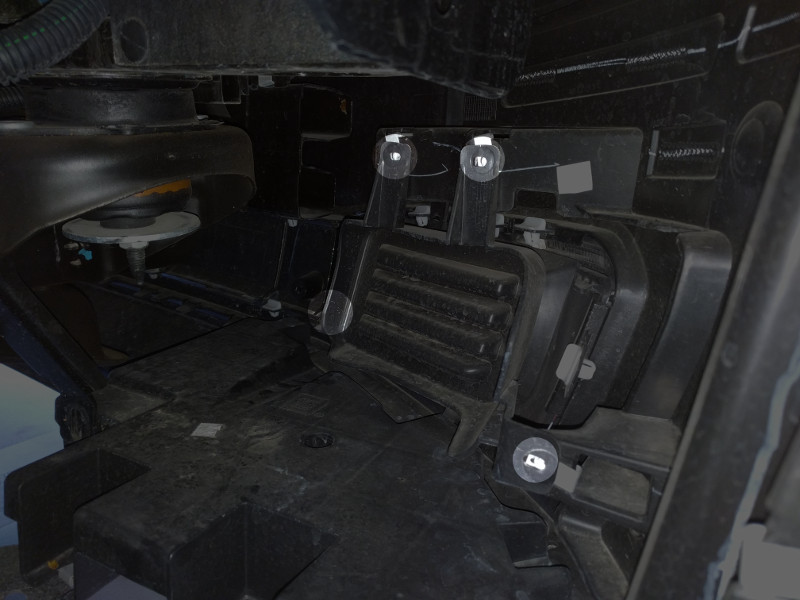

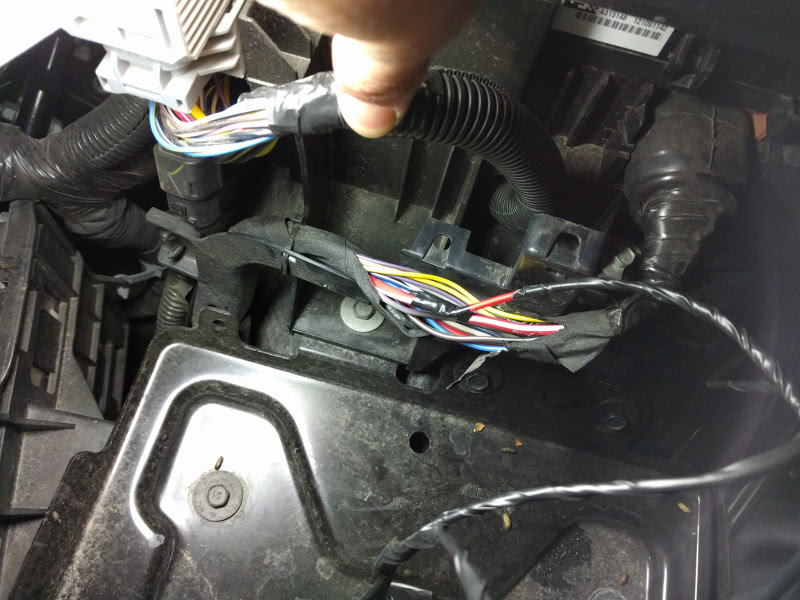

The same way I initially connected this blue wire incorrectly to the brown and white wire (which turned out to be the horn) that's in the same bundle as the 12+ source



[awz26]

http://www.tahoeyukonforum.com/attachments/img_5631-jpg.69249/

The same way I initially connected this blue wire incorrectly to the brown and white wire (which turned out to be the horn) that's in the same bundle as the 12+ source

Tabro,

Out of curiosity what settings did you end up using initially for the four ON/OFF switches on the DEI 611T?



[TaBro]

Tabro,

Out of curiosity what settings did you end up using initially for the four ON/OFF switches on the DEI 611T?

I believe 1 up 2/3/4 down. But I tried all different combinations and nothing seemed to make a difference.



[OxF16]

any updates?



[nilleo]

Sorry, I didn't see any replies until this morning.

Dip switches should be set as follows:
1 - Doesn't matter
2 - OFF, Normally Open (default)
3 - OFF, Latched (default)
4 - ON, (-) input (default)

so basically, leave them alone.

The dial also doesn't apply here since it's only used when dip 3 is ON, same reason dip 1 doesn't apply.



[OxF16]

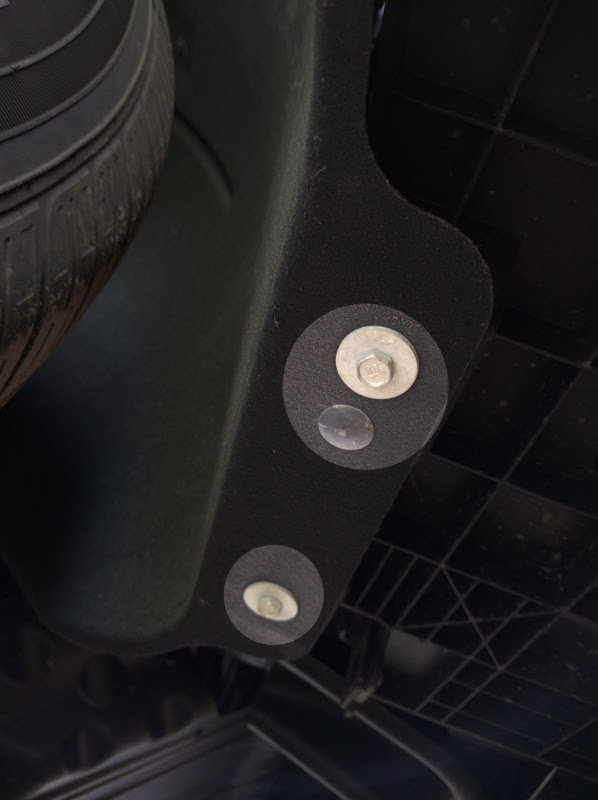

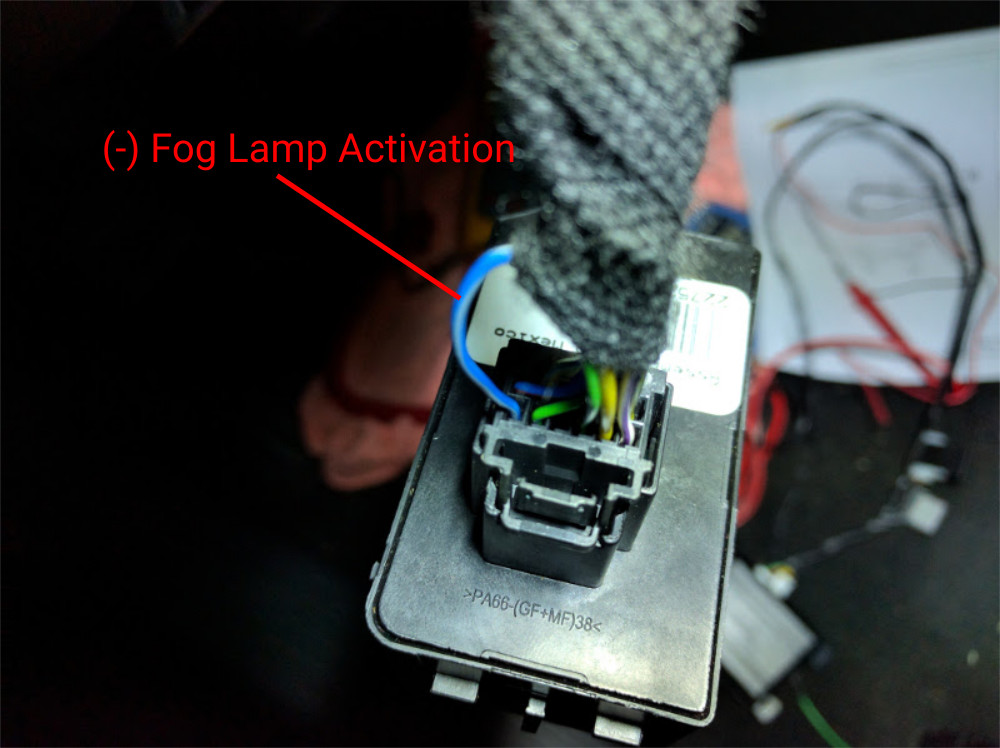

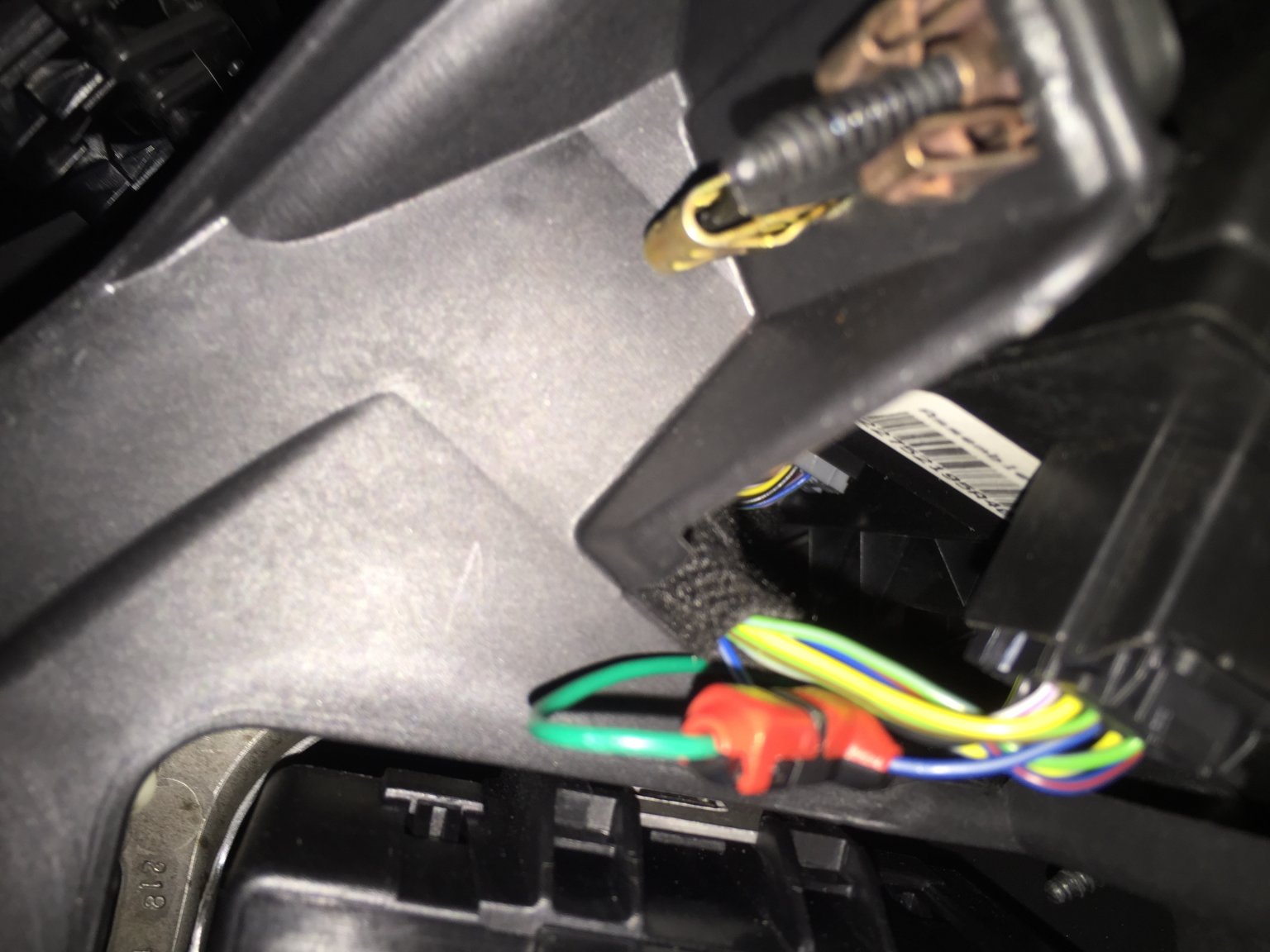

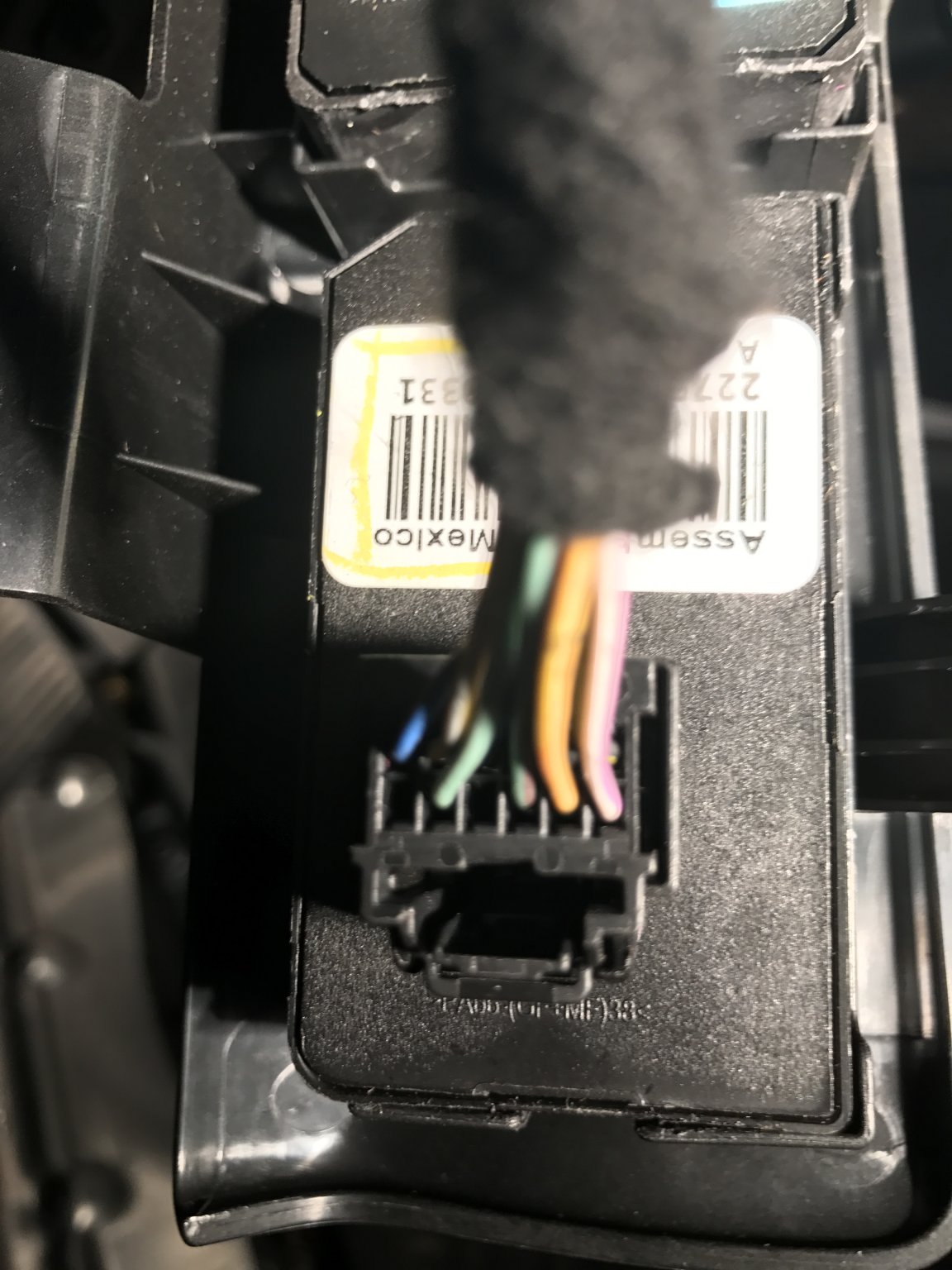

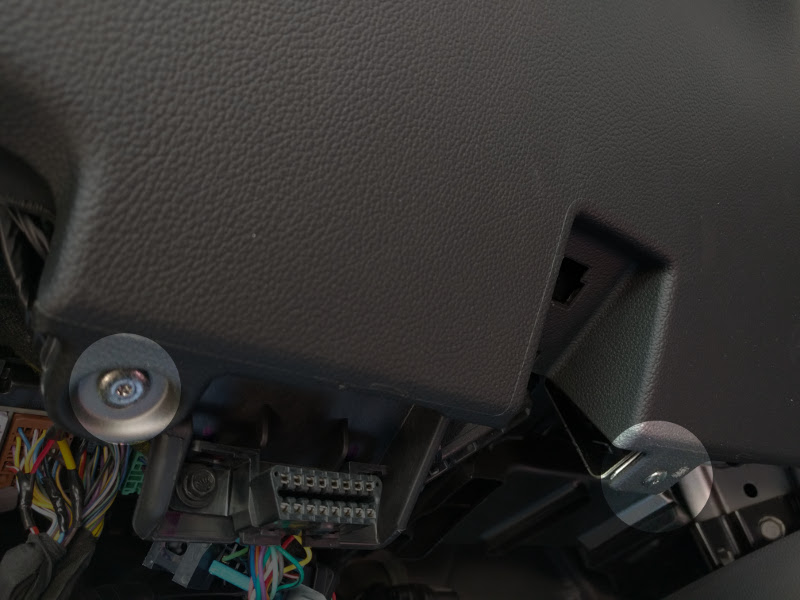

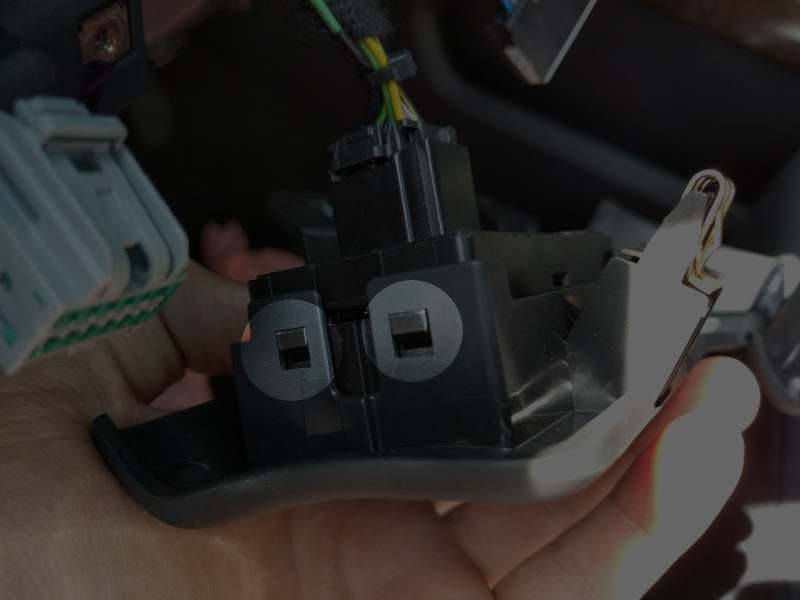

I started this project today, and I have noticed that although I DO have a Blue w/Grey wire behind the headlight switch, it is not PIN 6, i.e. just left of the green wire as shown in the original pics. Mine is a '16 LT



[nilleo]

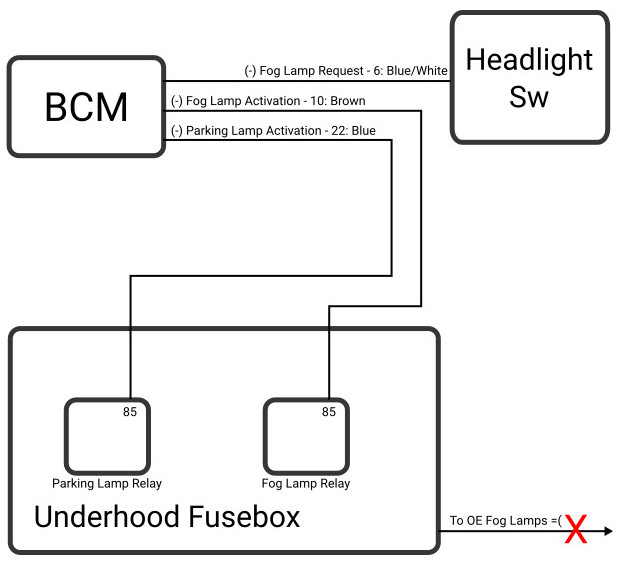

0xF16, I would say meter it and see if it tests the same. From the schematics, I see that there are two Blue/Gray wires for the fog lamp circuit, one in pin 6, the other in pin 10. FWIW, pin 6 goes to pin 12 of the BCM and pin 10 goes to pin 15 of the BCM (both wires/pins in connector X1 of the BCM). My guess is that one Blue/Gray is for "front" fogs, and the other is for "rear" fogs--but both likely test the same--when you press the fog switch in.

Semantics-wise, pin 6 appears to be the rear fog lamp request, pin 10 appears to be the front lamp request--but both appear to be closed by the same button press ¯\_(ツ)_/¯.
