01 Cabin Air Filter Swap

[cnatalie]

01 Cabin Filter Install

Alright, this is the 1st time I remembered to take pics as I did something to my truck. I found that this replacement is super easy. $16 at AutoZone and a ratchet. 1) remove the 3 screws holding the cover under the dash (above the pass. feet). 2) remove the screw holding on the cover to the cabin air filter. 3) replace the dirty filter with a clean filter. 4) put it back together. Very easy!

There are a couple of different filters you can get (carbon filter, paper filter, etc.) I went with the paper because it was cheaper but wondered if I would have smelled as many skunks on my last trip to Arkansas if I would have gone with the carbon. Dunno.

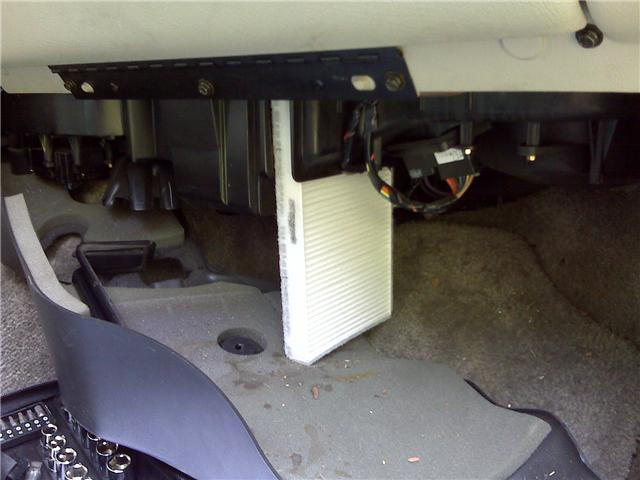

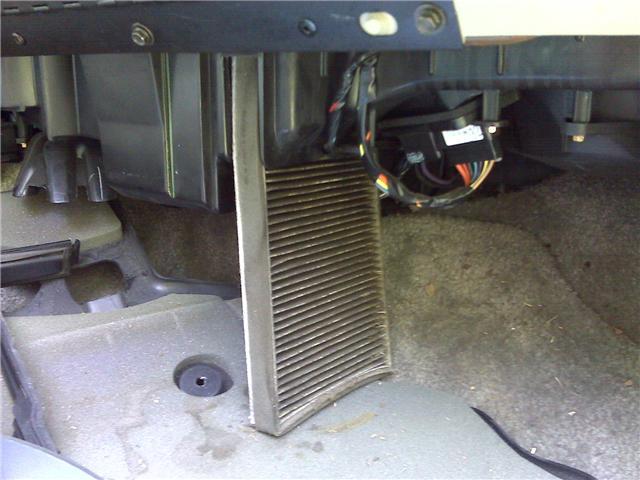

Anywho, here's the pics.



[BOSS]

Great post bro, thanks for that. I have an 02 and replaced mine and the only issue I had was that I couldn't figure out which direction the air flows? Do you know?


B



[BlizzardX23]

...huh? what and where is the cabin filter in the NBS style?

good post cnatalie



[BOSS]

...huh? what and where is the cabin filter in the NBS style?

good post cnatalie

I think they stopped putting them in on the 03 and up models? Can someone confirm that please


BOSS



[JKmotorsports]

... I couldn't figure out which direction the air flows? Do you know?


B

From passeger side to driver side.



[JKmotorsports]

I think they stopped putting them in on the 03 and up models? Can someone confirm that please


BOSS

Yes sir. 02 was the last year.



[BlizzardX23]

damnit! why did they decide we dont need filters to help with our health anymore? lol....



[BOSS]

where? I cant find it

The panel is under your glove box. The little screws are a pain in the butt too lol!


B



[cnatalie]

Totally dropped this thread in the wrong spot. Sorry, but I'm glad it seems to have help some people.



[JKmotorsports]

Totally dropped this thread in the wrong spot. Sorry, but I'm glad it seems to have help some people.

No worries. I'll take care of it. Thanks for the post.
